3DR Solo Quadcopter with 3-Axis Gimbal

Search your instruction manual in PDF to download

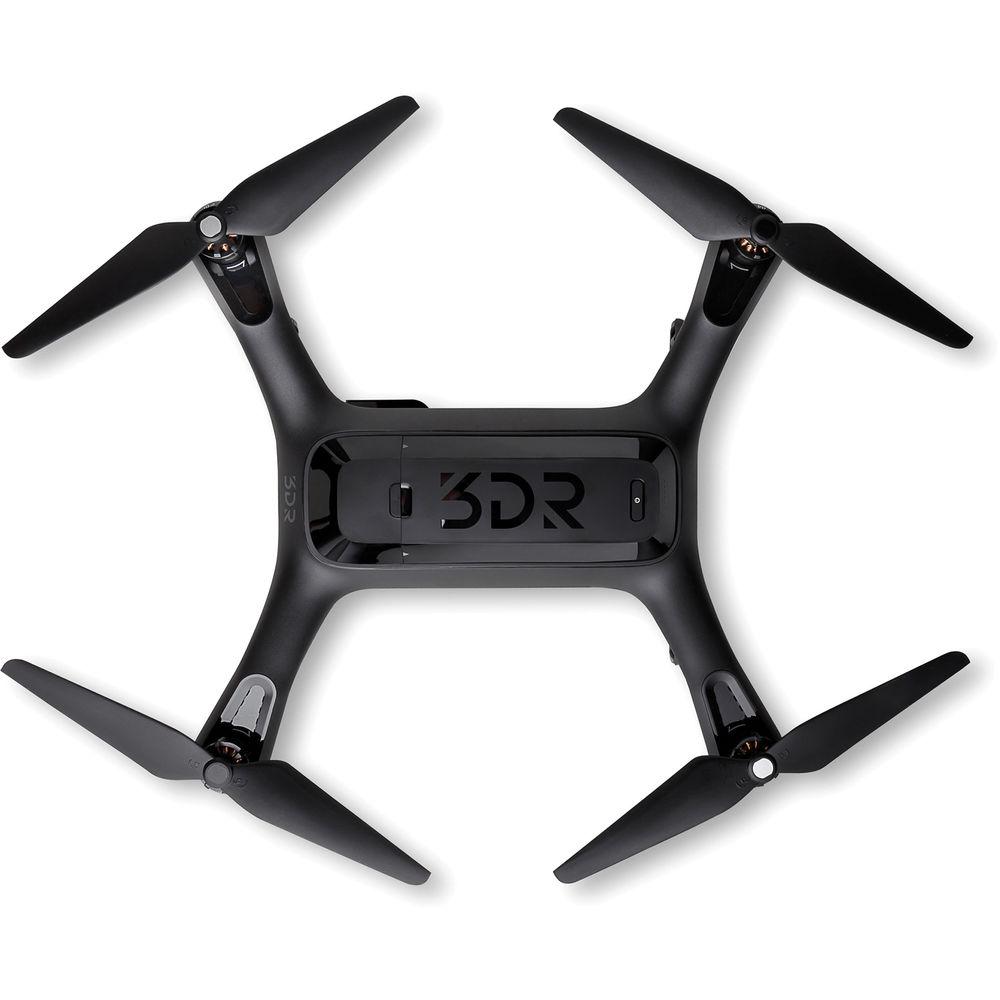

User Manual for 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4

Click to enlarge the picture
3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4 Contents of the user manual for the 3DR Solo Quadcopter with 3-Axis Gimbal
  • Product category: See All Drones 3DR
  • Brand: 3DR
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for 3DR See All Drones

3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4
User manual for the 3DR Solo Quadcopter with 3-Axis Gimbal contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any 3DR product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official 3DR user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a 3DR product will considerably shorten its lifespan!



Product description

Aerial Photography and Drone Glossary Read More Designed from the ground up as a companion to the GoPro HERO, the Solo Quadcopter with Gimbal from 3D Robotics features aerial imaging-specific flight modes, including Cablecam mode and Follow Me. A quad-rotor configuration, flight stability and autonomous flying are enabled thanks to a twin computer flight control system. The flight controller relies on GPS for navigational coordinates and uses data from gyros, accelerators, and other sensors to keep the aircraft safely flying. The Solo includes the Solo Gimbal, a 3-axis stabilizer compatible with a GoPro HERO3+ or HERO4 action camera.

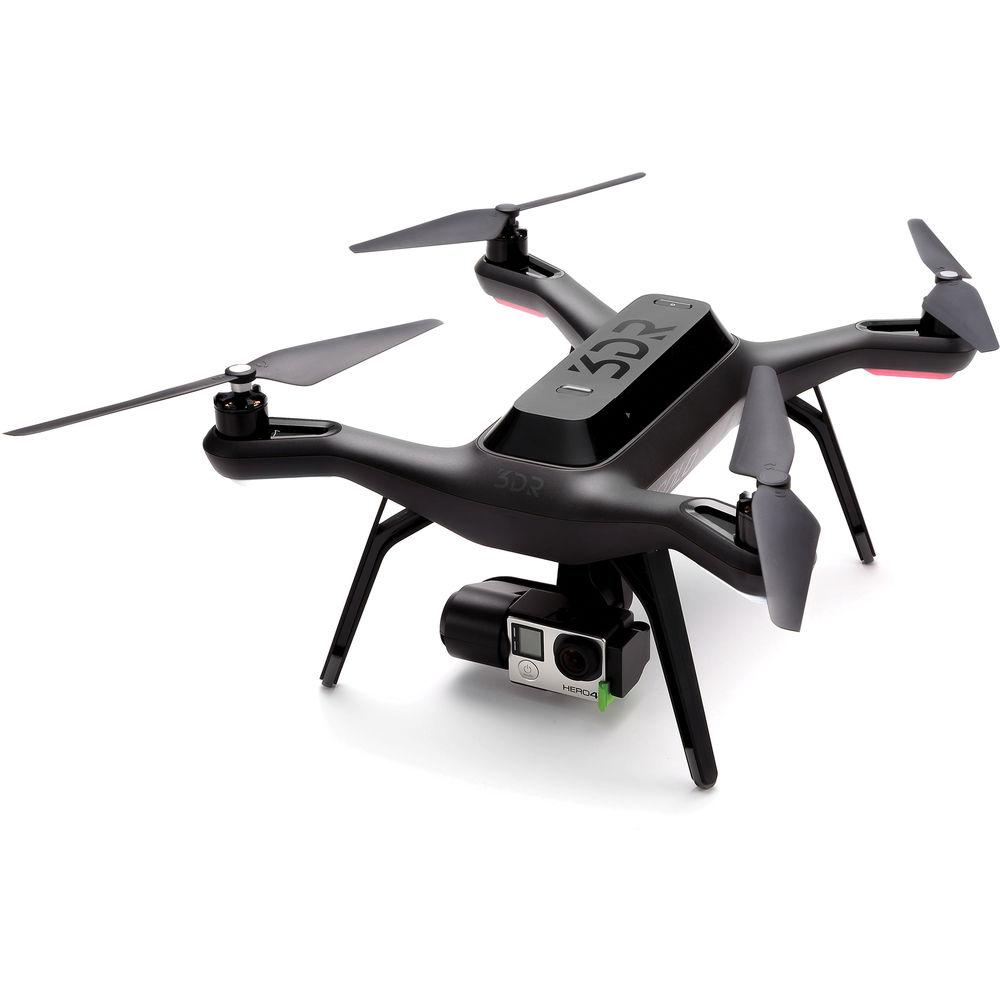

  • Solo Quadcopter (No Gimbal) Designed from the ground up as a companion to the GoPro HERO, the Solo Quadcopter from 3D Robotics features aerial imaging-specific flight modes including Cablecam mode and Follow Me. A quad-rotor configuration, flight stability and autonomous flying are enabled thanks to a twin computer flight control system. The flight controller relies on GPS for navigational coordinates, plus uses data from gyros, accelerators, and other sensors to keep the aircraft safely flying. The Solo is designed to be paired with the separately available Solo Gimbal, a 3-axis stabilizer compatible with the a GoPro HERO3+ or HERO4 action camera.

    This is a ready-to-fly bundle, featuring a pre-bound transmitter (radio controller) that has been styled after a video game controller for more intuitive operation. In addition to dual joysticks for flying, it features dedicated dials for operating the optional Solo Gimbal. In addition to the transmitter, there is a mobile app for iOS and Android devices. The app provides full control over the aircraft, gimbal, and even the GoPro itself. A mount is provided so that you can mount your smartphone or tablet up to 8" directly to the transmitter.

    A flight battery providing up to 25 minutes flying time as well as a charger are included. In addition, the included transmitter features its own dedicated battery.

    "Smart Shot" Aerial Video Flight Modes

      Cablecam
    • Lock the Solo onto a virtual cable between any two points in space - even at different altitudes. This allows you to create a linear tracking shot with the ability to pan and tilt the camera freely. Any deviation from the "cable" is automatically prevented. Additionally, the Solo can memorize your first and last frames and pan the camera between them - all you have to do is use one stick on the controller to move Solo up and down the cable
      Orbit
    • The Solo can automatically circle any subject of your choosing, keeping the camera pointed at the subject to capture an iconic "wrap-around" shot. You can adjust the circle's radius to get the exact frame you want, even midflight
      Selfie
    • With one touch Solo will fly up and away from you, keeping the camera centered on you so the scenery around you expands in a dramatic aerial pullout shot
      Follow Me
    • In this mode the Solo with track a GPS-enabled mobile device. It can follow from behind, stay beside the subject, or fly ahead with the camera looking back

    Dual Computer Flight Control System

      • The flight control system incorporates two computers, enabling advanced autonomous flying features such as Cable Cam and Follow Me. Additionally, splitting up the work across two computers reduces the likelihood of mechanical failure in flight for an even safer flying experience
        One-Button Flying
      • Take off, land, and return home automatically. And if you panic, don't worry: There's the "pause" button - much like a video game
        Pause
      • If you need to release the controls for a moment or wish to capture a static shot, simply press the "Pause" button for the Solo to hold in a fixed hover. When you're ready, just press "Pause" again to resume flying
        Safety Net
      • This flying mode limits the range and altitude the Solo can fly. Typically, the maximum flight ceiling is restricted to less than 400' and the aircraft is limited to flying within a user-specified radius

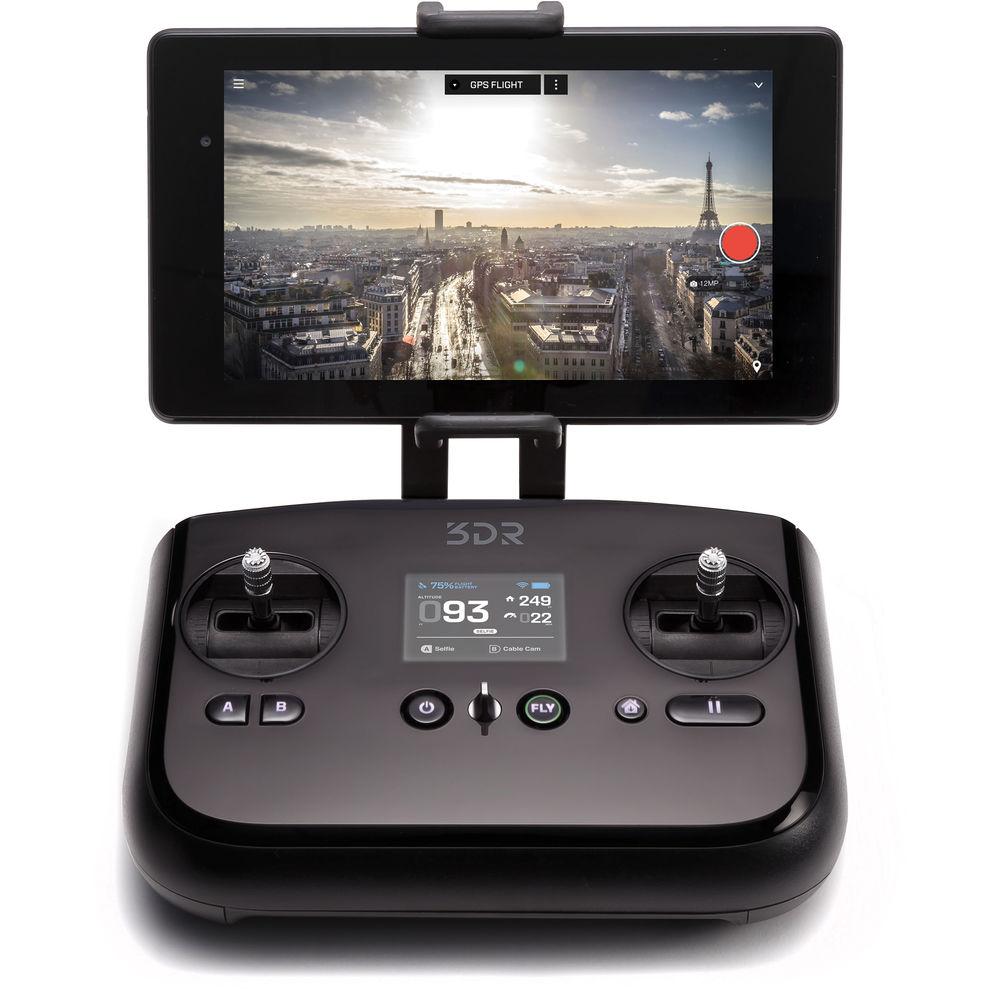

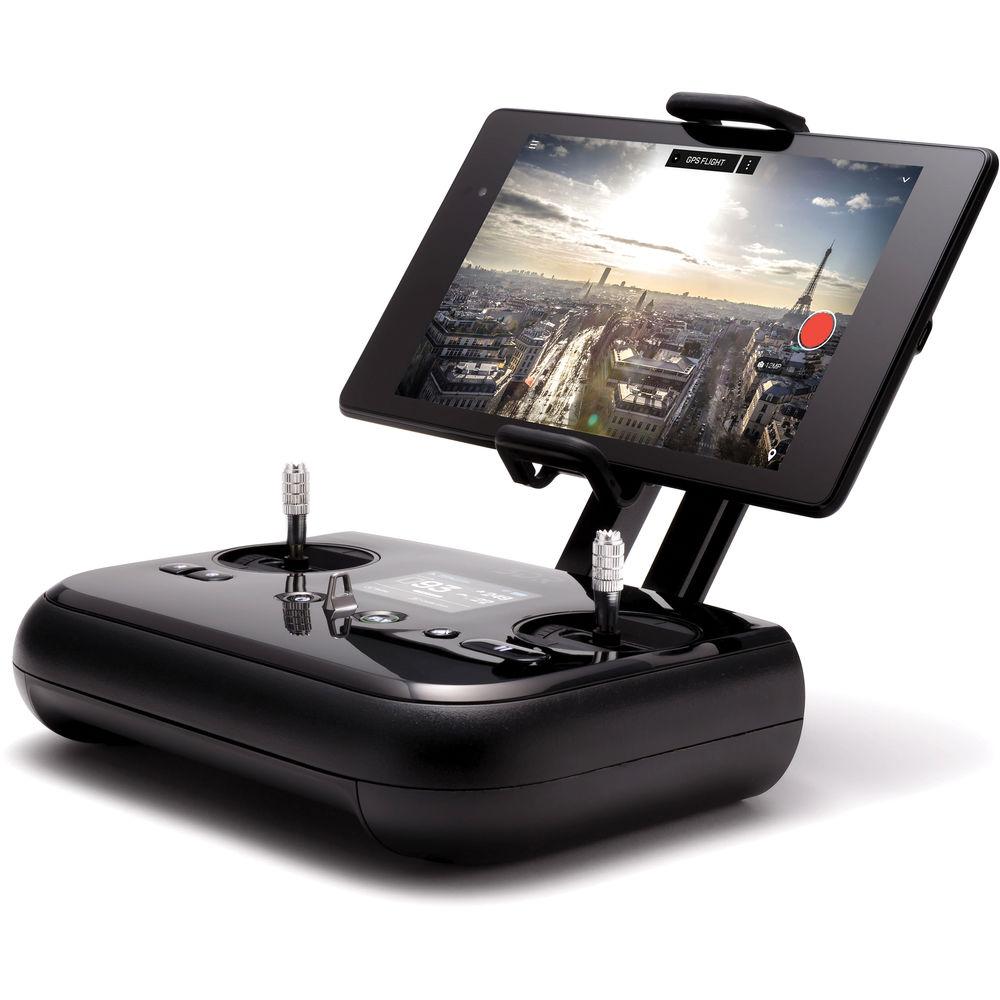

      Handheld Transmitter

        Video Game-Style Controls
      • The transmitter (radio controller) features ergonomics inspired by video game controllers. This design is intended to make it easier for pilots just starting out to learn how to fly

      Mobile App for iOS and Android

        • The full-featured app for iOS and Android puts total aircraft control at your fingertips. It allows you to operate the quadcopter itself, the Solo Gimbal (available separately), and even the GoPro. A mobile device holder is included for smartphones and tablets up to the size of the iPad mini
          GoPro Operation
        • Not only does the app provide access to controls not available through the transmitter, it can also be used to operate the GoPro. Recording start/stop and select camera settings can be changed through the app

          Note: This feature requires the separately available Tarot gimbal to act as an interface

        Works with Solo Gimbal

          • The separately available Solo Gimbal allows you to mount a GoPro HERO3+ or HERO4 action camera while providing 3-axes of stabilization. The gimbal allows panning and tilting via controls on the Solo transmitter and also keeps the horizon of your shots level, unless otherwise desired
            HDMI Output
          • For live FPV monitoring in HD, there is a an HDMI port built into the transmitter. With it you can connect a monitor or FPV goggles

          Additional Features

            Accessory Bays
          • Accessory bays provide installations points for the option Solo gimbal as well as future upgrade components

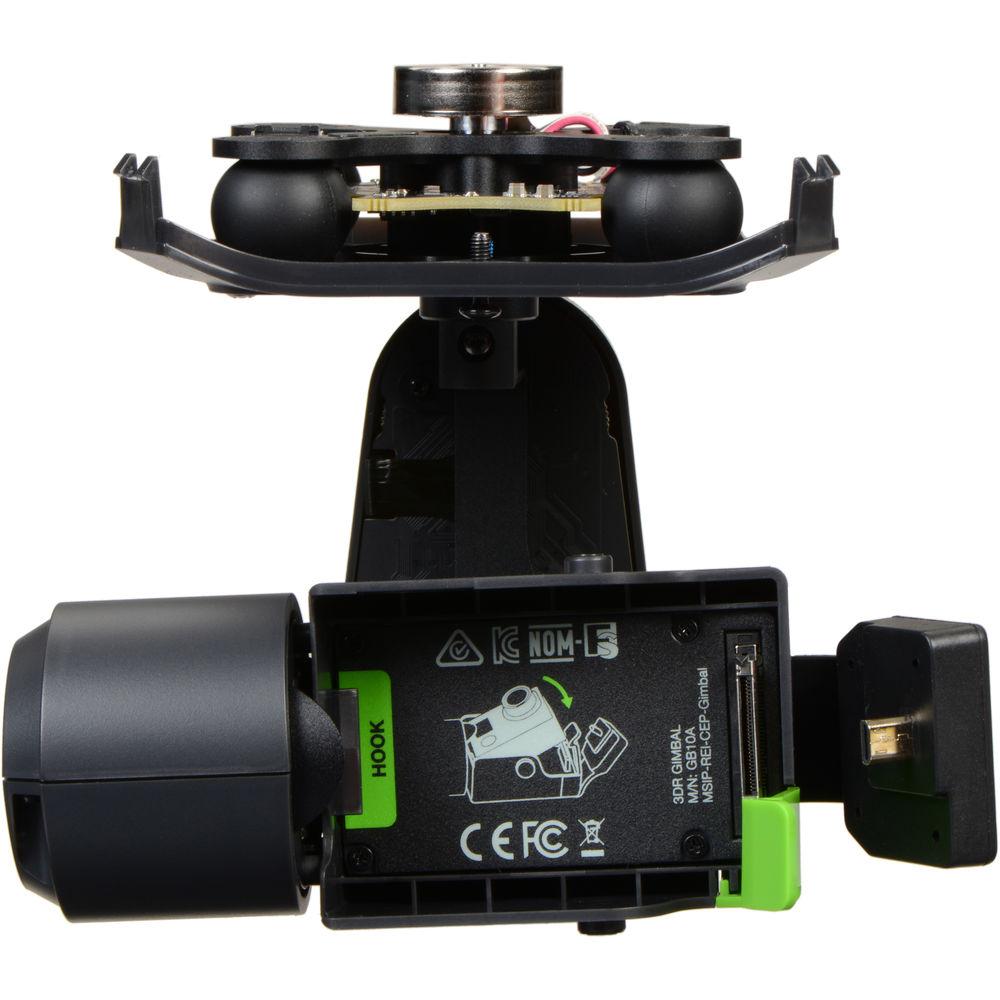

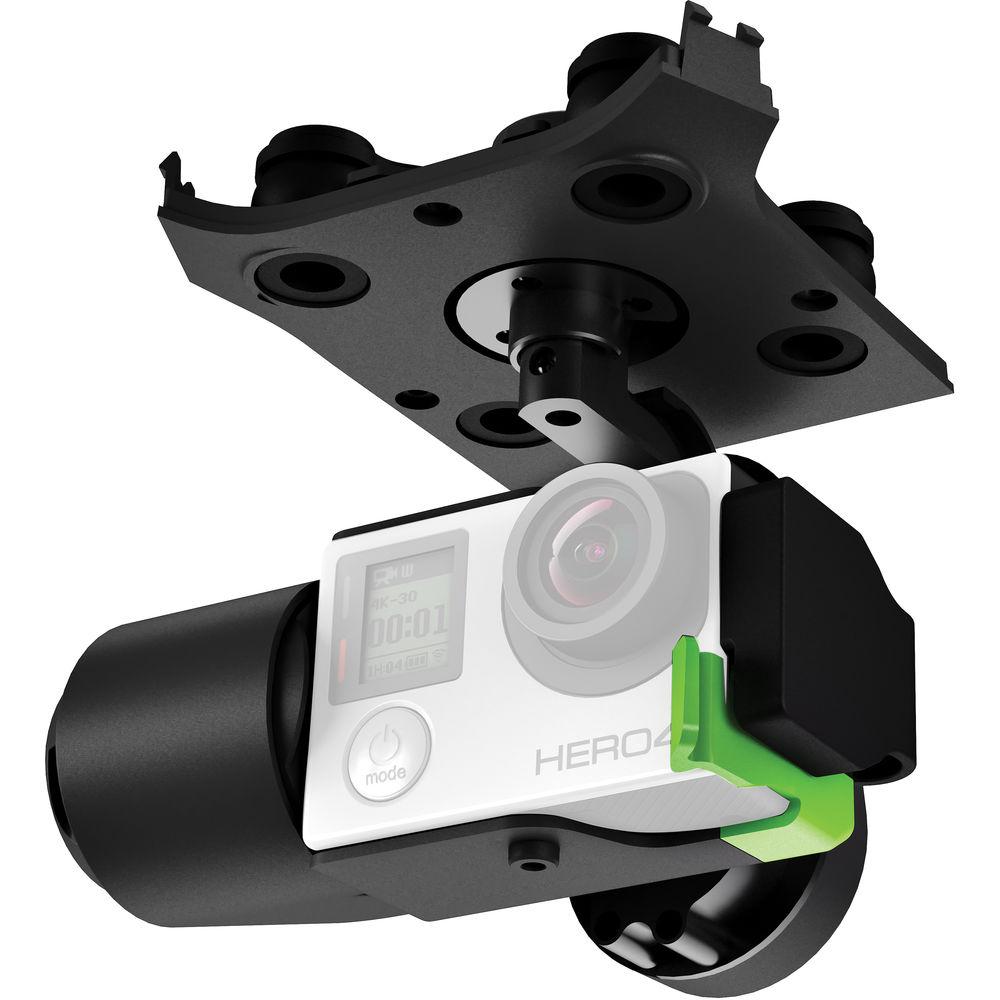

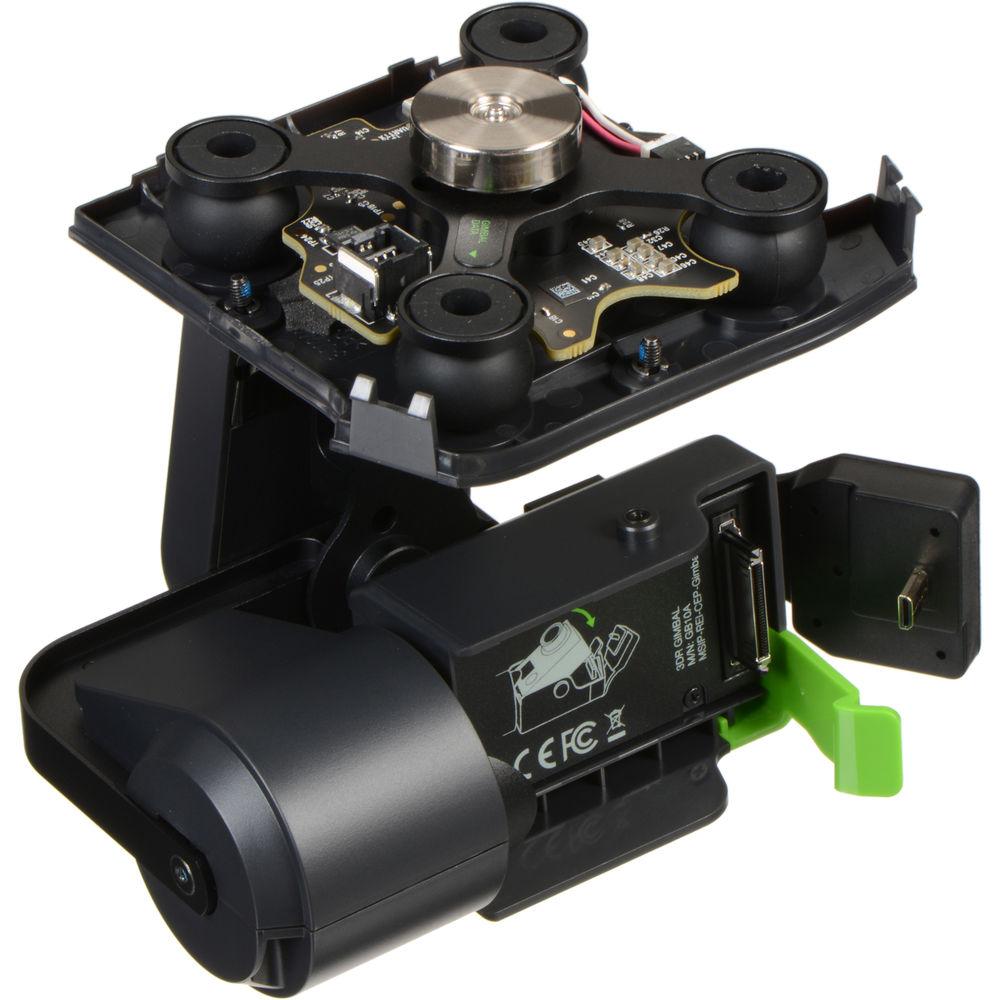

        • Solo Gimbal for GoPro HERO3+ and HERO4 Mount a GoPro HERO3+ or HERO4 action camera on your Solo quadcopter with the Solo Gimbal from 3D Robotics. The Solo Gimbal not only allows you to mount the GoPro, it also provides 3-axes of stabilization. The gimbal allows panning and tilting via controls on the Solo transmitter or with the mobile and also keeps the horizon of your shots level, unless otherwise desired.
            HDMI Relay for HD Video Downlink
          • Unlike many systems, which use the GoPro's standard definition analog video output, the Solo features a built-in HD video transmission system. To provide the HD signal the downlink requires, an HDMI connection is integrated into the gimbal
            Remote GoPro Operation
          • The Solo mobile app not only operates the Solo and gimbal, it can be used to control the GoPro itself. With the app you will be able to actuate recording start/stop as well as change select camera settings
            Work with Solo "Smart Shots"
          • Not only does the gimbal enable manual control, it can be automatically moved by the flight control system when in one of the Smart Shot autonomous shooting modes. Simply hit "play" on the mobile app and Solo will fully control the gimbal for an automatic shot
            GoPro Lens Hood
          • The included lens hood for the naked GoPro HERE is designed to reduce glare and sun flicker
            Powers GoPro
          • A power feed from the Solo's flight battery keeps the GoPro's battery topped up for the duration of the flight. No risk of its battery dying, resulting in missed footage or a corrupted file
            Easy Attachment
          • No soldering or installation of internal electronics is required with the Solo Gimbal. The only tool you will need is the included screwdriver
          UPC: 858566005676
        • Backpack for 3DR Solo Quadcopter Take your Solo with you wherever, even into the remotest wilds, with the Backpack for Solo Quadcopter from 3DR. This case has room for the controller (transmitter), up to five flight batteries, two replacement motors, two sets of props, a tablet or even small laptop, and more. The backpack features custom foam interior to protect your gear, with a water-resistant exterior. The straps are padded for additional comfort.

          The Solo Backpack Accommodates:

          • Solo quadcopter with gimbal
          • Controller (handheld transmitter)
          • Up to five flight batteries and a charger
          • Two sets of props
          • Two spare motors
          • A tablet or small laptop
          • Additional compartments for sundry items
        In the Box Bundle Items Solo Quadcopter (No Gimbal) faqwtvzqvddfuscxtarvxadd
        • Controller for Solo Quadcopter
        • Solo Flight Battery
        • Flight Battery Charger
        • Battery for Solo Transmitter
        • The Frame for HERO3 / HERO3+ / HERO4
        • Limited 1-Year Warranty
        Solo Gimbal for GoPro HERO3+ and HERO4
        • GoPro Lens Hood
        • Screwdriver
        Backpack for 3DR Solo Quadcopter Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Guides & Manuals Table of Contents




        Upload User Manual

        Have you got an user manual for the 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4 in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

        To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
        Upload PDF user manual Upload DOC user manual
        Please enter here the link to the user manual of this product:





        OR

        Enter here the file with the user manual of this product from your computer/phone:
        (60MB max; Permitted formats: PDF)

        0%


        Download User Manual

        The user manual for the 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4 can be downloaded in PDF format at the link stated below.
        Download PDF user manual - 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4Download PDF User Manual - 3DR Solo Quadcopter with 3-Axis Gimbal for GoPro HERO3 HERO4
        (PDF file, 17.22 MB)


        Technical parameters

        • Solo Quadcopter (No Gimbal)
          Maximum Speed 55 mph / 88.5 km/h
          Maximum Altitude 400' / 121.9 m AGL
          Flight Time Up to 25 minutes (20 with camera and Solo Gimbal)
          Model Pixhawk 2
          Software APM flight control software
          GPS Yes
          Frequency Not specified by manufacturer
          Display Color Screen for menu and live flight telemetry
          Battery Chemistry: Lithium-polymer
          Capacity: 5200 mAh
          Voltage: 14.8 VDC
          Life: Up to 4 hours
          System Requirements Wi-Fi enabled iOS or Android mobile device
          Wi-Fi Range Up to 2640' / 805 m (depending on environment)
          Video Downlink Latency: 180 ms
          Connectivity 1 x HDMI output on Transmitter
          Rotors 4 x 10 x 4.5" / 25.4 x 11.4 cm self-tightening props
          Motors Velocity Constant: 880 kV
          Gimbal Compatibility Solo Gimbal for HERO3+ and HERO4 (gimbal and camera available separately)
          Model Solo Battery
          Chemistry Lithium-polymer
          Capacity 5200 mAh
          Voltage 14.8 VDC

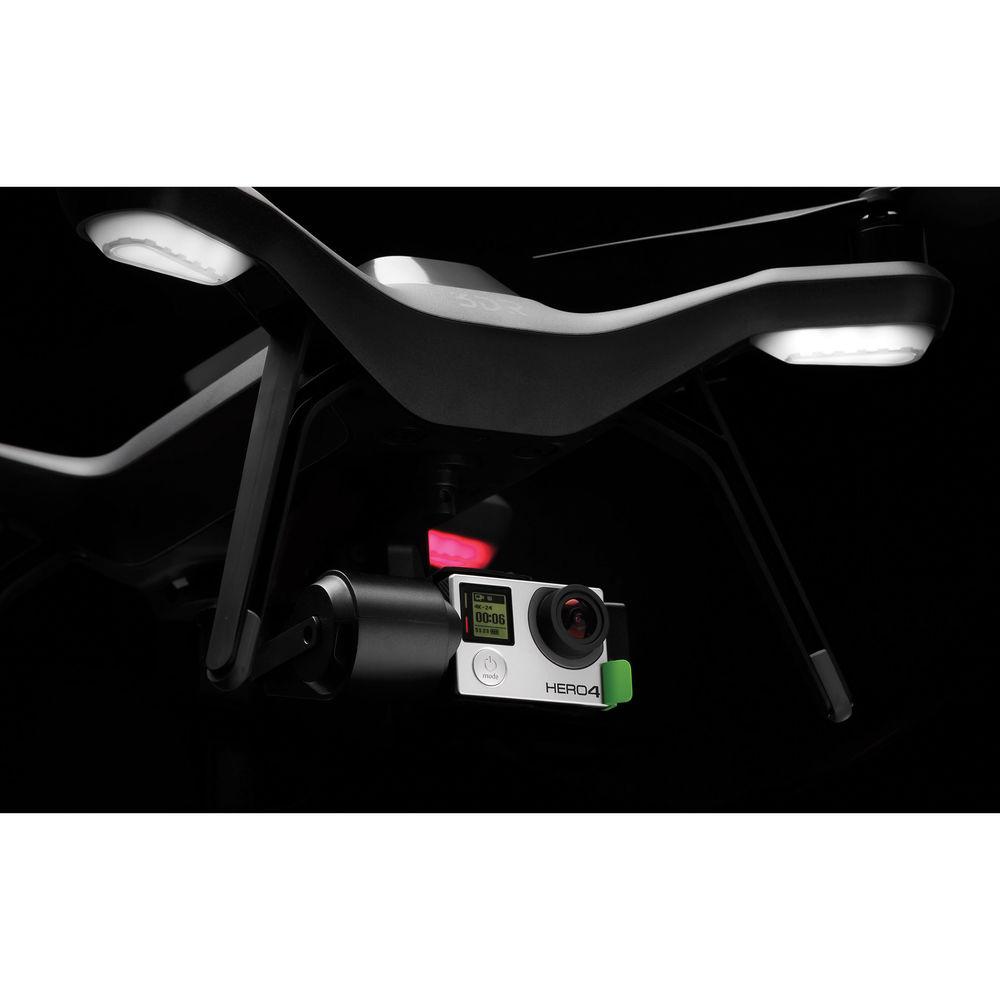

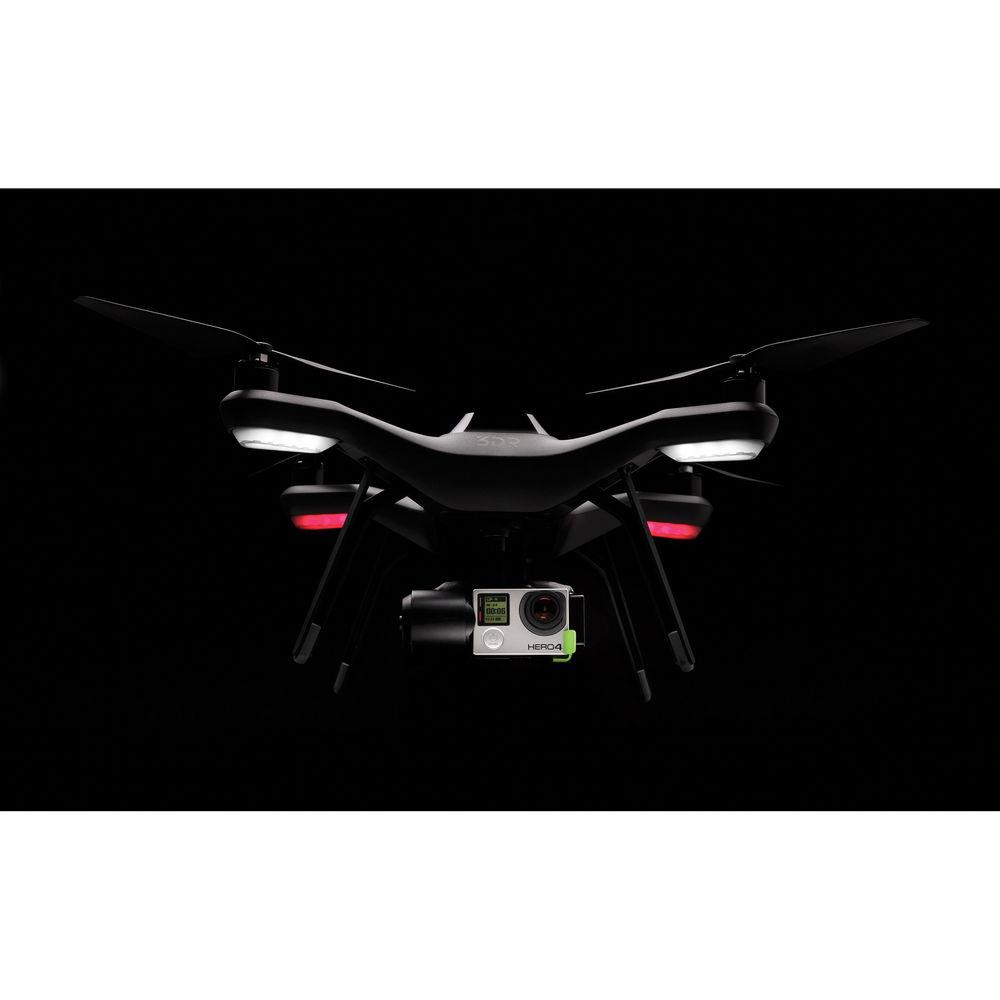

          Running Lights Customizable color LEDs to assist orientation
          Dimensions Height: 10" / 25 cm
          Motor-to-Motor: 18" / 46 cm
          Weight Unladen: 3.3 lb / 1.5 kg
          With Solo Gimbal and GoPro: 4 lb / 1.8 kg
          Box Dimensions (LxWxH) 16.7 x 16.3 x 9.1"
        • Solo Gimbal for GoPro HERO3+ and HERO4
          Controlled Angle Accuracy 0.1°
          Power Requirements Solo flight battery
          Camera Compatibility GoPro HERO3+, HERO4
          Supported Flight Control Systems Pixhawk 2
          Weight Not specified by manufacturer
          Box Dimensions (LxWxH) 6.1 x 5.7 x 4.4"
        • Backpack for 3DR Solo Quadcopter
          Exterior Dimensions Not specified by manufacturer
          Box Dimensions (LxWxH) 20.8 x 15.7 x 10.6"
