AKG GN15E - 9.2" Gooseneck with

Search your instruction manual in PDF to download

User Manual for AKG GN15E - 9.2" Gooseneck with XLR Output for Discreet Acoustics Capsule Modules

Click to enlarge the picture
AKG GN15E - 9.2" Gooseneck with XLR Output for Discreet Acoustics Capsule Modules Contents of the user manual for the AKG GN15E - 9.2" Gooseneck with
  • Product category: Modular Microphone Components AKG
  • Brand: AKG
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AKG Modular Microphone Components

User manual for the AKG GN15E - 9.2" Gooseneck with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AKG product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AKG user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AKG product will considerably shorten its lifespan!



Product description

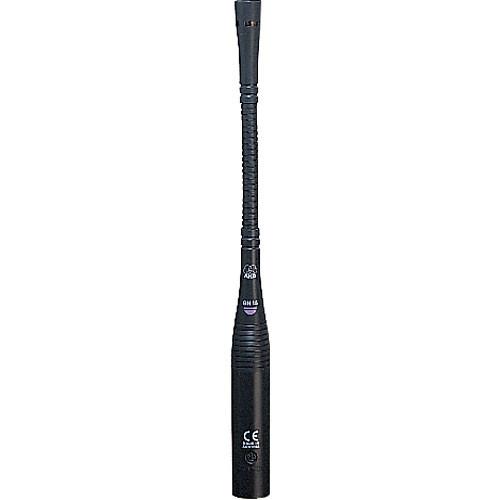

The AKG GN15E is a 9.2" (23.5cm) gooseneck with an XLR male terminated output connector. The gooseneck accommodates the AKG CK series microphone capsules and it's adjustable gooseneck is designed to provide noise-free operation. The gooseneck mount also features integrated bass roll-off filter switch and On/Off switch with power indicator LED.
    XLR Output Connector
  • The XLR Male output is conveniently adapts to surface mounts with XLR female inputs and provides quick installation and removal.
    Modular Design
  • The GN series goosenecks are completely compatible with the CK series modular microphone capsules.
    Bass Roll-Off
  • Low frequency roll-off filter switch reduces low frequency noise caused by ambiance, structure noise, etc.
    Quiet Positioning
  • The gooseneck provides silent microphone positioning.
In the Box AKG GN15E - 9.2" Gooseneck with XLR Output for Discreet Acoustics Capsule Modules
  • 1 Year Warranty
  • DPA Phantom Power Supply Adapter
  • PS 3 F-Lock Surface Flange w/XLR Female Input
  • Screw Set with Rubber Bushing
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AKG GN15E - 9.2" Gooseneck with XLR Output for Discreet Acoustics Capsule Modules in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AKG GN15 E Specs

    Length 9.2" (23.5cm)
    Low Frequency Roll-Off 250Hz, -10dB @ 50Hz
    Impedance <= 600 ohms
    Recommended Load: >= 2k ohms
    Phantom Power 9 to 52V Phantom Power
    Current Consumption <3 mA
    Connector 3-pin male XLR
    Cable Length not included
    Weight 3.9 oz (112g)
    Package Weight 1.05 lb
    Box Dimensions (LxWxH) 11.5 x 5.2 x 3.4"
