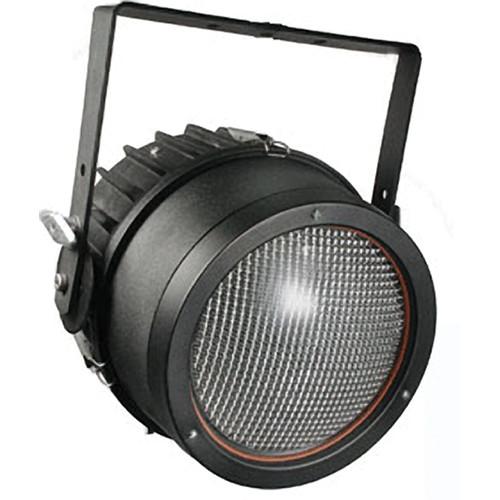

User Manual for Altman ODC-A Outdoor HMI Par - 150 Watts

Click to enlarge the picture
Altman ODC-A Outdoor HMI Par - 150 Watts Contents of the user manual for the Altman ODC-A Outdoor HMI Par -
  • Product category: Architectural Lights Altman
  • Brand: Altman
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Altman Architectural Lights

User manual for the Altman ODC-A Outdoor HMI Par - contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Altman product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!



Product description

The Altman 150 watt, 120 volt Outdoor-Par-CDM fixture is constructed of cast aluminum, utilizes non-corroding hardware and fittings. All joinings have heavy gaskets to protect the lamp, the reflector and internal integral ballast, from the ravages of inclement weather. It incorporates a reflector designed to operate efficiently with 3000° and 4000°K Ceramic Discharge Metal Halide bulbs (available separately), and the units are U.L. and C.U.L. listed.When fitted with a 150 watt HMI bulb, using its medium flood lens, this fixture will throw a 9 x 12' beam of 240 footcandles from a distance of 20'.
  • A set of 4 front lenses are included, to alter the spread and intensity of the beam:
    Very Narrow Spot (17°)
    Narrow Spot (19°)
    Medium Flood (25°)
    Wide Flood (42°).
  • Low-wattage HMI bulbs and high-efficiency aluminum reflectors reduce power consumption and operating costs.
  • Tool-free access to bulb for replacement.
  • Two position yoke adjustment.
  • A safety chain is included to double-secure the fixture to its intended mount.
In the Box Altman ODC-A Outdoor HMI Par - 150 Watts (120V AC)
  • Set of 4 Lenses, 1 Each:
    Very Narrow Spot (17°)
    Narrow Spot (19°)
    Medium Flood (25°)
    Wide Flood (42°)
  • Safety Cable with Sping Clip
  • 4' Power Cord, no plug
  • 5 Year Manufacturer's Warranty on HMI Ballast
  • 1 Year Manufacturer's Warranty on FixtureNote: HMI Bulb and Pipe Clamp not included
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Altman ODC-A Outdoor HMI Par - 150 Watts in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Altman Outdoor PAR Specs

    Rating 150 watts, 120 volts
    Socket (Lampholder) G12
    Lens (Condenser) 4- included: VNSP, NSP, MFL, WFL
    Reflector (Mirror) Aluminum
    Mounting 3 Holes in yoke for optional pipe clamp
    Yoke Twin flat aluminum blade, 2 locking handles, 3 mounting holes
    Cable 4', insulated, 3 conductor
    Focusing With included lenses
    Weight ~18 lb (8.1 kg)
    Dimensions 11.6 x 14.75 x 11.4" (29 x 37 x 29 cm)
