Altman Sky Cyc Borderlight, 3 Sections

Search your instruction manual in PDF to download

User Manual for Altman Sky Cyc Borderlight, 3 Sections - 3KW-4.5KW

Click to enlarge the picture
Altman Sky Cyc Borderlight, 3 Sections - 3KW-4.5KW Contents of the user manual for the Altman Sky Cyc Borderlight, 3 Sections
  • Product category: Stage & Studio Altman
  • Brand: Altman
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Altman Stage & Studio

User manual for the Altman Sky Cyc Borderlight, 3 Sections contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Altman product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Altman user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Altman product will considerably shorten its lifespan!



Product description

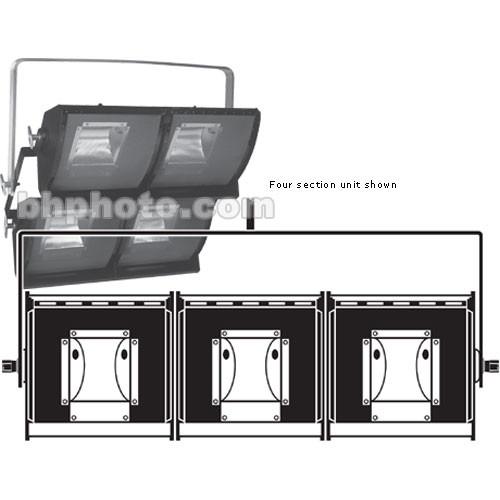

A lightweight, wide spread, quartz-halogen light fixture designed to provide an even wash of light on cycloramas. A 4-light sky cyc, when mounted 8 feet from the cyc, 12 feet on center, will typically provide better than 1.3 to 1 uniformity between fixtures with a minimum of 176 footcandles at the bottom of a 20' cyc. Available in many configurations, the Sky-Cyc is ideally suited for use in theatres and television studios as a compact, lightweight means of lighting large cycloramas from above.This is a 3 section, horizontally configured 4500 watt maximum hanging fixture that includes an iron pipe clamp, 3' power cable, and safety cable. It does not include bulbs.
  • Die-cast and sheet aluminum construction with baked black epoxy finish.
  • Broad, even light distribution.
  • Multiple mounting configurations available -- 1 single, 2 Vertical, 2 Horizontal, and 4 section fixtures available.
In the Box Altman Sky Cyc Borderlight, 3 Sections - 3KW-4.5KW
  • Yoke
  • Malleable Iron Pipe Clamp uxtuysretfzurdscdrcruexbaqarrwss
  • Steel Safety Cable (36", Black)
  • 1 Year Manufacturer's Warranty
  • Note: Bulbs and plugs not included Table of Contents




    Upload User Manual

    Have you got an user manual for the Altman Sky Cyc Borderlight, 3 Sections - 3KW-4.5KW in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Altman Sky Cyc Specs

    Rating 1000 or 1500 watts per section, 4500 watts maximum
    Socket (Lampholder) Double ended
    Lens (Condenser) Not applicable
    Reflector (Mirror) Peened specular aluminum
    Mounting Pipe clamp
    Yoke Extruded aluminum, 4 handles
    Rigid, flat steel ganging iron
    Cable 3' in black fiberglass sleeving, 1 set of leads per section
    Focusing Not applicable
    Weight 28 lbs (12.6 kg)
    Dimensions 51.9 x 19.5 x 9.75" (132 x 50 x 25 cm) @ 45° tilt
