Apresys Optics 6x24 eXpert 1000 Laser

Search your instruction manual in PDF to download

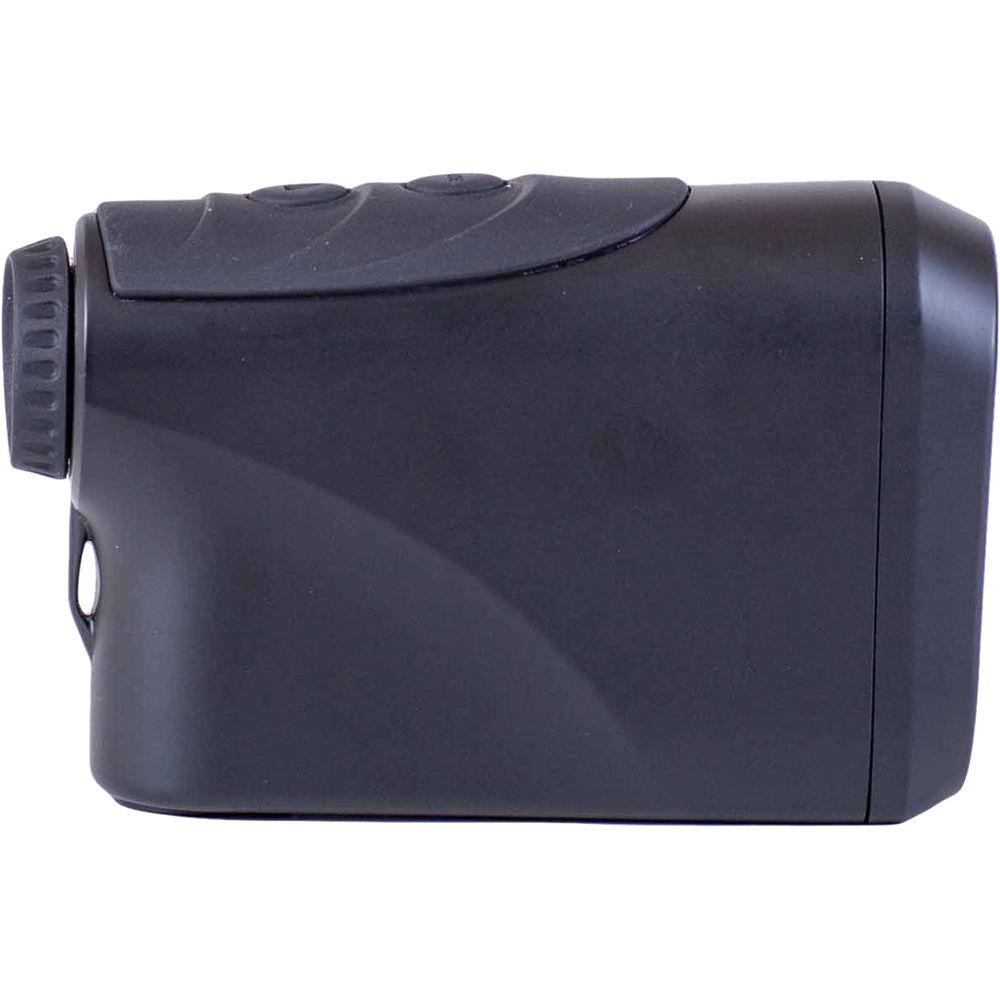

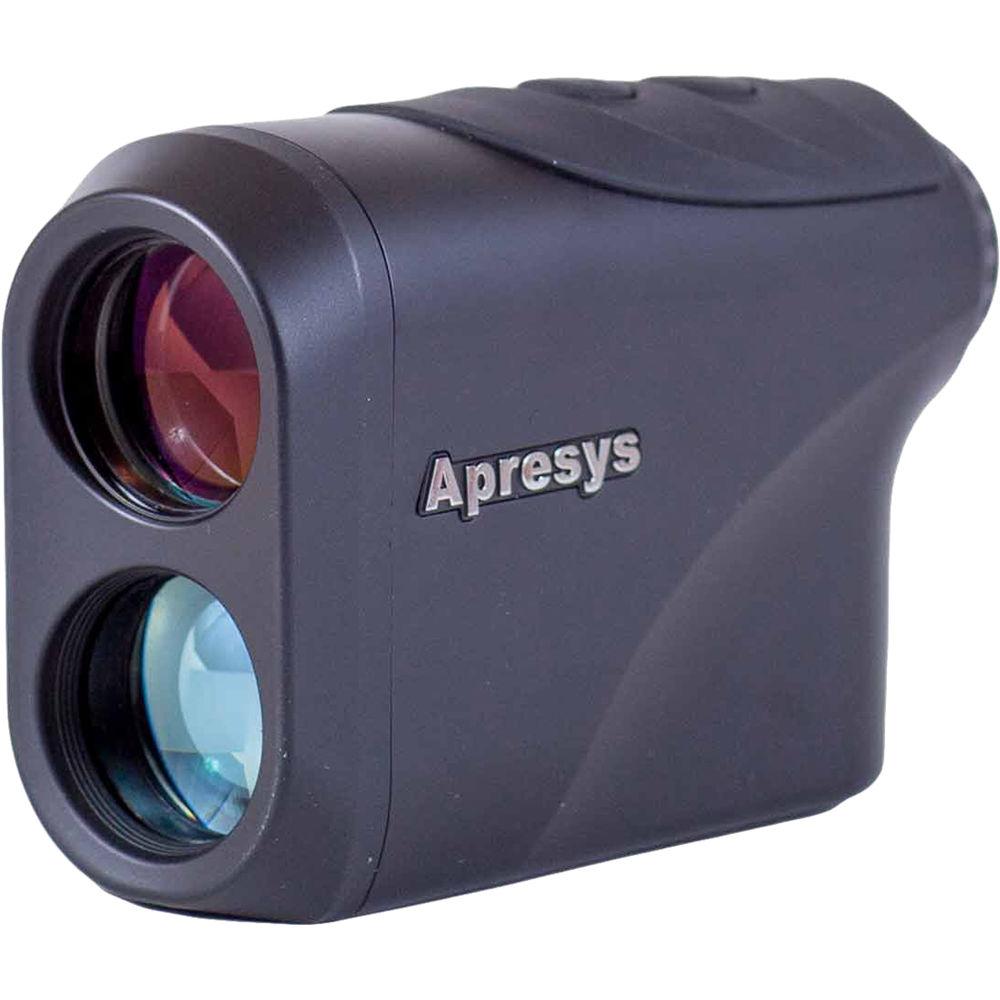

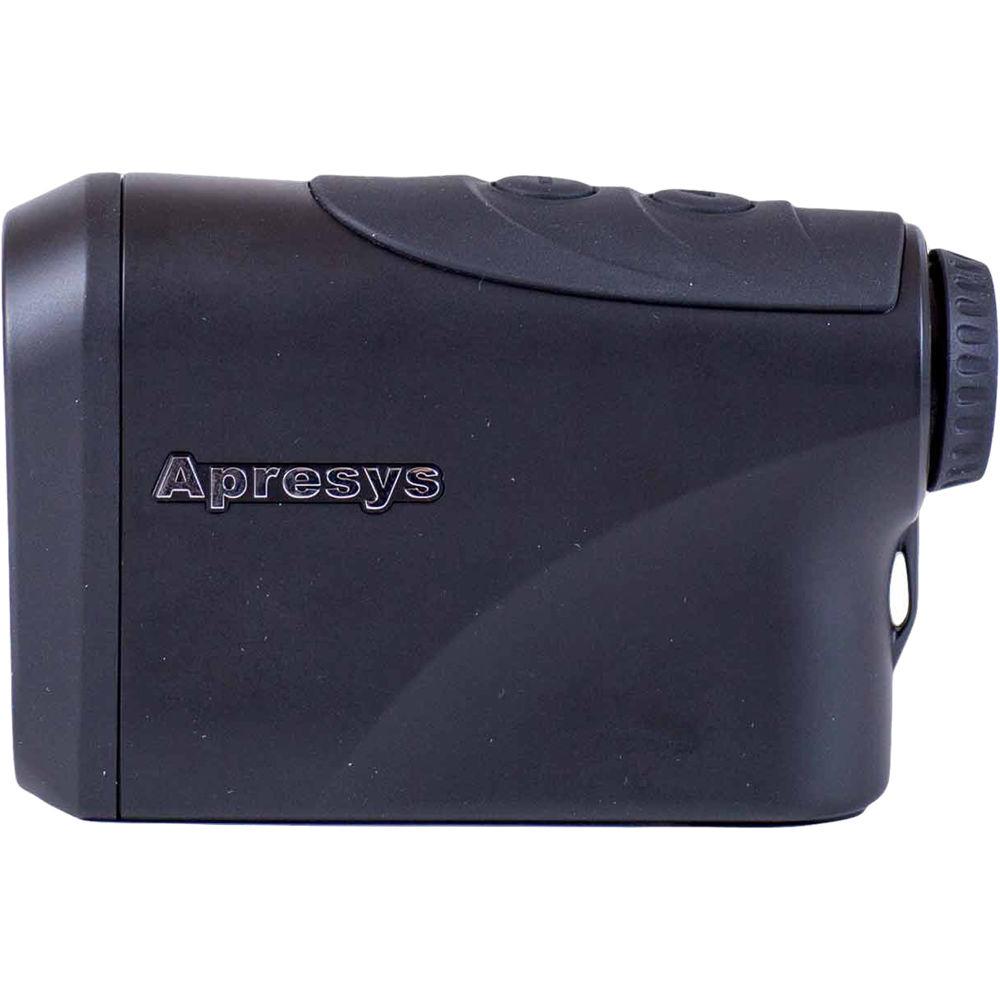

User Manual for Apresys Optics 6x24 eXpert 1000 Laser Rangefinder

Click to enlarge the picture
Apresys Optics 6x24 eXpert 1000 Laser Rangefinder Contents of the user manual for the Apresys Optics 6x24 eXpert 1000 Laser
  • Product category: Laser Rangefinders Apresys Optics
  • Brand: Apresys Optics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Apresys Optics Laser Rangefinders

Apresys Optics 6x24 eXpert 1000 Laser Rangefinder Apresys Optics 6x24 eXpert 1000 Laser Rangefinder Apresys Optics 6x24 eXpert 1000 Laser Rangefinder Apresys Optics 6x24 eXpert 1000 Laser Rangefinder
User manual for the Apresys Optics 6x24 eXpert 1000 Laser contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Apresys Optics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Apresys Optics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Apresys Optics product will considerably shorten its lifespan!



Product description

Able to accurately measure uphill and downhill as well as on the level, the Apresys Optics 6x24 eXpert 1000 Laser Rangefinder is designed for hunters or golfers who need accurate measurements before taking important shots in the field or at the tee. Outfitted with an eye-safe IR laser and integrated inclinometer, it can meter from 5 to 1000-yards at upward or downward angles from -70 to +70°. The display indicates line-of-sight distance along with options including slope angle, vertical distance above level, and angle-adjusted horizontal distance. In addition to selectable display options, the eXpert offers spot and scan modes, plus close-target priority for golfers and furthest-target priority for hunters to help filter out potential interference that can cause inaccurate ranging.Outfitted with a conventional 6x24 monocular that can be used with or without the rangefinder, the in-view display is uncluttered and easy to read. The eXpert offers a generous field of view that makes finding subjects easy and tracking moving targets even easier. To help conserve weight without sacrificing strength, the chassis is made of an impact-resistant composite material with a protective and slip-resistant rubber armor. Sealed with o-rings, the unit is IP64-rated — dustproof and impervious to light rain and splashing water. Its slim form-factor and light 6.7-ounce weight ensure it won't be too bulky in your pack or pocket, so you'll be sure to keep it handy in your blind or on the links.
    Rangefinder Details
    • Class 1 eye-safe IR laser
    • Measures in yards or meters
    • 5-1000 yard metering range, accurate to ≥0.5 yd/m
    • Integrated inclinometer measures relative angle to target, maximum angle reading ±70° with ≥0.1° accuracy
    • Memory function remembers last 100 measurements with easy recall through Mode menu selection
    • Runs on one included CR2 battery
    Optical Performance
    • 6x magnification
    • 24mm objective lens
    • Compact roof prism optical path
    • Anti-reflection multi-coated optics improve light transmission, color rendition, clarity, and contrast
    • 368' field of view at 1000 yards
    Rangefinder Modes
    • Measurement Display Options:
    • Line-of-sight (LOS) distance with angle to target
    • LOS and vertical distance to target using measured angle
    • LOS with adjusted horizontal distance to target using LOS and measured angle
      Measurement Modes:
    • Regular: Measures distance to a single subject
    • Scan: Continuous measurements to a moving target or multiple targets
    • Hunting: Ignores all close readings such as trees and branches, and displays the furthest target metered
    • Golf: Prioritizes closer targets while ignoring more distant objects
    Use and Handling
    • Focusing eyepiece collar
    • Intuitive two-button interface: On/off and Mode
    • In-view LCD display
    • Uncluttered display shows aiming reticle, distance, laser activation, Mode, angle, adjusted distance, and battery status
    • Auto shut-off after 15-seconds of non-use to conserve battery power
    • 4mm exit pupil
    Construction Details
    • Lightweight and impact-resistant composite chassis
    • Shock-absorbing rubber armoring protects while providing a slip-resistant grip
    • Raised finger ridges improves grip strength
    • IP64-rated, dust-proof and water-resistant
    • Lightweight: 6.7 ounces

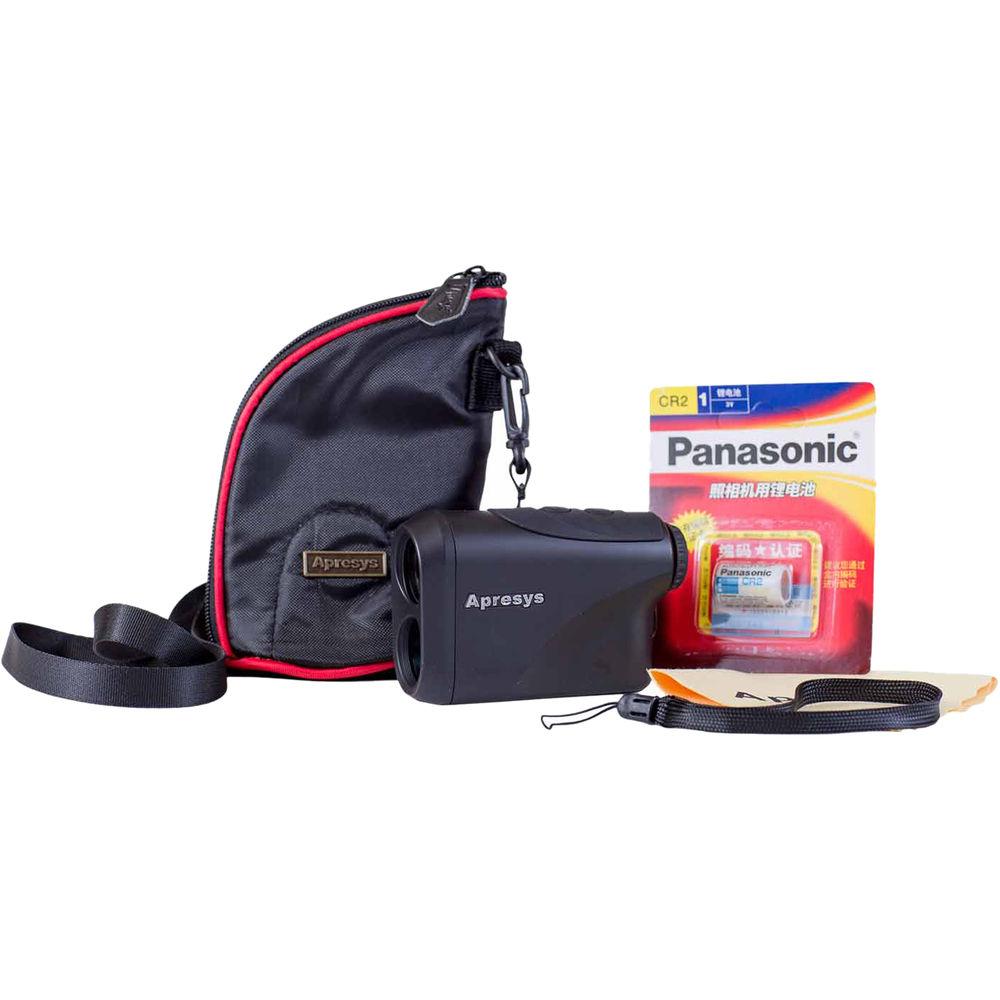

In the Box Apresys Optics 6x24 eXpert 1000 Laser Rangefinder
  • Carrying Case with Strap
  • Lanyard
  • CR2 Battery
  • Lens Cloth
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Apresys Optics 6x24 eXpert 1000 Laser Rangefinder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Apresys Optics X1000 Specs

    Prism Type Roof
    Magnification 6x
    Objective Lens Diameter 24
    Angle of View 7.0°, actual
    Field of View 368' @ 1000 yd / 123.0 m @ 1000 m
    Laser Type Class 1 eye-safe IR
    Metering Range 5.0 - 1000.0 yd / 4.5 - 914.0 m
    Accuracy ≥0.5 yd / m
    Inclinometer Maximum angle: ±70°
    Accuracy: ≥0.1%
    Exit Pupil Diameter 4.0 mm
    Eye Relief Not specified by manufacturer
    Weatherproofing IP64-rated, dust-proof and water-resistant
    Tripod Socket None
    Power Source 1 x CR2 battery
    Dimensions 4.0 x 2.8 x 1.6" / 10.4 x 7.2 x 4.1 cm
    Weight 6.7 oz / 190.0 g
