Product description The AV1195DN MegaVideo Flex 1.2MP Modular Network Camera from Arecont Vision delivers 1280 x 960 resolution video at a 37 fps frame rate, whether viewing live or recorded/archived video. It features NightView, which makes it suitable for applications with challenging lighting conditions due to strong back lighting.

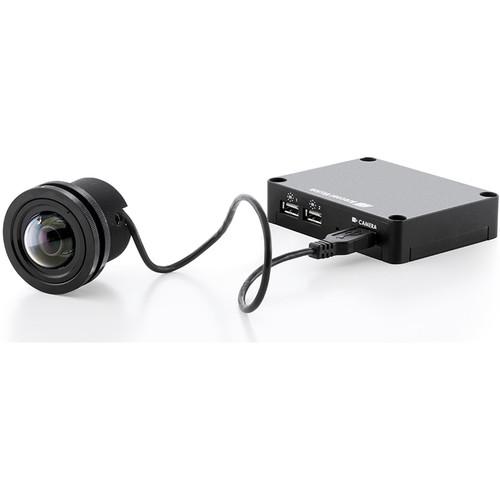

The AV1195DN MegaVideo Flex is comprised of the camera sensor, a metal mounting bracket, a USB cable, and the main camera unit. It can be surface mounted via the supplied bracket or flush mounted in a ceiling or wall with the two fastening nuts. No additional mounting accessories are required. For added flexibility, the USB cable allows the sensor to be mounted in one area while the main camera unit is mounted up to 40' away. For easy identification of events or intruders in low-light applications, the main unit features two USB ports to add optional infrared illuminators (sold separately). Each IR illuminator includes six infrared 850nm LEDs with a range of up to 50'.
The MegaVideo Flex camera series offers advanced streaming capabilities and transmits H.264 video to avoid straining your network. Power can be supplied via a single network cable or a 12 to 48 VDC/24 VAC power supply. The camera's interface is designed for intuitive, fast, and easy configuration. The AV IP Utility tool allows users to configure multiple cameras at one time when required. - 1.2MP, 1280 x 960 resolution @ 37 fps
- Camera sensor and main unit can be up to 40'apart
- SNAPstream (Smart Noise Adaptation and Processing) capability to reduce bandwidth without impacting image quality
- Low light performance with NightView
- True day/night functionality with mechanical IR cut filter
- CorridorView allows 90° image rotation for better coverage in hallways and corridors
- Privacy mask, motion detection, flexible cropping, bit rate control, multi-streaming, multicasting, forensic zooming, and non-integer scaling
- Network protocols include 802.1x, IPv6, QoS, DHCP, and more
- All-in-one Power over Ethernet (PoE) solution
- Onboard storage (SD card sold separately)
- Weather resistant from front of sensor and IR units
- Vibration- and shock-resistant (EN61373)
In the Box Arecont Vision AV1195DN MegaVideo Flex 1.2MP Modular Network Camera with (No Lens) 40' (12 m) USB 2.0 Cable 5' (1.5 m) USB 2.0 Cable STP Cable Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Arecont Vision AV1195DN MegaVideo Flex 1.2MP Modular Network Camera with in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArecont Vision AV1195 Specs | | | Image Sensor | 1.2 MP | | Optical Format | 1/3" CMOS | | Pixel Pitch | 3.75μm | | Minimum Illumination | Color Day Mode: 0.03 lux
B&W Night Mode: 0.003 lux, IR sensitive | | Resolution | Full Field of View: 1280 x 960
1/4: 640 x 480 | | Dynamic Range | 83.5 dB | | Frame Rates | 37 fps (1280 x 960) | | | | Optics | M12 lens and remote focus module | | Low Light Capability | NightView mode | | Picture-in-Picture | Simultaneous delivery of full field-of-view and zoomed images | | Shutter Speed | Programmable: Controls motion blur, 1 - 500ms | | Motion Detection | Real-time, 1024 detection zones | | Privacy Masking | Unlimited | | Cropping | Flexible: Resolution windowing down to 1x1 pixel for JPEG and 2x2 pixels for H.264 | | Backlight Compensation | Custom white balance | | Flicker Filter Control | 5 to 255 Hz adjustable | | Image Rotation | CorridorView (90°, 180°, and 270° image rotation) | | Noise Reduction | Low light noise filter control | | Efficiency | Bit rate and bandwidth limitation control
Bandwidth and storage savings by running at 1/4 resolution | | Sharpness | Selectable enhancement level | | Miscellaneous | Programmable resolution, brightness, saturation, gamma, tint
Electronic pan, tilt, zoom (ePTZ) | | | | Compression Type | H.264 (MPEG-4, Part 10) / MJPEG
21 levels of quality | | Network Protocols | RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP, QoS, IPv4, IPv6, 802.1x | | Network Interface | 100Base-T Ethernet | | Multi-Streaming | 8 non-identical streams | | | | Industry Standards | ONVIF Profile S and PSIA | | Listings | UL CB Scheme: IEC 60950-1(Ed.2), IEC 60950-1(Ed.2); Am.1, IEC 60950-1(Ed.2); Am.2, IEC 60950-22(Ed.1)) | | FCC Compliance | Title 47, Part 15 (47 CFR 15) Subpart B Class A | | Environmental | REACH 1907/2006/EC, WEEE 2012/19/EU | | CE Compliance | 2014/30/EU (EMC Directive), 2014/35/EU (Low Voltage Directive), 2011/65/EU (RoHS Directive), EN 55022:2010 Class A, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3: 2008, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 | | Mechanical | Shock and vibration (EN61373) | | | | Operating Temperature | -4°F to 122°F (-20 to 50°C) | | Humidity | 0 to 90% (non-condensing) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | | | Alarm | Input/Output: General purpose opto-coupled, 1 input /1 output | | Power Over Ethernet (PoE) | PoE 802.3af, Class 3 | | Power Consumption | 10.5 W DC Power max
14.2 W DC Power max (with two IR units on) | | Auxiliary Power Input | 12 to 48 VDC / 24 VAC (Barrel plug, 2.1 mm I.D. x 5.5 mm O.D. x 9.5 mm) | | | | Casing | Tamper-resistant housing
Weather-resistant from front | | USB Cable Length | 5' (1.5 m)
40' (12 m) | | Dimensions | Main Unit: 0.94 x 3.2 x 4.1" (2.4 x 8.2 x 10 cm)
Sensor Unit: Ø1.77 x 1.74" (4.5 x 4.41 cm) | | Weight | Unit: 0.7 lb (0.3 kg) |
