Product description

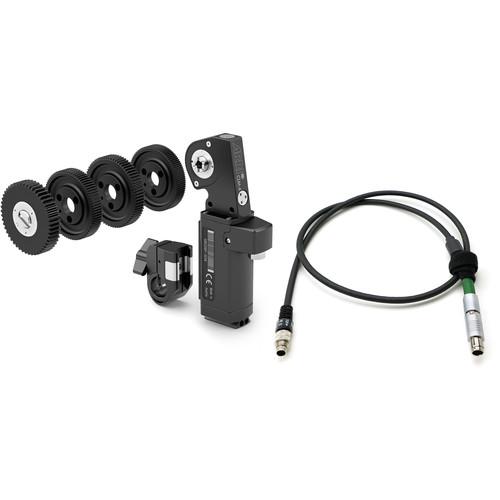

The components in this ARRI CLM-4 Motor Basic Kit are used with an ARRI motor controller (available separately) to remotely control your lens's focus, iris, or zoom function. The high-end, solidly-built CLM-4 motor features smooth, quiet control for standard lenses. This CLM-4 Motor Basic Kit can be used with ARRI's UMC-4 Universal Motor Controller and SMC-1 Single Motor Controller. For optimal flexibility, any of the four included gears can be attached to either side of the CLM-4 Motor. The 0.8-, 0.6-, 0.5-, and 0.4-Mod Gears work with a variety of cine-style and ENG-type lenses. This kit includes a motor-to-controller cable, and a bracket with insert for mounting to a standard 19mm or 15mm rod.
  • CLM-4 Motor Unit Use ARRI's CLM-4 Motor to remotely control your lens's focus, iris, or zoom function. The high-end, solidly-built CLM-4 motor features smooth, quiet control for standard lenses. This basic motor component of ARRI's modular ECS (electronic control system) can be fleshed out with separately available gears, cables, and brackets compatible with the ARRI or third-party camera of your choice. The CLM-4 motor can be used with ARRI's UMC-4 Universal Motor Controller and SMC-1 Single Motor Controller.For optimal flexibility, a gear can be attached to either side of the CLM-4 Motor, expanding position choice to either side of the lens, and either over or under the lens barrel depending on your camera configuration.


    • Solidly-built lens control motor provides smooth, quiet operation
    • For all ARRI and third-party cameras
    • For flexibility in positioning, a gear attaches to either side of motor (gear not included)
    • Compatible with ARRI UMC-4 and SMC-1 motor controllers
    • Multiple mounting options available separately
  • CLM-4 Motor to Controller Cable (31") This CLM-4 Motor Cable (31") from ARRI is used to connect the motor to an ARRI motor controller. This cable has a length of 31".
  • Standard 19/15mm Clamp for CLM-4 Motor The Standard 19/15mm Clamp for CLM-4 Motor from ARRI is one of several mounting options for the CLM-4 lens control motor. This bracket slides onto the bottom of the motor and tightens onto a single 19mm or 15mm rod via its thumb-lever. An included rod insert adapts the bracket for use with industry-standard 15mm rods.
  • 4 x Gear Set for CLM-4 Motor (0.8, 0.6, 0.5, 0.4-Mod) The 4 x Gear Set for CLM-4 Motor from ARRI includes 0.8, 0.6, 0.5, and 0.4-mod drive gears for use with a CLM-4 lens control motor. One metal gear flange (core) is included for swapping between the gears (additional flanges available separately). The 0.8-mod gear is compatible with most cine-style lenses; use the 0.6, 0.5, and 0.4-mod gears with select ENG-style lenses.
In the Box Bundle Items CLM-4 Motor Unit fvseecevzbcczucevvzswuvqfuetwvaac
  • Limited 1-Year Warranty
CLM-4 Motor to Controller Cable (31")
  • Limited 1-Year Warranty
Standard 19/15mm Clamp for CLM-4 Motor
  • 15mm Rod Insert
  • Limited 1-Year Warranty
4 x Gear Set for CLM-4 Motor (0.8, 0.6, 0.5, 0.4-Mod) Table of Contents

Upload User Manual

Have you got an user manual for the ARRI CLM-4 Motor Basic Set with 4 x Gears, Bracket & Cable in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:


Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)


Technical parameters

  • CLM-4 Motor Unit
    Operating Temperature -4 to 122°F (-20 to 50°C)
    Torque 0.5 Nm (1 Nm peak)
    Maximum Speed 100 teeth per second
    2 rotations per second
    Dimensions (LxHxD) With Gear: (available separately)
    5 x 2.7 x 1.1" (128 x 68 x 29 mm)
    Weight 9.5 oz (270 g)
  • CLM-4 Motor to Controller Cable (31")
    Connectors Not specified by manufacturer
    Length 31" (0.8 m)
    Weight 2.4 oz (68 g)
    Box Dimensions (LxWxH) 6.5 x 6.0 x 0.4"
  • Standard 19/15mm Clamp for CLM-4 Motor
    Dimensions Not specified by manufacturer
    Rod Compatibility 15mm, 19mm
    Weight 1.8 oz (51 g)
    Box Dimensions (LxWxH) 4.1 x 3.9 x 0.7"
  • 4 x Gear Set for CLM-4 Motor (0.8, 0.6, 0.5, 0.4-Mod)
    Gear Standard Gear 1: 0.8 mod
    Gear 2: 0.6 mod
    Gear 3: 0.5 mod
    Gear 4: 0.4 mod
    Total Weight 1.8 oz (51 g)
