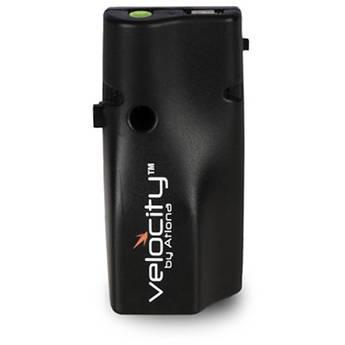

User Manual for Atlona Velocity Control Converter PoE with Contact Closure and Sensor Dongle for Velocity Gateway Click to enlarge the picture
Contents of the user manual for the Atlona Velocity Control Converter PoE with
- Product category: DA & Extender/Repeater Accessories Atlona
- Brand: Atlona
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlona DA & Extender/Repeater Accessories
 |
User manual for the Atlona Velocity Control Converter PoE with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlona product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlona user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlona product will considerably shorten its lifespan!
|
Product description Provided by third party: The Atlona AT-VCC-RELAY-KIT is an accessory for the Atlona Velocity Control System that provides conversion between IP control commands and relay/sensor signals. This Velocity Control Converter is very compact and can be placed anywhere a device requires control and is not IP-capable. The VCC-RELAY-KIT is remotely powered through Power over Ethernet (PoE), or locally from a USB power source. The primary unit installs onto any surface via a convenient mounting dock. A simple "click" locks it into place for a secure, reliable installation. The control port module supports DIN rail installation, and features four relay outputs plus four sensor inputs. The inputs and outputs are both configurable for various operating modes.
- Key Features
-
- Provides conversion between IP and relay/sensor control signals for the Velocity Control System
- Compact form factor - inconspicuous and easily concealable
- Easy to set up and configure from the Velocity Control Gateway
- Remotely powered via PoE (Power over Ethernet)
- Also can be powered through USB from a nearby USB power source
- Primary unit installs onto any surface via a convenient mounting dock - simple "click" locks device into place
- Control port module includes four relay outputs and four sensor inputs
- Relay outputs configurable to support common relay types - Single Pole Single Throw (SPST), Single Pole Double Throw (SPDT), and Double Pole Double Throw (DPDT)
- Sensor inputs can be configured to support voltage or contact closure sensing
- Push-in terminal blocks for relay and sensor connections
- Control port module supports DIN rail installation
Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlona Velocity Control Converter PoE with Contact Closure and Sensor Dongle for Velocity Gateway in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlona AT-VCC-RELAY-KIT Specs | | | Type | IP to relay / sensor signal converter | | | | Features | Power Over Ethernet support | | | | Kit Content | (1) x main unit - Atlona AT-VCC
(1) x input/output module - Atlona AT-VCC-RELAY | | | | Terminals | (1) x network - RJ-45
(1) x USB - Micro-USB Type B
(1) x relay / sensor - mini-phone 3.5 mm | | | | Package Weight | 0.065 lb | | Box Dimensions (LxWxH) | 2.9 x 1.9 x 1.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
