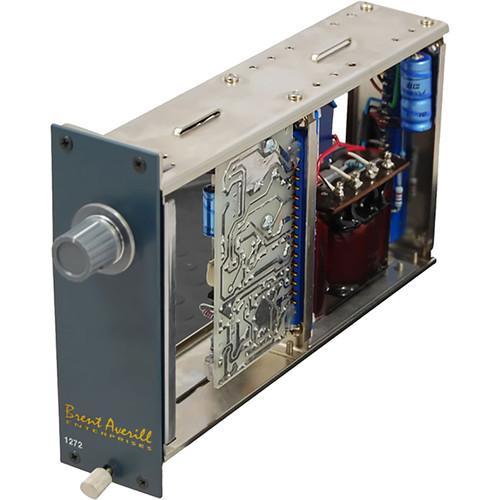

User Manual for BAE 1272 Mic Preamp Module Click to enlarge the picture
Contents of the user manual for the BAE 1272 Mic Preamp Module
- Product category: Microphone Preamps BAE
- Brand: BAE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BAE Microphone Preamps
|
User manual for the BAE 1272 Mic Preamp Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BAE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BAE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BAE product will considerably shorten its lifespan!
|
Product description The BAE 1272 1272 Mic Preamp Module is designed for and built to the original specifications of a Neve console. The module has a frequency response of ±0.5 dB from 20 to 20,000 Hz, a selectable microphone input impedance of 1200 or 300 ohms, an output impedance of 50 ohms, and a common mode rejection ratio of 100 dB minimum at 600 ohms. It can provide a maximum output level of +27.4 dBu at 600 ohms, requires 80 mA of 24 VDC of power, and can provide up to 39 dB of optional external gain with an equivalent input noise of better than -85 dBu. In the Box BAE 1272 Mic Preamp Module Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BAE 1272 Mic Preamp Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the BAE 1272 Mic Preamp Module can be downloaded in PDF format at the link stated below.
Technical parametersBAE 1272MOD Specs | Frequency Response | ±0.5 dB from 20 to 20,000 Hz | | Microphone Input Impedance | 1200 or 300 ohms | | Output Impedance | 50 ohms | | Common Mode Rejection Ratio | 100 dB minimum at 60 Hz | | Maximum Output Level | +27.4 dBu at 600 ohms | | Power Requirements | 80 mA at 24 VDC | | Gain | 39 dB external gain optional | | Equivalent Input Noise | Better than -85 dBu | | Dimensions (W x L x D) | 5.25 x 1.8 x 8.5" (13.3 x 4.6 x 21.6 cm) | | Weight | 4.25 lb (1.93 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
