User Manual for BitFenix NOVA Mid-Tower Chassis Click to enlarge the picture
Contents of the user manual for the BitFenix NOVA Mid-Tower Chassis
- Product category: Desktop Computer Cases BitFenix
- Brand: BitFenix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BitFenix Desktop Computer Cases
 |
User manual for the BitFenix NOVA Mid-Tower Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BitFenix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BitFenix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BitFenix product will considerably shorten its lifespan!
|

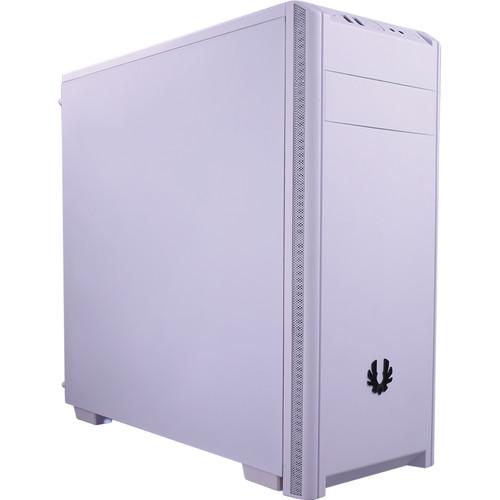

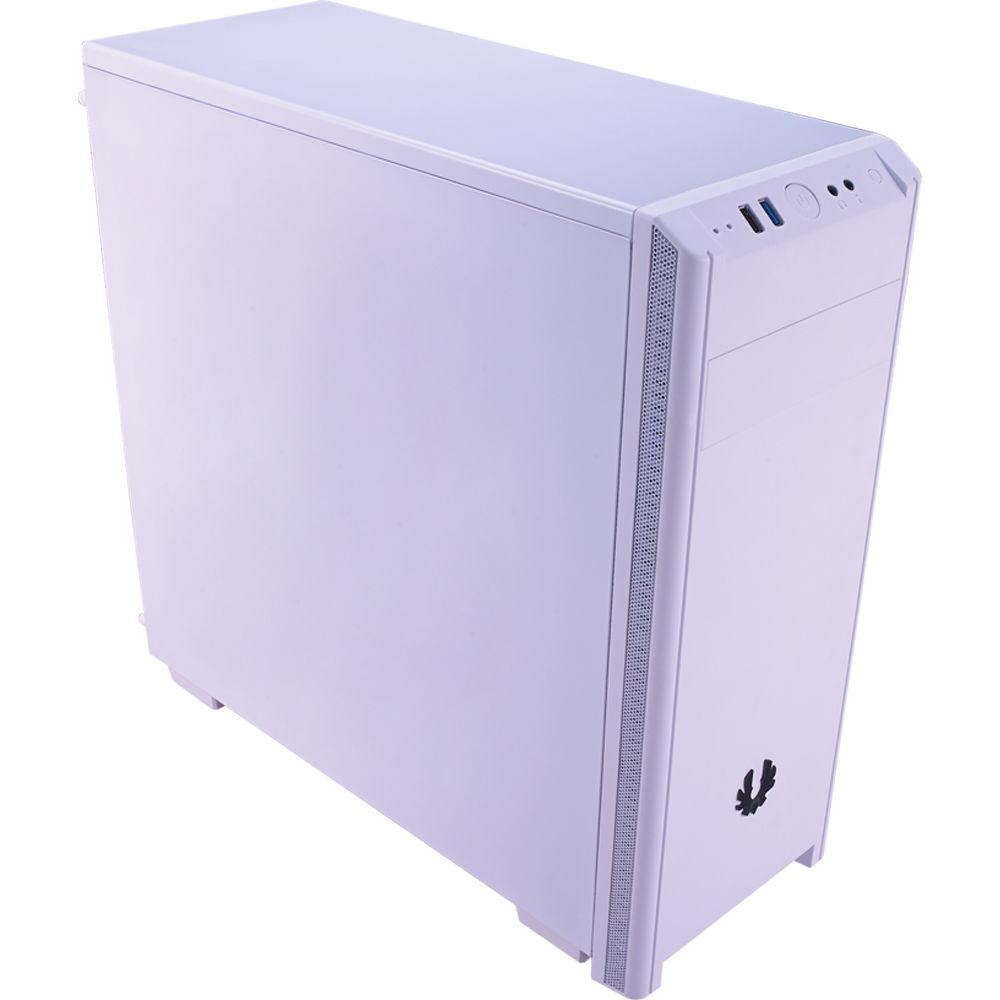

Product description The NOVA Mid-Tower Chassis from BitFenix offers style, performance, and silence for your new build. Whether you're planning to build a basic office, home, or gaming system, the NOVA's simplistic design will fit right in. For ventilation, there are long air vents along the sides of the front panel as well as three 120mm fan slots, one of which is already occupied by an included 120mm fan. The closed top and front panel design blocks fan-noise from escaping the case and dust from building up inside.
The NOVA supports one 5.25" drive, four 3.5" drives, and two 2.5" drives. At the top I/O panel are one USB 3.0 Type-A port, one USB 2.0 port, one microphone jack, and one headphone jack. Users who are planning on installing large or long components should note that this case supports GPUs up to 12.6" long and 5.5" wide and CPU coolers up to 6.3" tall. Additional features include pre-installed motherboard stand-offs, rubberized anti-slip case feet, and a PSU dust filter. - Noise Shielded

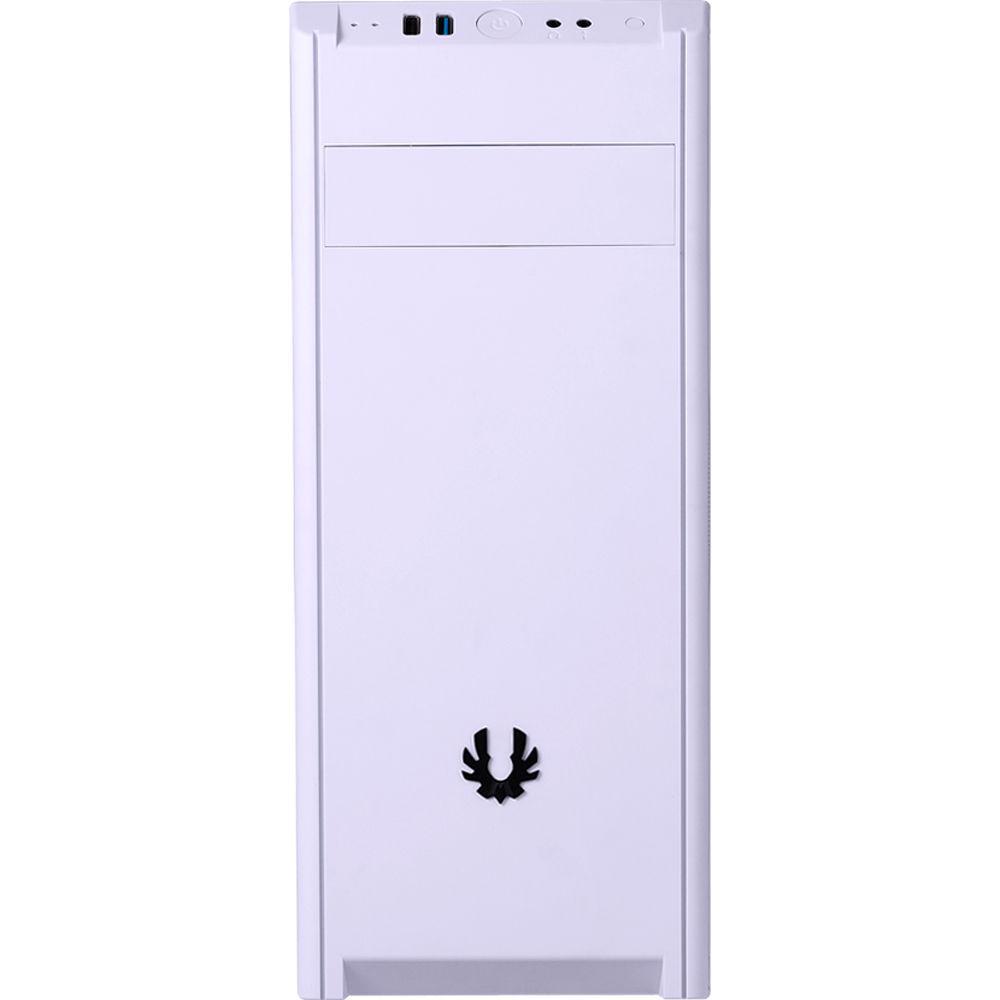

- To seal fan noise inside the chassis, the NOVA has a closed front panel. Concealed behind the mesh strips running along the sides of the front panel lie a series of air vents that let fresh air into the case. Thanks to this design, the NOVA is capable of keeping powerful components cooled while confining fan-noise within the chassis.
- Cool Breeze

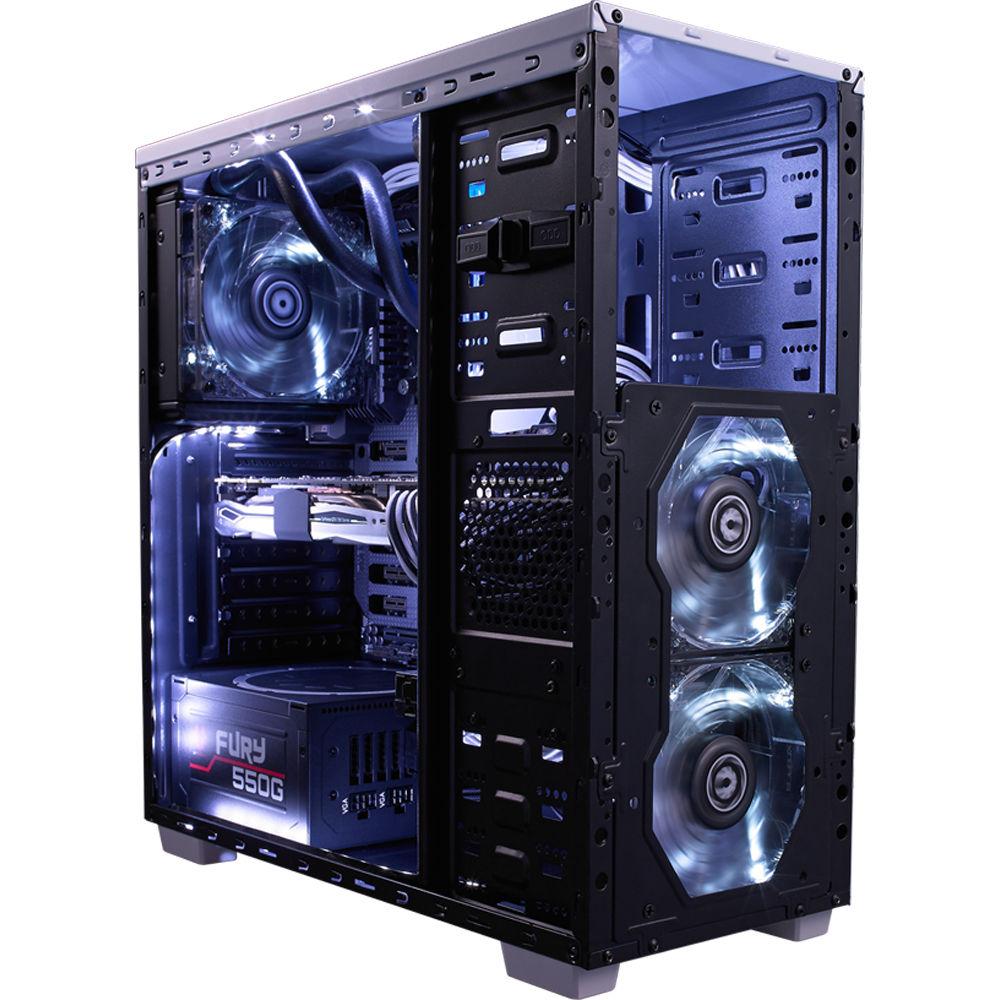

- The NOVA offers dual 120mm fan intakes in the front and a single 120mm exhaust in the rear. When fully equipped, it creates positive air pressure inside the chassis, greatly reducing the buildup of dust. The front fan vents are positioned to channel fresh air directly over the storage drives and onto the GPU and CPU, while the rear fan vent is positioned aside the CPU to support closed water-cooling systems.
- Quick Assembly
- All the motherboard stand-offs come pre-installed, cutting down the time and effort of installing a system. Also, the large CPU cutout allows you to install CPU coolers with ease.
UPC: 886027012888 In the Box BitFenix NOVA Mid-Tower Chassis (White) Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BitFenix NOVA Mid-Tower Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the BitFenix NOVA Mid-Tower Chassis can be downloaded in PDF format at the link stated below.
Technical parametersBitFenix BFX-NOV-100-WWXKK-RP Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 1 x 5.25" | | Internal Drive Bays | 4 x 3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 12.6" / 32 cm | | CPU Cooler Height | 6.3" / 16.1 cm | | Maximum PSU Length | 8.7" / 22 cm | | | | Fan Mounting (Front) | 2 x 120 mm
| | Fans Included (Rear) | 1 x 120 mm | | Fan Controller Included | No | | | | Connections | 1 x USB Type-A (USB 3.0)
1 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 7.2 x 17.2 x 18.3" / 183.0 x 437.0 x 465.0 mm | | Weight | 10.6 lb / 4.8 kg | | | | Package Weight | 11.05 lb | | Box Dimensions (LxWxH) | 20.9 x 19.2 x 9.7" |
