Product description Aerial Photography and Drone Glossary Read More - Blade Mach 25 FPV Racer BNF Basic

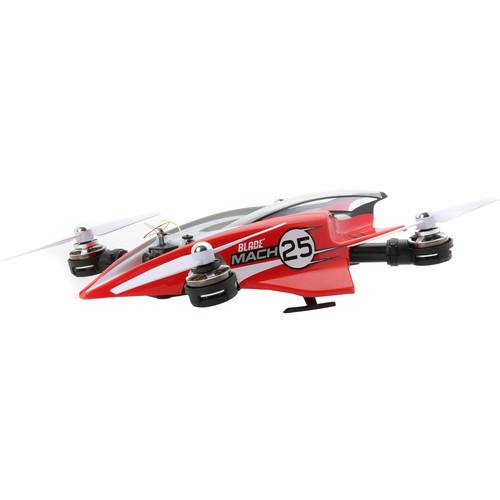

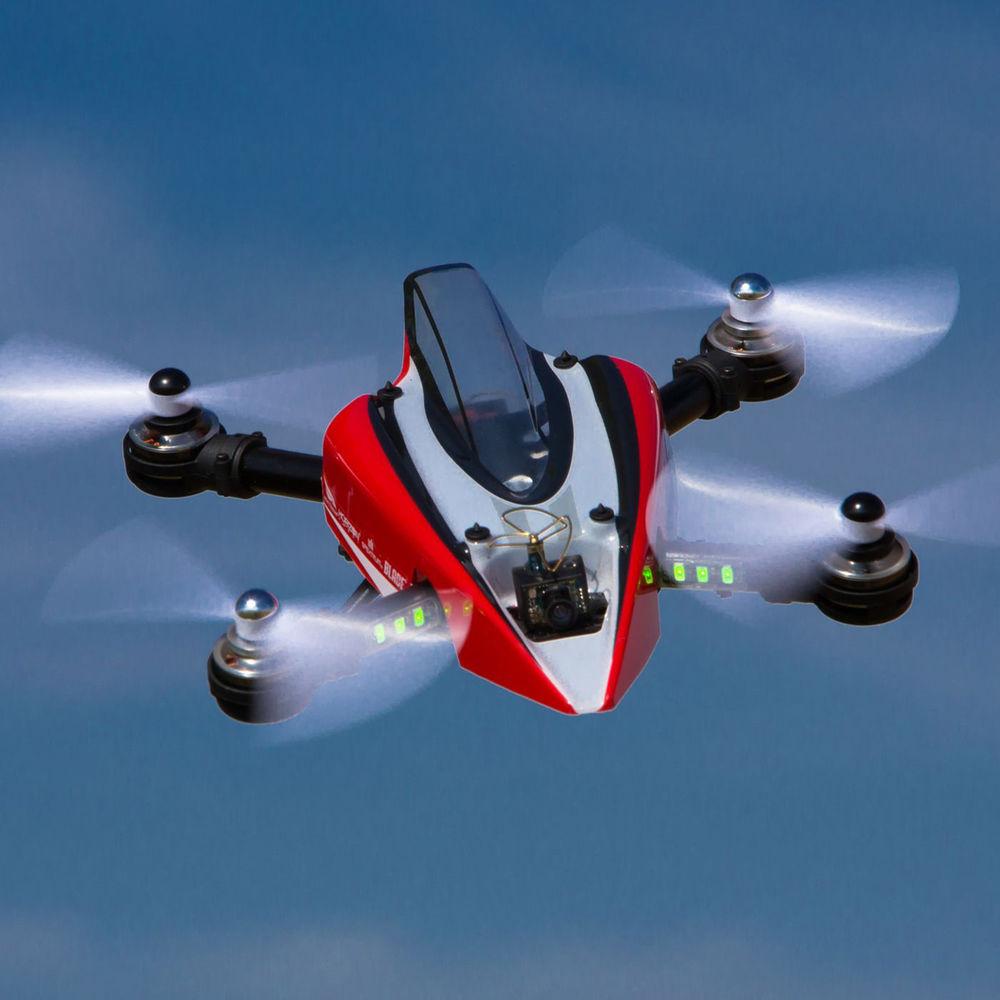

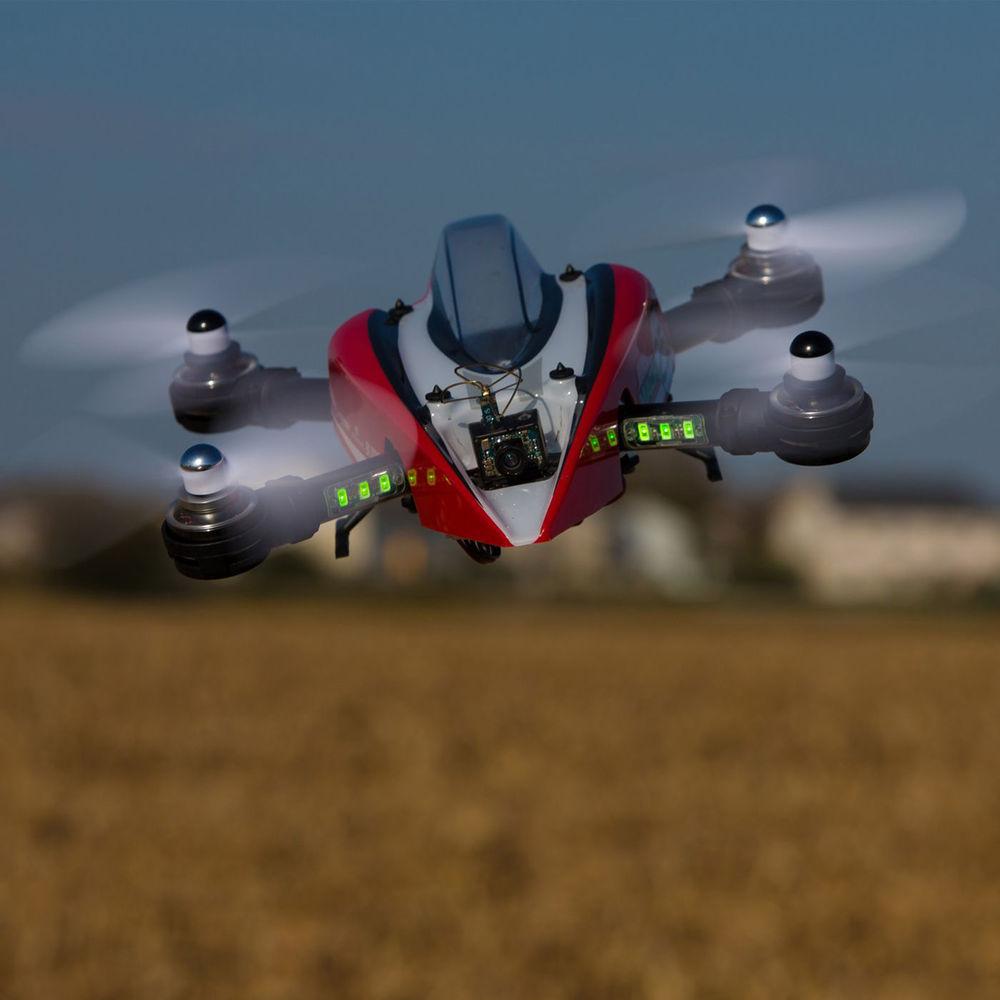

Designed for quad racing, the Mach 25 from Blade is a 250-sized quadcopter featuring forward-inclined motors to give you that extra edge in competition. Sporting an integrated ultra micro FPV camera with 5.8 GHz video transmitter, the body is LED illuminated to ensure you stay on top of the quad's orientation. The body has been streamlined for enhanced aerodynamics, and features carbon-fiber and aluminum components for added robustness.
Powered by a SAFE- (Sensor Assisted Flight Envelope) equipped flight controller, this BNF aircraft includes a Spektrum AR636QR receiver for use with 5+ channel 2.4 GHz DSM2 or DSMX transmitters. Multiple flight modes allow you to select an option that best corresponds with your skill level - from increased redundancy with a restricted flight envelope for beginners to nearly full manual control for advanced pilots looking to maximize agility.
An FPV camera with transmitter and a 1350mAh flight battery are included with this bundle. Additional hardware required includes a charger, video monitor with 5.8 GHz receiver or similarly equipped FPV goggles, and a battery charger. Needed to Complete: - Full-range 5+ channel, multi-function transmitter with Spektrum 2.4 GHz DSM2/DSMX technology
- Fat Shark 5.8 GHz-compatible FPV headset and/or FPV monitor
- Suitable LiPo flight battery charger
- Bind-N-Fly Completion
- Just charge the battery, bind the model to your DSMX technology compatible transmitter (available separately) and fly
- FPV Ready

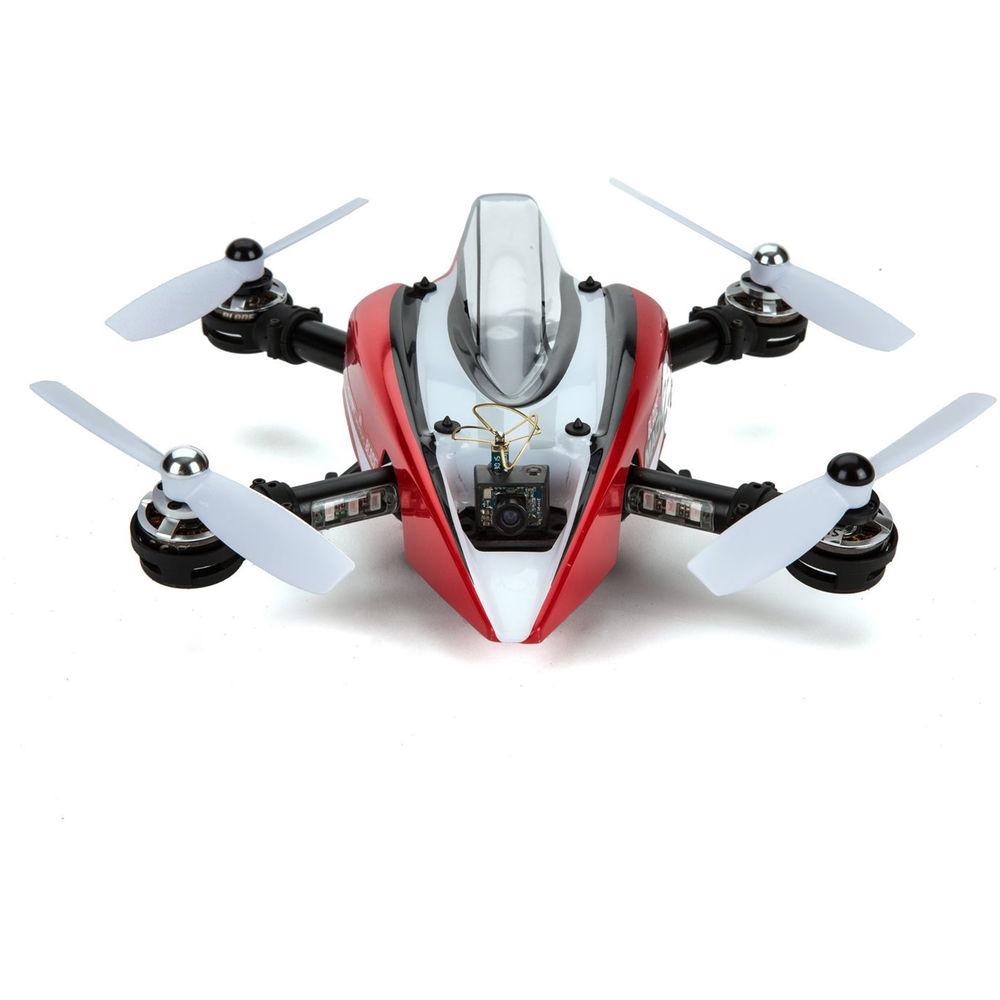

- The installed Spektrum ultra micro, 25mW airborne FPV camera system is mounted to a damped carbon-fiber plate and features a range suitable for AMA-approved line-of-sight FPV flying. All you need to enjoy the view is a Fat Shark-compatible headset or video monitor with 5.8 GHz receiver

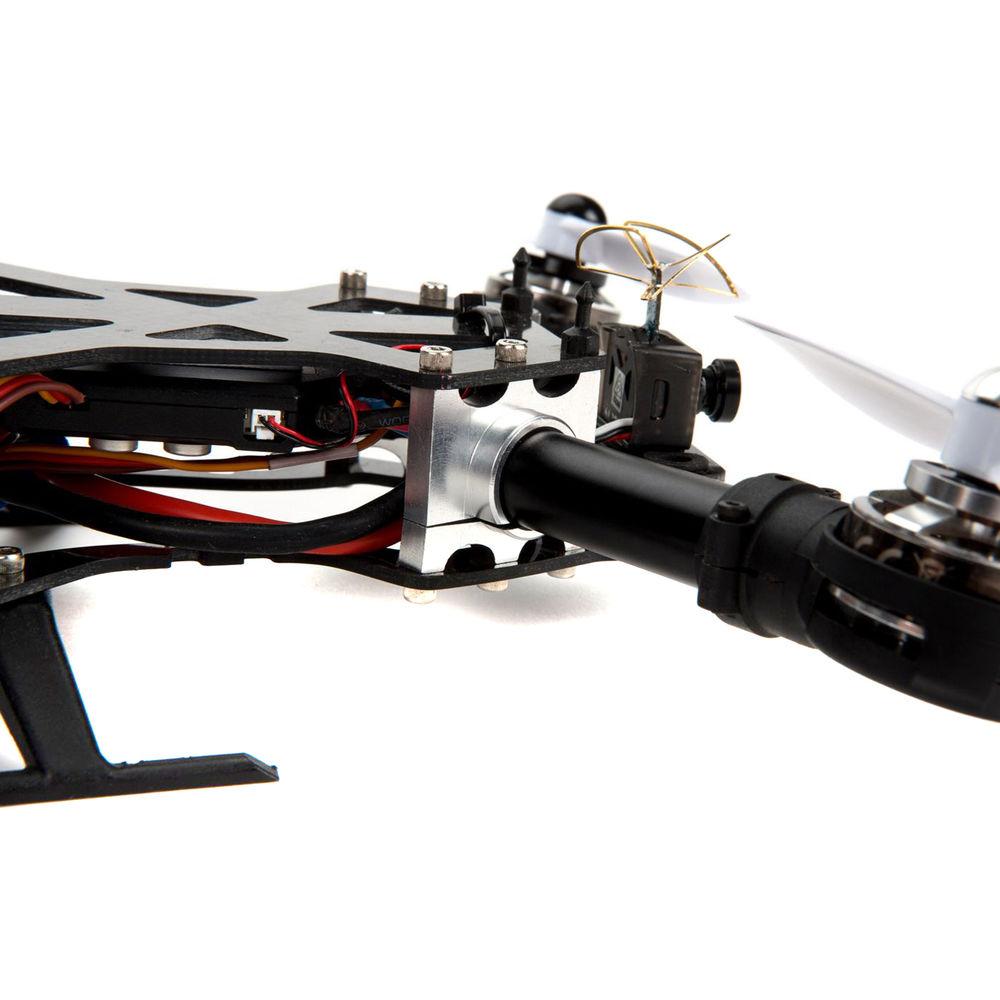

- Carbon-Fiber Frame with Aluminum Parts

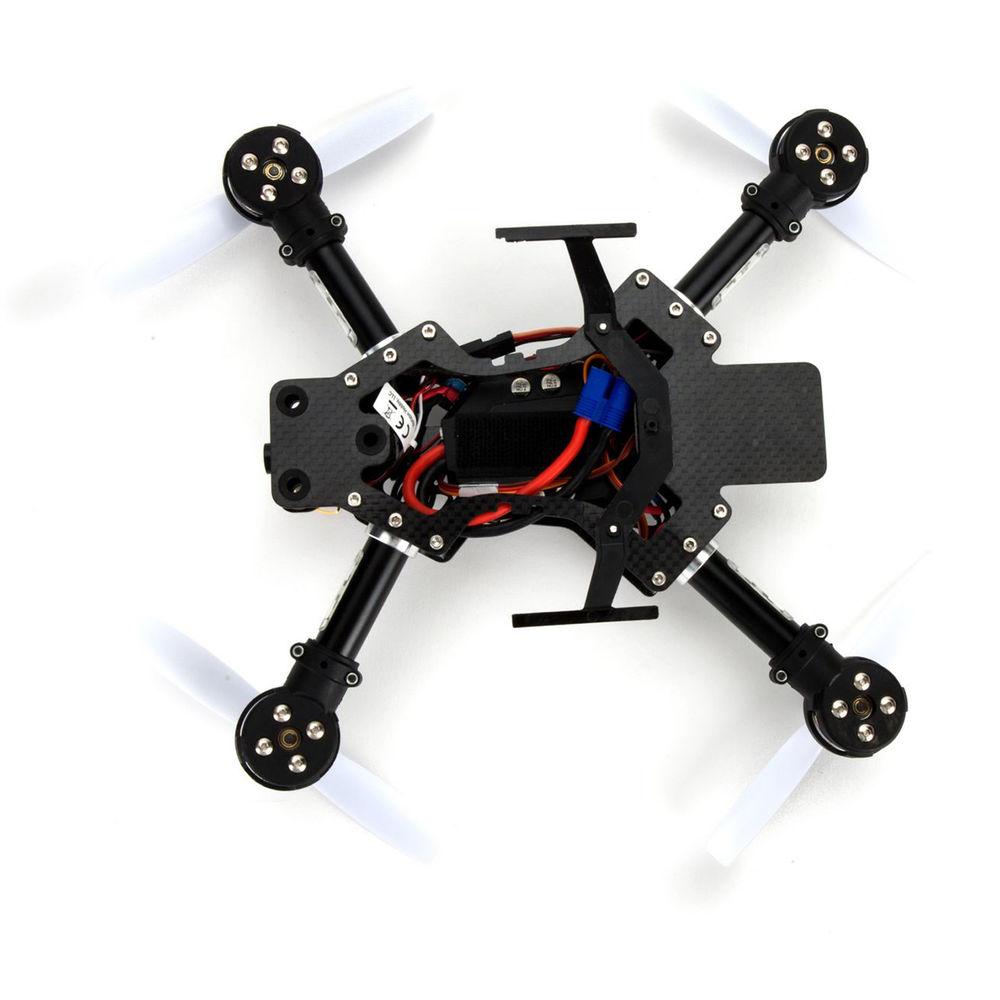

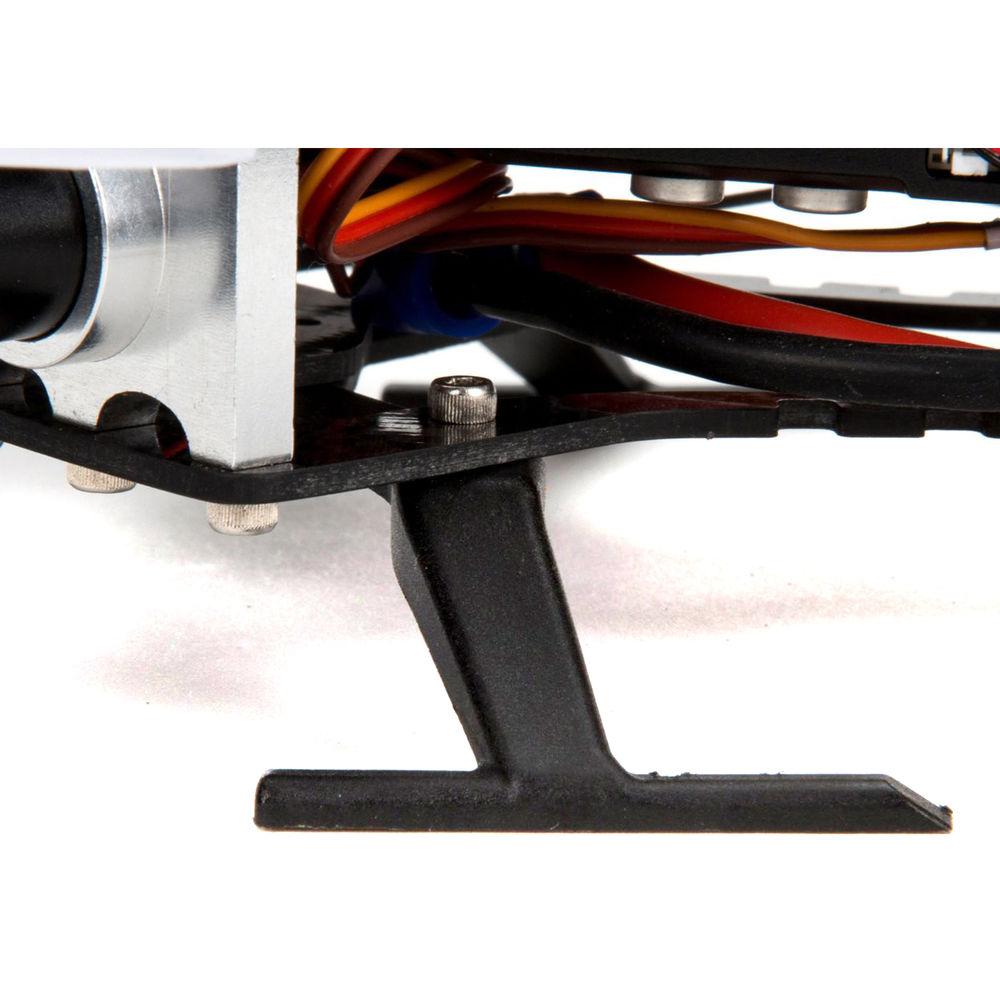

- 2.0 mm thick carbon-fiber frame plates surround vital electronics and connect with CNC-machined aluminum supports that hold aluminum motor booms

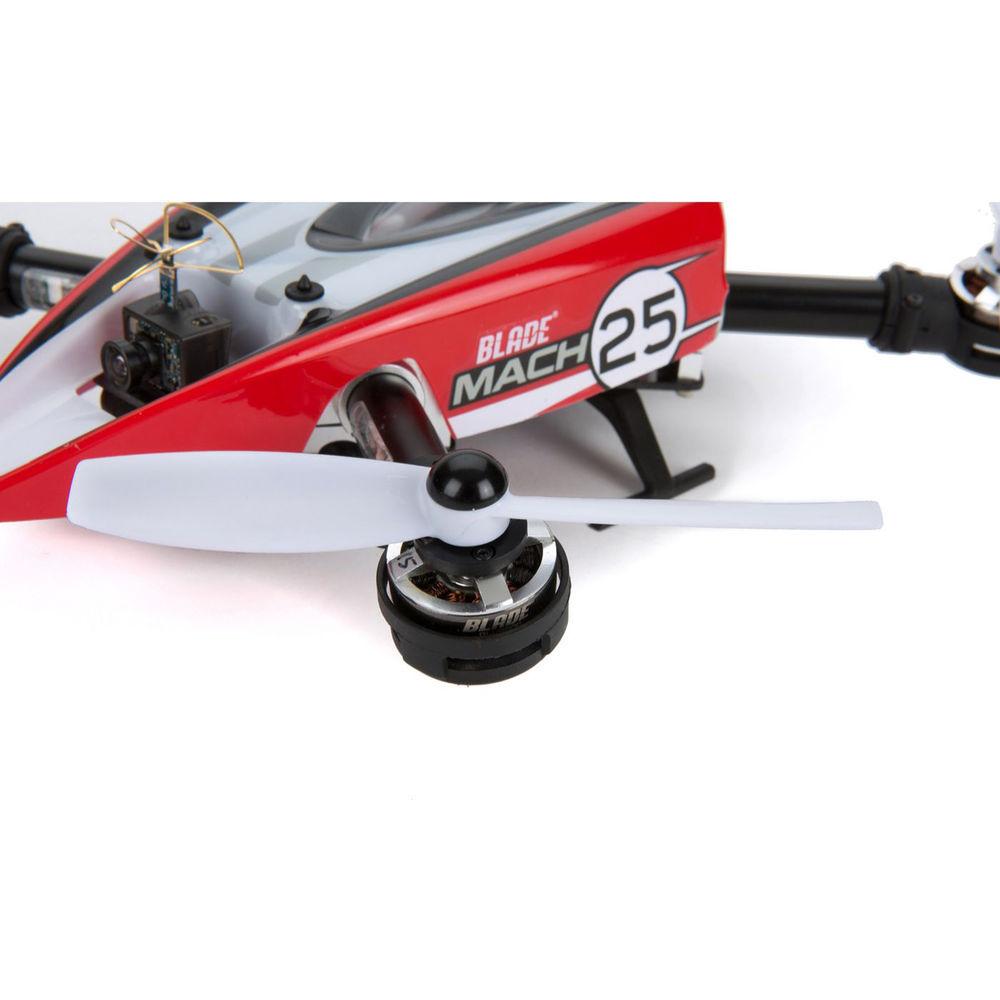

- Canted Motor Mounts
- For quicker acceleration and faster forward flight, the four brushless motors are mounted at a forward angle. Its lower flight angle also improves your visibility through the camera
- Self-Tightening Propellers
- No tools are required to change out broken props. The self-tightening hubs make changing props quick so that you can get back to racing quicker

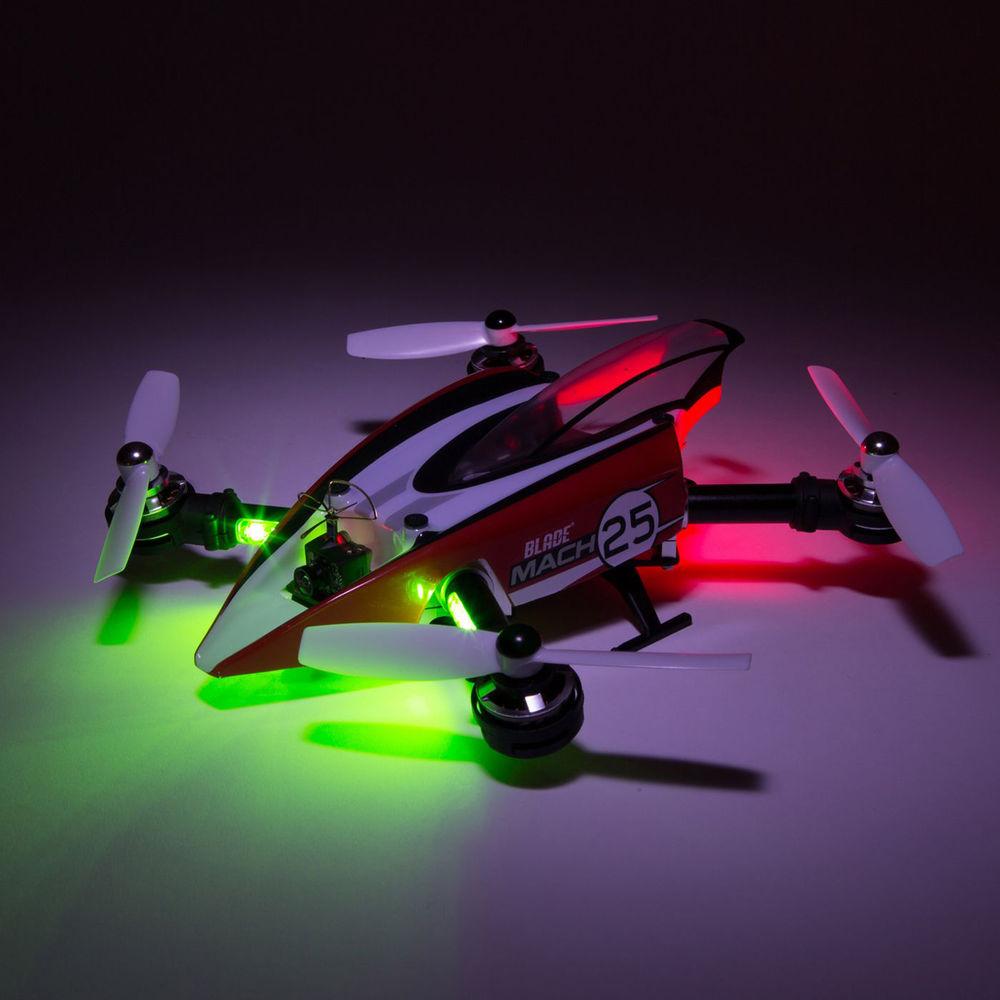

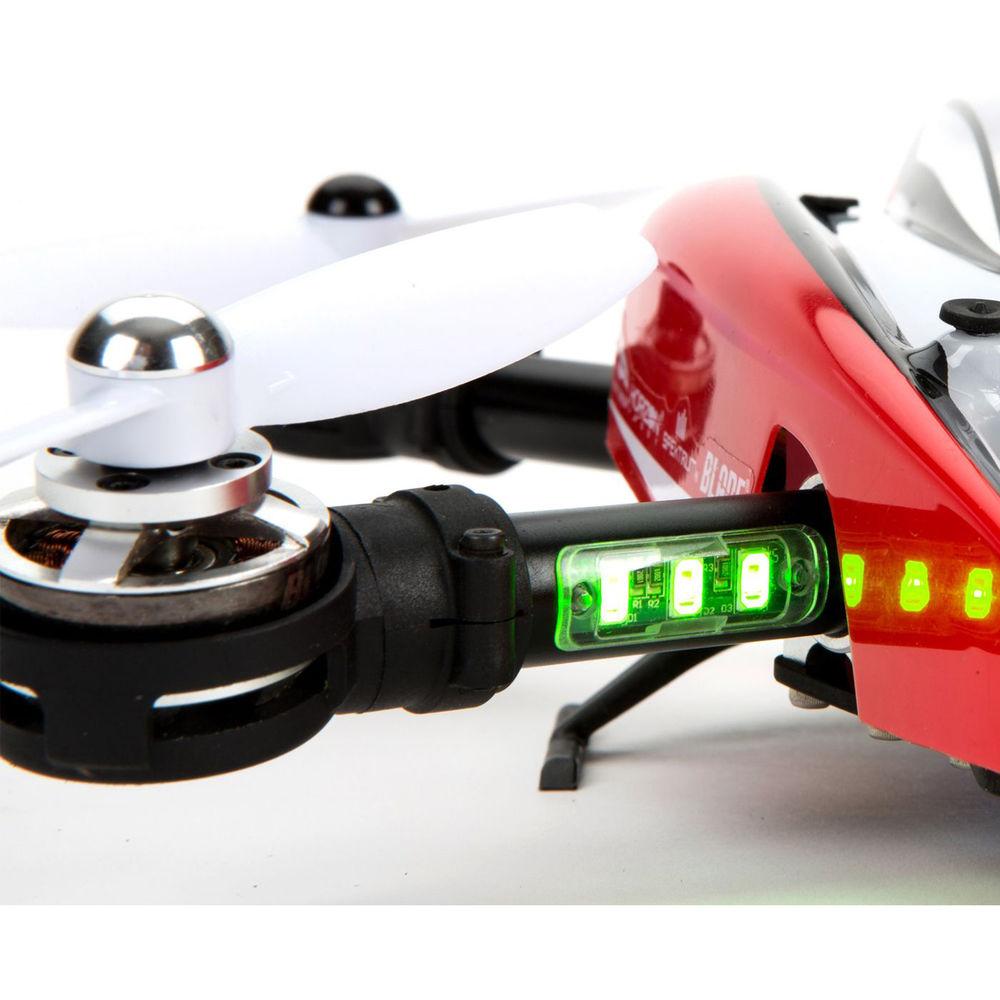

- Integrated LED Lighting
- Brilliant LED lighting in each motor boom helps with your visual orientation and makes it possible to locate your opponent more quickly
Additional Features - Fully assembled, no building necessary
- Flight controller employs Blade's SAFE technology to make flying more intuitive
- Spektrum AR636QR DSMX quad-racing receiver with pressure sensor
- 2300 Kv brushless outrunner motors
- Compact Castle Creations 4-in-1 ESC
- Self-tightening hubs allow tool-free propeller replacement
- E-flite 1350mAh 3S 11.1V LiPo flight battery included
UPC: 605482589632 In the Box BLADE Mach 25 FPV Racer (BNF) E-flite 1350mAh LiPo Flight Battery Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 uuaztcxafvdwasxfurtverdrzxxve Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 3.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the BLADE Mach 25 FPV Racer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBLADE BLH8980 Specs | | | Type | Blade with SAFE technology | | Receiver | Frequency: 2.4 GHz
Protocol: DSM2/DSMX | | Transmitter Requirements | DSM2/DSMX 5+ channel | | | | Frequency | 5.8 GHz | | Transmit Power | 25 mW | | | | Motor Velocity Constant | 2300 Kv | | ESC | Compact Castle Creations 4-in-1 ESC | | | | Chemistry | Lithium-polymer (LiPo) | | Capacity | 1350 mAh | | Voltage | 3S (11.1 V) | | | | Configuration | Quadcopter | | Completion Level | Bind-N-Fly basic (no assembly required) | | Size | 250 | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 14.3 x 10.1 x 4.4" |
