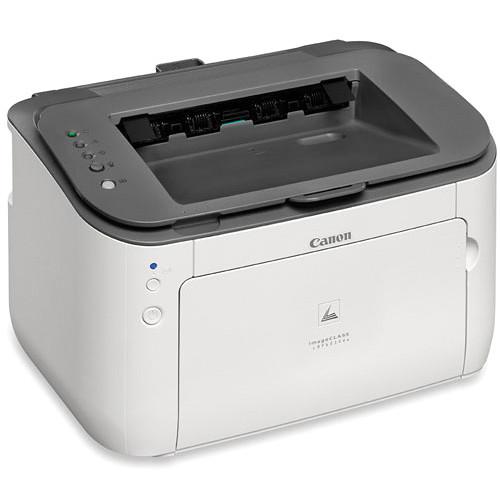

User Manual for Canon imageCLASS LBP6230dw Monochrome Laser Printer Click to enlarge the picture
Contents of the user manual for the Canon imageCLASS LBP6230dw Monochrome Laser Printer
- Product category: Laser Printers Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Laser Printers
 |
User manual for the Canon imageCLASS LBP6230dw Monochrome Laser Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Print at fast speeds without taking up too much space with the Wi-Fi capable imageCLASS LBP6230dw Monochrome Laser Printer from Canon. Using monochrome laser print technology, this unit has a rate of 26 ppm and when set to automatic duplex it will work at 16 ppm. Also, it has a 600 x 600 dpi print resolution which is equivalent to 2400 x 600 dpi for detailed imagery and text. And, as speed is a priority it has a first print out time of just 6 seconds.
Built-in Wi-Fi and Ethernet connectivity dramatically expands the printing possibilities. When using the Canon Mobile Printing app users can print directly from an iOS or Android device. Paper handling is done through either the 250-sheet cassette or a 1-sheet multipurpose tray and it can work with documents from 3 x 5" to 8.5 x 14" in size. Additionally, it has a monthly duty cycle of 8,000 pages as well as a USB 2.0 connectivity option. - Cartridge 126 will provide about 2,100 prints
- EPEAT Bronze and ENERGY STAR certified
UPC: 013803237702 In the Box Canon imageCLASS LBP6230dw Monochrome Laser Printer Starter Cartridge 126 USB Cable Power Cord Driver CD Limited 1-Year Warranty Guides & Manuals tfbaadzvbtvqyc More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon imageCLASS LBP6230dw Monochrome Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Canon imageCLASS LBP6230dw Monochrome Laser Printer can be downloaded in PDF format at the link stated below.
Technical parametersCanon LBP6230dw Specs | | | Printing Technology | Monochrome laser | | Maximum Resolution | 600 x 600 dpi (2400 x 600 dpi equivalent) | | Print Speed | Simplex: 26 ppm
Duplex: 16 ppm | | First Print Out Speed | 6 seconds | | Print Color | Black | | Duplex Printing | Yes, automatic | | Toner Cartridge Compatibility | Cartridge 126 (~2,100 pages) | | Printer Duty Cycle | Monthly: 8,000 pages
Monthly Recommended Print Volume: 500-2,500 pages | | Print Features | Collate, poster, booklet, watermark, toner saver, page composer | | | | Paper Handling | Cassette
Multipurpose tray | | Paper Types | Plain paper, heavy paper, transparency, label, index card, envelope | | Paper Sizes | Letter, legal, A4, A5, B5, executive
Envelope: Com 10, Monarch, DL, C5 | | Maximum Printable Area | 8.5 x 14.0" (21.6 x 35.6 cm) | | Media Weight | 16-43 lb bond | | Paper Capacity | Cassette: 250 sheets
Multipurpose Tray: 1 sheet
Output Tray: 100 sheets | | | | Interface | USB 2.0
10/100Base-T Ethernet
Wi-Fi 802.11b/g/n | | Wireless Printing Features | Infrastructure Mode
Canon Mobile Printing | | OS Compatibility | Windows 8.1, 8, 7, Server 2012, Server 2008 R2, Server 2008, Vista, Server 2003, XP
Mac OS X 10.6 and later
Linux
Citrix (FR2 and later) | | Web Browser Control | Embedded Web Server (Remote UI)
Internet Explorer 7.0 or higher, Safari 3.2.1 or higher | | Memory | 64 MB | | Printer Language | UFR II LT (host-based) | | Protocols | Print: LPD (IPv4, IPv6), RAW (IPv4, IPv6), WSD-Print (IPv4, IPv6)
TCP/IP Set: (IPv4) RARP, BOOTP, DHCP, DNS, DynamicDNS, MulticastDNS, WINS (IPv6) DHCP, DNS, DynamicDNS, MulticastDNS
Network Management: SNMPv1 (IPv4, IPv6), SNMPv3 (IPv4, IPv6), SLP (IPv4, IPv6) | | Network Security | Open System, Shared Key, WPA-PSK, WPA2-PSK, WEP (64/128-bit), TKIP, AES | | | | Interface | 5 LED indicators and 4 operation buttons | | Warm-Up Time | 10 seconds or less
Recovery Time: 0.5 seconds | | Power Requirements | 120-127 VAC, 60 Hz | | Power Consumption | Maximum: 930 W or less
During Operation: 400 W
Standby: 2.1 W (Wireless), 1.4 W (USB/Network)
Energy Saver: 1.6 W (Wireless), 0.9 W (USB/Network) | | Typical Power Consumption | 0.7 kWh | | Certifications | EPEAT Bronze
ENERGY STAR | | Acoustic Noise | Sound Power
Operation: 6.8 B or less
Standby: Inaudible
Sound Pressure
Operation: 52 dB or less
Standby: Inaudible | | Operating Conditions | Temperature: 50 to 86°F (10 to 30°C)
Humidity: 20 to 80%, relative | | Dimensions | 14.9 x 11.5 x 9.6" (37.8 x 29.2 x 24.4 cm) | | Weight | 15.4 lb (7 kg) without cartridge | | | | Package Weight | 21.2 lb | | Box Dimensions (LxWxH) | 17.6 x 14.5 x 13.0" |
