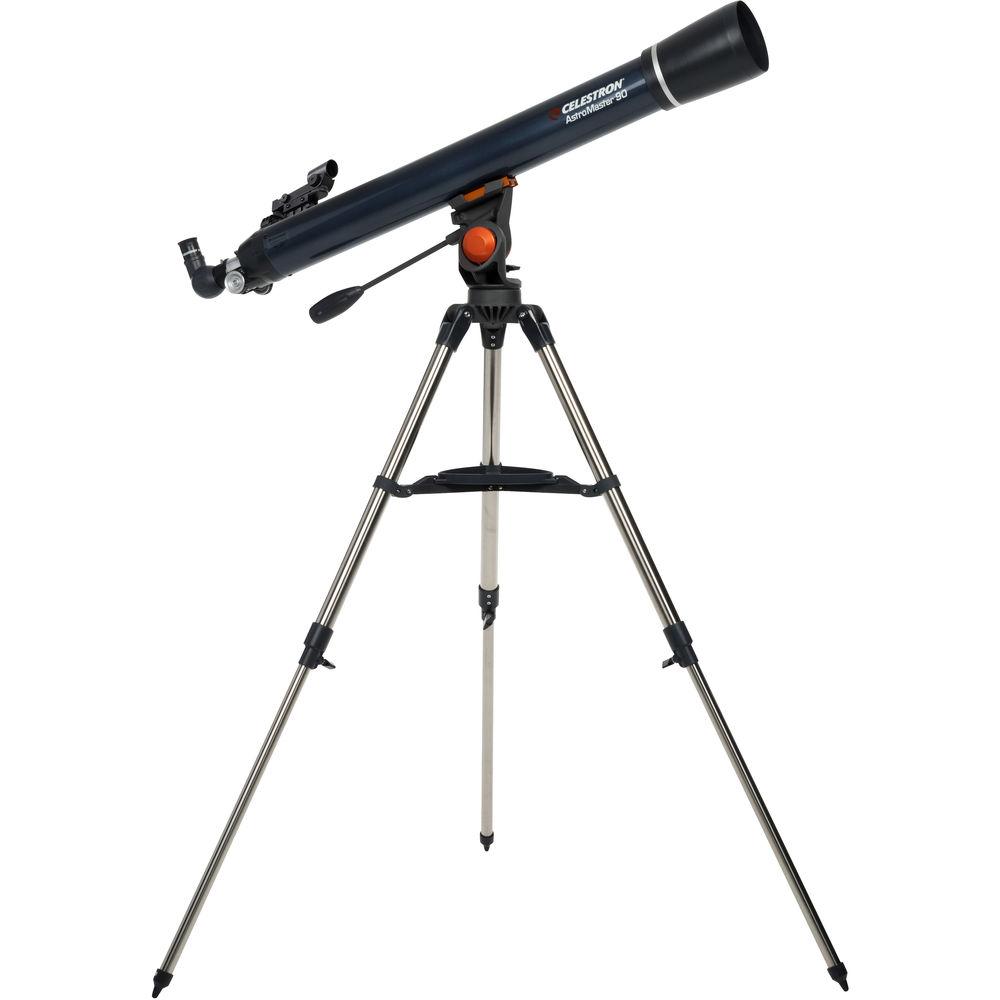

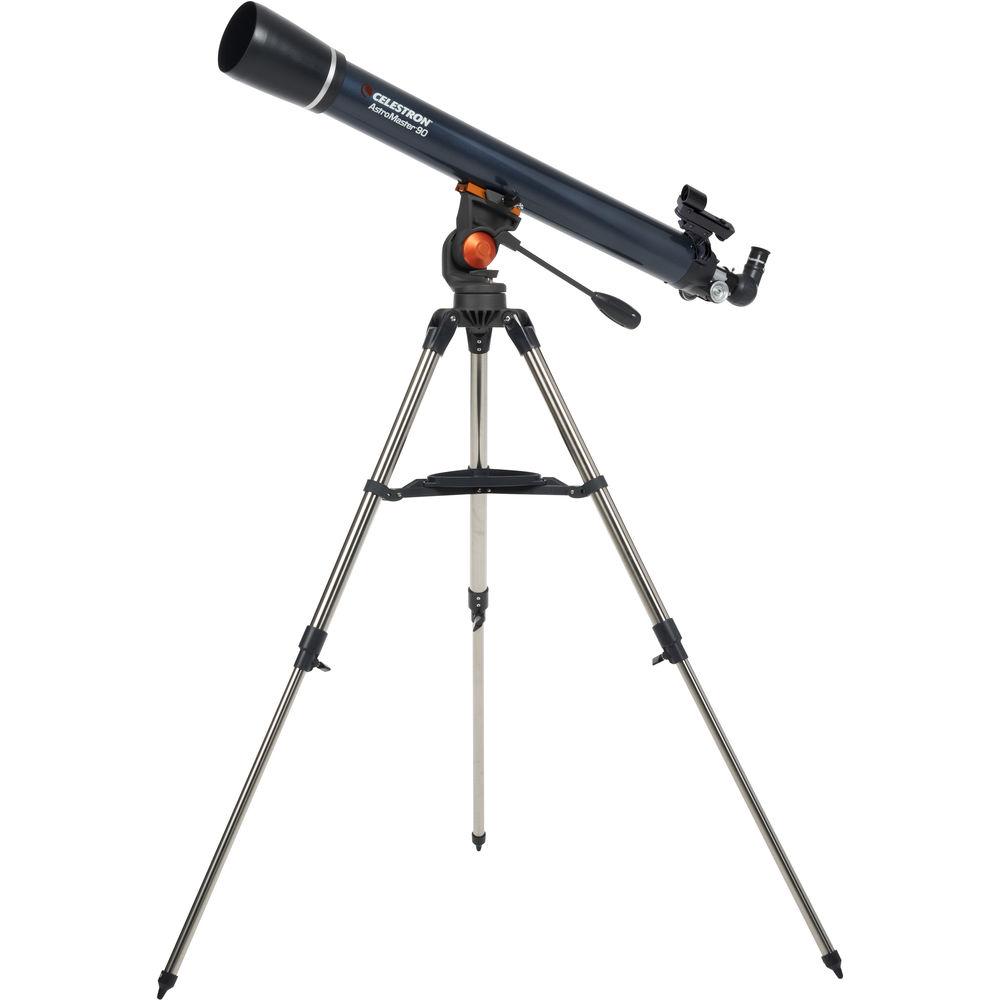

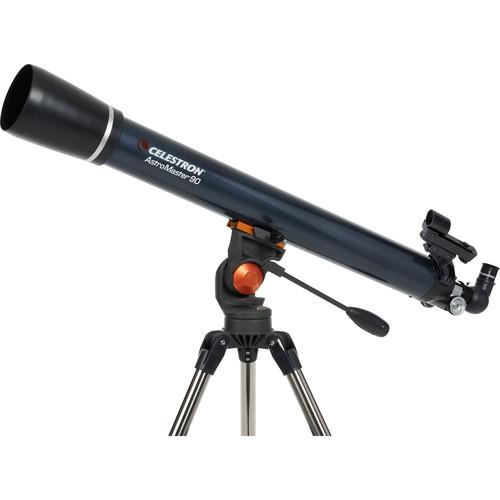

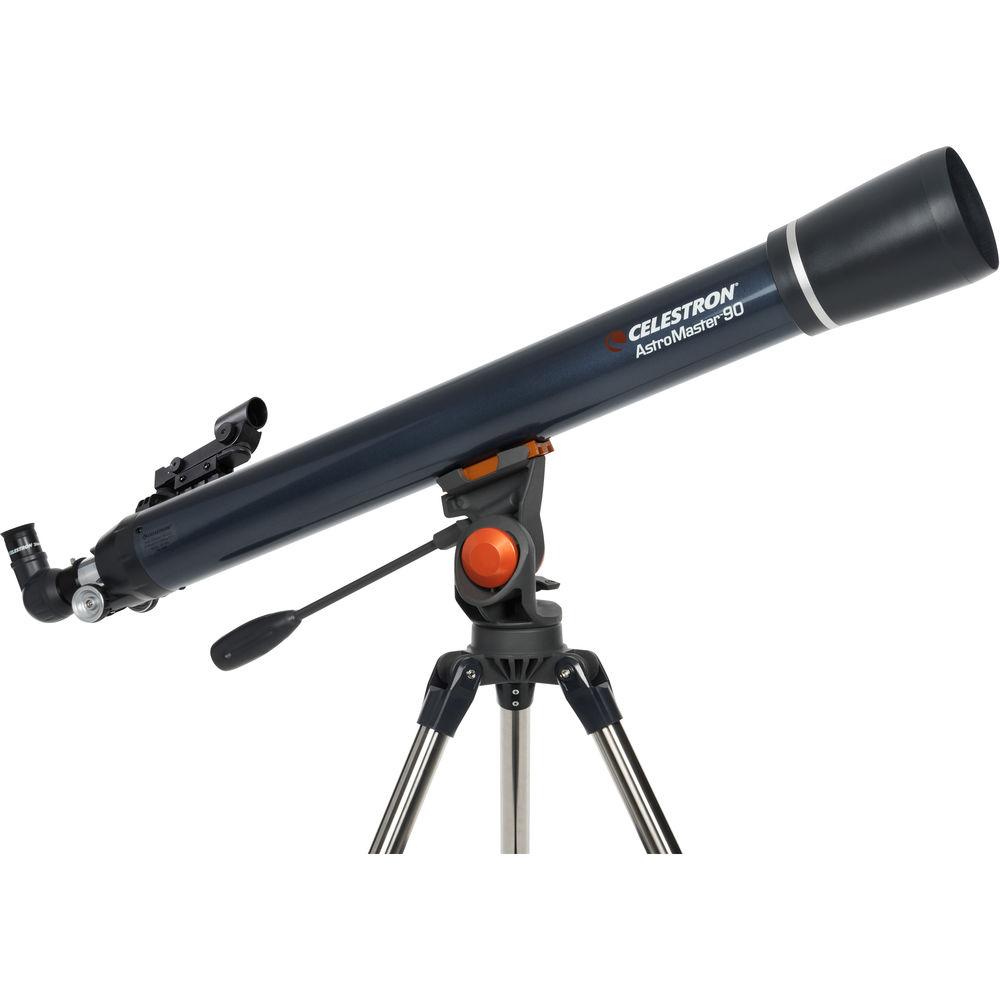

Product description Designed as a capable and portable starter-scope, the Celestron AstroMaster 90AZ 90mm f/11.1 Refractor Telescope is a complete observational platform for making detailed observations of the Moon, planets, or comet-hunting. Its manual alt-azimuth mount's locking altitude clutch and adjustable pan-axis tension knob allows users to easily track objects using the locking pan handle with reduced vibrations. The entire rig assembles and breaks down without the need for tools, so users can set up fast and get observing sooner.This version of the AstroMaster comes with two eyepieces that yield low and medium magnifications, and a 90° diagonal that sports an integrated erecting prism to correct images and allow the scope to be used as a conventional spotting scope for terrestrial use. The diagonal also places the user's head in a more comfortable position, especially when the OTA is pointed at or near the zenith. An adjustable-height stainless steel tripod supports the mount and optical tube, and comes with a center tray that conveniently holds accessories while improving stability and reducing vibrations. - Optical Tube
-
- 90mm aperture
- f/11.1 focal ratio
- 1000mm focal length
- Refractor-style optical path
- Fully multi-coated optics improve light transmission, color rendition, and contrast
- Resolution: 1.55 arcsec (Rayleigh); 1.29 arcsec (Dawes)
- 1.25" rack-and-pinion focuser
- Dovetail mounting plate
- Mount and Tripod
-

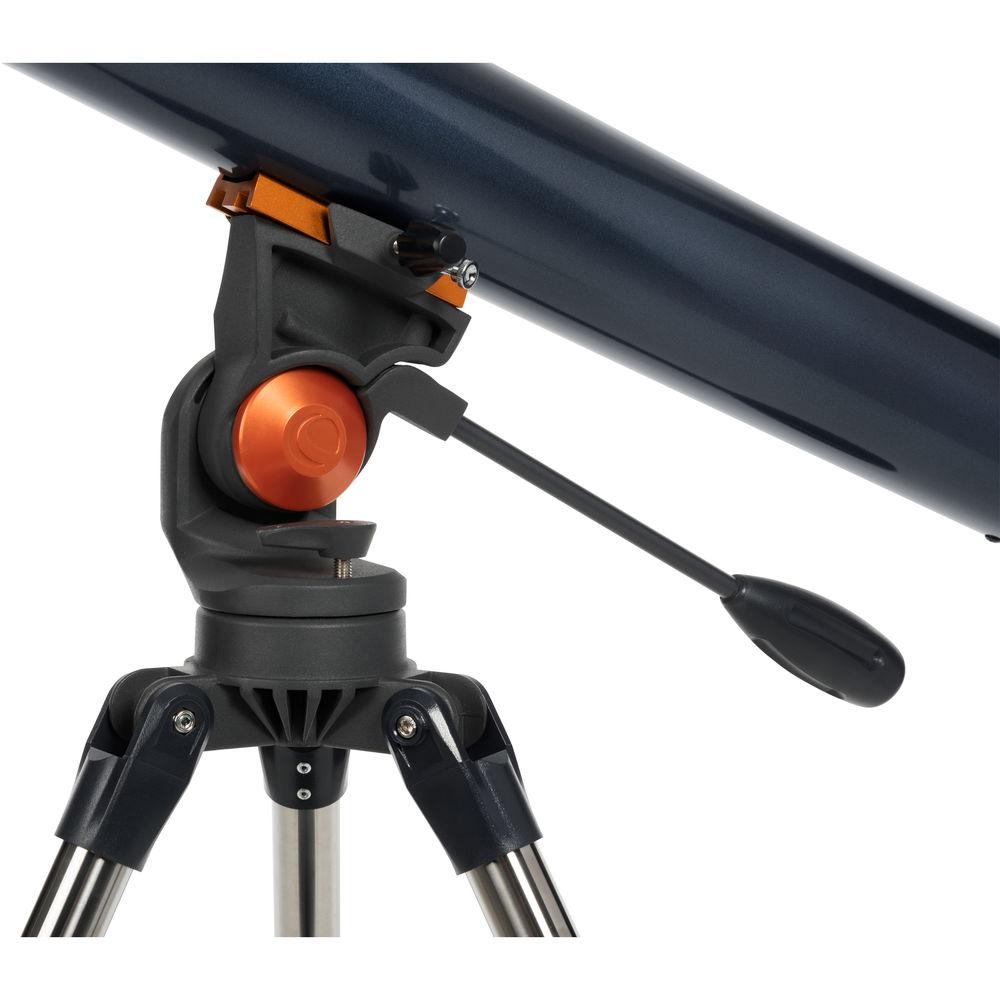

Mount:- Manual alt-azimuth
- Locking control handle enables precise adjustments with reduced vibrations
- Manual base clutch locks mount in position
- Adjustable pan tension ensures smooth movement while tracking objects
- Dovetail saddle accepts OTA mounting plate and allows for precise balancing
Tripod:- 1.25" tubular stainless steel legs
- Adjustable height to accommodate a variety of users and observing positions
- Spiked feet to provide stability in rough or soft terrain
- Center tray adds stability and vibration-reduction
- Included Accessories
-

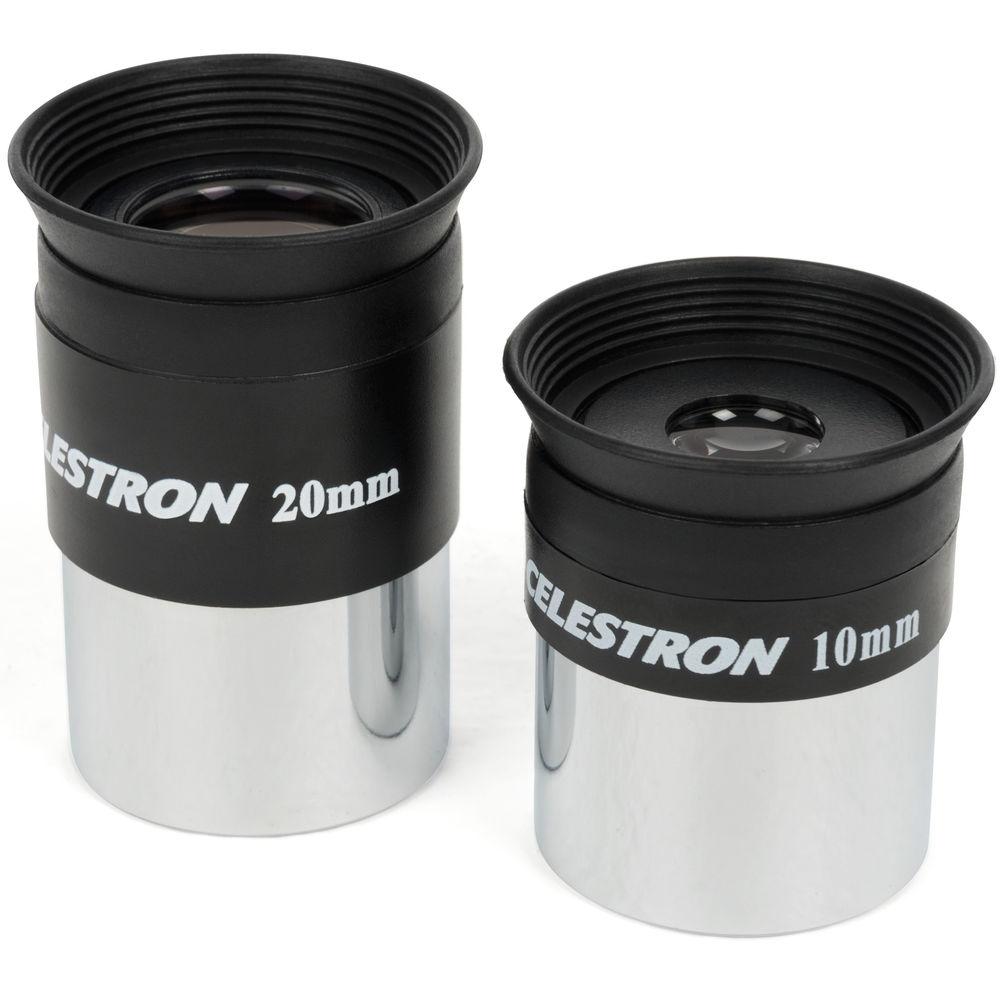

Eyepieces:- 1.25" diameter barrel
- Accepts most astronomical eyepiece filters
- 10mm focal length produces 100x magnification
- 20mm focal length yields 50x power
Diagonal:- 90° angle places head in comfortable viewing position, especially when aimed at or near the zenith
- Integrated erecting prism corrects image for terrestrial viewing as a conventional spotting scope
- 1.25" snout and eyepiece holder fits and accepts the most common sized focusers and accessories
Finder:- Permanently-mounted in-place
- Unmagnified view ensures easy alignment and fast star-hopping navigation
- Red illuminated center aiming dot is easy to see without obstructing small or dim objects
UPC: 050234210638 In the Box Celestron AstroMaster 90AZ 90mm f/11.1 Refractor Telescope StarPointer Finderscope 10mm Eyepiece 20mm Eyepiece 90° Erect-Image Diagonal Tripod and Accessory Tray Limited 2-Year Warranty Guides & Manuals eawutwyyuqbbfurtesx Table of Contents
|
Upload User Manual
Have you got an user manual for the Celestron AstroMaster 90AZ 90mm f 11.1 Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Celestron AstroMaster 90AZ 90mm f 11.1 Refractor Telescope can be downloaded in PDF format at the link stated below.
Technical parametersCelestron AstroMaster 90 AZ Specs | | | Optical Design | Achromatic Refractor | | Focal Length | 1000 mm | | Focal Ratio | f/11.1 | | Eyepiece Barrel Diameter | 1.25" | | | | Type | Alt-Azimuth | | GoTo Capability | No | | | | Material of Tripod | Stainless Steel | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 42.0 x 15.0 x 9.5" |
