User Manual for CHAUVET PROFESSIONAL Rogue R3 LED Wash Light

Click to enlarge the picture
CHAUVET PROFESSIONAL Rogue R3 LED Wash Light Contents of the user manual for the CHAUVET PROFESSIONAL Rogue R3 LED Wash
  • Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights

User manual for the CHAUVET PROFESSIONAL Rogue R3 LED Wash contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any CHAUVET PROFESSIONAL product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!

Product description

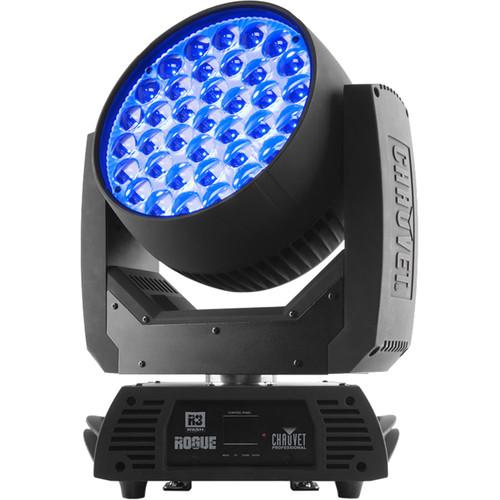

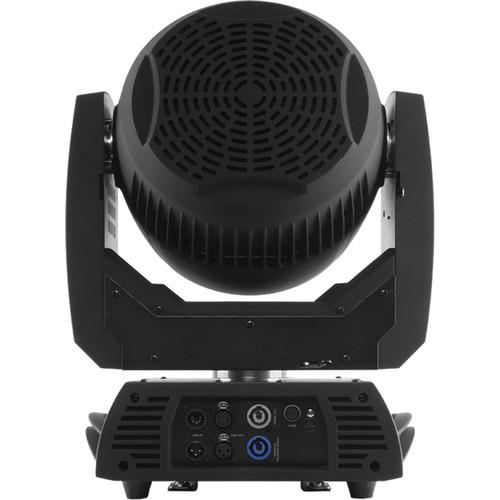

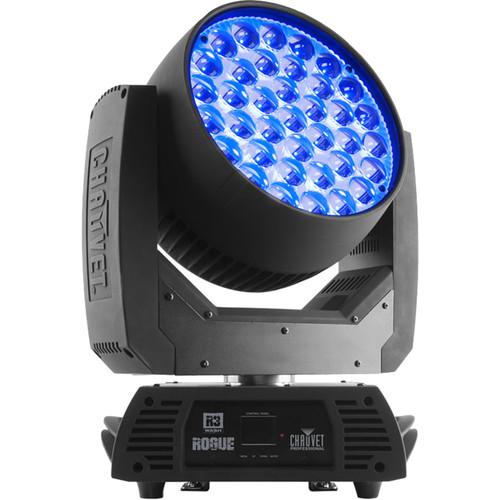

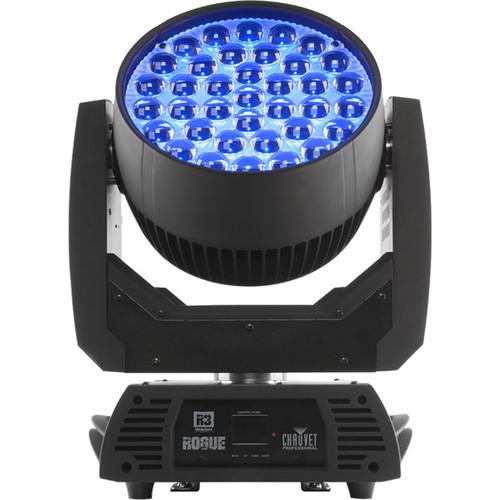

The reliable and dependable Rogue R3 LED Wash Light from Chauvet Professional is a moving-head workhorse fixture suited for rental and production inventories. The fixture utilizes 37, 15W RGBW quad-LEDs to output a bright, evenly dispersed light, with nine zones of LED control for pixel mapping effects. The quick zoom lens offers a range of 12 to 49° for even coverage of the largest areas. The fixture offers several dynamic effects including electronic dimming, shutter/strobe, color mixing, four dimming curves, and built-in automated programs. The Rogue R3 ships with a Neutrik powerCON power cord, and an Omega bracket with mounting hardware.
    • Fully featured RGBW LED wash fixture with LED zone control and zoom
    • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
    • 37 RGBW LEDs, 15 W each
    • 9 zones of LED control for pixel mapping effects
    • Unusual lens design offers excellent color mixing
    • 6 distinct dimming modes
    • Easy to read OLED display with simple, effective menu options
    • Simple and complex DMX channel profiles for programming versatility
    • RDM (Remote Device Management) for added programming flexibility
UPC: 781462216078 In the Box CHAUVET PROFESSIONAL Rogue R3 LED Wash Light (RGBW)
  • Neutrik powerCON Power Cord
  • Omega Bracket with Mounting Hardware
  • Limited 2-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the CHAUVET PROFESSIONAL Rogue R3 LED Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters


    Optical Light Source: 37 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy
    Color Temperature (Range): 2,800 to 10,000 K
    Beam Angle: 8 to 30°
    Field Angle: 12 to 49°
    Zoom Angle: 12 to 49°
    Illuminance (12°): 21,000 lux @ 16.4' / 5 m
    Illuminance (49°): 1,902 lux @ 16.4' / 5 m
    PWM Frequency: 2,400 Hz
    Effects Pan and Tilt: 540°/230°
    Pan and Tilt Ranges: 180°, 360°, 540° pan / 90°, 180°, 230° tilt
    Dimmer: Electronic
    Shutter/Strobe: Electronic
    Zoom: Motorized
    Strobe Rate: 0 to 20 Hz
    Standalone Color Mixing: Yes
    Color Temperature Presets: Yes
    Dim Curves: 4
    Built-in Automated Programs: Yes
    Control Control Protocol: DMX, RDM
    DMX Channels: 21, 62, 71, 107
    Modes/Personalities: 4 personalities
    Connections Power Connection: Edison (local) plug to Neutrik powerCON
    Power Input: Neutrik powerCON
    Power Output: Neutrik powerCON
    Data Connectors: 3- and 5-pin XLR
    Cable Length (Power): 5.0' / 1.5 m
    Electrical Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    Power Linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V
    Power and Current: 660 W, 6.21 A @ 120 V, 60 Hz
    Power and Current: 689 W, 3.40 A @ 208 V, 60 Hz
    Power and Current: 704 W, 3.10 A @ 230 V, 50 Hz
    Certification CE, MET
    IP Rating: IP20, dry location
    Temperature (Ambient): -4 to 113°F / -20 to 45°C
    Housing Material High-impact flame-retardant polymer
    Exterior Color Black
    Dimensions 15.5 x 11.7 x 18.5" / 394.0 x 297.9 x 469.9 mm
    Weight 38.5 lb / 17.5 kg
    Package Weight 47.0 lb
    Box Dimensions (LxWxH) 23.7 x 19.3 x 14.8"


    90% users recommend this product to others. And what about you?
