Cineo Lighting LightBlade Edge LB2 LED

Search your instruction manual in PDF to download

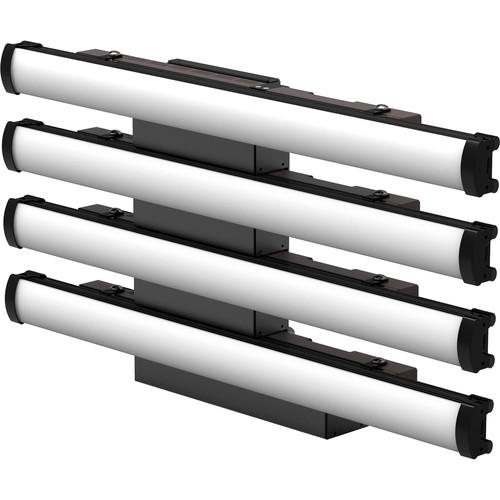

User Manual for Cineo Lighting LightBlade Edge LB2 LED Light

Click to enlarge the picture
Cineo Lighting LightBlade Edge LB2 LED Light Contents of the user manual for the Cineo Lighting LightBlade Edge LB2 LED
  • Product category: LED Lights Cineo Lighting
  • Brand: Cineo Lighting
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Cineo Lighting LED Lights

User manual for the Cineo Lighting LightBlade Edge LB2 LED contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Cineo Lighting product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Cineo Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Cineo Lighting product will considerably shorten its lifespan!



Product description

Featuring a modular design with zone control that allows you to individually regulate multiple blades, the 2' LightBlade Edge 320W LB2 LED Light from Cineo features extensive color control, dimming, onboard DMX, and universal power capability. This 4-blade version of the light comes with a cable set and Baby pin (5/8") for mounting, as well as a Power Chassis to hold the blades horizontally.The LightBlade Edge has color temperatures that can vary from 2700 to 5600K to accommodate ambient light conditions, match other fixtures and their presets, or just for creative expression. It has a RGB mode to give you access to literally millions of color combinations, while maintaining an accurate color rendition of a 95 CRI. Its output is also flicker-free up to 5000 fps.Light intensity is variable from 0 to 100%, and you can make color and dimming adjustments locally via the fixture's detachable controller. You can remotely control the console, thanks to an onboard 8- or 16-bit DMX / RDM controler. Another one of the LightBlade Edge's valuable features is its fan-less cooling, an asset in those sound-sensitive environments. The LightBlade Edge 320W LB2 is ready for worldwide use, due to its 100 to 240 VAC power supply.
    Cineo Zone Control
  • A sleek modular design provides flexibility to use the blade individually and to use the same light in larger fixtures. This modular design is vital to the Cineo patent pending Zone Control feature found exclusively in LightBlade products. Zone control offers you the ability to control pairs of blades autonomously from one another with a degree of control to the entire fixture.
    Full Gamut, Five Color
  • Cineo Full Gamut Five Color (2700, 6500, Red, Green, Blue) LED chips allow you to create a white light with the ability to fully overlay fully saturated color that essentially eliminates the need for costly gels. This process is in essence an extension to HSV in that it permits tunable CCT visible only to the camera.
    Color Rendering
  • Cineo's LightBlade will boast a 95 average CRI at 3200K and 5600K while maintaining a CRI over 96 in the R9 value.
    Flicker-Free
  • LightBlade has a 320W draw that is approximately 60-lumen per watt. Each blade is flicker-free to 5000 fps.
    Passive Cooling
  • The LightBlade offers a passive cooling operation.
    Cost Saving
  • In addition to the energy savings, there is the ability to layer colors on top of the white light giving you the ability to digitally gel any color desired, saving you money on costly filters and on the labor spent skinning gel frames. Save on valuable production time by making lighting scheme changes instantaneously, allowing DPs to explore creative options without the inconvenience and time consuming light fixture adjustments.
    Mounting Options
  • All LightBlade Edge configurations ship with a 3/8"-16 threaded Baby pin for basic fixture mounting. We also offer a flush-mount LightBlade clip to mount individual blades to a wall, ceiling, and to a set piece.
In the Box Cineo Lighting LightBlade Edge LB2 LED Light (320W, 2')
  • LightBlade Fixture
  • Cable Set
  • Power Chassis
  • Reusable Colorplast Box
  • Baby Pin
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Cineo Lighting LightBlade Edge LB2 LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Cineo Lighting LB2-320 Specs

    Color Temperature 2700 to 6500K
    Color Accuracy Standard CRI 95 at 5600K Also CR95 at 3200K
    Cooling System Passive
    Dimming Yes, 0 to 100%
    Display None
    Lumens 20000
    Photometrics 90 fc / 968.4 lux at 9.84' / 3 m
    Fixture Dimensions 24.0 x 12.5 x 4.7" / 61.0 x 31.8 x 11.9 cm
    Fixture Weight 11.4 lb / 5.17 kg
    Battery Plate None
    Yoke Mount None
    Fixture Mount 3/8"-16 Female Also 5/8" Baby Pin
    Accessory Mount None
    Remote Control Type DMX
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Power Source AC Adapter
    Max Power Consumption 320 W
    Certifications CE, ETL, as per Manufacturer
    Operating Temperature -4 to 104°F / -20 to 40°C
