COAST PX1R Pure Beam Focusing Rechargeable

Search your instruction manual in PDF to download

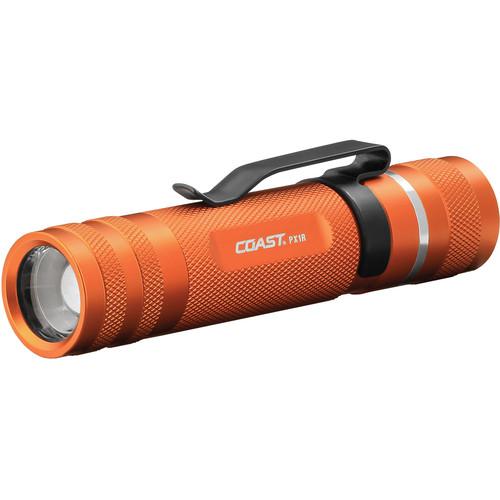

User Manual for COAST PX1R Pure Beam Focusing Rechargeable LED Flashlight

Click to enlarge the picture
COAST PX1R Pure Beam Focusing Rechargeable LED Flashlight Contents of the user manual for the COAST PX1R Pure Beam Focusing Rechargeable
  • Product category: Handheld Flashlights COAST
  • Brand: COAST
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for COAST Handheld Flashlights

User manual for the COAST PX1R Pure Beam Focusing Rechargeable contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any COAST product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official COAST user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a COAST product will considerably shorten its lifespan!

Product description

Designed for power, versatility, and convenience, the COAST PX1R Pure Beam Focusing Rechargeable LED Flashlight offers a low output for tasks such as reading and a high output to light larger areas, with the capability of running on both disposable and rechargeable battery chemistries.For even more usability, the light is outfitted with a focusing system that allows you to focus the beam from a wide flood for close-up work to a spotlight for a further throw distance when you need it. The beam focuses by simply twisting the head. Its flood beam is smooth with consistent brightness from one edge to the other without a hotspot, and when focused it produces COAST's "Bull's-Eye" Beam, which has a bright center circle that smoothly transitions to a dimmer "halo" around it, providing maximum illumination precisely where you need it with plenty of spill to keep you aware of your surroundings. Its two outputs are controlled by a simple on/off push-button switch on the tailcap.The light is capable of running on dual battery chemistries, and COAST provides both to get you started. First, you have a lithium-ion rechargeable battery pack that can be charged in or out of the light using the included USB cable and the included 110 VAC wall outlet adapter. If you run out of power and still need a light, you can use three AAA batteries. Outputs will be a bit lower and runtimes are different...but at least you won't be left in the dark.
    Light Performance
    • Selectable low and high outputs
    • Internal reflector lens helps to direct and focus beam
    • Head twists side to side to focus beam with one-hand operation
    • Focus system allows the beam to be adjusted from a wide flood to a tight spotlight
    • Ultra View flood beam produces a wide flood of light that is consistent across the full diameter without a center hotspot
    • Bull's-eye spotlight beam has a bright center circle that smoothly transitions to a dimmer spill around it
    Output, lithium-ion battery pack:
    • Low: 50 lumens, 14-hour runtime
    • High: 460 lumens, 3.5-hour runtime
    Output, alkaline batteries:
    • Low: 40 lumens, 24-hour runtime
    • High: 330 lumens, 2-hour runtime
    • Type: Push button
    • Location: Tailcap
    • Constant-on activation
    • Fully exposed button allows for easy access and use
    Construction Details
    • Durable aluminum-alloy housing
    • Scratch-resistant orange anodized finish
    • IPX4-rated to be water resistant to splashing water and rain
    • Dual-Power Flex Charge electronics, includes rechargeable and disposable batteries
    • Integrated and covered USB charging port allows lithium-ion battery pack to be charged in the light while preserving the water-resistance rating when not charging
    • Light 5.1-ounce weight
    Power Options
    • Lithium-ion rechargeable battery pack. Charge in or outside the light
    • Three AAA alkaline batteries
    • USB charging cable
    • 110 VAC power adapter for charging at home/office
UPC: 015286207609 In the Box COAST PX1R Pure Beam Focusing Rechargeable LED Flashlight (Orange)
  • Pocket Clip
  • Lithium-Ion Battery Pack
  • Battery Cartridge
  • 3 x AAA Batteries
  • USB Charging Cable
  • 110 VAC USB Wall Outlet Adapter
  • Limited Lifetime Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the COAST PX1R Pure Beam Focusing Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    COAST PX1R Specs

    Lumen Output Proprietary Lithium-Ion:
    Low: 50 Lumens
    High: 460 Lumens
    AAA Alkaline:
    Low: 40 Lumens
    High: 330 Lumens
    Illumination Source 1 x White LED
    Estimated Runtime Proprietary Lithium-Ion
    Low: 14 Hours
    High: 3.5 Hours
    AAA Alkaline
    Low: 24 Hours
    High: 2 Hours
    Battery Type 1 x Rechargeable Pack or
    3 x AAA Alkaline
    Material of Construction Aluminum
    Water Resistance Water Resistant, IPX4
    Impact Resistance No
    Dimensions L: 5.0" / L: 12.7 cm
    Weight 5.11 oz / 145.0 g


    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 46 owners. Add your rating and experience with the product.


    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to COAST PX1R Pure Beam Focusing Rechargeable LED Flashlight

    Subject: Tx1r light
    Date: 03.02.2021 00:52:11Name: Greg Coley
    The spot on the light doesn’t get very small is this normal when it’s all the way on spot and fully charged the beam will shine about 80 feet
