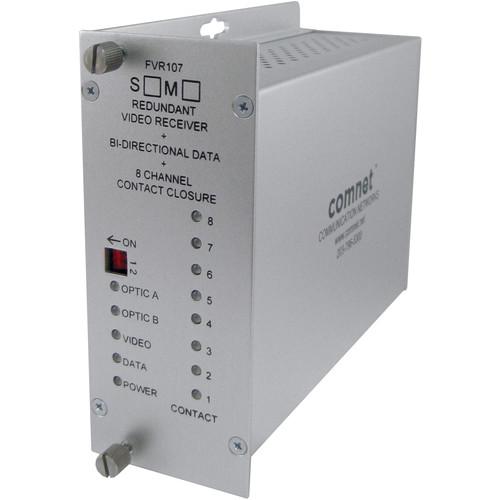

User Manual for COMNET 10-Bit Digital Single-Mode Video Receiver Data Transceiver with 1 Bi-Directional Data Channel Dual Optical Port Redundant Point-to-Point Configuration 8 Contact Closures Click to enlarge the picture
Contents of the user manual for the COMNET 10-Bit Digital Single-Mode Video Receiver
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET 10-Bit Digital Single-Mode Video Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The 10-Bit Digital Single-Mode Video Receiver/Data Transceiver from ComNet provides 10-bit digital video, 10 MHz bandwidth, and short-haul video quality, one bi-directional data channel, and a dual optical port redundant Point-to-Point topology. It also features eight contact closures and two alarm relays. The redundant Point-to-Point topology using the dual optical ports provide fail safe operation in the event of loss of one fiber. Each optical port uses Wavelength Division Multiplexing (WDM) to both transmit and receive on one optical fiber. Microprocessor-based logic sends the contact information in packets that are ordered and encoded, ensuring extremely robust transmission. Packets that are garbled, packets out of sequence, and transmission bit errors will not cause random changes of state on the contact relays. Also, the mechanical latching relays maintain their state even when the unit loses power. The data channel supports RS232, RS422, or RS485 (2- or 4-wire) interfaces. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. - Compatible with
- All NTSC, PAL, or SECAM CCTV camera systems
- 10-bit digital video transmission
- Eight SPST latching relays with individual LED indicators
- Microprocessor-based logic and latching relays eliminate random contact closure status in the event of loss of link or loss of prime operating power
- Two separate alarm relay outputs indicate when a fiber link is lost and which optical port
- Dual optical port Redundant Point-to-Point (RPP) configuration
- True broadcast video performance-exceeds all requirements for RS-250C short-haul video transmission
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40 to 167°F ambient)
- Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Automatic resettable fuses on all power lines
- Bi-color LED status indicators confirm operating status
- Hot-swappable rack module
- Interchangeable between stand-alone or rack mount use, thanks to the ComFit housing
- Can be DIN-rail mounted with the DINBKT1 or DINBKT4 mounting kit (available separately)
In the Box COMNET 10-Bit Digital Single-Mode Video Receiver/Data Transceiver with 1 Bi-Directional Data Channel/Dual Optical Port Redundant Point-to-Point Configuration + 8 Contact Closures 9 VDC Plug-in Power Supply (90 to 264 VAC, 50/60 Hz) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET 10-Bit Digital Single-Mode Video Receiver Data Transceiver with 1 Bi-Directional Data Channel Dual Optical Port Redundant Point-to-Point Configuration 8 Contact Closures in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR107S1 Specs | Video Input | 1 V p-p (75 Ohms) | | Overload | >1.5 V p-p | | Bandwidth | 5 Hz to 10 MHz | | Differential Gain | <2% | | Differential Phase | <0.7° | | Tilt | <1% | | Signal-to-Noise Ratio (SNR) | 67 dB @ maximum Optical Loss Budget | | Maximum Distance | Maximum RG-59 Coax Distance: 300' (100 m) camera to fiber optic module to maintain 6 MHz bandwidth | | Data Interface | RS232, RS422, and RS485 (2W/4W), and UTC (Up-the coax) | | Data Format | NRZ, NRZI, Manchester, Bi-Phase, and Sensornet | | Data Rate | DC-250 Kb/s (NRZ) | | Contact Closure | Input/Output Channels: 8
Input Contacts: Normally Open
Output Contacts: 1 A @ 30 VDC, normally open
Response Time: 25 msec maximum | | Relays | Fiber Alarm Relays:
Contact Rating:
0.10 A @ 30 VDC, Normally Closed
Fiber Loss:
Port A, Port B
Port A or Port B (System Fault FVR only) | | Wavelength | 1310/1550 nm | | Number of Fibers | 2 | | Fiber | Single-mode (9/125 µm) | | Optical Power Budget | 16 dB | | Maximum Distance | 30 mi (48 km) | | Optical Emitter | Laser diode | | LED Indicators | Link A and B
Video
Data
Power
8 x Contact status | | Connectors | Optical: 2 x ST connectors for the dual port configuration
Power: Terminal block
Video: BNC
Data: Terminal block
Contact Closure: Terminal block | | Current Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC standard | | MTBF | >100,000 hours | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity | 0 to 95% (non-condensing) | | Voltage Range | Operating: 8 to 15 VDC | | Power Consumption | 3 W | | Mounting Options | Rack-mountable | | Number of Rack Slots | 2 | | Dimensions (L x W x H) | 6.1 x 5.3 x 2.2" (15.5 x 13.5 x 5.6 cm) | | Weight | 1 lb (0.45 kg) |
