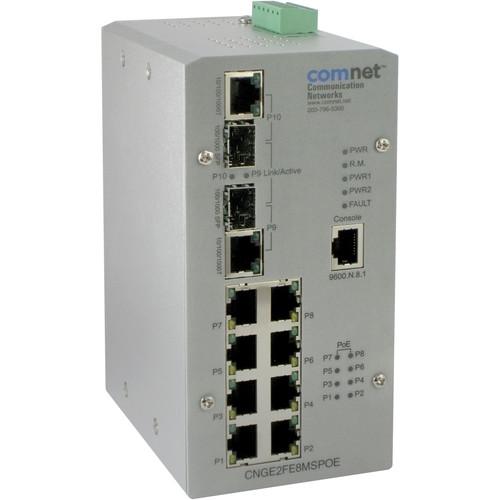

Product description The Environmentally Hardened Managed Ethernet Switch from ComNet provides eight 10/100 BASE-TX ports and two 10/100/1000TX or 100/1000FX combo ports. The switch is designed for use in difficult environments, and is available for use with CAT5e copper or optical transmission media. The eight electrical ports support the 10/100 MB/s IEEE 802.3 protocol.The switch features auto-negotiating and auto-MDI/MDIX to assist installation. All eight ports support IEEE 802.3af Power over Ethernet (PoE). Two ports are 10/100/1000 configurable for copper or fiber media by selected SFP modules that are sold separately. These network-managed layer 2 switches are optically (100/1000 BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet devices. This switch comes with a conformal coated circuit board that supports condensation conditions. - General
-
- Environmentally hardened for direct deployment in difficult unconditioned out-of-plant and roadside installations
- Extended ambient operating temperature range: -40 to 167˚F
- 10/100 BASE-TX and 100/1000 BASE-FX compatible
- Uses SFP modules for fiber and connector type and distance
- Redundant power supply compatibility reduces possibility of single-point-of-failure for highest possible reliability
- IGMP snooping V1/V2 for multicast filtering and IGMP Query
- V1/V2
- Port-based VLAN (IEEE 802.1Q)
- IEEE 802.3af PoE
- Fully compliant with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and CALTRANS Traffic Signal Control Equipment Specifications
- Rapid spanning tree protocol (IEEE 802.1W)
- TFTP firmware update / system configure restore & backup
- Supports 6000 VDC Ethernet ESD protection
- Provides EFT protection 4KV for power line
- Port-based security
- Bi-color LED status indicators confirm operating status
- Comes with a conformal coated circuit board that supports condensation conditions
- Power supply sold separately
- System Interface/Performance
-
- RJ45 port support auto MDI/MDI-X function
- Embedded 8-port PoE inject function
- SFP supports 100/1000 dual mode
- Store-and-forward switching architecture
- Back-plane (switching fabric) at 5.6 GB/s
- 1 megabits packet buffer
- 8K MAC address table
- Redundant power supply design
- QoS (Quality of Service)
-
- Support IEEE 802.1p Class of Service
- Per port provides 4 priority queues
- Port Base, Tag Base and Type of Service Priority
- Port Mirror to Monitor Traffic in Switched Networks
-
- Transmitter packet only
- Receiver packet only
- Both TX and RX packet
- Security
-
- SSH/SSL: Secure Switch Management
- Port Security: MAC address entries/filter, MAC violation port shutdown
- IP Security: IP address security management to prevent unauthorized intruder
- X-Ring+
-
- X-Ring+, Legacy Ring, and Couple Ring Topology
- Provide redundant backup feature and the recovery time <10ms
- Spanning Tree
-
- Supports IEEE 802.1d Spanning Tree
- Supports IEEE 802.1w Rapid Spanning Tree
- Bandwidth Control
-
- Ingress Packet Filter and Egress Rate Limit
- Broadcast/Multicast Packet Filter Control
- System Event Log
-
- System Log Server/Client
- SMTP e-mail Alert
- Relay Alarm Output System Events
- SNMP Trap
-
- Device cold start
- Authentication failure
- X-ring topology change
- Port Link Up/ Link Down
- Management
-
- SNMP v1, v2c, v3/ Web/Telnet/CLI
- SNMP MIB
-
- RFC 1215 Trap, RFC 1213 MIBII, RFC 1157 SNMP MIB, RFC 1493 Bridge MIB, RFC 2674 VLAN MIB, RFC 1643, RFC 1757, RSTP MIB, Private MIB, LLDP MIB
- VLAN
-
- Port-based VLAN
- IEEE 802.1Q Tag VLAN (256 entries)/VLAN ID (UP to 4K, can be assigned from 1 to 4096) GVRP (256 groups)
- Port Trunk w/ LACP
-
- LACP Port Trunk: 4 trunk groups/ Maximum 4 trunk members
- LLDP
-
- Supports LLDP to allow switch to advise its identification and capability on the LAN
- Class of Service
-
- Supports IEEE 802.1p class of service, per port provides 4 priority queues
- IGMP
-
- Supports IGMP snooping V1/V2; 256 multicast groups and IGMP query
- Flow Control
-
- Supports flow control for full-duplex and back pressure from half-duplex
- Relay Alarm
-
- Provides one relay output for port breakdown, power fail, and alarm
- Alarm relay current carry ability of 1A @ 24 VDC
- DHCP
-
- Provides DHCP Client/ DHCP Server/ Port and IP Binding
- DNS
-
- Provides DNS client feature and support primary and secondary DNS server
- SNTP
-
- Supports SNTP to synchronize system clock in Internet
- Firmware Update
-
- Supports TFTP firmware update, system configure backup and restore
- If Alias
-
- Each port allows importing 128 bits of alphabetic string of words on SNMP and CLI interface
- Applications
-
- ITS Traffic Signalization & Surveillance/Incident detection
- Networks
- Industrial and factory automation
- Integrated IP-video and data transmission networks
- Industrial security access control systems
In the Box COMNET Environmentally Hardened Managed Ethernet Switch with 8 x 10/100TX & 2 x 10/100/1000TX RJ45 or 100/1000 FX SFP Ports (Conformally-Coated Circuit Board) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Environmentally Hardened Managed Ethernet Switch with 8 x 10 100TX & 2 x 10 100 1000TX RJ45 or 100 1000 FX SFP Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET CNGE2FE8MSPOE/C Specs | Transfer Rate | 14,880pps for Ethernet port
148,800pps for fast Ethernet port
1,488,000pps for gigabit Ethernet port | | Packet Buffer | 1 megabits | | MAC Address | 8K MAC address table | | Flash ROM | 4 MB | | DRAM | 32 MB | | Connectors | 10/100TX: 8 × RJ45
10/100/1000T and 100/1000FX Combo: 2 × RJ45 + 2 × SFP sockets
RS232 Connector: RJ45 type | | Network Cable Type | 10Base-T: 2-pair UTP/STP CAT3/4/5 cable. EIA/TIA-568 100 ohm 328' (100 m)
100Base-TX: 2-pair UTP/STP CAT5/5E cable. EIA/TIA-568 100 ohm 328' (100 m)
1000Base-TX: 2-pair UTP/STP CAT5e/6 cable. EIA/TIA-568 100 ohm 328' (100 m) | | PoE | RJ45 port #1 - #8 support IEEE 802.3af End-point, alternative A mode
Per port provides 15.4 W ability
Positive (VCC+): RJ45 pin 1, 2
Negative (VCC-): RJ45 pin 3, 6 | | Protocol | CSMA/CD | | Security | Login Security: IEEE 802.1X/RADIUS | | Indicator LEDs | 10/100TX, giga copper, speed, SFP, power, fault, master, FWD | | Power Supply | PoE: 48 to 56 VDC, Redundant power with removable terminal block for local and remote power
Non-PoE: 12 to 56 VDC | | Power Consumption | 136 W (Full load), 12 W without PoE | | Cooling | Natural convection | | Case | Metal case, IP-30 | | Environmental | MTBF: >100,000 hours
Operating Humidity: 5 to 95% (Non-condensing)
Operating Temperature: -40 to 167˚F (-40 to 75˚C) (Functional to 85˚C)
Storage Temperature: -40 to 185˚F (-40 to 85˚C) | | Dimensions (W x D x H) | 2.8 x 4.1 x 5.9" (7.2 x 10 x 15 cm) | | Weight | 1.8 lb (0.8 kg) |
