DATAPATH ImageDP4 Graphics Card

Search your instruction manual in PDF to download

User Manual for DATAPATH ImageDP4 Graphics Card

Click to enlarge the picture
DATAPATH ImageDP4 Graphics Card Contents of the user manual for the DATAPATH ImageDP4 Graphics Card
  • Product category: Graphic Display Cards DATAPATH
  • Brand: DATAPATH
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for DATAPATH Graphic Display Cards

DATAPATH ImageDP4 Graphics Card DATAPATH ImageDP4 Graphics Card DATAPATH ImageDP4 Graphics Card DATAPATH ImageDP4 Graphics Card DATAPATH ImageDP4 Graphics Card
User manual for the DATAPATH ImageDP4 Graphics Card contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any DATAPATH product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official DATAPATH user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a DATAPATH product will considerably shorten its lifespan!



Product description

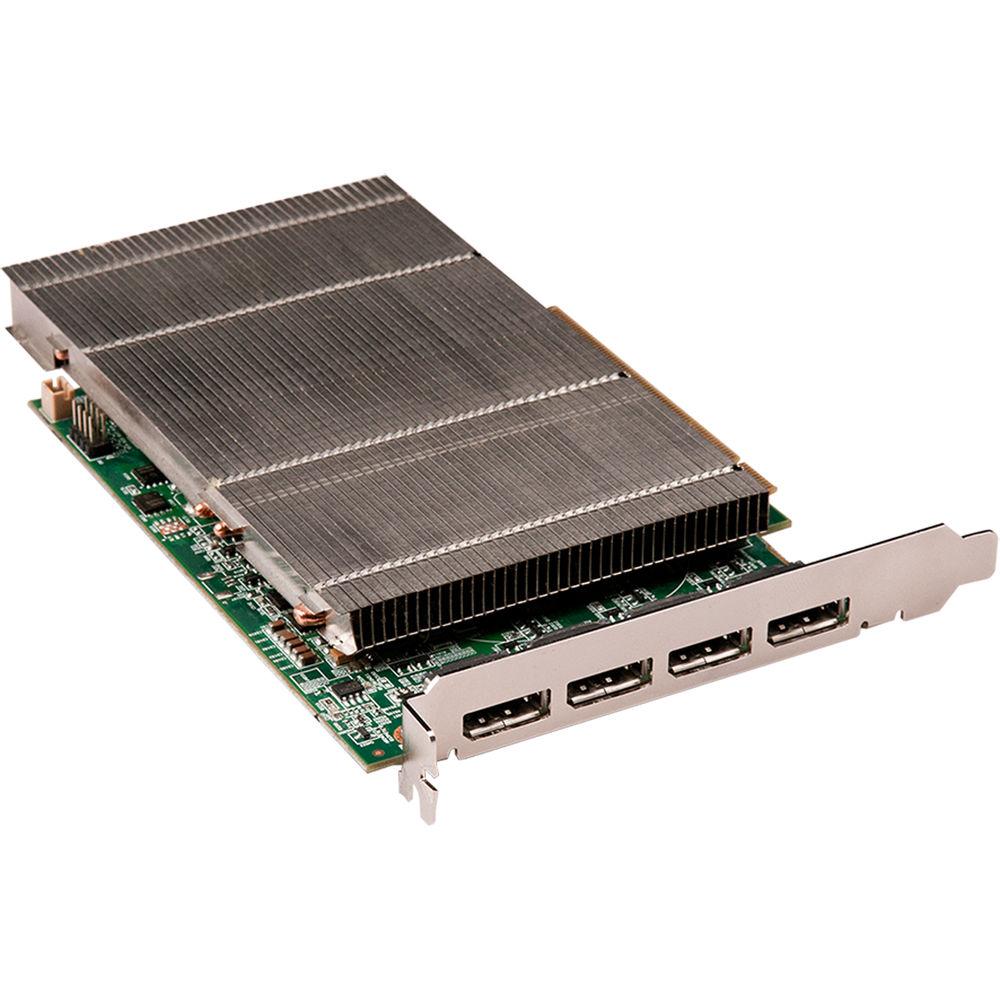

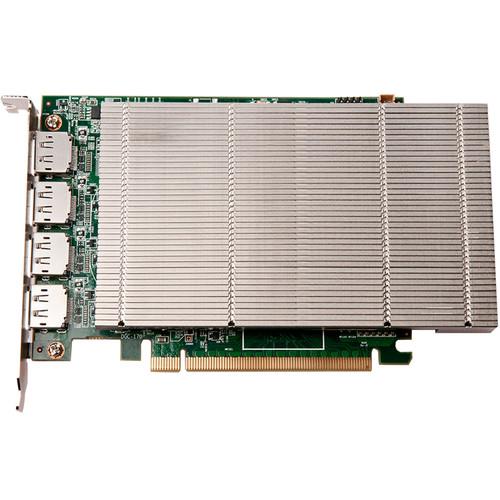

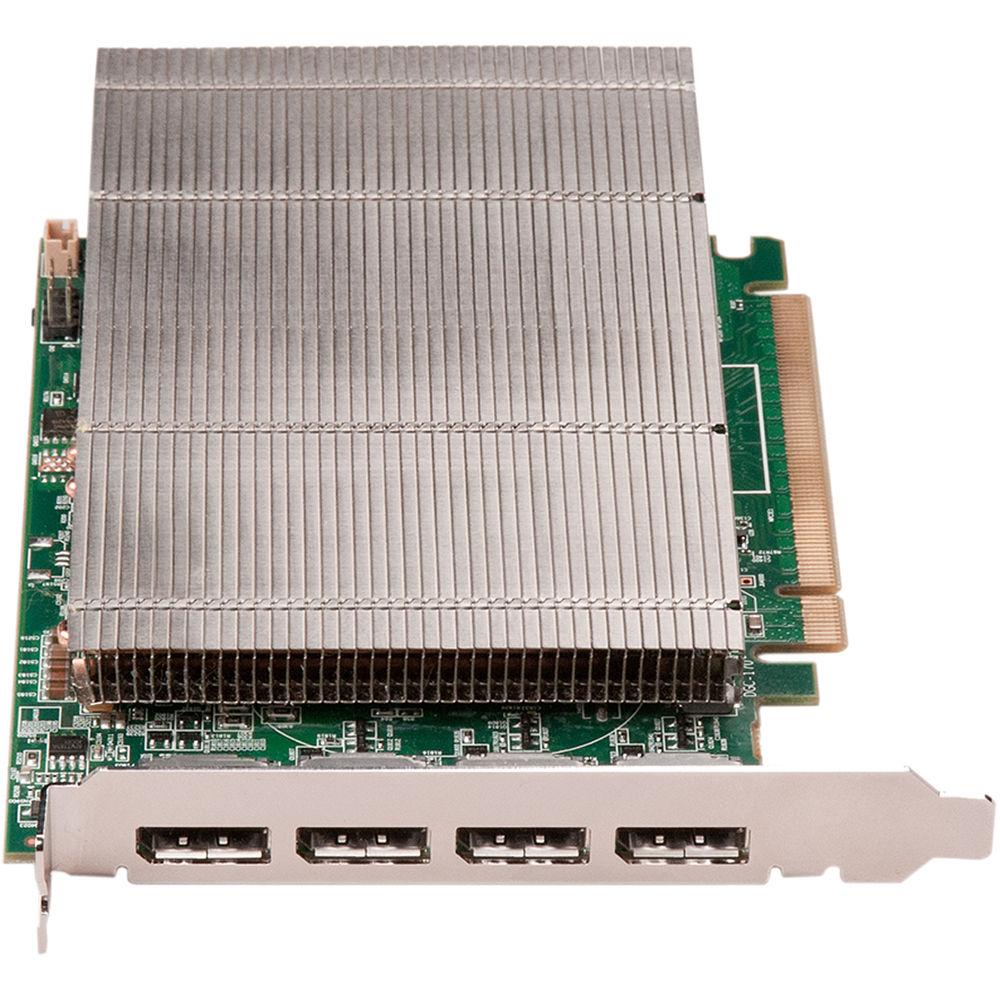

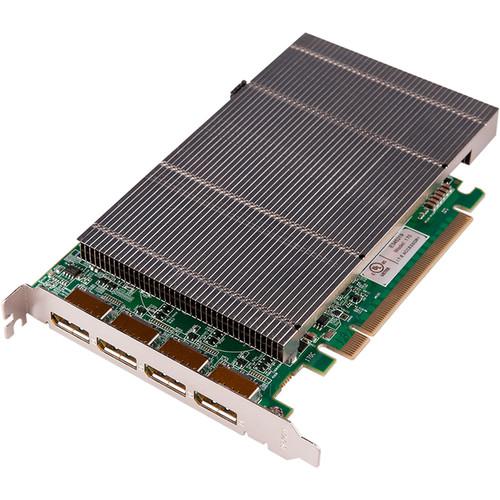

The DATAPATH ImageDP4+ Graphics Card is a professional 4-output graphics card for multi-display setups and video walls. The four DisplayPort outputs can drive four displays simultaneously at 2560x1600 resolution at 30 Hz or two displays at 4096x2160 resolution at 30 Hz. Four DisplayPort to HDMI adapters are included with the card for compatibility with consumer displays. Multiple cards can be used in the same system to scale up the number of displays supported. Up to 8 cards can be used to support up to 64 displays, in either landscape or portrait orientation, or a mixture of the two, all using the DATAPATH drivers. To ensure wide system compatibility and reliability, this card uses a single-space passive cooler.
    Multi-Display Driver
  • The display driver for use with Windows 10 (64-bit) allow the ImageDP4+ to spread a single desktop seamlessly over multiple displays. Using multiple cards simultaneously, the driver can support up to a 64-screen array.
    Wall Control Software
  • Datapath Wall Control software enables you to simply launch and position video and application windows to create complex wall layout configurations. Wall Control presents a representational window of the entire display wall showing position and size of windows, including a live sample of all video content. TThe ImageDP4+ comes with the free version of Wall Control. Upgrade to the full version of Wall Control (available separately) to save layouts and recall them for future use. Additionally the full version of Wall Control features remote control via a networked PC.
In the Box DATAPATH ImageDP4+ Graphics Card

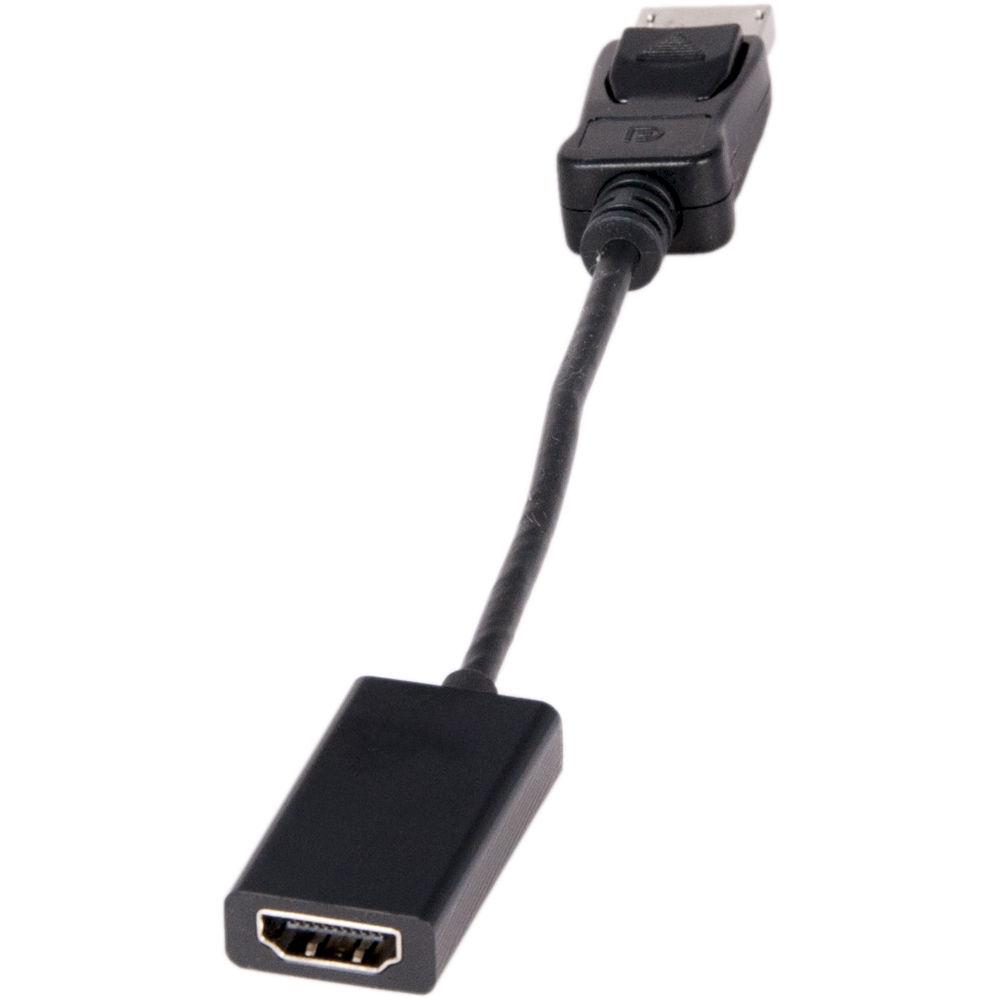

  • 4 x DisplayPorrt to HDMI Adapters
  • Limited 3-Year Warranty
  • Guides & Manuals Table of Contents




    Upload User Manual

    Have you got an user manual for the DATAPATH ImageDP4 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for DATAPATH ImageDP4 Graphics Card can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for DATAPATH ImageDP4 Graphics Card can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the DATAPATH ImageDP4 Graphics Card can be downloaded in PDF format at the link stated below.
    Download PDF user manual - DATAPATH ImageDP4 Graphics CardDownload PDF User Manual - DATAPATH ImageDP4 Graphics Card
    (PDF file, 2.32 MB)


    Technical parameters

    DATAPATH ImageDP4+ Specs

    Interface PCI Express 2.1 x16
    Supported APIs None
    Memory Configuration 2 GB
    Display Connectors 4 x DisplayPort 1.1a
    Maximum Digital Resolution 2560 x 1600 @ 60 Hz
    Max Power Consumption 15 W
    Height 4.33" / 110.00 mm
    Length 6.97" / 177.00 mm
    Width Single-Slot
    Cooler Type Passive Heatsink
    Lighting None
    Package Weight 8.5 lb
    Box Dimensions (LxWxH) 18.5 x 15.0 x 6.5"
