Product description

• CloudlightFPV for DJI Phantom and Inspire 1

What's New for v2?

Zenmuse X5/X5R Compatibility
• In addition to the included Zenmuse X3, this version of the Inspire 1 also works with the Zenmuse X5 and X5R gimbal cameras (available separately)

New Propulsion System
• With the new 3510H motor, the thrust sees a boost. This yields an increase in the motor velocity constant from 350 Kv to 420 Kv. In practice, this translates into better control, especially when using a Zenmuse X5 series gimbal camera

Redesigned Propellers
• To go with the 3510H motors, new propellers and a new propeller mounting system have been introduced. They employ an updated mounting system, designed to make attaching and removing the propellers easier than ever before

What Ready-to-Fly Means
• This Inspire 1 bundle comes ready-to-fly (RTF). This means a pre-bound transmitter (radio controller) is included and that no major assembly is required – in particular, no assembly that requires soldering. It is important – as with any multi-rotor – to follow the user guide to ensure proper calibration before embarking on your first flight

Integrated 4K Camera

4K and HD Video Capture
• The Inspire 1 Camera shoots 4K video at 24p and 30p, and it can shoot HD video frame rates from 24p to 60p. It features a 1/2.3" CMOS sensor with a 94-degree field of view (FOV) lens. This field of view works out to about 20mm in 35mm equivalent, which gives you a wide but not extremely wide or fisheye framing – while not as immersive as a fisheye, this FOV features less distortion and gives the subject more emphasis

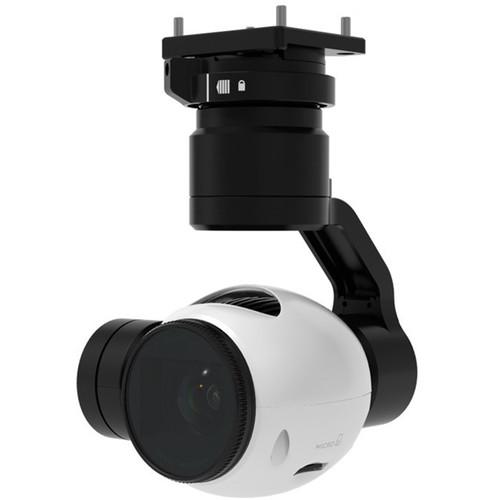

3-Axis Gimbal
• The camera is mounted via an integrated 3-axis gimbal which uses brushless servo motors to keep the shot stable and the horizon level. The camera pans a full 360-degrees so that no matter which way the quadcopter turns, the camera can remain locked on the subject. Manual panning and tilting can be affected using controls on the transmitter

Live HD View
• A real-time feed from the Inspire 1 Camera can be displayed in 720p HD on a mobile device or HDMI monitor, making this it a great choice for FPV (first-person view) flying as well as enabling videographers and photographers to monitor framing from the ground. This is made possible by the inclusion of the DJI Lightbridge system within the flight electronics, which features a range of up to 1.2 miles

  For connecting an FPV monitor or glasses there is an HDMI port on the transmitter. Plus there is a USB port to keep you mobile device's battery topped up. And included mount allows you to attach a smartphone or tablet directly to the transmitter

Modular Gimbal and Camera
• Inspire 1's gimbal and camera can be removed from the aircraft for safe transport and future upgrades

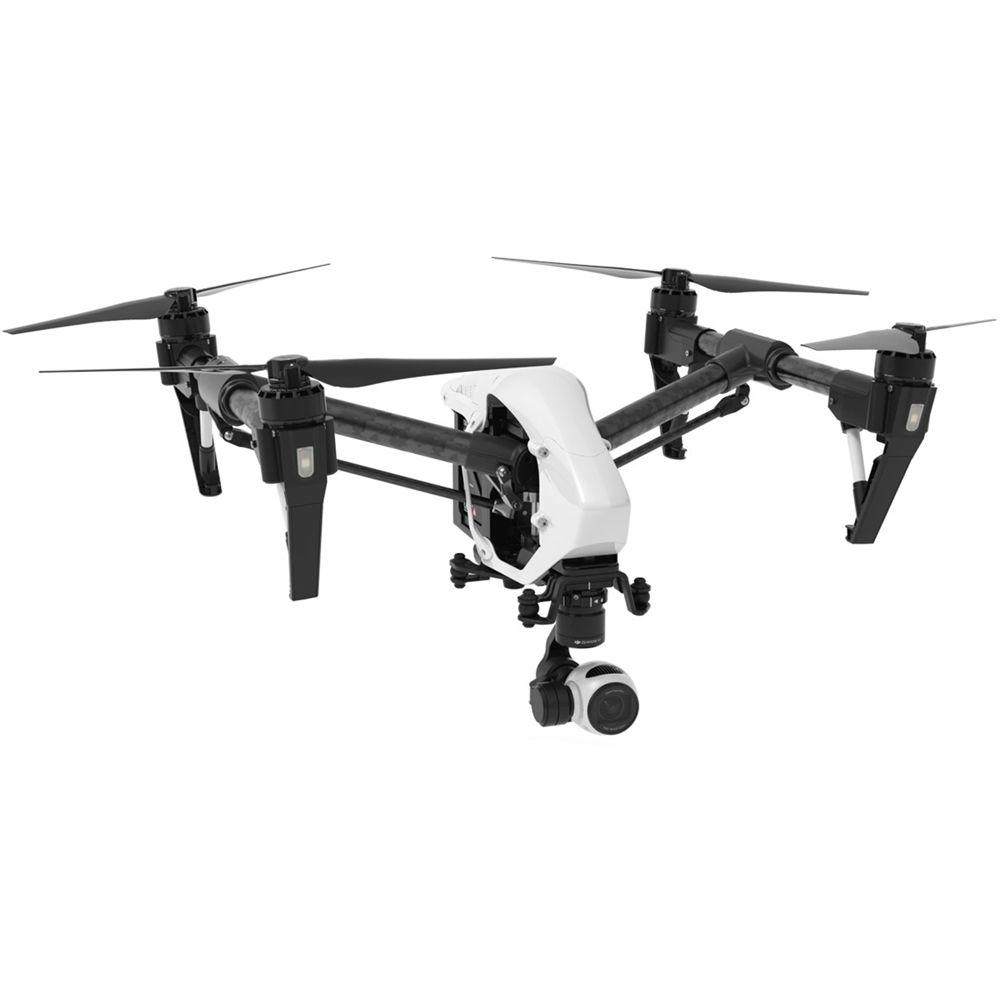

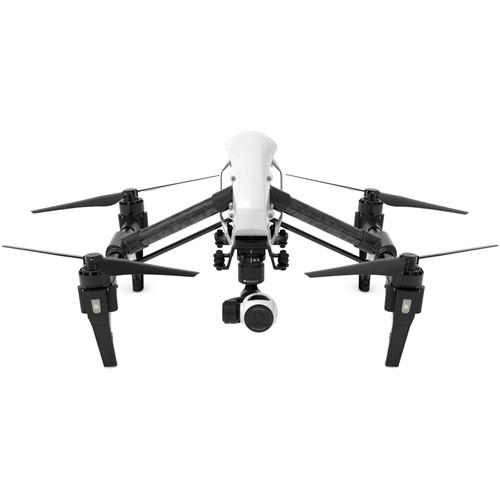

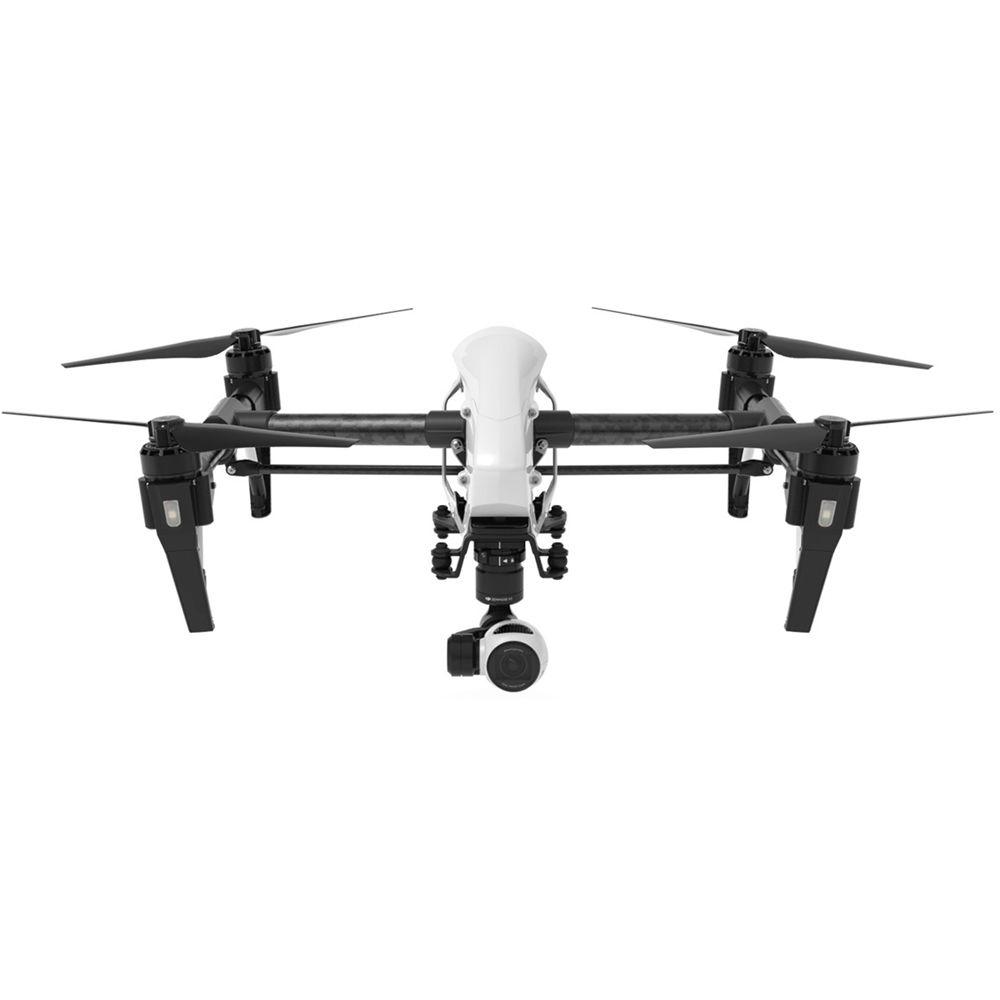

Airframe Design

Retractable Carbon Fiber Arms
• The prop arms rest in a lowered position when the Inspire is on the ground, acting as landing gear. Once in the air, they can be retracted to give the camera unobstructed views across 360-degrees. Carbon fiber is used in the construction because of its high strength to weight ratio

Aerodynamic Design
• Not only does it give the Inspire 1 a sleek look, the aerodynamic airframe helps reduce resistance for better performance and increased battery life

Flight Control System

Fly Indoors and Without GPS
• DJI's Optical Flow technology uses a specially designed camera as well as sonic waves to provide the same stability function indoors as GPS does outdoors. This technology allows the Inspire to hold its location, stop when the controls are released, and quickly respond to pilot commands even when GPS is unavailable

App-Based Control Software
• Everything from manual camera controls to flight telemetry – even auto takeoff and landing – can be accessed via the Inspire 1 Mobile app. It is also possible to create autopilot courses using waypoints, just as you would on the DJI iPad Ground Station System

  Note: The tablet must be connected to the transmitter via USB, and to use the waypoint map an Internet connection is required

Manual Mode
• Change all of your camera settings, including ISO, White Balance, Exposure, and more on the fly ensuring every shot looks exactly the way you want

Live Map and Radar
• See precisely where your Inspire 1 is at all times on the live map. The map can be enlarged when needed, and shows your most recent flight path

Dynamic Home Point
• When GPS signal is available on the transmitter (remote control), the Home Point automatically refreshes. This becomes useful while traveling in a car or on a boat allowing the return-to-home point to move where the operator goes. Multiple configurations are available via the Dynamic Home Point function

Auto-Takeoff and Landing
• Takeoff and landing are available with just a tap. Tap once to takeoff and your Inspire 1 will hover and transform, ready to start filming. Then tap again to make it transform into landing mode and auto land

Transmitter Customization
• Put yourself in charge by tailoring the Inspire 1's controls to your personal needs. This way, your Inspire 1 moves and responds in ways you're most comfortable with

Transmitter (Radio Controller)

• Take control of your Inspire 1 in the air with a dedicated transmitter (radio controller) designed specifically for it. Operating on 2.4 GHz, it features dedicated buttons for photo and video capture, a gimbal control dial, and more. It includes an integrated 6000mAh rechargeable battery

Use Two Transmitters
• For an even greater level of precision, use a second transmitter and fly with a friend. With two people controlling the same quadcopter, one person pilots the flight path while the other aims the gimbal and camera. Each user can have their own screen to see exactly what is being shot in real-time

Smart Battery System

Smart Power Management
• The flight battery constantly supplies the flight computer with remaining voltage. Using special algorithms the computer supplies the pilot with estimates of remaining flying distance and time to return home

Automated Charging
• The battery tracks the voltage of each cell, the total number of charges and discharges, and the overall health and battery status
