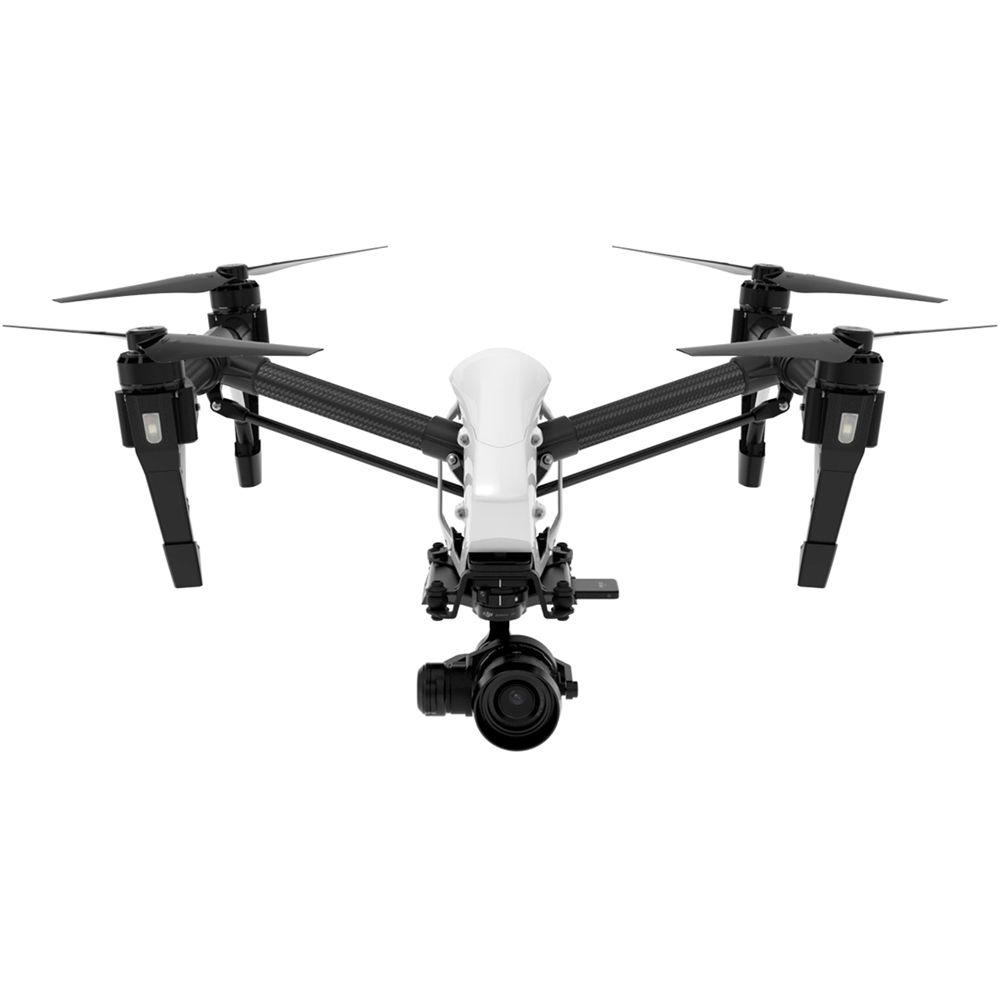

DJI Inspire 1 v2.0 RAW Quadcopter

Search your instruction manual in PDF to download

User Manual for DJI Inspire 1 v2.0 RAW Quadcopter with Zenmuse X5R 4K Camera and 3-Axis Gimbal

Click to enlarge the picture
DJI Inspire 1 v2.0 RAW Quadcopter with Zenmuse X5R 4K Camera and 3-Axis Gimbal Contents of the user manual for the DJI Inspire 1 v2.0 RAW Quadcopter
  • Product category: Uncategorized DJI
  • Brand: DJI
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for DJI Uncategorized

DJI Inspire 1 v2.0 RAW Quadcopter with Zenmuse X5R 4K Camera and 3-Axis Gimbal DJI Inspire 1 v2.0 RAW Quadcopter with Zenmuse X5R 4K Camera and 3-Axis Gimbal DJI Inspire 1 v2.0 RAW Quadcopter with Zenmuse X5R 4K Camera and 3-Axis Gimbal DJI Inspire 1 v2.0 RAW Quadcopter with Zenmuse X5R 4K Camera and 3-Axis Gimbal DJI Inspire 1 v2.0 RAW Quadcopter with Zenmuse X5R 4K Camera and 3-Axis Gimbal DJI Inspire 1 v2.0 RAW Quadcopter with Zenmuse X5R 4K Camera and 3-Axis Gimbal
User manual for the DJI Inspire 1 v2.0 RAW Quadcopter contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any DJI product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!



Product description

A Micro Four Thirds CMOS sensor with 4K image capture and RAW recording is introduced to DJI's quadcopter line with the Inspire 1 v2.0 RAW featuring the Zenmuse X5R camera and gimbal system along with a 15mm f/1.7 lens. Forgoing the fixed landing gear design found on many earlier quadcopters, the Inspire 1 features a retractable arm system whereby the underside of each prop motor has a foot to act as a landing pod when the arms are lowered. In-flight, the arms lift up to provide the camera an unobstructed 360-degree view. A 3-axis gimbal keeps shots steady and the camera pointed the same direction as the quadcopter banks and turns. The camera records internally to microSDHC/SDXC memory cards or SSD drives and can also beam a live 720p feed to a mobile device running the DJI GO app or a monitor or FPV glasses with an HDMI input. Two transmitters (radio controllers) are included so that one operator can pilot and another can pan and tilt the camera.

As with many other multi-rotor systems, the Inspire 1 relies on a GPS-based stabilization system that - thanks to spatial awareness - is able to hold a position even when experiencing wind interference, can compensate for overzealous pilot inputs to help avoid stalling, automatically brings the aircraft home in the event of signal loss or at the press of a button, and makes possible a number of semi-automated flight modes that can be enabled through the app. There is also an "indoor" mode which relies on Vision Position technology - combining optical flow with ultrasonics - to provide stability indoors or in other contexts where GPS is unavailable (Note: certain features will be unavailable in indoor mode).
    What Ready-to-Fly Means
  • This Inspire 1 bundle comes ready-to-fly (RTF). This means a pre-bound transmitter (radio controller) is included and that no major assembly is required – in particular, no assembly that requires soldering. It is important – as with any multi-rotor – to follow the user guide to ensure proper calibration before embarking on your first flight

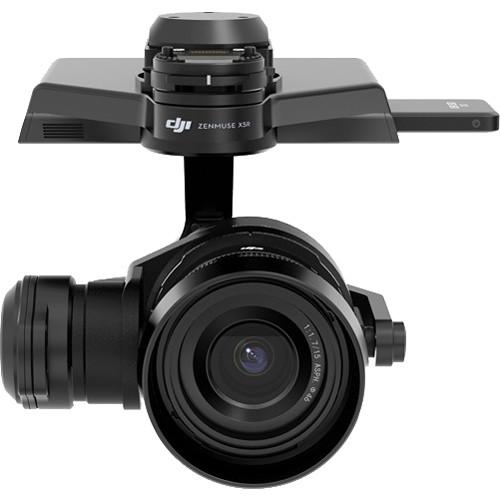

Integrated 4K Camera with MFT Mount and 15mm Lens

    Micro Four Thirds Sensor with MFT Mount
  • Sporting a Micro Four Thirds CMOS sensor, the Inspire 1 v2.0 RAW introduces mirrorless camera performance to the Inspire series. The featuring a standard MFT mount, the Zenmuse X5R camera includes the Panasonic Lumix 15mm f/1.7 lens, and also works with the separately available Olympus M. ED 12mm f/2.0 lens
    4K and HD Video Capture
  • The Zenmuse X5R is able to capture video at up to DCI 4K 4096 x 2160 at 23.98p or UHD 4K at 29.97p
    RAW Video Recording
  • In addition to H.264, the X5R features Cinema DNG RAW recording, which minimizes compression while maximizing latitude for image manipulation in post
    16MP Stills Capability
  • Not just for video, the Zenmuse X5R can snap still from the air at up to 16MP resolution. In addition to single-shot, the camera support busts of 3, 5, or 7 frames and can take time-lapse at stepped intervals of between three and 60 seconds. Photos are captured in either JPEG or DNG RAW. With the X5R, in addition to full-auto, Program, Shutter Priority, Aperture Priority, and Manual exposure modes are provided

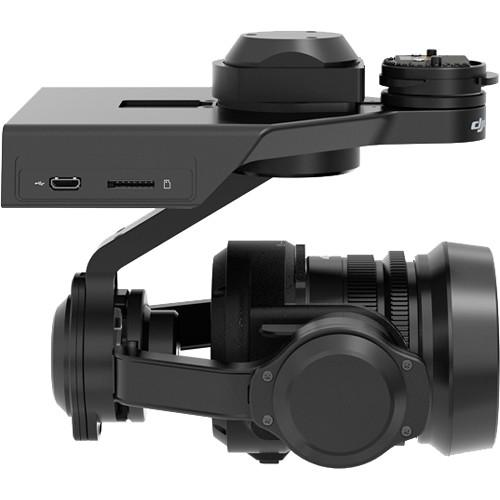

    3-Axis Gimbal
  • The Zenmuse X5R camera is mounted via an integrated 3-axis gimbal which uses brushless servo motors to keep the shot stable and the horizon level. The camera pans a full 360-degrees so that no matter which way the quadcopter turns, the camera can remain locked on the subject. Manual panning and tilting can be affected using controls on the transmitter
    Live HD View
  • A real-time feed from the Zenmuse X5R camera can be displayed in 720p HD on a mobile device or HDMI monitor, making this it a great choice for FPV (first-person view) flying as well as enabling videographers and photographers to monitor framing from the ground. This is made possible by the inclusion of the DJI Lightbridge system within the flight electronics, which features a range of up to 1.2 miles

    For connecting an FPV monitor or glasses there is an HDMI port on the transmitter. Plus there is a USB port to keep you mobile device's battery topped up. And included mount allows you to attach a smartphone or tablet directly to the transmitter
    Modular Gimbal and Camera
  • The Zenmuse X5R gimbal and camera assembly can be removed from the Inspire 1 for safe transport and future upgrades

Airframe Design

    Retractable Carbon Fiber Arms
  • The prop arms rest in a lowered position when the Inspire is on the ground, acting as landing gear. Once in the air, they can be retracted to give the camera unobstructed views across 360-degrees. Carbon fiber is used in the construction because of its high strength to weight ratio
    Aerodynamic Design
  • Not only does it give the Inspire 1 a sleek look, the aerodynamic airframe helps reduce resistance for better performance and increased battery life

Flight Control System

    Fly Indoors and Without GPS
  • DJI's Optical Flow technology uses a specially designed camera as well as sonic waves to provide the same stability function indoors as GPS does outdoors. This technology allows the Inspire to hold its location, stop when the controls are released, and quickly respond to pilot commands even when GPS is unavailable
    App-Based Control Software
  • Everything from manual camera controls to flight telemetry – even auto takeoff and landing – can be accessed via the Inspire 1 Mobile app. It is also possible to create autopilot courses using waypoints, just as you would on the DJI iPad Ground Station System

    Note: The tablet must be connected to the transmitter via USB, and to use the waypoint map an Internet connection is required
    Manual Mode
  • Change all of your camera settings, including ISO, White Balance, Exposure, and more on the fly ensuring every shot looks exactly the way you want
    Live Map and Radar
  • See precisely where your Inspire 1 is at all times on the live map. The map can be enlarged when needed, and shows your most recent flight path
    Dynamic Home Point
  • When GPS signal is available on the transmitter (remote control), the Home Point automatically refreshes. This becomes useful while traveling in a car or on a boat allowing the return-to-home point to move where the operator goes. Multiple configurations are available via the Dynamic Home Point function
    Auto-Takeoff and Landing
  • Takeoff and landing are available with just a tap. Tap once to takeoff and your Inspire 1 will hover and transform, ready to start filming. Then tap again to make it transform into landing mode and auto land
    Transmitter Customization
  • Put yourself in charge by tailoring the Inspire 1's controls to your personal needs. This way, your Inspire 1 moves and responds in ways you're most comfortable with

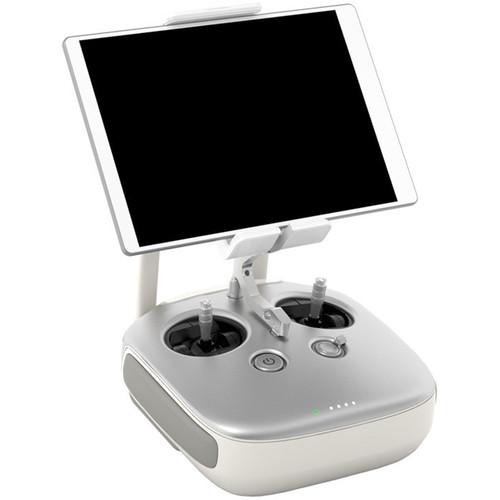

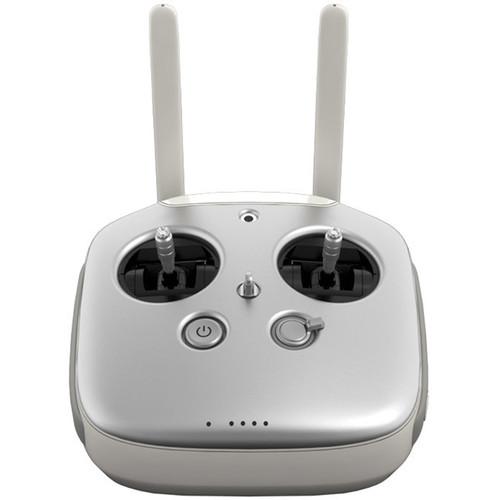

Transmitter (Radio Controller)

  • Take control of your Inspire 1 in the air with a dedicated transmitter (radio controller) designed specifically for it. Operating on 2.4 GHz, it features dedicated buttons for photo and video capture, a gimbal control dial, and more. It includes an integrated 6000mAh rechargeable battery
      Use Two Transmitters
    • For an even greater level of precision, use a second transmitter and fly with a friend. With two people controlling the same quadcopter, one person pilots the flight path while the other aims the gimbal and camera. Each user can have their own screen to see exactly what is being shot in real-time

    Smart Battery System

      Smart Power Management
    • The flight battery constantly supplies the flight computer with remaining voltage. Using special algorithms the computer supplies the pilot with estimates of remaining flying distance and time to return home
      Automated Charging
    • The battery tracks the voltage of each cell, the total number of charges and discharges, and the overall health and battery status
    In the Box DJI Inspire 1 v2.0 RAW Quadcopter with Zenmuse X5R 4K Camera and 3-Axis Gimbal
  • 2 x Transmitter for Inspire 1 Quadcopter (White) fdtxbdcbsabzeybawfaezzzbwcdeycrctss
  • Zenmuse X5R RAW Camera and 3-Axis Gimbal
  • MFT 15mm f/1.7 ASPH Prime Lens
  • TB47 Intelligent Flight Battery for Inspire 1 (99.9Wh, White)
  • Flight Battery Charger
  • Power Cord
  • Controller Charging Cable
  • 4 x Spare Prop CW/CCW Pairs
  • Controller Harness
  • Box for Camera with Gimbal
  • 512GB SSD for Zenmuse X5R Camera
  • SSD Reader for Zenmuse X5R SSD
  • 2 x Micro-USB Cables
  • Suitcase for Inspire 1 Quadcopter
  • Limited 1-Year Warranty on Aircraft (Excluding Gimbal, Camera, and Battery)
  • Limited 6-Month / 200-Cycle Warranty on Battery (Whichever Comes First)
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the DJI Inspire 1 v2.0 RAW Quadcopter with Zenmuse X5R 4K Camera and 3-Axis Gimbal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    DJI CP.BX.000067 Specs

    Hovering Accuracy (GPS Mode) Vertical: 1.6' / 0.5 m
    Horizontal: 8.2' / 2.5 m
    Maximum Angular Velocity Pitch: 300°/s
    Yaw: 150°/s
    Maximum Tilt Angle 35°/s
    Maximum Ascent/Descent Speed Ascent: 16.4 fps / 5 m/s
    Descent: 13.1 fps / 4 m/s
    Maximum Speed 72.2 fps / 22 m/s (Attitude mode; no wind)
    Maximum Flight Altitude 14,764' / 4,500 m
    Maximum Wind Speed Resistance 32.8 fps / 10 m/s
    Maximum Flight Time Up to 18 minutes
    Model Name: Zenmuse X5R
    Lens Mount MFT (Micro Four Thirds)
    Photo Resolution 16 MP (4608 x 3456)
    Video Resolution DCI 4K (4096 x 2160): 24p, 25p
    UHD 4K (3840 x 2160): 25p, 30p
    FHD (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p
    Field of view (FOV) 15 mm f1.7 :72° (included)
    12 mm f2.0:84° (available separately)
    Photo Modes Single shot
    Burst: 3, 5, or 7 frames
    Auto Exposure (AE) Bracketing: 3/5 bracketed frames at 0.7 EV bias
    Time-Lapse: 3, 5, 7, 10, 20, 30, or 60 second intervals
    ISO Range 100 to 25600
    Shutter Speed 8 to 1/8000 second
    Video Bitrate Up to 2.4 Gbps (1.7 Gbps average)
    Supported File Types Photo: JPEG, DNG RAW
    Video: MP4, MOV (MPEG-4/AVC/H.264F)
    RAW Video: CinemaDNG RAW
    File System: FAT32 / exFAT
    Recording Media Class 10 / UHS-1 or better microSD (up to 64 GB)
    512 GB SSD (for RAW video recording)
    Power Consumption Static: 19.5 W
    Peak: 25 W
    Operating Temperature 32 to 104°F / 0 to 40°C
    Dimensions (H x W x D) 5.4 x 4.9 x 5.2" / 136 x 125 x 131 mm
    Weight With Standard Lens, Balancing Ring, Lens Hood, and microSD card: 1.3 lb / 583 g
    Model DJI MFT 15 mm f/1.7 ASPH
    Mount MFT (Micro Four Thirds)
    Focal Length 15 mm
    35 mm Equivalent: 30 mm
    Aperture Range f/1.7 to f/16
    Focus Range 0.7' (0.2 m) to ∞
    Field of View 72°
    Elements 9 elements in 7 groups (3 aspherical elements)
    Aperture 7 diaphragm blades / circular aperture diaphragm
    Dimensions Maximum Diameter: 2.3" / 57.5 mm
    Length: 1.4" / 36 mm
    Weight 4.1 oz / 115 g
    Model Zenmuse X5R
    Mount Detachable
    Number of Axes 3-axis
    Control Angle Accuracy ±0.02°
    Control Range Pitch: -90° to +30°
    Pan: ±320°
    Manual Control Speed Pitch: Up to 120°/second
    Pan: Up to 180°/second
    Indoor Hovering Enabled by default
    Vision Positioning Frequency: 50 Hz
    Velocity Range: Below 26.2 fps / 8 m/s (6.6' / 2 m above the ground)
    Altitude Range: 2 to 196.8" / 5 to 500 cm

    Operating Environment: Rich pattern surface with adequate lighting (> 15 lux)
    Operating Range: 0 to 8.2' / 0 to 2.5 m
    Model DJI 3510
    Model DJI 1345
    Operating Frequency Transmitter to Transmitter: 5.728 to 5.850 GHz
    Transmitter to Aircraft: 2.400 to 2.483 GHz
    Range Line-of-Sight: Up to 6561.7' / 2000 m
    Receive Sensitivity 1% PER:-93 dBm
    EIRP 10 dBm at 900 MHz; 8 dBm at 5.8 GHz; 20 dBm at 2.4 GHz
    Connectivity 1 x USB type A female (for connecting mobile device)
    1 x Micro-USB for firmware updates
    1 x Mini-HDMI video output for FPV
    1 x CAN-Bus port (for future accessory)
    Dual User Capability Host-and-slave connection
    Mobile Device Holder Tablet or smartphone
    Output Power 9 W
    Power Requirements 1.2 A at 7.4 VDC
    Battery 6S LiPo; 6000 mAh
    Charging Temperature Less than 3 Months: -4 to 113°F / -20 to 45°C
    More than Three Months: 72 to 82°F / 22 to 28°C
    Storage Temperature 72 to 82°F / 22 to 28°C -4°F / -20°C
    Mobile Device Holder Device Width: 2 to 6.7" / 5 to 17 cm

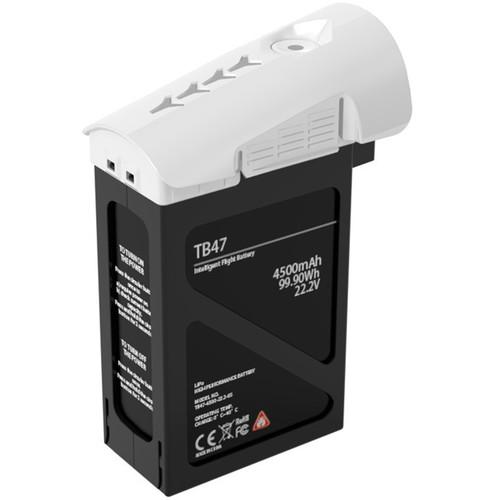

    Model TB47
    Voltage 6S LiPo; 22.2 VDC
    Capacity 4500 mAh / 99.9 Wh
    Maximum Charging Power 180 W
    Operating Temperature -4 to 104°F / -20 to 40°C
    Storage Temperature -4 to 113°F / -20 to 45°C
    72 to 82°F / 22 to 28°C
    Charging Temperature 32 to 104°F / 0 to 40°C
    Weight 1.3 lb / 570 g
    Model A14-100P1A
    Voltage 26.3 VDC
    Output Power 100 W
    System Requirements iOS: 7.1 or later
    Android: 4.1.2 or later

    Note: The device must be connected to a transmitter via USB (wireless linking is not supporting). Additionally, waypoint navigation requires an active Internet connection in order to load the maps
    Model Aircraft: T600
    Operating Temperature 14 to 104°F / -10 to 40°C
    Dimensions Diagonal Distance:
    Landing Gear Lowered: 22" / 559 mm
    Landing Gear Raised: 22.9" / 581 mm

    Overall Dimensions:
    17.2 x 17.8 x 11.9" / 438 x 451 x 301 mm
    Weight Not specified by manufacturer
    Package Weight 26.5 lb
