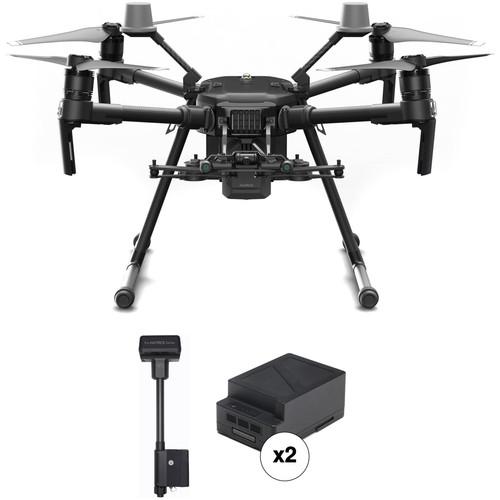

User Manual for DJI Matrice 210 RTK V2 Pro Quadcopter with GNSS Mobile Station & Battery Kit Click to enlarge the picture
Contents of the user manual for the DJI Matrice 210 RTK V2 Pro
- Product category: See All Drones DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI See All Drones
|
User manual for the DJI Matrice 210 RTK V2 Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description DJI Announces Updated DJI Matrice 200 V2 Series Read More The Matrice 210 RTK V2 Pro Quadcopter with GNSS Mobile Station & Battery Kit features a Matrice 210 RTK V2 Drone, D-RTK 2 High-Precision GNSS Mobile Station, and two TB55 Intelligent Flight Batteries. This entire kit is designed for accuracy and coverage. By itself the Matrice 210 RTK already comes with a GNSS mobile station and two flight batteries, designed to give you accurate industrial mapping. With the addition of an extra mobile station and two more batteries, your Matrice can stay out longer and map farther, covering larger locations for extremely accurate results.
With up to 33 minutes of flight time and a range of up to five miles, it can be implemented in a variety of industries and professions. Inspecting infrastructure and getting a clear view of emergencies are just a couple of the jobs the Matrice 210 RTK V2 can perform. When on site the Matrice can experience harsh environmental challenges, which is why the Matrice 210 RTK was given a rugged build, IP43-rated water and dust protection, and a battery heating system to extend flight time in extreme temperatures.
The Matrice 210 RTK drone platform is meant to be customized to your specific needs. It can power onboard devices and is compatible with a host of Zenmuse gimbal cameras (not included), which can provide everything from hi-res photos and video to thermal imaging. The Matrice 210 RTK V2 can accommodate multiple gimbal configurations. You can place two downward gimbals, or a single upward gimbal camera. - DJI D-RTK 2 GNSS Mobile Station for Matrice Drones
- Matrice 200 Series V2 1 min Intro
Accuracy is key when drone mapping in industries such as construction, surveying, inspection, and real estate. The D-RTK 2 GNSS Mobile Station for Matrice Drones from DJI is designed to allow Matrice or MG-1P RTK drones the ability to access GNSS signals for centimeter-level mapping accuracy. The mobile station's high-gain antenna is capable of accessing all four of the major GNSS satellite constellations: GPS, GLONASS, Beidou, and GALILEO. - Additional Features
- Connect controllers via 4G, OcuSync, Wi-Fi, or LAN
Connect up to 5 controllers for multi-drone operations
Supports Matrice and MG-1P controllers
Carbon fiber body and IP67-level weather protection
Built-in IMUs monitor movement and alerts operators of abnormalities
Can also be used as a CORS (Continuously Operating Reference Station) UPC: 190021331914 - 2 x DJI TB55 Intelligent Flight Battery for Matrice 200 Series V2
- Matrice 200 Series V2 1 min Intro
The TB55 Intelligent Flight Battery for Matrice 200 Series V2 from DJI is what powers your Matrice 200 Series V2 drone to get it off the ground. This LiPo battery has a 7660mAh capacity and can operate in some extreme temperatures, from -4°F to 122°F. Whether you're replacing or stocking up for a long day of shooting, this battery will give you the power to get the job done. In the Box - Matrice 210 RTK V2 Professional Quadcopter xruwdrqsurbxyfscvdstxuzzrtxrtd
- D-RTK 2 GNSS Mobile Station for Matrice Drones
- 2 x TB55 Intelligent Flight Battery for Matrice 200 Series V2
Aerial Photography and Drone Glossary David Adler 09/04/2018 Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Matrice 210 RTK V2 Pro Quadcopter with GNSS Mobile Station & Battery Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DJI D-RTK 2 GNSS Mobile Station for Matrice Drones
| | | GNSS | Simultaneously receive
GPS: L1 C/A, L2, L5
Beidou: B1, B2, B3
GLONASS: F1, F2
GALILEO: E1, E5A, E5B | | Positioning Accuracy | Single Point
Horizontal: 4.9' / 1.5 m (RMS)
Vertical: 9.8' / 3.0 m (RMS)
RTK
Horizontal: 0.4" / 1 cm+ 1 ppm (RMS)
Vertical: 0.8" / 2 cm+ 1 ppm (RMS)
1 ppm: For every 0.62 mi / 1 km increase in distance, the accuracy will be 0.04" / 1 mm less. For example, the horizontal accuracy is 0.43" / 1.1 cm when the receiving end is 0.62 mi / 1 km away from the base station. | | Positioning | Update Rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz, and 20 Hz | | Cold Start | < 45 seconds | | Hot Start | < 10 seconds | | Differential | Data Format: RTCM 2.x/3.x | | | | Data Link Protocol | OcuSync, Wi-Fi, LAN, and 4G | | Operating Frequencies | 2.4 GHz: 2.400 to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea)
5.8 GHz: 5.725 to 5.850 GHz (China, United States, Australia) | | EIRP | OcuSync
2.4 GHz SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
2.4 GHz FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm 5.8 GHz FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm
Wi-Fi
2.4 GHz SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
2.4 GHz FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm
5.8 GHz FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm | | Communication Distance | OcuSync: 1.2 mi / 2 km (unobstructed and free of interference when the distance from the D-RTK 2 antenna to the ground is 5.9' / 1.8 m, when the difference in height between the remote controller and D-RTK 2 is < 6.6' / 2 m, and when the remote controller is 3.9' / 1.2 m from ground level) | | Memory Capacity | 16 GB | | | | Power Consumption | 12 W | | Power Supply | 16.5 to 58.8 VDC | | Battery Type | Lithium-ion | | Battery Capacity | 4920 mAh | | Battery Energy | 37.3 Wh | | Run Time | WB37 Battery: > 2 hours
MG-12000P Battery: > 50 hours | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions | D-RTK 2 Body with Extension Rod: 2.7 x 6.6 x 67.2" / 6.8 x 16.8 x 170.8 cm | | IP Rating | IP67 | - 2 x DJI TB55 Intelligent Flight Battery for Matrice 200 Series V2
| Battery Capacity | 7660 mAh | | Battery Type | 6S Lithium-Ion Polymer (LiPo) | | Voltage | 22.8 V | | Watt Hours | 174.6 Wh | | Charging Power Output | 180 W | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Charging Temperature | 41 to 104°F / 5 to 40°C | | Weight | 31.2 oz / 885.0 g |
