Product description Capture 4K action cam shots in pretty much any and every way with the Osmo 4K Camera with Sport Accessory Kit from DJI.
The kit puts in your hands the Osmo 4K Camera and Gimbal with all its standard accessories, such as the Osmo Phone Holder, and in addition features the M-15 FlexiMic, two Osmo Intelligent Batteries, Osmo Extension Stick, Osmo Bike Mount, Osmo Tripod, Osmo Car Mount, Osmo Straight Extension Arm, and Osmo Base.

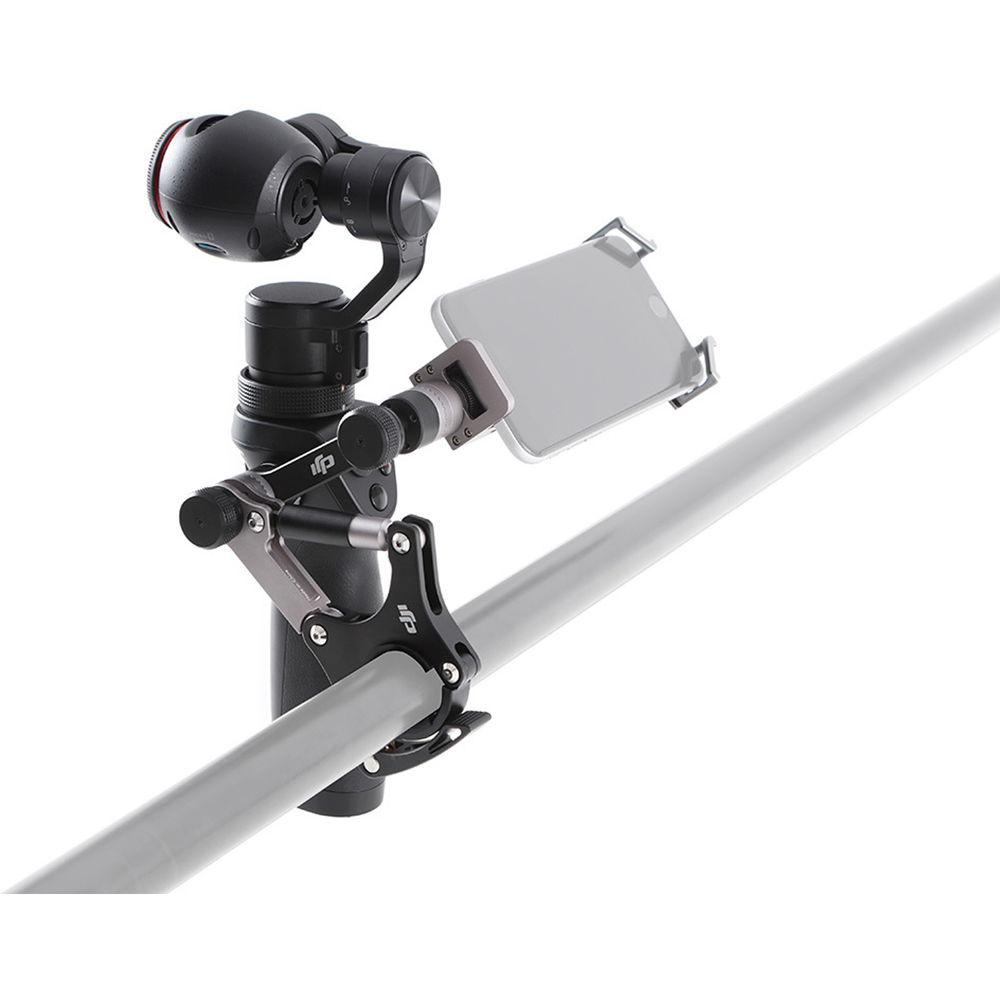

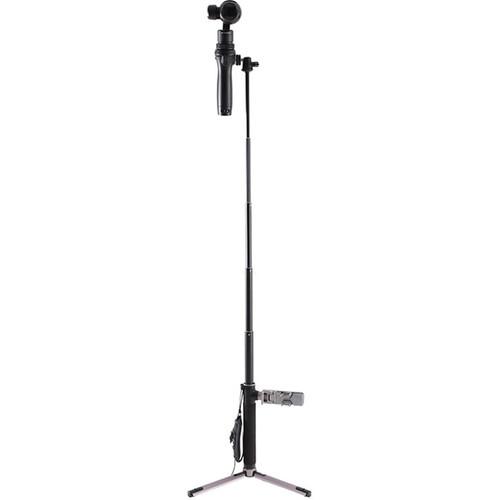

Capture your bike rides and races with the Osmo mounted right on your handlebars. Securely set up your Osmo for timelapses, panoramas, and group shots. Raise your Osmo about 40" in the air in crowded spaces or for spontaneous angles. And use it tabletop tripod-mounted, car-mounted, and desk-mounted for vlogs and other presentational, YouTube type videos.
The Osmo 4K Camera and Gimbal combines the Zenmuse X3 camera/gimbal with a detachable handle, bringing the benefits of stabilized 4K shooting to a handheld form factor. The camera features a 1/2.3" CMOS sensor that enables up to full DCI 4K (4096 x 2160) video recording at 24 or 25p as well as 12MP photo capability. Basic controls for the camera and gimbal are provided on the handle itself, including a joystick for manual pan and tilt. For monitoring and more advanced operation, there is a Wi-Fi link allowing Osmo to be tethered to a mobile device running the DJI GO iOS and Android app. - Kit Includes
-

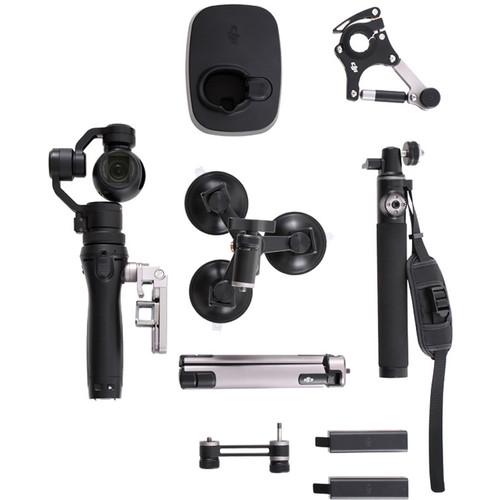

- DJI Osmo Handheld 4K Camera and 3-Axis Gimbal (with all its standard accessories)

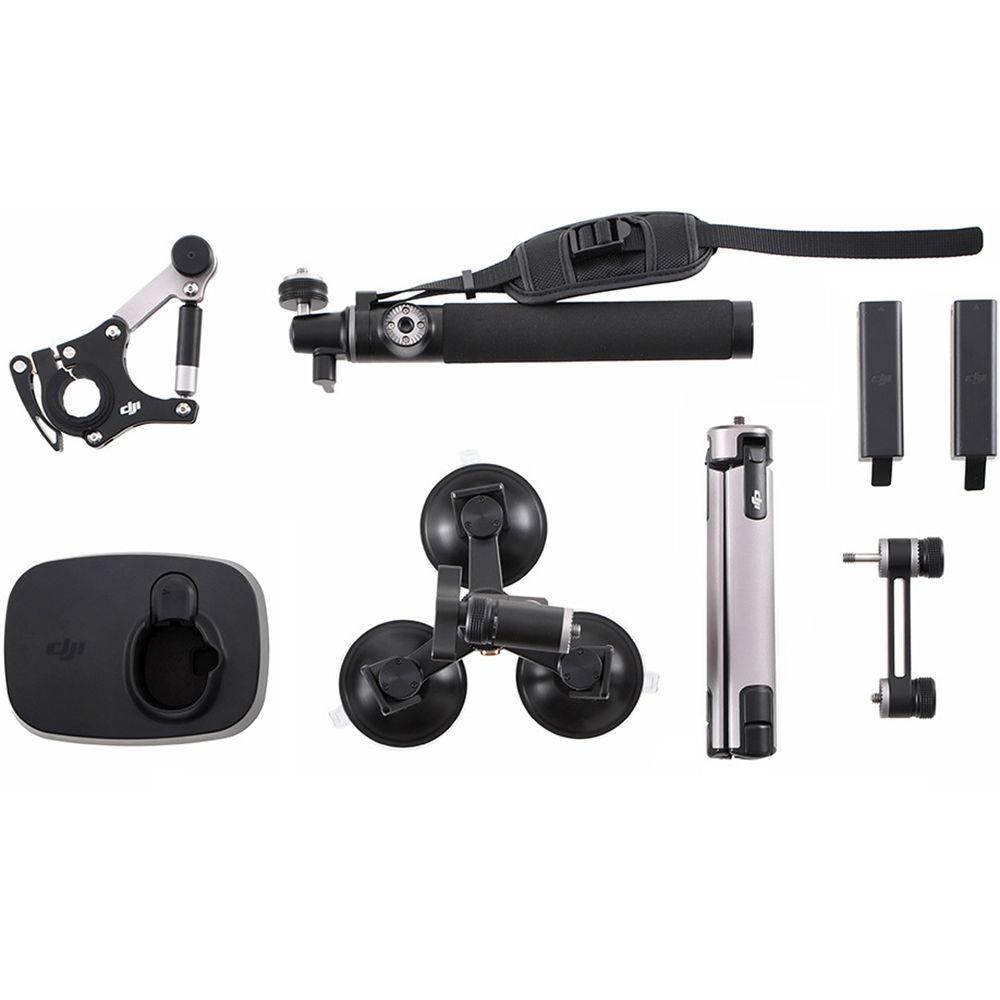

- M-15 FlexiMic
- 2 x Osmo Intelligent Batteries
- Osmo Extension Stick
- Osmo Bike Mount
- Osmo Tripod

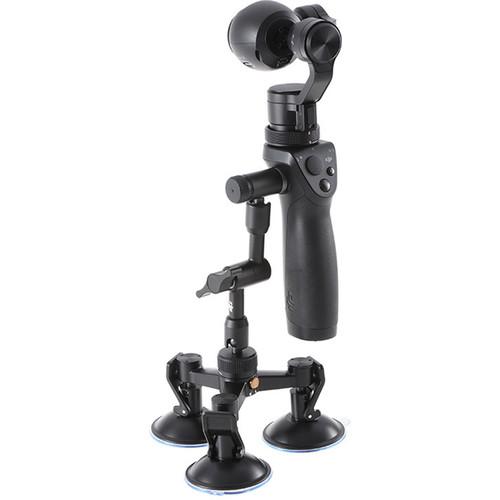

- Osmo Car Mount
- Osmo Straight Extension Arm
- Osmo Base
Osmo Handheld 4K Camera and 3-Axis Gimbal - Ergonomic Handle
- Providing a grip for easy handheld operation, the handle incorporates a joystick for panning and tilting the gimbal. There is also record start/stop button and a shutter button, putting the essential controls right at your fingertips. A trigger allows you to toggle modes. The camera/gimbal assembly can detach from the handle for storage or use in other applications
- DJI GO App
- Remotely operate the gimbal and view a live feed using the GO App for iOS and Android. A Wi-Fi link in the camera allows you to tether your mobile device, and supports a range of up to 85'. In addition to basic operation, the app allows you to change camera settings and access advanced features
- Detachable Mobile Device Holder
- A rosette attachment allows you to connect the included mobile device holder. This enables you to use your smartphone as a monitor to view a live image - streamed via Wi-Fi - from the camera. It can be rotated to achieve an optimal viewing angle. The mobile device holder disconnects so that you can use Osmo with other mounting accessories, such as the extension rod
- 3-Axis Gimbal Stabilizer
- The camera system incorporates three motors which serve to stabilize the camera as well as move it manually in relation to the handle. Using the handle's joystick or the app, it can be panned over a 320° range, tilt down 35°, and up 135°. It can pan or tilt at a rate of up to 120° per second
- Panorama Mode
- The Automatic Panorama mode is designed to make shooting 360° panoramas as seamless as possble. Just hold the Osmo up above your head and tap a button. The camera will rotate, capturing images as it goes while staying completely level
- Time-Lapse Recording
- Osmo simplifies recording the passage of time. Whether standing still for a stationary timelapse, or moving through your world for a hyperlapse, you can create smooth videos automatically and without a tripod
- Tripod-Free Long Exposures
- Take sharp long exposure shots even without a tripod. The stabilization system in the Osmo keeps the camera almost totally still so you can freehand capture stills of up to 2 seconds. With practice, you may be able to achieve even longer shots
- Video Resolutions and Framerates
- 4K:
4096 x 2160 (DCI): 24p, 25p
3840 x 2160 (UHD): 24p, 25p, 30p
FHD (1080p):
1920 x 1080: 24p, 25p, 30p, 48p, 50p, 60p, 120p
HD (720p):
1280 x 720: 24p, 25p, 30p, 48p, 50p, 60p
Maximum Bitrate: 60 Mb/s - Audio Recording
- An integrated microphone allows onboard audio recording. With advanced controls like audio gain settings, you can be sure you're not only getting the shot but also capturing the sound. A standard 3.5mm port is also available, so you can plug in your own microphone
- Photo Modes
-
- Single Shot
- Photo Burst Mode: 3/5/7 shots
- Auto Exposure Bracketing (AEB)
- Interval
- Regular Time-lapse
- Moving Time-lapse
- Auto Panorama
- Selfie Panorama
- Battery
- The handle provides an enclosure for a removable battery. A green LED indicates ample charge, and turns red alerting you the battery is getting low
- Intelligent Sleep Mode
- Put down the Osmo, and it automatically enters into sleep mode after a set amount of time. This not only extends the Osmo's battery life, but also increases the lifespan of its advanced electronics
UPC: 847628597891 In the Box DJI Osmo 4K Camera with Sport Accessory Kit Osmo Handheld 4K Camera and 3-Axis Gimbal FM-15 FlexiMic for Osmo Gimbal Camera 2 x Osmo Intelligent Battery Extension Stick for Osmo Bike Mount for Osmo Tripod for Osmo Car Mount for Osmo Straight Extension Arm for Osmo Base for Osmo Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Osmo 4K Camera with Sport Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the DJI Osmo 4K Camera with Sport Accessory Kit can be downloaded in PDF format at the link stated below.
Technical parametersDJI DJICBOOSAK Specs | | | Camera Model | X3 / FC350H | | Sensor | Sony EXMOR R 1/2.3" CMOS | | Resolution | Total: 12.76 MP
Effective: 12.4 MP | | Lens | Field of View: 94°
Focal Length (35 mm Equivalent): 20 mm
Aperture: f/2.8
Design: 9 elements in 9 groups; aspherical lens element
Filters: Anti-distortion filter; UV filter | | Video Recording | 4K:
4096 x 2160 (DCI): 24p, 25p
3840 x 2160 (UHD): 24p, 25p, 30p
FHD (1080p):
1920 x 1080: 24p, 25p, 30p, 48p, 50p, 60p, 120p
HD (720p):
1280 x 720: 24p, 25p, 30p, 48p, 50p, 60p
Maximum Bitrate: 60 Mb/s | | Audio Recording | 2-channel; 48 kHz; AAC | | Video Modes | Auto
Slow Motion | | Photography Modes | Single shot
Burst: 3, 5, 7 frames per second (AEB: 3/5 frames per second; 0.7 EV bias)
Interval
Regular Time-Lapse
Moving Time-Lapse
Auto Panorama
Selfie Panorama | | File Format | Photo: JPEG, DNG
Video: MP4 in a .MOV wrapper (MPEG-4 AVC/H.264) | | Recording Media | Type: microSD/SDHC/SDXC up to 64 GB
Speed: Class 10 / UHS-1 or faster
Format: FAT32/exFAT | | Gimbal Stabilizer Model | Zenmuse X3 | | Number of Axes | 3-axis | | Control Accuracy | ±0.03° | | Maximum Controlled Rotation Speed | 120° / second | | Controlled Rotation Range | Tilt: -35 to +135°
Pan: ±320°
Roll: ±30° | | Mechanical Range | Tilt: -90 to +150°
Pan: ±330°
Roll: -50 to +90° | | Angular Vibration Range | ±0.03° | | Output Power | Static: 9 W
In Motion: 11 W | | Operational Current | Static: 750 mA
In Motion: 900 mA | | Mounting | Detachable | | Handle | Dimensions:
2.4 x 1.9 x 6.4" / 6.1 x 4.8 x 16.3 cm
Weight:
7.1 oz / 201 g | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Wi-Fi | Frequency:
2.412 to 2.462 GHz
5.180 to 5.805 GHz
Range:
Up to 82' / 25 m line-of-sight
Transmit Power:
-2.4G- 8 dBm | | Battery | Chemistry: Lithium-polymer (LiPo)
Capacity: 980 mAh, 10.8 Wh
Voltage: 11.1 V | | Charger | Input: 100 to 240 V; 50/60 Hz
Output: 12.6 V; 1.2 A | | System Requirements - Mobile App | iOS, Android Included mobile device holder suitable for smartphones | | Connectivity | 1 x 3.5mm microphone input
1 x micro-USB for firmware updates | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 15.5 x 12.3 x 9.0" |
