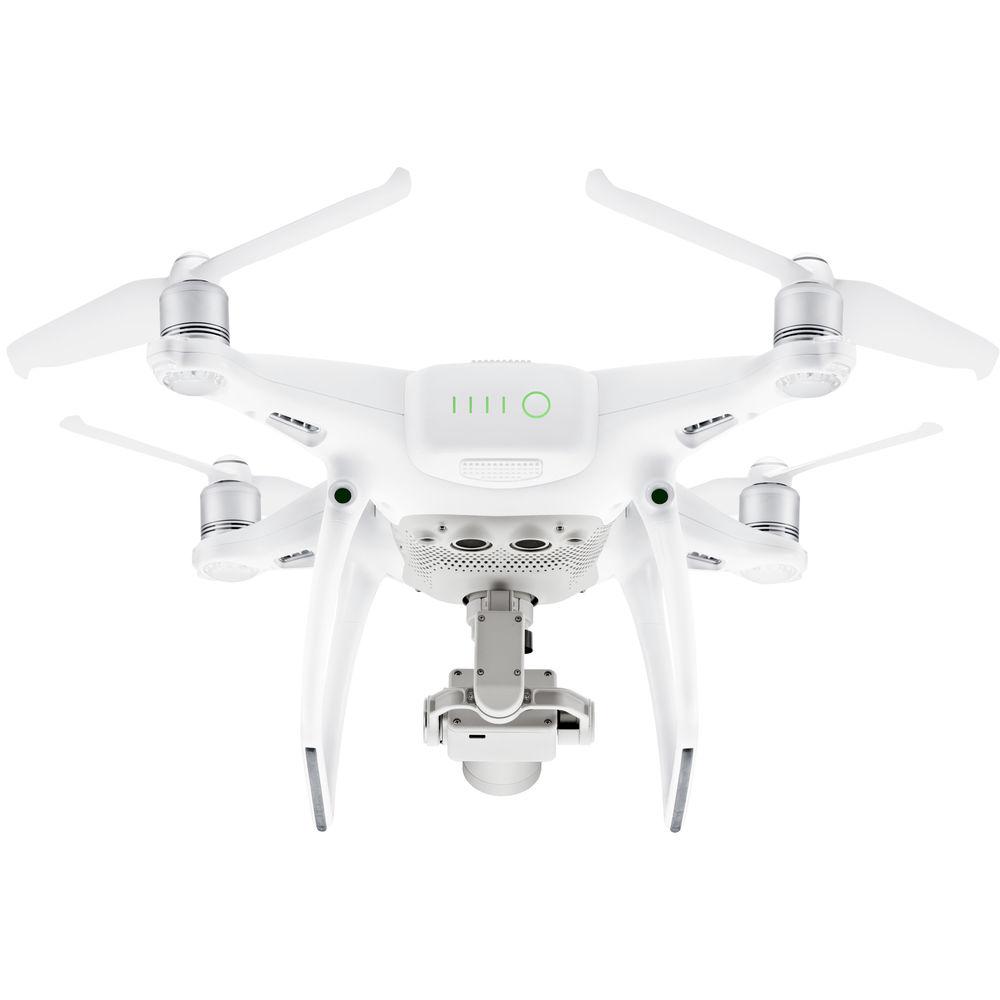

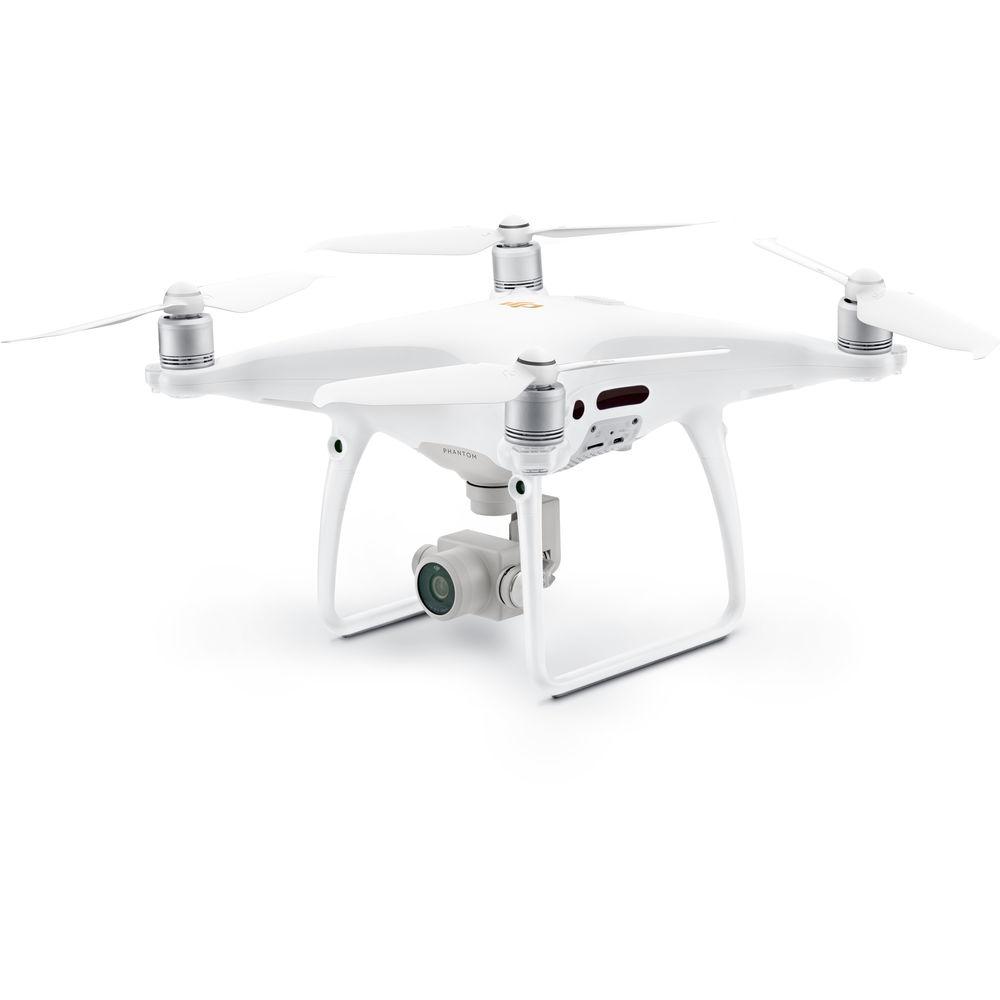

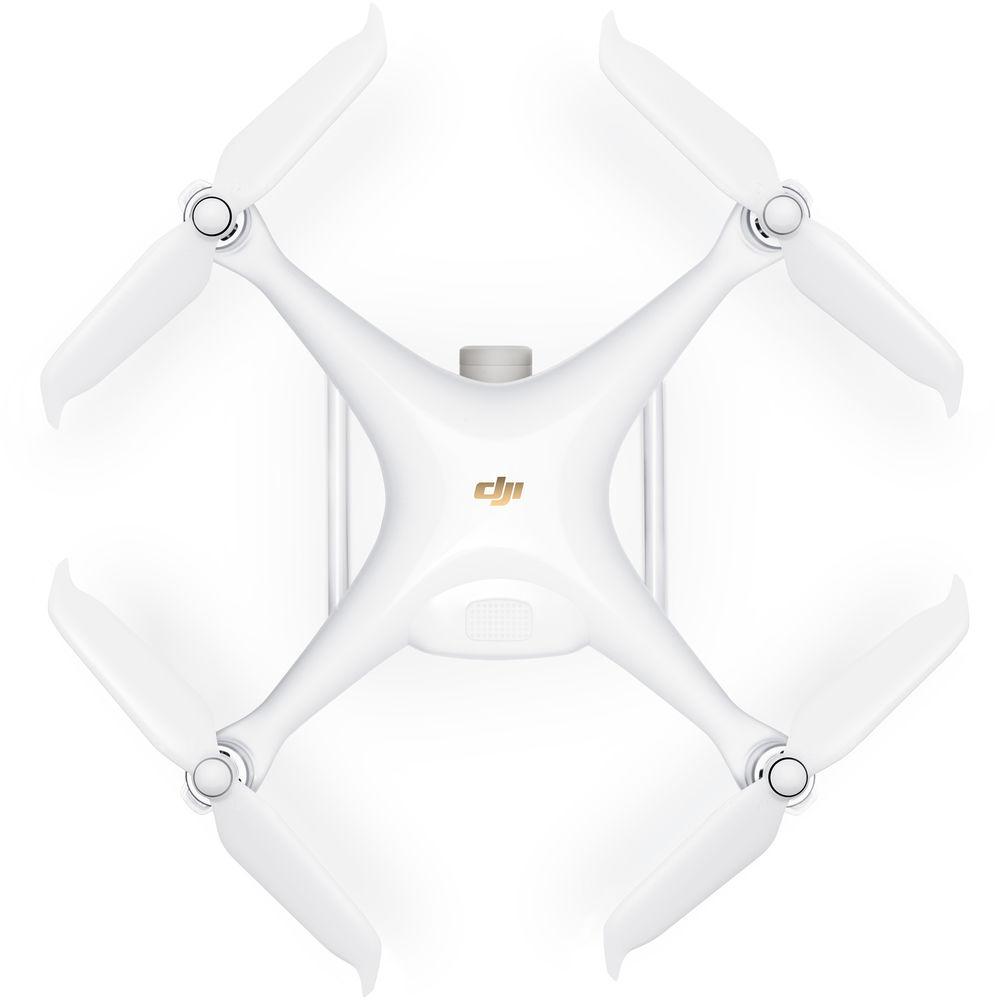

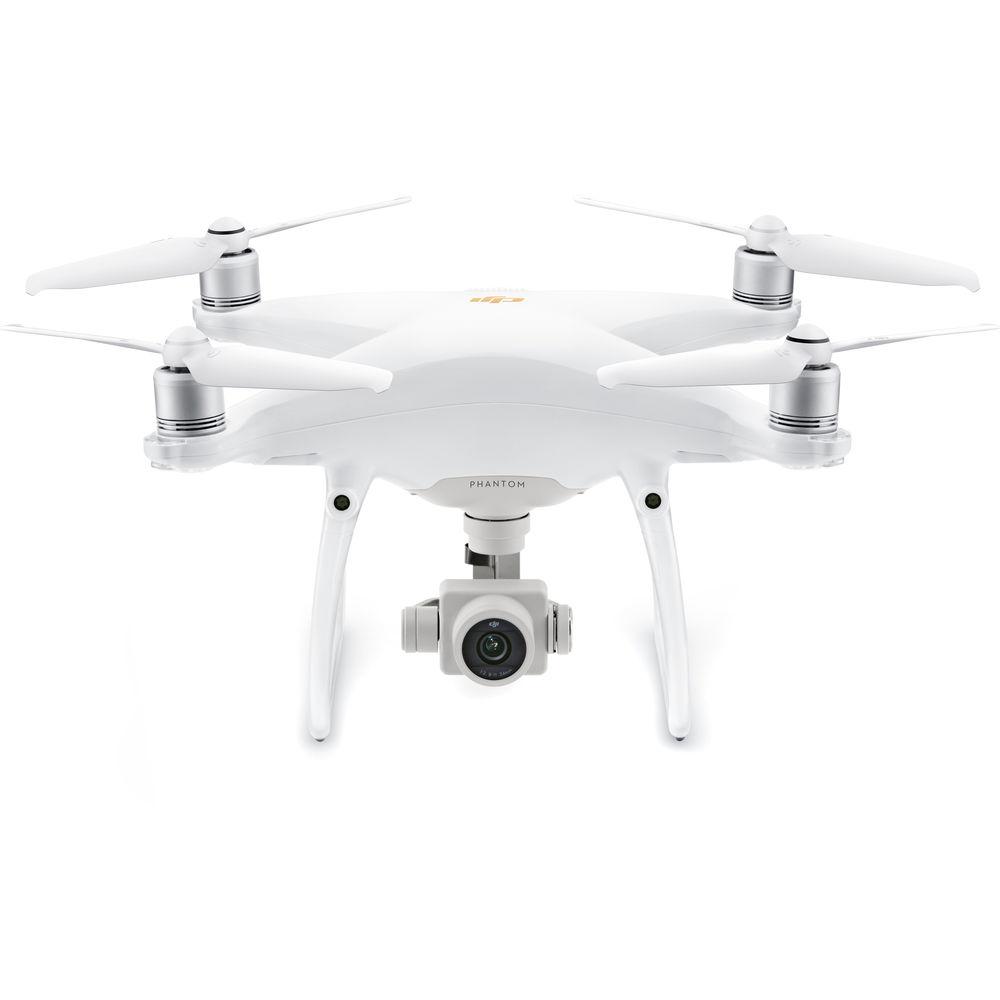

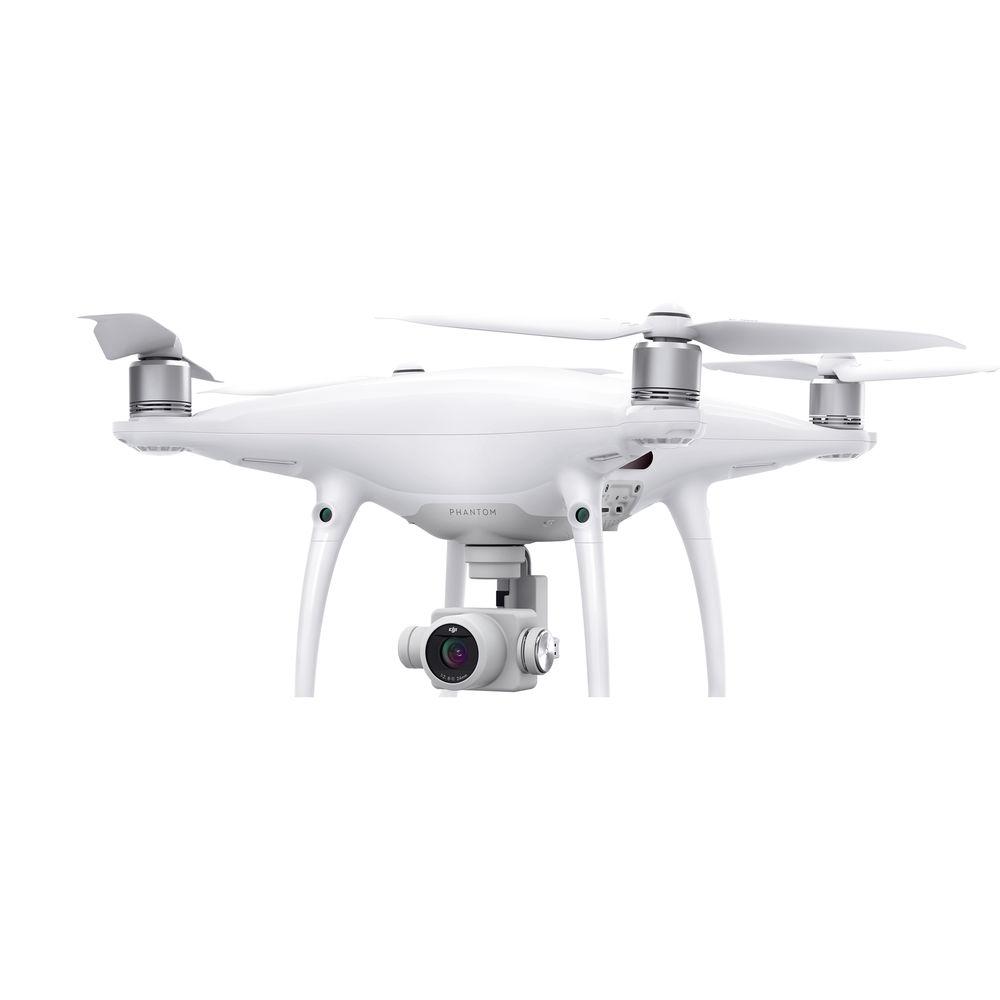

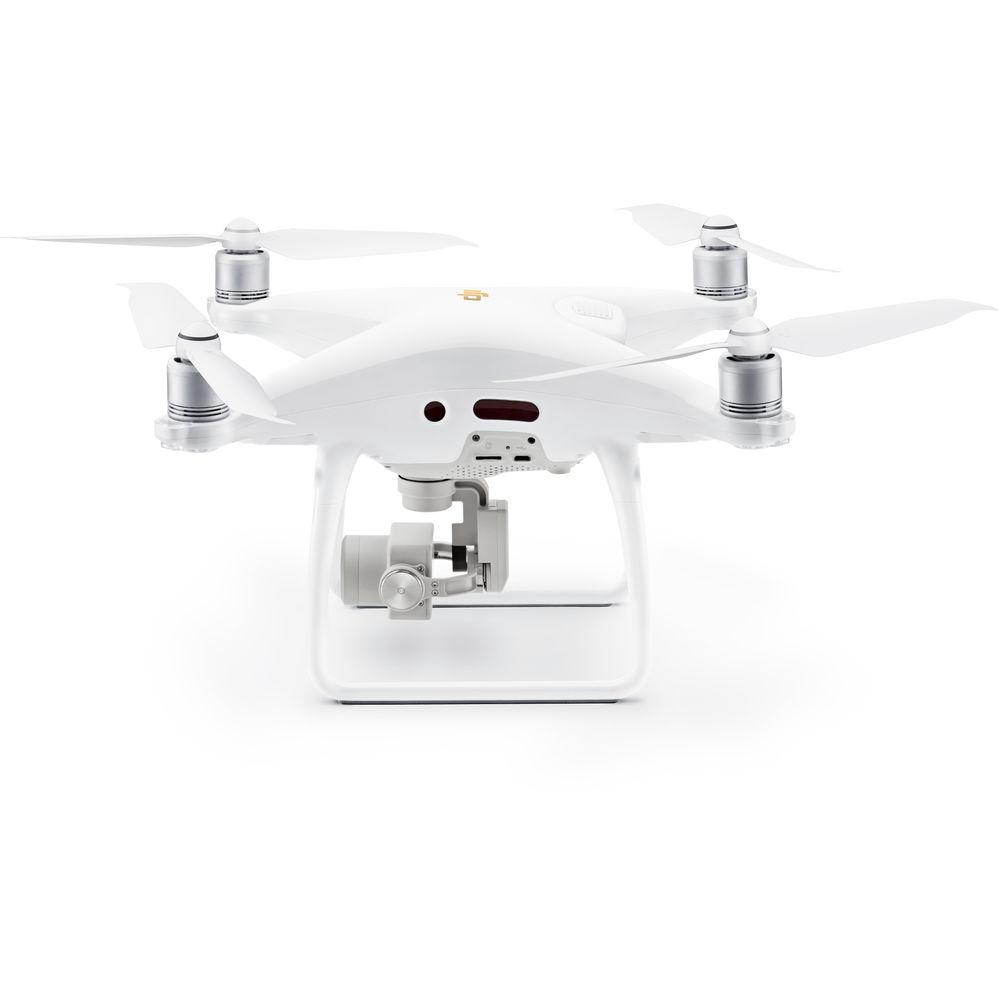

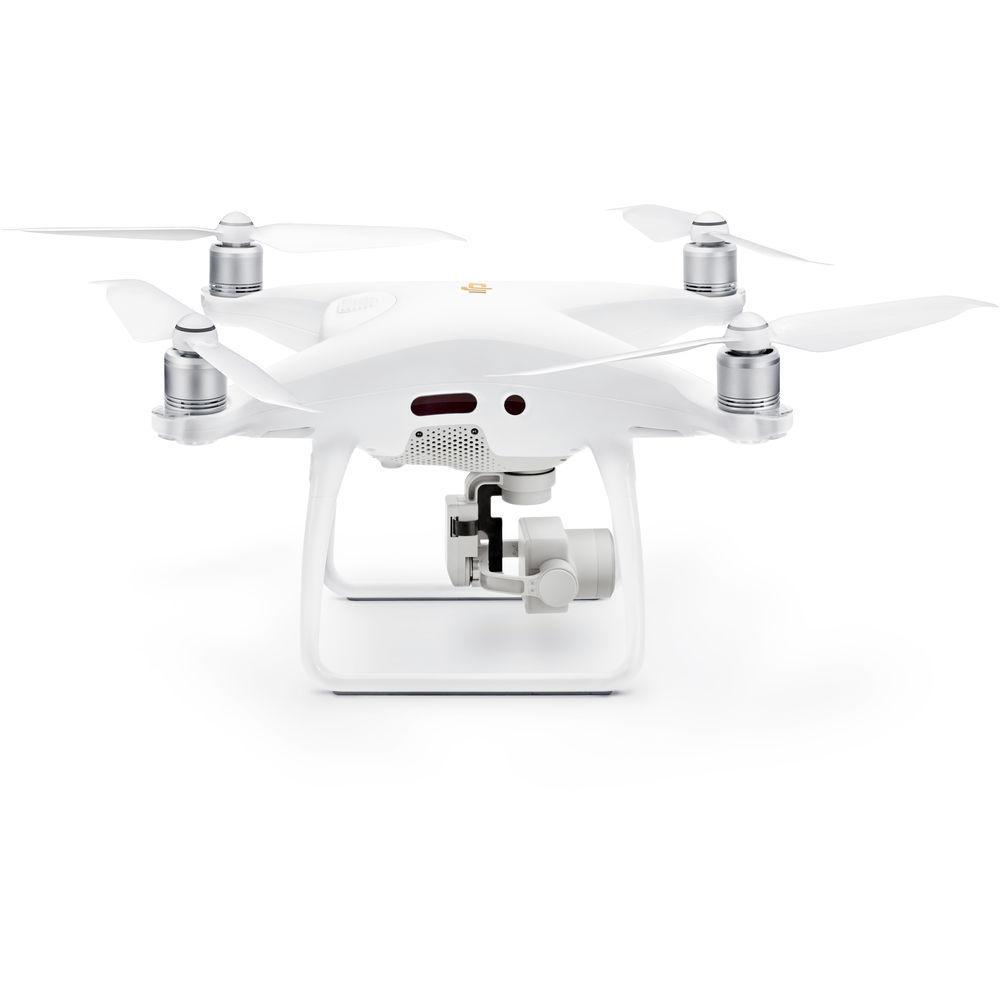

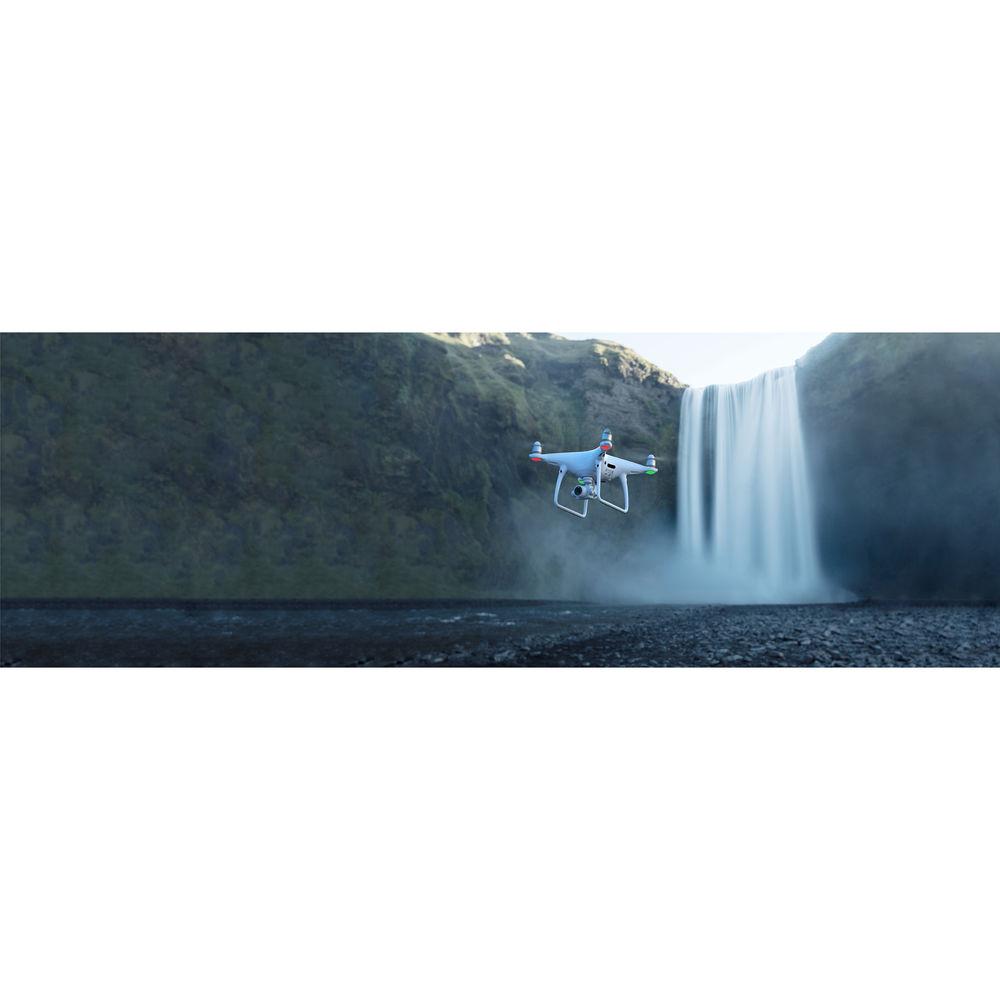

User Manual for DJI Phantom 4 Pro Version 2.0 Quadcopter Click to enlarge the picture
Contents of the user manual for the DJI Phantom 4 Pro Version 2.0
- Product category: See All Drones DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI See All Drones
 |
User manual for the DJI Phantom 4 Pro Version 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|

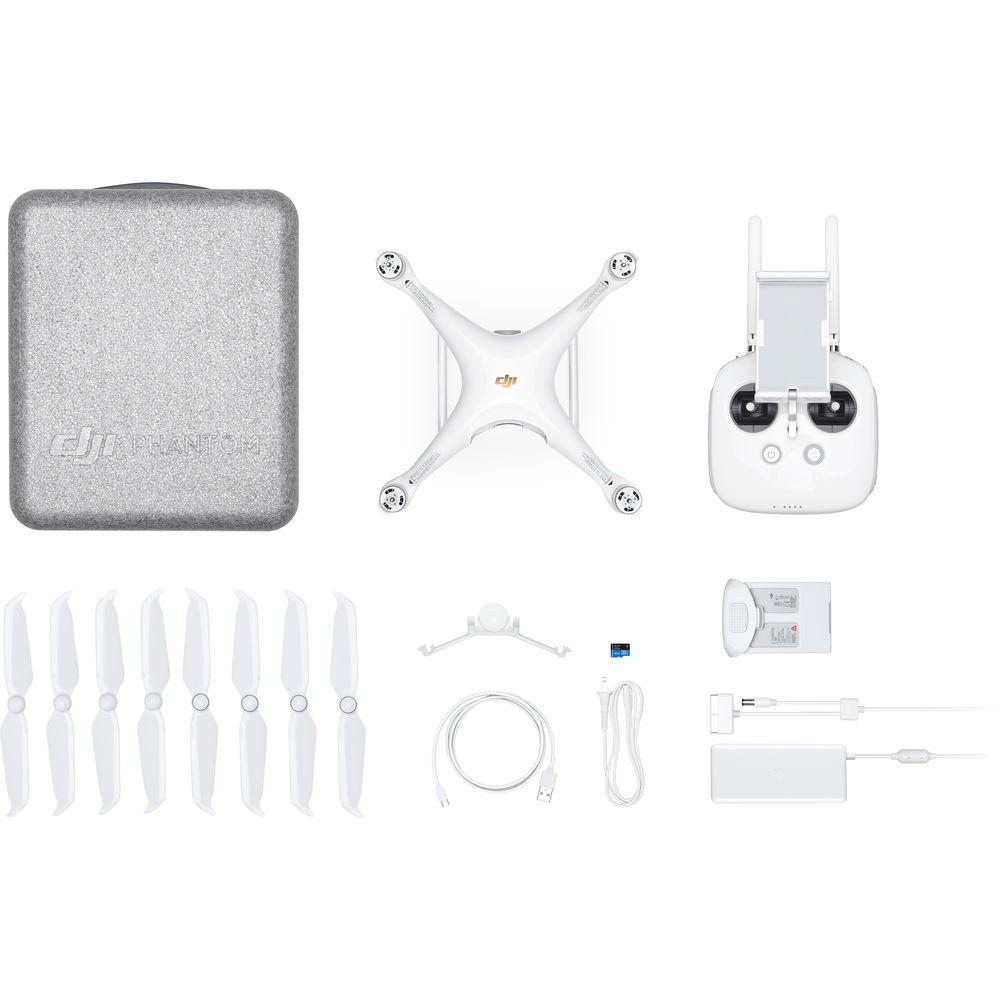

Product description Flying High with the New DJI Phantom 4 Pro and 4 PRO + Version 2 Drones Read More Version 2 of the DJI Phantom 4 Pro includes all the same great features as the original Phantom 4 Pro and boasts several enhancements including improved resolution for on-controller live-view streaming, enhanced connectivity, and more. Like the original, the Phantom 4 Pro Version 2 features a 3-axis-stabilized gimbal camera with a 20MP 1" CMOS sensor capable of shooting up to 4K60 fps video and photo bursts at up to 14 fps. It also utilizes the FlightAutonomy system, which includes dual rear-vision sensors and infrared sensing for a total of five directions of obstacle sensing and four directions of obstacle avoidance. Instead of Lightbridge, the Phantom 4 Pro Version 2 now uses Ocusync, which enables improved live video stream performance. Other notable enhancements include lighter props and reduced overall takeoff weight, wireless integration with DJI Goggles, and bolstered transmission power. UPC: 190021311053 In the Box DJI Phantom 4 Pro Version 2.0 Quadcopter Limited 1-Year Warranty Aerial Photography and Drone Glossary David Adler 09/04/2018 Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 25.8mb More info from DJI Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Phantom 4 Pro Version 2.0 Quadcopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI 4 Pro V2.0 Specs | | | Maximum Takeoff Weight | 48.50 oz / 1375 g | | Maximum Horizontal Speed | 31.1 mph / 50 km/h (P-mode)
44.7 mph / 72 km/h (S-mode) | | Maximum Flight Time | 30 Minutes | | Hovering Accuracy | ±0.98' / 0.3 m Horizontal with Vision Positioning
±0.33' / 0.1 m Vertical with Vision Positioning | | | | GNSS Support | GPS, GLONASS | | | | Operating Range | 0.7 to 23.0' / 0.2 to 7.0 m | | Minimum Object Size | 7.9 x 7.9" / 20.0 x 20.0 cm | | Required Object Reflectivity | >8% | | | | Vision System | Downward, Forward, Backward, Left, Right | | Velocity Range | 46 ft/s / 14 m/s at 6.6' / 2 m | | Maximum Altitude | 32' / 10 m | | Operating Range | 0.0 to 32.8' / 0.0 to 10.0 m | | Obstacle Sensory Range | 0.7 to 23.0' / 0.2 to 7.0 m | | Forward Field of View | 60° (Horizontal)
±27° (Vertical) | | Downward Field of View | 70° (Front to Back)
50° (Side to Side) | | Backward Field of View | 60° (Horizontal)
±27° (Vertical) | | Operating Environment | Surface with Clear Patterns at >15 lux | | | | Operating Frequency | 2.4 GHz (2.4 - 2.483)
5.8 GHz (5.725 - 5.825) | | Maximum Operating Distance | 22,966' / 7000.04 m at 2.4 G
22,966' / 7000.04 m at 5.8 G | | Transmitter Power | 26 dBm (2.4 G)
26 dBm (5.8 G) | | Battery Type | 1 x Built-In | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Battery Capacity | 6000 mAh | | Mobile Device Compatibility | Devices up to 6.3" / 160.02 mm Wide and 0.3" / 7.62 mm Thick | | App Operating System Requirements | Android 4.4 and later
iOS 9.0 and later | | | | Sensor | 1" CMOS | | Effective Pixels | 20 MP | | Focal Length | 8.8mm / 24mm (35mm Equivalent) | | Lens Field of View | 84° | | Aperture | f/2.8 - 11 | | Minimum Focusing Distance | 3.3' / 1.0 m | | Photo ISO Range | 100 - 6400 (Manual)
100 - 3200 (Auto) | | Video ISO Range | 100 - 6400 (Manual)
100 - 3200 (Auto) | | Electronic Shutter Speed | 8 - 1/8000 Second | | Photo Resolution | 3:2: 5472 x 3648
16:9: 5472 x 3078
4:3: 4864 x 3648 | | Photo Format | JPEG, DNG | | Video Format | 4096 x 2160p at 24/25/30 fps (100 Mb/s MOV via H.265)
3840 x 2160p at 24/25/30/60 fps (100 Mb/s MOV via H.265)
2720 x 1530p at 24/25/30 fps (100 Mb/s MOV via H.265)
1920 x 1080p at 24/25/30/48/50/60/120 fps (100 Mb/s MOV via H.265)
1280 x 720p at 24/25/30/48/50/60/120 fps (100 Mb/s MOV via H.264) | | Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot | | | | Number of Axes | 3 (Pitch, Roll, Yaw) | | Control Range | Pitch: -90 to 30°
Yaw: 0 to 15° | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 5870 mAh / 89.2 Wh | | Battery Configuration | 4 S / 17.4 V | | Maximum Charging Power | 160 W | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Output Voltage | 17.5 V, 5.7 A | | Power Rating | 100 W | | | | Number of Rotors | 4 | | Weight | 48.50 oz / 1375 g (Including Propellers, Battery, Gimbal, Camera) | | | | Package Weight | 10.3 lb | | Box Dimensions (LxWxH) | 16.5 x 13.5 x 9.25" |
