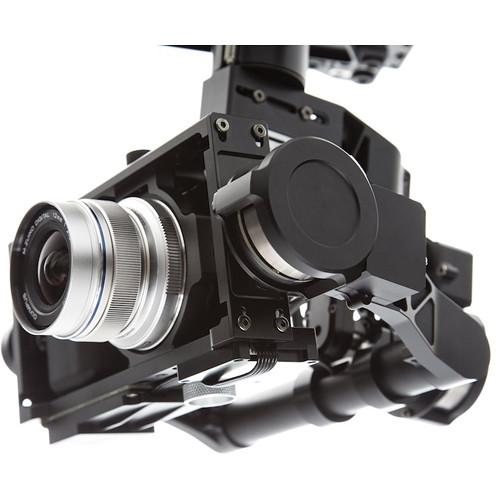

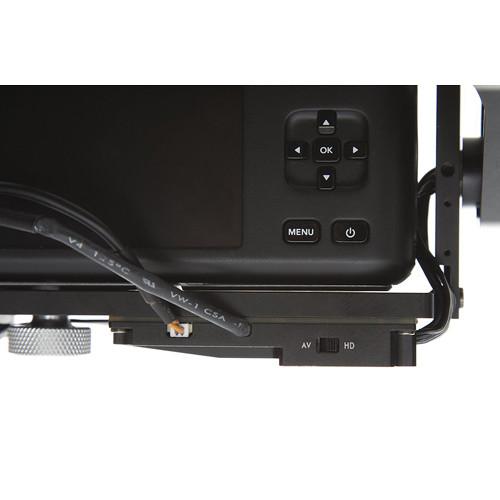

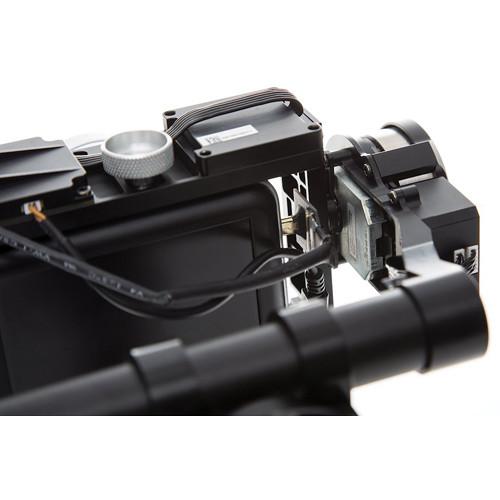

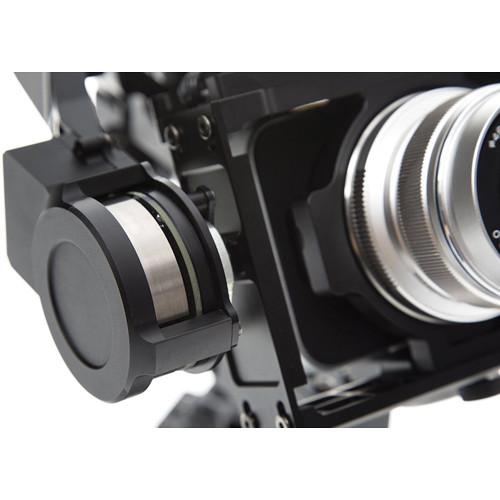

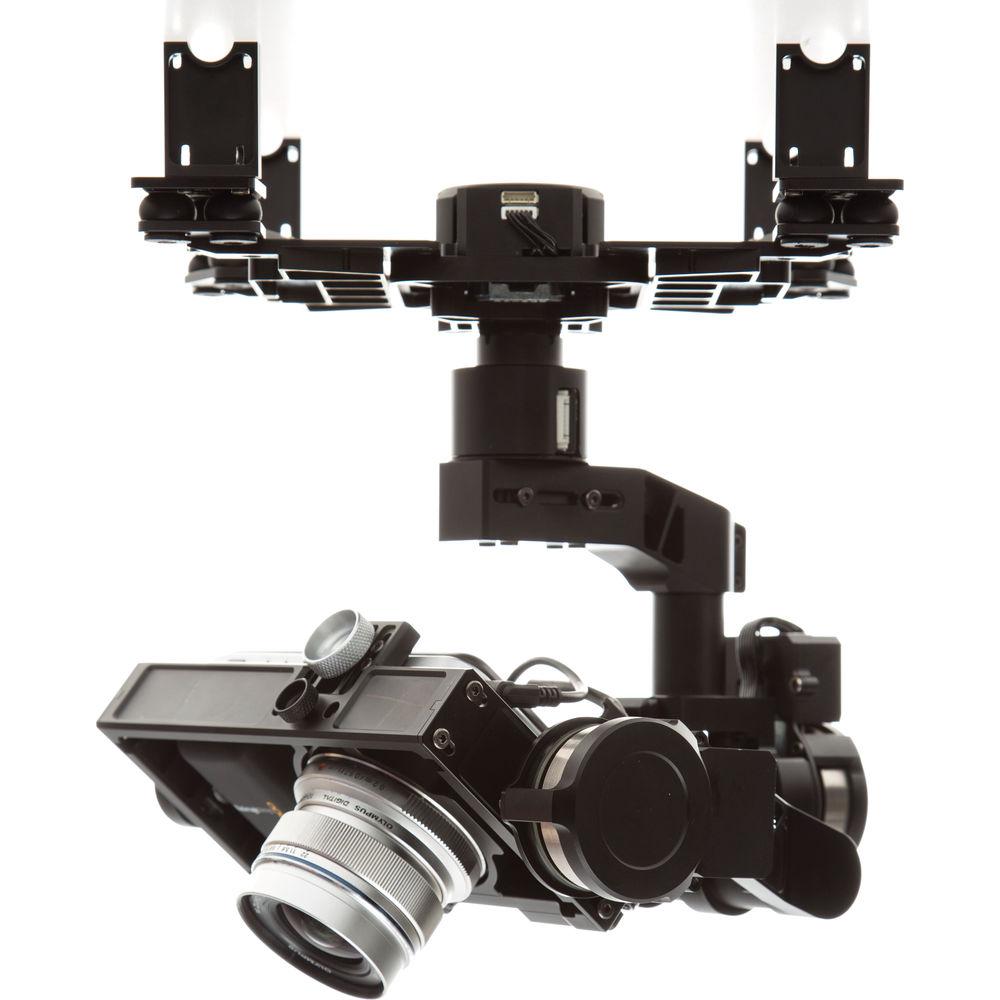

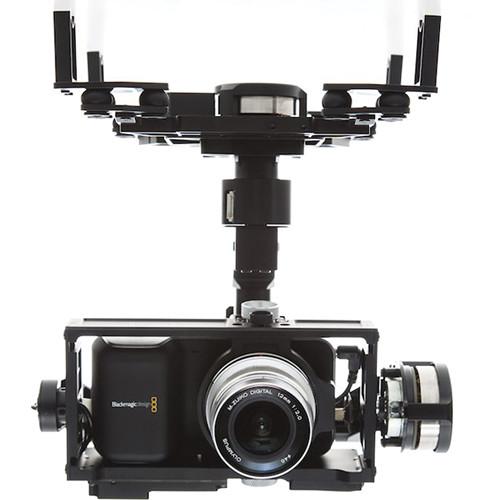

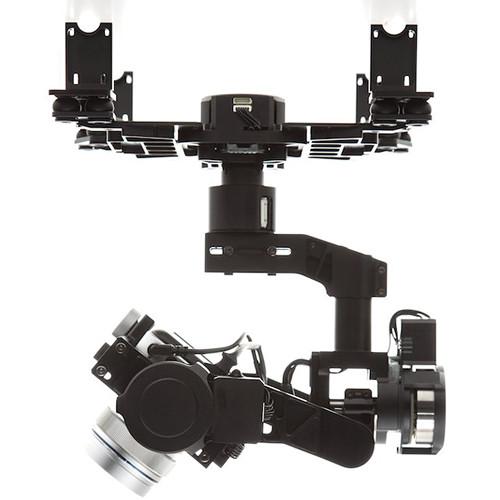

Product description The Zenmuse Z15-BMPCC 3-Axis Gimbal for Blackmagic Pocket Cinema Camera from DJI performs two key functions: keeping the camera level and providing stabilization, thus helping you transform a larger multi-rotor UAV, such as the S1000, into a platform for professional aerial video and aerial photography. Featuring ±0.02° control angle accuracy, the Z15-BMPCC supports three operation modes; two optimized for aerial video and photo use and one for FPV (first person view) applications. The gimbal is operated using a dedicated stick on your transmitter (hand-held radio controller), and the receiver must have at least four free channels that can be assigned to gimbal operation.

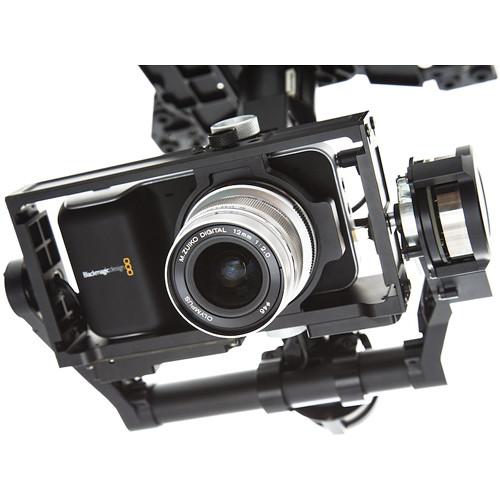

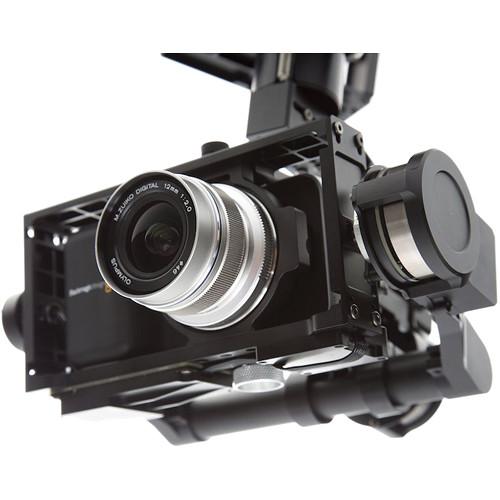

Each version of the Z15 Gimbal is designed for a specific camera and lens combination. This version is for the Blackmagic Pocket Cinema Camera with the Olympus M.ZUIKO Digital ED 12mm f/2.0 lens. Additionally, it is specifically balanced for this precise setup. Additions to the camera or lens, such as filters, can increase the weight and alter the weight distribution potentially damaging the gimbal.
Note: Installation may require soldering. - Compatible Hardware
- The Z15 Gimbal requires a larger multi-rotor UAV aircraft, such as the S100 or S800, that has installed either the A2 or WooKong-M flight control system. Depending on the system, the Z15 Gimbal is installed in, additional separately available electronics and mounting hardware may be required. apart from the flight control system, the receiver must have at least four open channels, and the transmitter must be programmable to support gimbal operation
- 3-Axis Rotation Control
- The control method is designed to be simple and intuitive: the gimbal-assigned transmitter stick has direct control over the relative rotation speed. The design incorporates a tail potentiometer to increase control, stability, and precision, and the internal slip rings avoid needlessly complicated wiring. Both the power and signal lines are integrated into the tubes of the gimbal, which provides unhindered control axes, allowing the gimbal to pan 360°, tilt +50 to -140°, and roll ±40°
- Multiple Control Modes
- Orientation-locked Control Mode: Keeps the gimbal locked with the aircraft nose direction
Non-Orientation-locked Control Mode: Gimbal point stays the same regardless of which way the nose is pointing
Back to Mid-point Mode (FPV Mode): Centrally locks the gimbal in the direction of the nose. In this mode the leveling and stabilizing functionality of the gimbal is negated - Built-in Independent IMU Module
- Integration of the IMU Module helps reduce the amount of wiring required for installation. Plus, the gimbal provides a specially designed and customized video output module
- Gimbal Servo Drive Module
- Following in the tradition of previous Zenmuse gimbals, the Z15 features high precision control characteristics demanded by professional users. With high precision, low vibration, and high torque characteristics, this module helps provides additional camera stabilization
- Windows Assistant Software
- Firmware updates, diagnostic testing, and other critical maintenance will require the use of the computer-based Assistant Software. This software requires Windows 8, 7, XP SP3 in 32- or 64-bit versions
- Camera Shutter Control Supported
- With a properly configured transmitter it is possible to trigger the camera's shutter release remotely
- Video Output for Wireless Transmission
- A video feed from the Pocket Camera's HDMI port is converted to composite and relayed through the gimbal so that it can be connected to a video transmitter or OSD module for FPV and ground-end monitoring

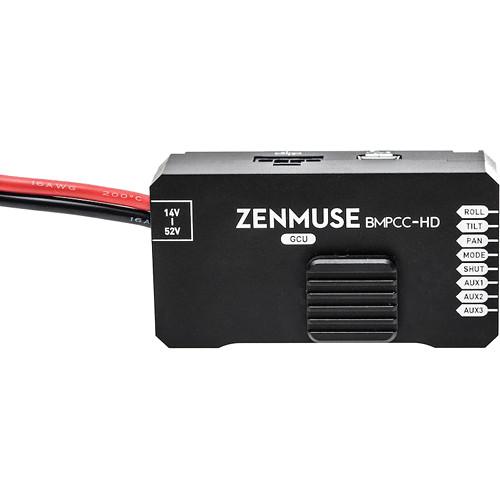

In the Box DJI Zenmuse Z15-BMPCC 3-Axis Gimbal for Blackmagic Pocket Cinema Camera Gimbal Control Unit (GCU) Lens Retaining Ring 4 x Mounting Bracket Mounting Board for Receiver Cable Clamp 2 x Camera Mount Screw Lens Retaining Screw Screw Package 2 x 9-Pin Cable Camera Record Cable Servo Cable Package AV Video Power Cable iOSD Mark II Cable CAN-Bus Cable Spares Pack User Manual PDF 3.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Zenmuse Z15-BMPCC 3-Axis Gimbal for Blackmagic Pocket Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.ZM.000051 Specs | Supported Camera | Blackmagic Pocket Camera | | Supported Lens | Olympus M.ZUIKO Digital ED 12mm f/2.0 | | Control Requirements | At least 4 spare receiver channels
S-Bus/PPM receiver supported | | Software Requirements | For Assistant Software: Windows 8, 7, XP SP3 -- 32 or 64-bit | | Working Current | Static Current: 200 mA at 25 V
Dynamic Current: 400 mA at 25 V
Locked-Rotor Current: 4 A at 25 V | | GCU BEC Output | 10 A at 12 V | | Transmit Power | GCU Wireless Video Transmission: 1 A at 12 V | | Controlled Angle Accuracy | ±0.01° | | Maximum Controlled Rotation Speed | Pan Axis: ±130°/s
Tilt Axis: ±130°/s
Roll Axis ±30°/s | | Controlled Rotation Range | Pan Axis Control: ±360° continuous rotation
Tilt Axis Control: +50 to -140°
Roll Axis Control: ±40° | | Power Requirements | GCU: 4S to 12 S LiPo (6S if using S800) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | Gimbal: 9 x 8.3 x 8.3" (227 x 212 x 210 mm)
GCU: 2.5 x 1.4 x 0.8" (64.2 x 34.1 x 19.5 mm) | | Weight | Gimbal: 2.9 lb (1.3 kg)
GCU: 2.2 oz (63 g) | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 10.5 x 10.2 x 9.3" |
Rating70% users recommend this product to others. And what about you?
