DOD Rubberneck Analog Delay with Tap

Search your instruction manual in PDF to download

User Manual for DOD Rubberneck Analog Delay with Tap Tempo

Click to enlarge the picture
DOD Rubberneck Analog Delay with Tap Tempo Contents of the user manual for the DOD Rubberneck Analog Delay with Tap
  • Product category: Effects Pedals DOD
  • Brand: DOD
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for DOD Effects Pedals

DOD Rubberneck Analog Delay with Tap Tempo DOD Rubberneck Analog Delay with Tap Tempo
User manual for the DOD Rubberneck Analog Delay with Tap contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any DOD product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official DOD user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a DOD product will considerably shorten its lifespan!



Product description

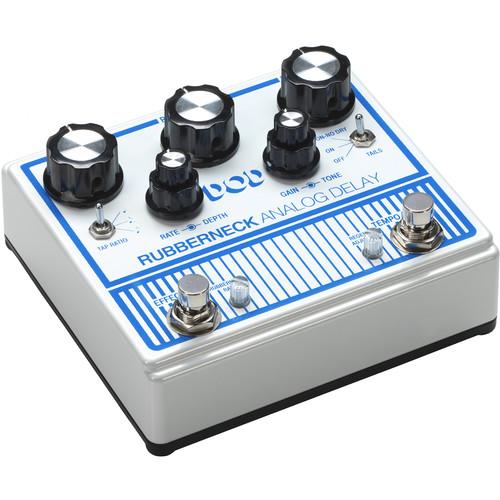

The DOD Rubberneck Analog Delay is a pedal intended for electric guitar players. It can give you over a second of analog repeats, as well as controls for the delay’s timing, feedback, gain, tone, and more. For instance, concentric knobs allow you to manipulate the rate and depth of any modulations you’d like to introduce into the delay. A three-way toggle switch lets you choose how the tails will operate when you disengage the pedal. Will the tails automatically die, or fade off into the mix? The decision is yours with this front-facing switch.Tap tempo is also offered via a dual-function footswitch, and you can choose among subdivisions with a three-position toggle switch, giving your repeats a triplet feel, if you so choose. The Tap Tempo footswitch also operates as a Regen control, which, when pressed down, will override the Repeats knob, giving you a feedback setting determined by the adjacent potentiometer. With this pot, you can achieve instantaneous modulations in feedback/repeats.The pedal utilizes a true-bypass circuit path to preserve your dry signal’s integrity. However, the bypass switch also serves another function: It enables rubbernecking, an effect where the delay’s timing is stretched/compressed in time. You choose exactly how this timing changes with the Rubber Rate potentiometer, conveniently located next to the bypass footswitch.The pedal sports an effects loop, so you can route external effects through its send/return jack, which accepts a 1/4" TRS cable. If you’d like to use a compatible footswitch to control parameters, such as the FSX3, a 1/4" jack is provided for this purpose. This pedal runs on a 9 VDC external power supply, which is available separately.
    Key Features at a Glance
  • Up to 1.5 Seconds of Analog DelayTap Tempo with three tap-ratio selectionsRubbernecking allows ‘rubber band’ stretched delay performanceModulation, Speed, and Depth controlsDelay, Gain, and Tone controlsRegen footswitch provides performance control of repeatsEffects loop allows you to insert effects into delay feedback pathDelay tails and dry signal defeat optionsRemote footswitch input for added performance controlTrue bypass circuitry
    Controls at a Glance

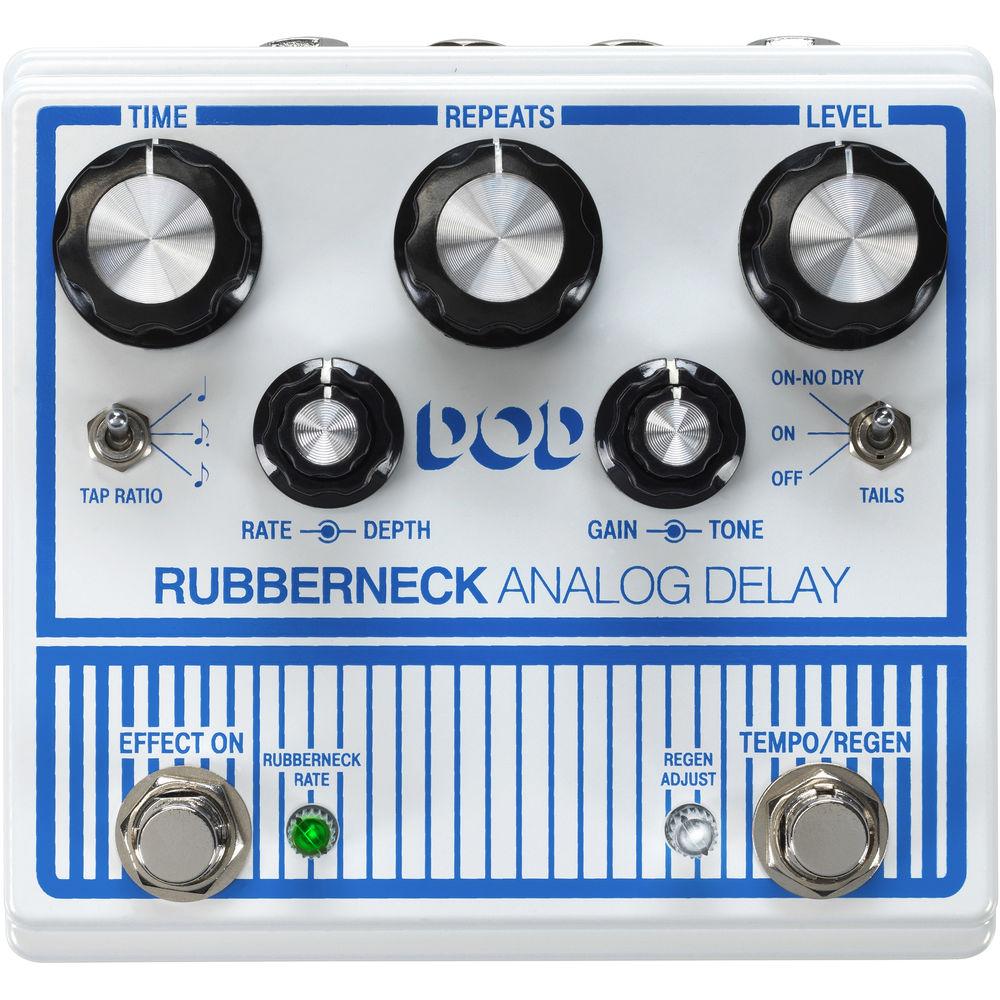

  • Time Knob: This knob controls the delay time. Range is 30 to 1000 ms. Up to 1500 ms of delay is available using the Tempo footswitch.Repeats Knob: This knob controls the number of delay-repeats you’ll hear. Higher settings can create the oscillating runaway feedback that analog delays are known for.Level Knob: This knob controls the output level of the delay signal. Use this in conjunction with the Repeats, Tone, and Gain knobs to balance your delay levels.Gain/Tone Knobs: The Gain knob shapes the delay signal by adding more input gain into the bucket brigades, thus adding more overdrive to the repeat. The Tone knob brightens or darkens the delay signal. These knobs are stacked concentrically.Rate/Depth Knobs: These knobs control the amount of delay time modulation creating sounds from subtle chorusing to wild vibrato/tremolo textures. These knobs are stacked concentrically.Tap Ratio Switch: This switch selects between three different tempo ratios, making it easy to achieve repeats that are perfectly in time with the tapped intervals, or giving them a doubled or tripled feel.Tails Switch: This switch allows repeats to be heard or not heard when the delay is bypassed. The third option (On-No Dry) defeats the dry signal while allowing delay repeats to continue in bypass.Effect LED/Rubberneck Rate Control Potentiometer: This transparent pot utilizes a bi-color LED beneath it to indicate different delay operating states. When it is green, the delay effect is enabled. When it is pulsing green to yellow, the delay is enabled and showing the modulation Rate and Depth settings. When it is red, the Rubbernecking feature is active. The pot itself is used for selecting the Rubberneck rate (the time it takes to modify the delay time when the Effect footswitch is pressed and held).Tempo LED/Regen Adjust Control Potentiometer: This transparent pot utilizes an LED beneath it that flashes at the current delay time. The delay time can be changed by tapping the Tempo/ Regen footswitch. The pot itself is used for adjusting the secondary regen/repeats setting of the delay that is enabled by pressing and holding the Tempo/Regen footswitch.Tempo/Regen Footswitch: This footswitch is used to tap in the delay time during performance. When the delay is enabled and the footswitch is pressed, it enables the secondary repeats regen control in the path, thus defeating the initial Repeat setting and initiating a secondary feedback value as by the Regen Adjust Pot.Effect On: This footswitch turns the delay effect on and off. When this footswitch is pressed and held, the Rubbernecking feature is enabled. This modulates the delay time up or down at different rates depending on the setting of the Rubberneck Rate control.
In the Box DOD Rubberneck Analog Delay with Tap Tempo
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the DOD Rubberneck Analog Delay with Tap Tempo in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    DOD DOD-RUBBERNECK Specs

    Controls TIME knob
    REPEATS knob
    LEVEL knob
    GAIN/TONE knobs (concentrically stacked)
    RATE/DEPTH knobs (concentrically stacked)
    EFFECT LED/RUBBERNECK RATE control
    TEMPO LED/REGEN ADJUST control
    TAP RATIO toggle switch
    TAILS toggle switch
    EFFECT ON footswitch
    TEMPO/REGEN footswitch

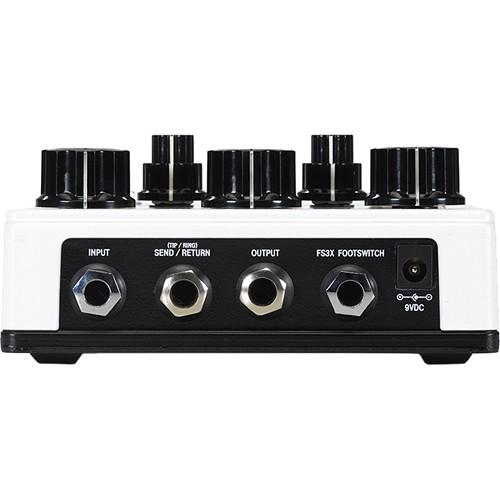

    Audio I/O 1 x 1/4" instrument input, phone type
    1 x 1/4" instrument output, phone type
    1 x 1/4" send/return jack, TRS phone type (tip = send, ring = return)
    1 x 1/4" external footswitch input, TRS phone type
    Chassis All-metal
    Current Draw 150 mA
    Power Supply 9 VDC, optional
    Dimensions (L x W x H) 4.8 x 4.7 x 2.2" / 122.0 x 119.0 x 55.0 mm
    Weight (Approx.) 1.1 lb / 0.5 kg
