DPA Microphones IMK4061 Instrument Microphone Kit

Search your instruction manual in PDF to download

User Manual for DPA Microphones IMK4061 Instrument Microphone Kit - Includes: 4061-BM Lavalier, DAD6001 Microdot to XLR Adapter, Instrument Holders, Windscreens and Storage Case

Click to enlarge the picture
DPA Microphones IMK4061 Instrument Microphone Kit - Includes: 4061-BM Lavalier, DAD6001 Microdot to XLR Adapter, Instrument Holders, Windscreens and Storage Case Contents of the user manual for the DPA Microphones IMK4061 Instrument Microphone Kit
  • Product category: Instrument Microphones DPA Microphones
  • Brand: DPA Microphones
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for DPA Microphones Instrument Microphones

User manual for the DPA Microphones IMK4061 Instrument Microphone Kit contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any DPA Microphones product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!



Product description

The DPA IMK4061 is an instrument microphone kit that includes the 4061 lavalier, DAD6001 Microdot to XLR-male adapter, holders for stringed instruments, universal surface mounts, magnet mount, foam windscreens, frequency altering protection grids, and storage case.The 4061-BM features an omni-directional polar pattern, ideal for close miking musical instruments. The omni-directional pattern provides a generous pick and even frequency response at the direct and off-axis sections of the microphone capsule.The 4061-BM is capable of withstanding sound pressure levels up to 144dB, resulting in a high tolerance for transient (peaking) audio signal without noise caused by distortion and overload. The wide 20Hz to 20kHz frequency response of the microphone allows the lavalier to be used for capturing a wide array of signal sources. A high frequency boost protection grid is included, providing a brighter, "airy" response. The microphone is powered via 48V phantom power source and is suitable for capturing strings, brass, woodwinds, guitar, percussion and more.
    Complete Instrument Microphone Kit
  • Everything needed for close miking instruments is included. The kit contains the 4061 lavalier, DAD6001 Microdot to XLR-male adapter, holders for stringed instruments, universal surface mounts, magnet mount, foam windscreens, frequency altering protection grids, and storage case.
    Omni-Directional Polar Pattern
  • The omni-directional polar pattern of the 4061 provides an even, smooth frequency and sensitivity response at the off-axis and direct sections of the capsule.
    Exceptional Signal Response
  • A wide frequency response of 20Hz to 20kHz result in transparent smooth sonic character no matter the source. The 4061 can handle high sound pressure levels without noise caused by peak distortion.
    Small Unobtrusive Profile
  • The miniature lavalier design allows flexible microphone placement and positioning.

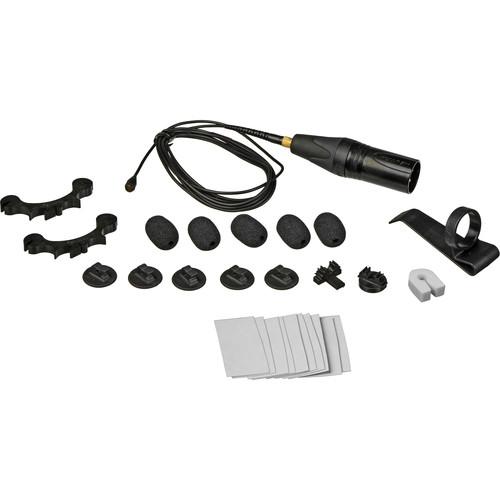

In the Box DPA Microphones IMK4061 Instrument Microphone Kit - Includes: 4061-BM Lavalier, DAD6001 Microdot to XLR Adapter, Instrument Holders, Windscreens and Storage Case
  • 2 x DMM0007 Universal Surface Mounts
  • 2 x MHS6001 Stringed Instrument Holder
  • DMM0011-B Magnet Mount
  • DAD6001 Microdot to XLR Adapter
  • 5 x DUA0560 Foam Windscreen
  • Protective Caps
  • Storage Case
  • Double Sided Tape
  • 1 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the DPA Microphones IMK4061 Instrument Microphone Kit - Includes: 4061-BM Lavalier, DAD6001 Microdot to XLR Adapter, Instrument Holders, Windscreens and Storage Case in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    DPA Microphones IMK4061 Specs

    Transducer Pre-polarized Condenser
    Polar Pattern Omni-directional
    Frequency Response 20Hz to 20kHz +/- 2dB (3dB soft boost at 8-20 kHz)
    Preamp Frequency Range: 20Hz to 50kHz (+0dB/-3dB)
    Dynamic Range (Typical) not specified by manufacturer
    Signal-to-Noise Ratio 26dB A-weighted
    Maximum Input Sound Level 144dB SPL
    Power Requirements 48V Phantom Power
    Output Impedance 30 to 40 ohms
    Output Connectors 3-pin XLR Male
    Pad No
    Low Frequency Roll-Off High Frequency Boost Grid Included
    Dimensions Microphone Length: 0.5in (12.7mm)
    Cable Length: 5.9ft (1.8m)
    Weight 7.5g (0.26oz)
    Package Weight 0.55 lb
    Box Dimensions (LxWxH) 8.0 x 6.1 x 1.5"
