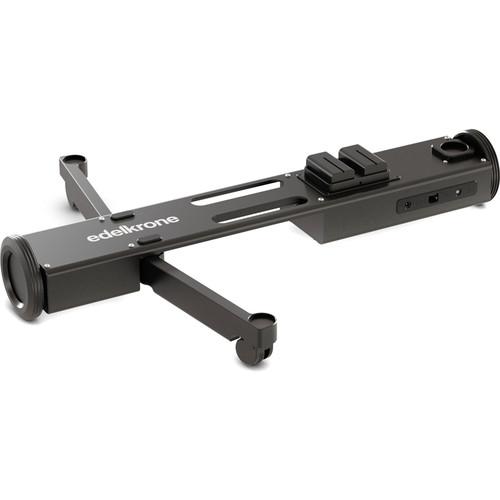

User Manual for edelkrone DollyPLUS Click to enlarge the picture
Contents of the user manual for the edelkrone DollyPLUS
- Product category: Platform Dolly Systems edelkrone
- Brand: edelkrone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for edelkrone Platform Dolly Systems
|
User manual for the edelkrone DollyPLUS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any edelkrone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official edelkrone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a edelkrone product will considerably shorten its lifespan!
|
Product description The edelkrone DollyPLUS is a portable robotic tripod dolly that allows both linear and circular motorized camera moves on flat interior surfaces or tripods. It has a load capacity of 30 pounds. The DollyPLUS will automatically find its own center, so there is no worry about manually calibrating the system to your tripod and camera.
You control the system via Bluetooth and it could include the DollyPLUS along with either the HeadONE, HeadPLUS, or HeadPLUS PRO which the DollyPLUS wirelessly pairs with. The edelkrone app is available for both iOS and Android and allows you to create linear or circular paths with keyframe points that you can manually control or you can program the DollyPLUS to move in a loop between two points. You can also adjust the move speed and your camera's shooting frame rate to create timelapse videos. The DollyPLUS is powered by either two LP-E6 or two L-Series type batteries. Compatible battery plates are not included and must be sourced separately. - Remote Control Tripod Dolly Movement
- Linear Movement:
- The default setting for the DollyPLUS is a straight slide. This allows you to either track side to side or dolly in/out on the lens. You can program multiple points along the straight-line path and move to any of those points or have the DollyPLUS loop between any two points.
Circular Movement: - Using the easy path creation wizard enables you to create a circular path around any target you choose, with no measuring tools required. You can select several points on the curved path and make DollyPLUS go to any of them and as with the linear movement, you can have it loop between any two points.
- App Control
- The edelkrone app scans the available devices in its surroundings and pairs with them automatically, giving you a single screen to control all devices simultaneously. It is available for both iOS and Android.
- Motion Timelapse
- The app allows you to create timelapse videos. You can have a simple transition between two keypoints or you can convert a recorded complex camera motion into a time-lapse with a single button. edelkrone's unique Dynamic Interval and Dynamic Step Size technologies allow you to adjust the time and camera speed independently of each other.
- Backlash-Free Gears
- All edelkrone motorized products use the same backlash-free gear design technology for perfectly repeatable, smooth motion for even the most demanding shots.
- Quiet Stepper Motor Design
- All edelkrone motorized devices have a unique silent stepper motor technology that combines ultra precise stepper motor positioning with ultra silent operation. Stepper motors are perfect for precise motion control but until now their downside has been the noise they make. With edelkrone motorized devices, you will get the world's most precise positioning with the quietest performance.
- Connect Wirelessly to HeadONE, HeadPLUS & HeadPLUS PRO
- The DollyPLUS is designed to wirelessly connect to the HeadONE, HeadPLUS, or HeadPLUS PRO, providing a motorized head on DollyPLUS, which enables 4- or 5-axis camera motion that can be easily programmed and repeated. The devices pair instantly in the background and you still use the same app to control all devices together.
- Power
- Powers from two LP-E6 or two L-Series type batteries. Please note that battery plates are not included and must be sourced separately.
In the Box edelkrone DollyPLUS Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the edelkrone DollyPLUS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersedelkrone DollyPlus Specs | Material of Construction | CNC Machined Aluminum and Stainless Steel Components | | Load Capacity | 30 lb / 13.61 kg | | Mounting | 1 x 3/8"-16 Screw | | Maximum Speed | 9.84 in per sec / 25 cm per sec | | Minimum Step | 7.6 μm | | Motor Type | 2 x Step Motors with Ultra High-Res Encoders | | Battery | 2 x LP-E6 or 2 x L-Series Type (Battery Plates Not Included) | | Bluetooth | Yes | | App Compatibility | iOS 11.0 or Later & Android 5.0 or Later | | Dimensions | 29.4 x 4.7 x 4.5" / 74.68 x 11.94 x 11.43 cm | | Weight | 15.4 lb / 6.99 kg | | | | Package Weight | 17.4 lb | | Box Dimensions (LxWxH) | 29.7 x 6.5 x 4.7" |
