User Manual for EnGenius ENH500 High-Powered, Long Range 5 GHz Wireless N300 Outdoor Client Bridge Click to enlarge the picture
Contents of the user manual for the EnGenius ENH500 High-Powered, Long Range 5
- Product category: Wireless Bridges EnGenius
- Brand: EnGenius
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EnGenius Wireless Bridges
 |
User manual for the EnGenius ENH500 High-Powered, Long Range 5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EnGenius product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EnGenius user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EnGenius product will considerably shorten its lifespan!
|

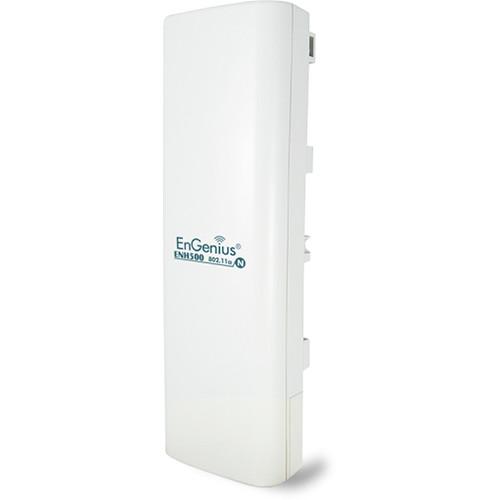

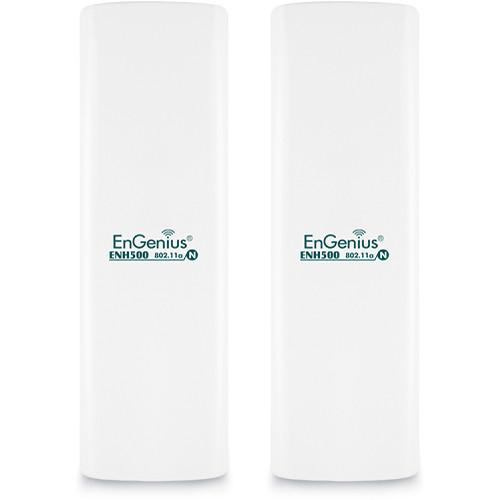

Product description Take your Wi-Fi connection outdoors with the 2-pack of ENH500 High-Powered, Long Range 5 GHz Wireless N300 Outdoor Client Bridges from EnGenius. This outdoor client bridge offers a 600 mW high power output to support long range coverage of up to 1 mile offering enhanced data transfer rates of up to 300 Mb/s. With IEEE 802.11a/b/g/n support you can connect nearly any Wi-Fi enabled device directly to the client bridge which is capable of supporting up to four separate SSIDs for multiple VLAN support.

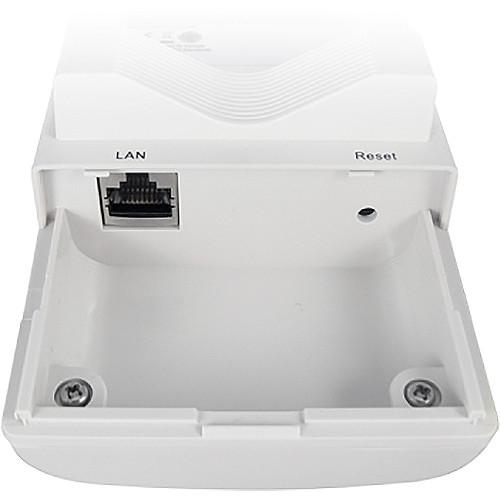

Inside the ENH500 you will find a 13 dBi directional antenna complete with 32MB of memory and 8MB of flash memory. Two LAN connectors, one with PoE support, allow you to connect this device to a PoE supported network eliminating the need for a separate power source. LED indicators on the ENH500 provide visual representation of the power status, LAN 1, LAN 2, WLAN, and Link Quality.
Installation has also been greatly simplified as this kit includes a PoE injector, power adapter, and mast mount kit. The waterproof client bridge enclosure is IP55 rated allowing it to withstand a variety of outdoor conditions. - High Power, Long-Range Coverage
- 600 mW transmit power delivers long-range point-to-point coverage of up to 1 mile.
- Wireless N300 Speed
- In Wireless N mode, the ENH500 supports up to 300 Mb/s when connected to other Wireless N devices. Additionally, this device complies with IEEE802.11a/b/g/n standards.
- Built-In Directional Antenna
- Internal 13 dBi directional antenna with dual polarity design features focused beam array technology for targeting other outdoor client bridges or providing wireless network connectivity to a specific outdoor area in Access Point mode.
- SSID-to-VLAN Tagging
- The ENH500 can be configured to broadcast up to four SSIDs. Each SSID can be tagged to a specified company network VLAN for different user access based on established access rights.
- User-Friendly Installation Kit
- The ENH500 comes with a proprietary PoE (Power-over-Ethernet) kit comprised of a PoE injector, power adapter, and a mast mount kit with binding strap.
- EZ Controller
- With EZ Controller software you can configure, manage and monitor multiple APs from one central location.
EZ Controller available as a free download UPC: 655216005815 In the Box EnGenius ENH500 High-Powered, Long Range 5 GHz Wireless N300 Outdoor Client Bridge (2-Pack) Power Adapter PoE Injector Pole Mount and Wall Mount Set Screw Set CD with User Manual Limited 1-Year Manufacturer Warranty Guides & Manuals dqbuatcdcx More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the EnGenius ENH500 High-Powered, Long Range 5 GHz Wireless N300 Outdoor Client Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the EnGenius ENH500 High-Powered, Long Range 5 GHz Wireless N300 Outdoor Client Bridge can be downloaded in PDF format at the link stated below.
Technical parametersEnGenius ENH500 Specs | | | Frequency | RF: 5 GHz frequency band 5.18-5.825 GHz | | Standard | IEEE 802.11a/b/g/n | | Data Rate | Up to 300 Mb/s | | Memory | 32 MB | | Flash Memory | 8 MB | | Peak Power | Up to 9 W | | | | Antennas | 1 x internal 13 dBi directional antenna | | | | LAN 1 | RJ-45 Fast Ethernet (10/100 Mb/s) PoE (Power-over-Ethernet) | | LAN 2 | RJ-45 Fast Ethernet (10/100 Mb/s) | | Reset Button | 1 x reset button in PoE injector (included in package) | | | | LED Indicators | Power status
LAN 1: Fast Ethernet PoE
LAN 2: Fast Ethernet
WLAN | | Link | 3 x link quality (client bridge mode) | | | | Active Ethernet | Power-over-Ethernet | | Power Adapter | 24 V / 1 A | | | | Modulation Technology | IEEE 802.11a: BQSK, QPSK, 16-QAM, 64-QAM
IEEE 802.11n: BQSK, QPSK, 16-QAM, 64-QAM | | | | 802.11n | -94 dBm @ MCS0/MCS8
-92 dBm @ MCS1/MCS9
-88 dBm @ MCS2/MCS10
-85 dBm @ MCS3/MCS11
-80 dBm @ MCS4/MCS12
-79 dBm @ MCS5/MCS13
-74 dBm @ MCS5/MCS13
-73 dBm @ MCS7/MCS15 | | 802.11a | -95 dBm @ 6 Mb/s
-92 dBm @ 9 Mb/s
-89 dBm @ 12 Mb/s
-85 dBm @ 18 Mb/s
-81 dBm @ 24 Mb/s
-79 dBm @ 36 Mb/s
-76 dBm @ 48 Mb/s
-75 dBm @ 54 Mb/s | | | | 802.11n | 5 GHz
28 dBm @ MCS0/MCS8
28 dBm @ MCS1/MCS9
26 dBm @ MCS2/MCS10
26 dBm @ MCS3/MCS11
25 dBm @ MCS4/MCS12
24 dBm @ MCS5/MCS13
24 dBm @ MCS5/MCS13
23 dBm @ MCS7/MCS15 | | 802.11a | 5 GHz
28 dBm @ 6 Mb/s
28 dBm @ 9 Mb/s
28 dBm @ 12 Mb/s
28 dBm @ 18 Mb/s
28 dBm @ 24 Mb/s
26 dBm @ 36 Mb/s
24 dBm @ 48 Mb/s
23 dBm @ 54 Mb/s | | | | Topology | Infrastructure, ad hoc (WDS Bridge) | | Protocols | IEEE 802.11a/n (5 GHz)
IEEE 802.3
IEEE 802.3u | | Operation Mode | Client Bridge, Client Router, WDS, Access Point
LAN DHCP server/client | | VPN | Pass-through | | Management | Firmware Upgrade: Via web browser, settings are reserved after upgrade
Reset and Backup: Reset to factory default. User can export all setting into a file via Web
MIB: MIB I, MIB II (RFC1213) and private MIB
SNMP: V1, V2c | | System Monitoring | Status in hand, statistics and event log
Configuration backup, configuration restore
Ping and Trace Route | | Time Setting | Manual; Auto: NTP | | Wireless / Network | PPPoE: Point-to-Point Protocol over Ethernet in Client Router mode
(this function will keep trying when failed or disconnected)
PPTP: Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks | | Wireless Security | WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1X RADIUS Supplicant (Client Bridge Mode)
Hide SSID in beacons
Hidden SSID broadcast to prevent illegal connection
MAC Address Filtering, up to 50 fields | | Quality of Service (QoS) | WMM (Wireless Multimedia) | | Certifications | FCC 15B, FCC 15C, IC | | | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Storage Temperature | -22 to 176°F / -30 to 80°C | | Operating Humidity | 90% or less | | Storage Humidity | 90% or less | | Waterproof | IP55-related enclosure | | | | Dimensions | 3.31 x 10.24 x 2.17" / 8.41 x 26.01 x 5.51 cm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 12.598 x 9.764 x 6.142" |
