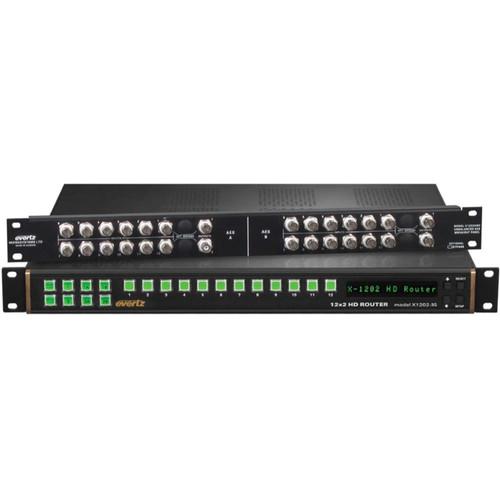

User Manual for Evertz Microsystems X-Series 12x2 HD SD SDI Video Router with Bypass Relay & SoftSwitch Capability Click to enlarge the picture
Contents of the user manual for the Evertz Microsystems X-Series 12x2 HD SD
- Product category: Routers & Switchers Evertz Microsystems
- Brand: Evertz Microsystems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Evertz Microsystems Routers & Switchers
|
User manual for the Evertz Microsystems X-Series 12x2 HD SD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Evertz Microsystems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Evertz Microsystems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Evertz Microsystems product will considerably shorten its lifespan!
|
Product description The X-Series 12x2 Video Router from Evertz Microsystems supports SMPTE 424M (3 GB/s), SMPTE 292-1 (1.5 GB/s), SMPTE 259 (270, 360, or 540 MB/s), and DVB-ASI video signals. It features the ability for redundancy protection with a bypass relay and optional dual power supplies. The router comes equipped with an embedded SoftSwitch for all four audio groups. The embedded audio on the two video busses uses SoftSwitch technology to eliminate audible pops when switches are performed for SD, HD, or 3G videos. Housed in a 1 RU rackmount frame, the unit can be used with a rackmount remote control panel (available separately) that replaces the built-in control panel. The unit can also be controlled by Quartz over Ethernet, contact closures on the GPI control port, or through the RS-232 or RS-422 serial remote control port using industry-standard switcher protocols. - Supports SMPTE ST 424M (3 GB/s), SMPTE ST 292-1 (1.5 GB/s), SMPTE ST 259 (270, 360, or 540 MB/s), and DVB-ASI video signals
- Bypass verification test using main menu
- Programmable tally output bus
- GVG TEN-XL protocol and Quartz protocol are supported
- Embedded SoftSwitch provides clean video
- Video and audio input relay bypass for power failure bypass protection
- Optional dual power configuration
- Comes with a blank front panel
Table of Contents
|
Upload User Manual
Have you got an user manual for the Evertz Microsystems X-Series 12x2 HD SD SDI Video Router with Bypass Relay & SoftSwitch Capability in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEvertz Microsystems X-1202H+BCP+HBP+HES Specs | | | Standard | SMPTE ST 424-1 (3 GB/s), SMPTE ST 292-1 (1.5 GB/s), SMPTE ST 259 (270, 360, or 540 MB/s), and DVB-ASI | | Number of Inputs | 12 | | Connector Type | BNC per IEC 61169-8 Annex A | | Equalization | Automatic:
Up to 492.1' (150 m) at 3G, 902.2' (275 m) at HD, 1558.4' (475 m) at SD
With Bypass Output:
377.3' (115 m) at 3G, 656.2' (200 m) at HD, 1476.4' (450 m) at SD | | Input Range | Measured with respect to the Genlock reference
±1/2 line when Coarse phase = 1, Fine phase = 0 | | | | Standard | SMPTE ST 424-1 (3 GB/s), SMPTE ST 292-1 (1.5 GB/s), SMPTE ST 259 (270, 360, or 540 MB/s), and DVB-ASI | | Number of Outputs | 2 per buss, 2 busses; Inputs 1 and 12 bypass protected | | Connector Type | BNC per IEC 61169-8 Annex A | | Signal Level | 800 mV nominal | | DC Offset | ±0.5 V | | Phase | Measured with respect to the Genlock reference
Adjustable 1 line to a full frame of delay – set by Coarse phase parameter. The active video content will align to the nearest line | | | | Type | Menu selectable – depends on video format | | Connectors | 2 x BNC per IEC 61169-8 Annex A | | Termination | High impedance loop through | | | | Number of Inputs | 14 opto-isolated, programmable functions | | Number of Outputs | 4 sets of relay contacts, normally closed, programmable functions | | Relay Rating | Maximum: 1 A at 30 VDC | | | | Protocol | Remote control panel | | Standard | RS-422 | | Baud Rate | 9600 | | Connector | 9-pin female "D" | | | | Protocol | GVG Ten XL Protocol, master, slave or quartz router protocol | | Standard | RS-232 or RS-422 | | Baud Rate | Programmable | | Connector | 9-pin female "D" | | | | Connector | RJ45 | | Protocol | Quartz router protocol, SNMP | | | | Power | Auto ranging 100 to 240 VAC, 50/60 Hz 40 W | | Fuse | 250 V, 1 A time delay | | | | Dimensions | 1.75 x 19 x 7.75" (45 x 483 x 196 mm) | | Weight | 8 lb (3.5 kg) |
