Product description

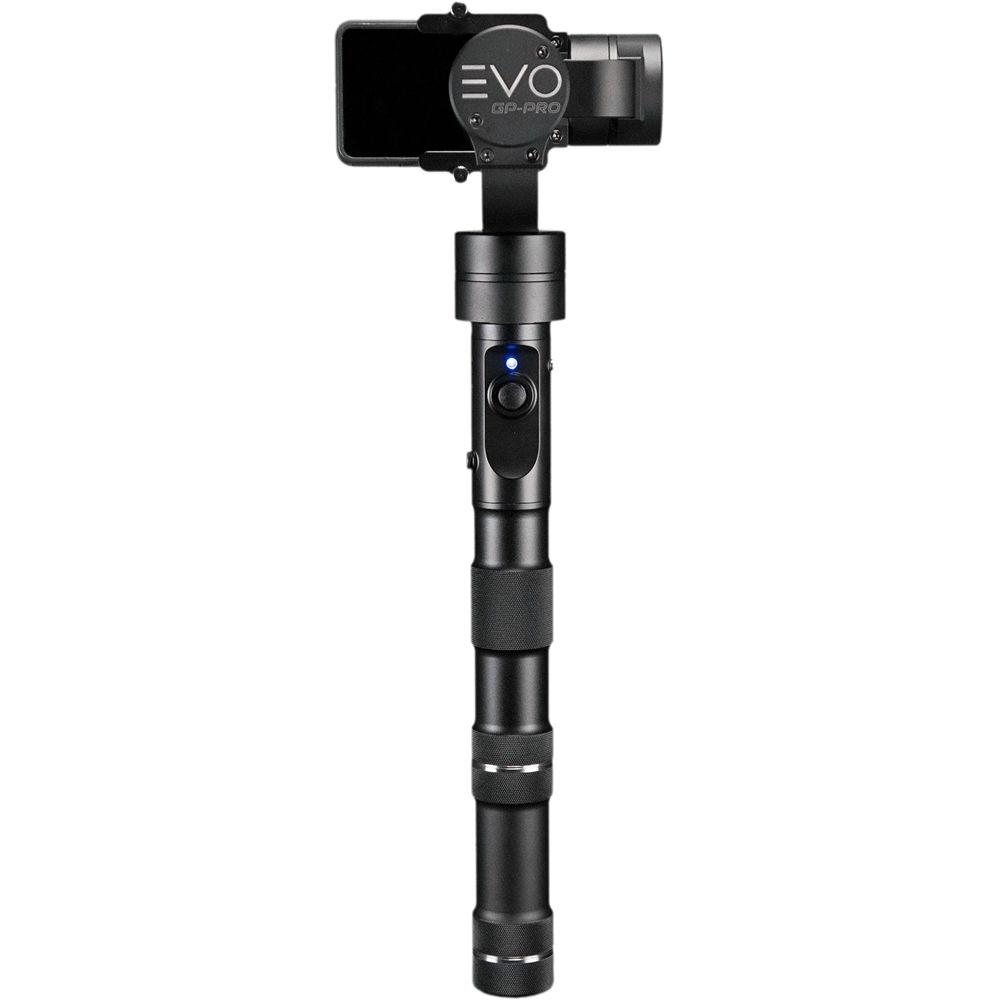

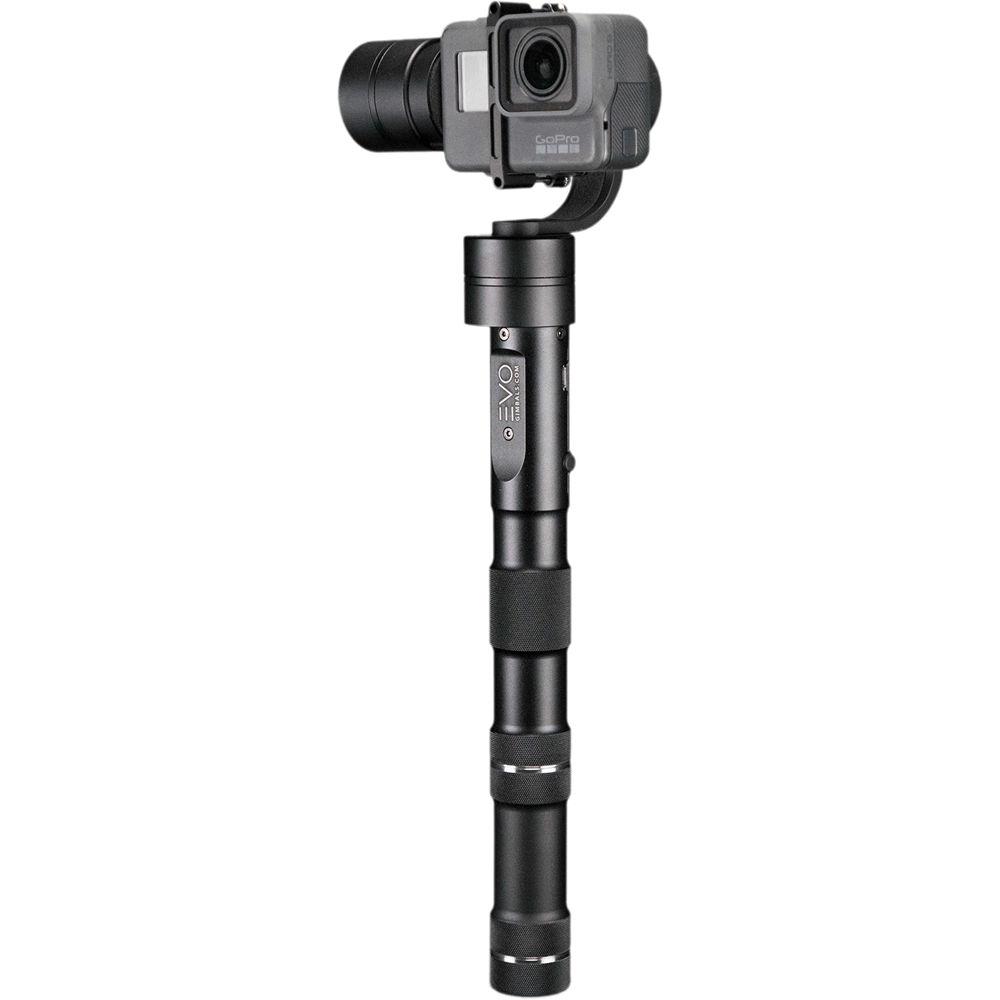

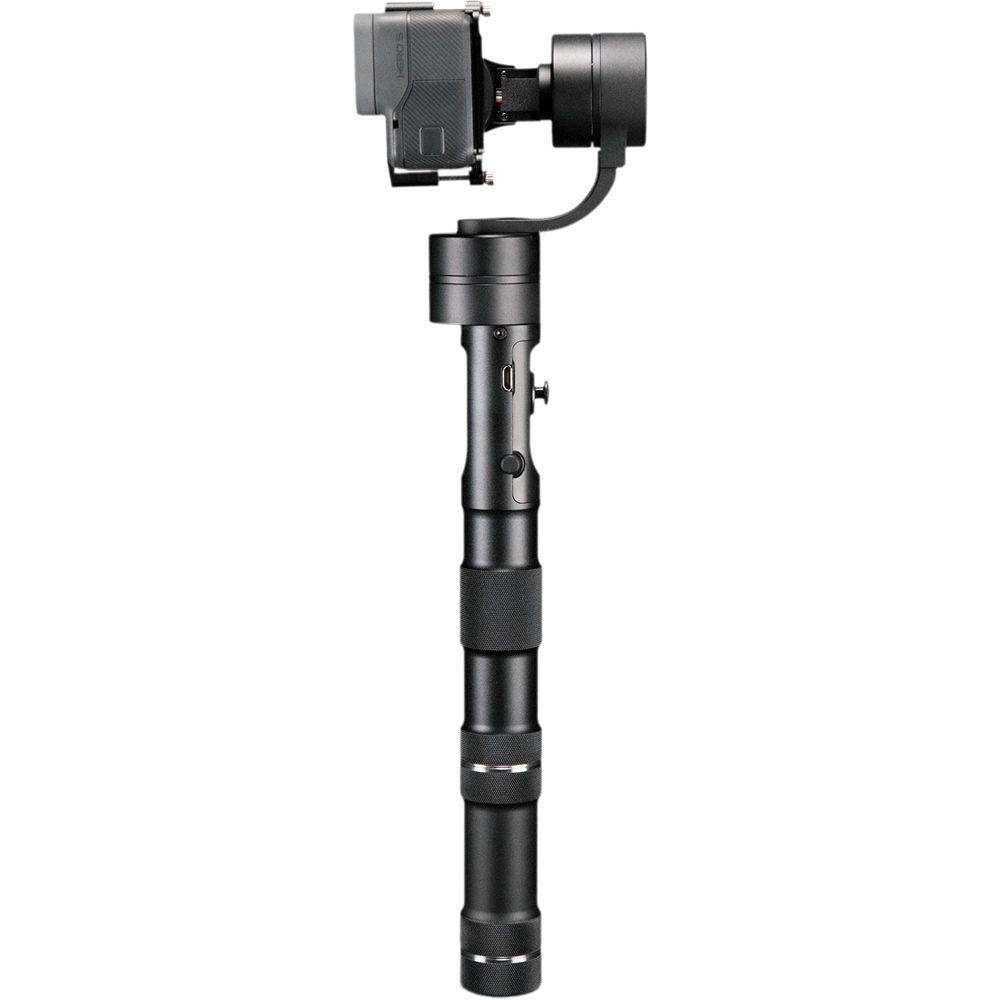

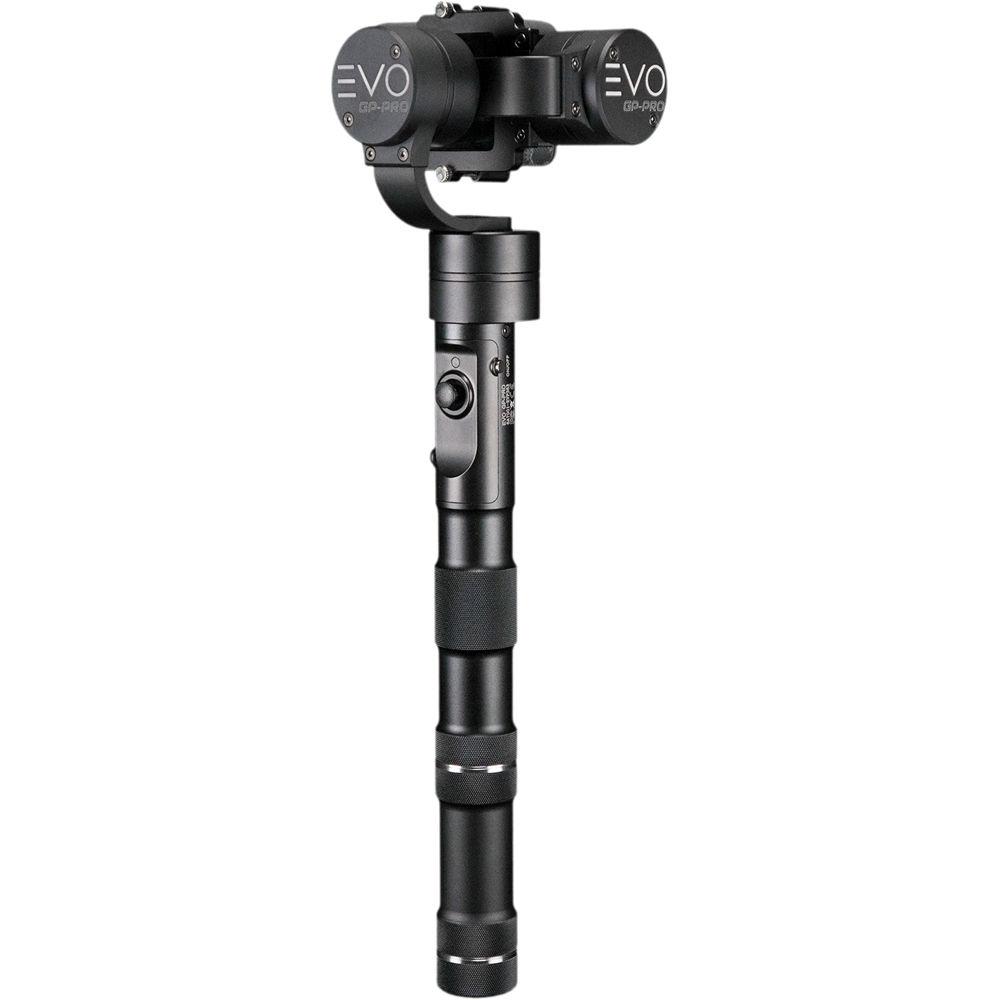

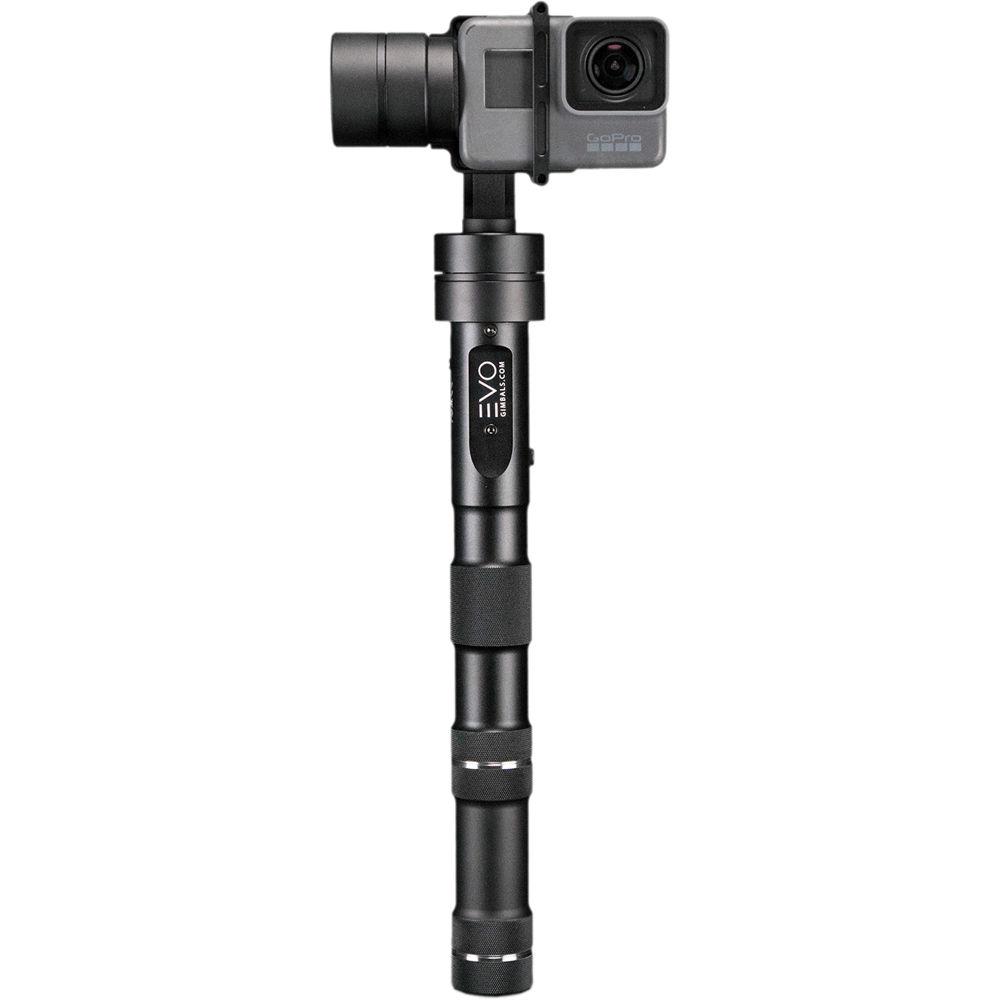

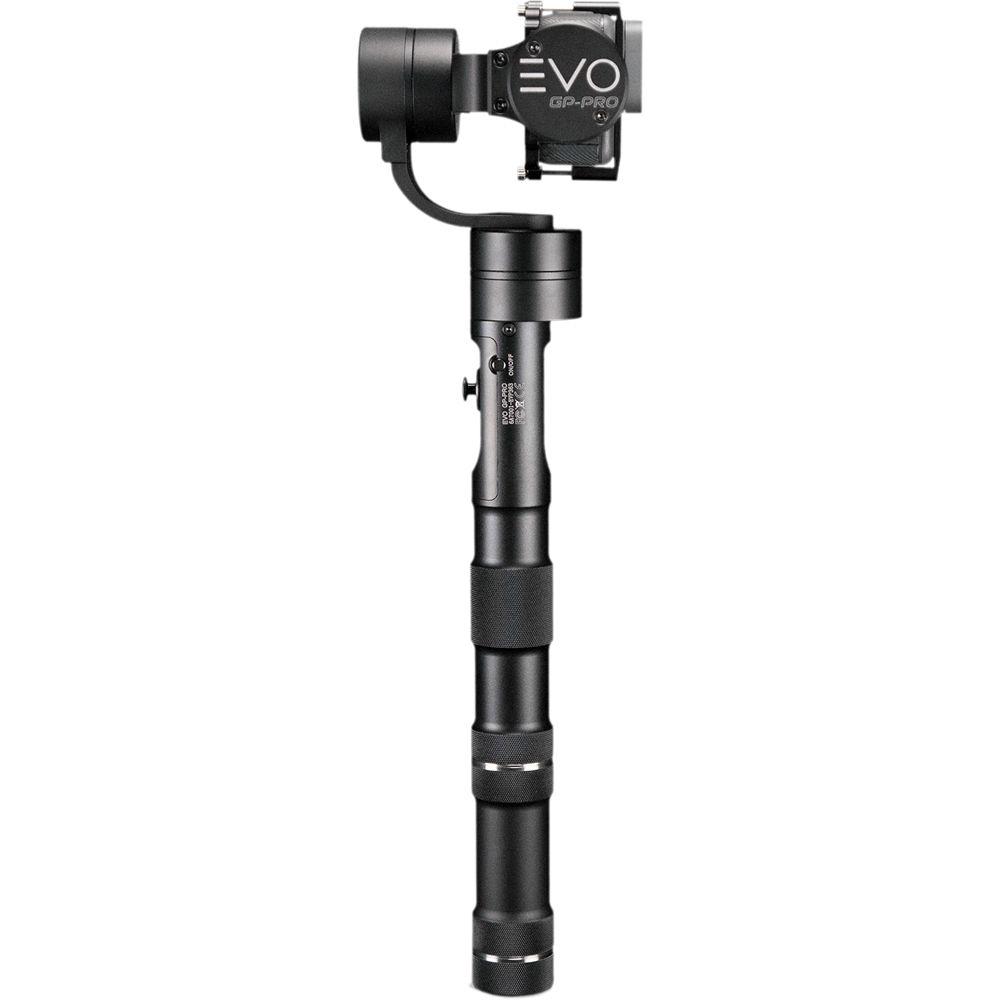

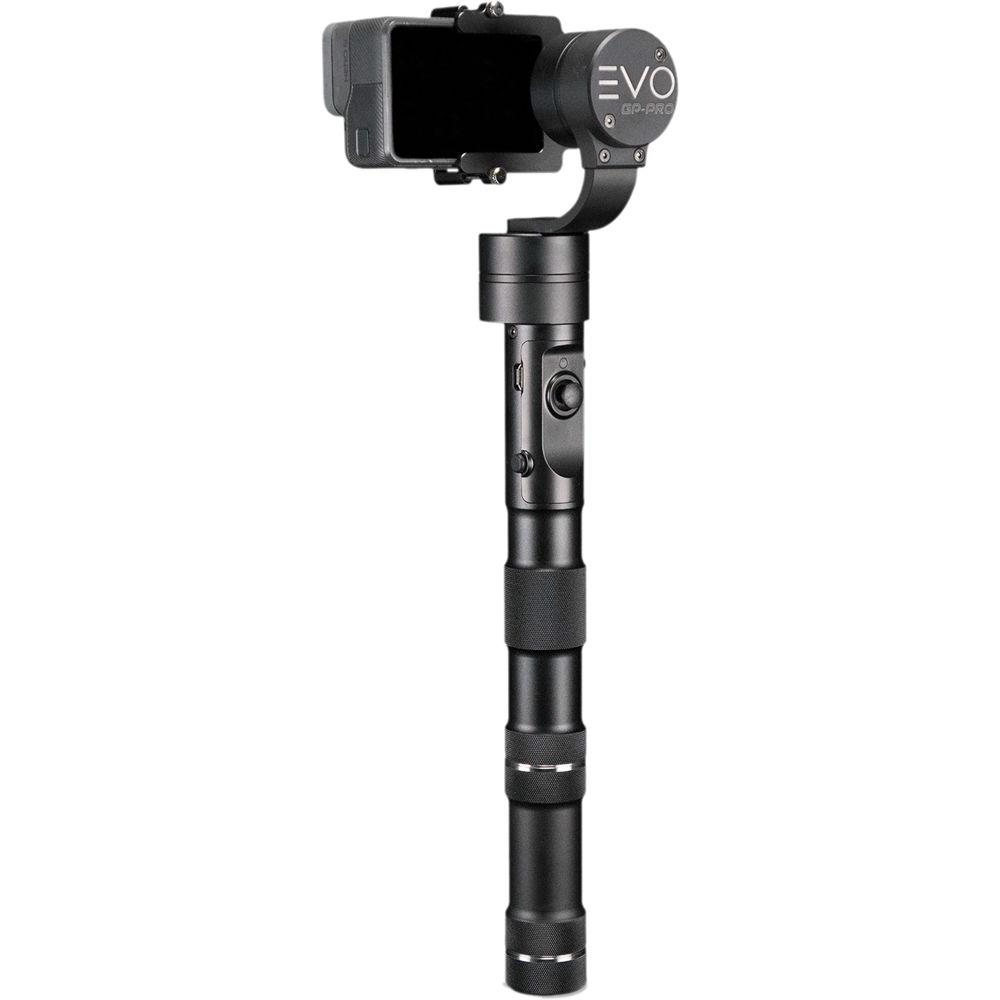

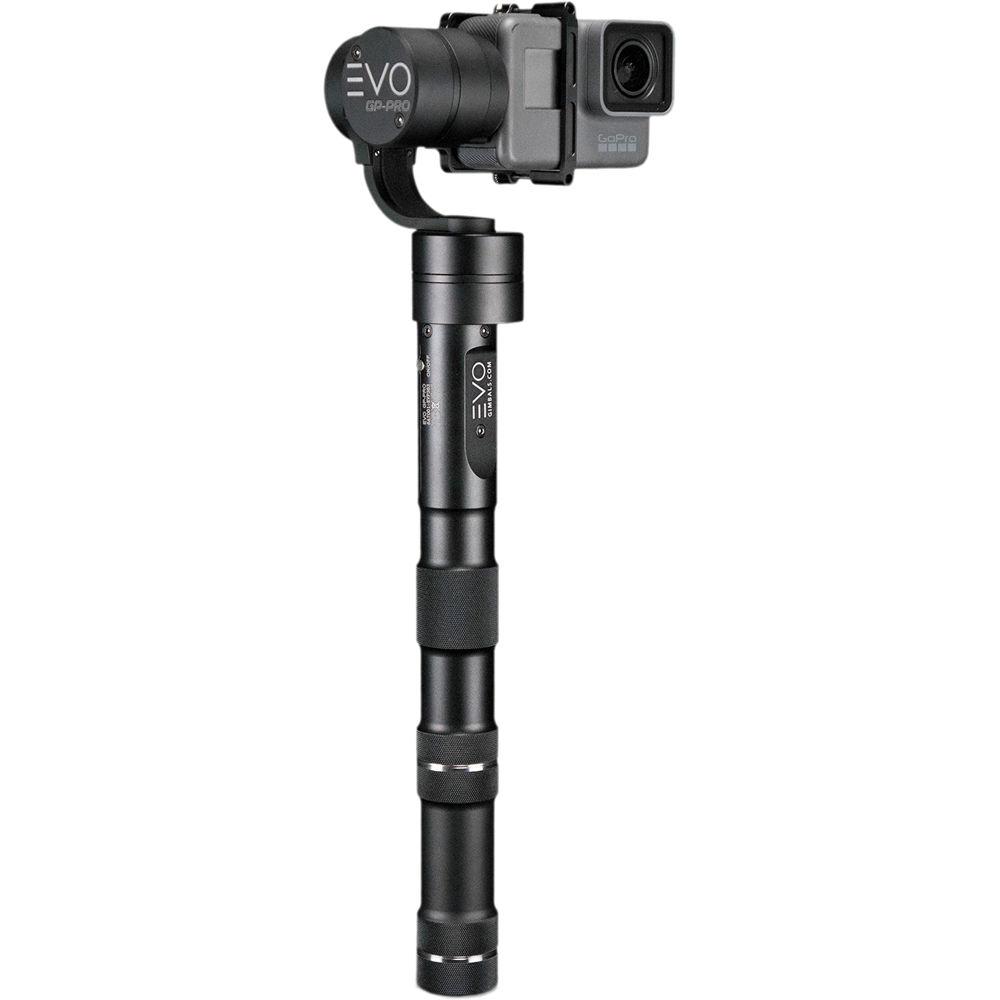

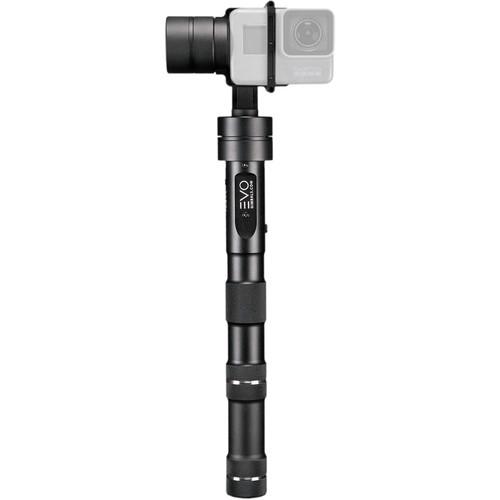

The EVO GP-PRO for the GoPro HERO3 - HERO6 from EVO Gimbals is a three-axis motorized handheld gimbal that enables you to achieve fluid, cinematic shots of various kinds. For example, it allows you to smoothly follow your subject, move the camera around your subject from all angles, mimic crane and dolly shots, and more. It's designed with precision-wound brushless motors coupled with high frequency 200 Hz position encoders, ensuring a high level of stabilization. The gimbal's universal mount supports the GoPro HERO3, HERO3+, HERO4 Silver/Black, HERO5 Black, and HERO6 Black cameras.

Depending on the mode you select, the EVO GP-PRO will balance itself out along the corresponding axis/axes. Additionally, there's a five-way joystick control that will let you manually feather the pane, tilt, and roll axes.

The gimbal is powered by two included, rechargeable 2000mAh lithium-ion batteries. Using an included power cable, you can also supplement power to the HERO3/HERO4 camera directly from these batteries (HERO5/6 Black cameras require a separately available cable). An LED battery indicator on the handle will warn you when the batteries are running low so you can replace them. Additional batteries are sold separately (model # EVO-50602).
    Operating Modes
  • Heading Follow Mode
    Locks the tilt and roll axes. Camera smoothly pans left and right when rotating in the direction of the handle.

    Heading Lock Mode
    Locks the pan, tilt, and roll axes in the direction the camera is facing when the mode is activated. Great for smoothing long dynamic moving shots.

    Heading & Tilt Follow Mode
    Roll axis is locked. The camera will smoothly follow the pan and tilt of the handle.

    Inverted Mode
    Allows you to use your gimbal upside down. This mode is an inverted version of the Heading & Tilt mode.

    Standby Mode
    The gimbal motors are powered off but the gimbal remains calibrated, ready to use.

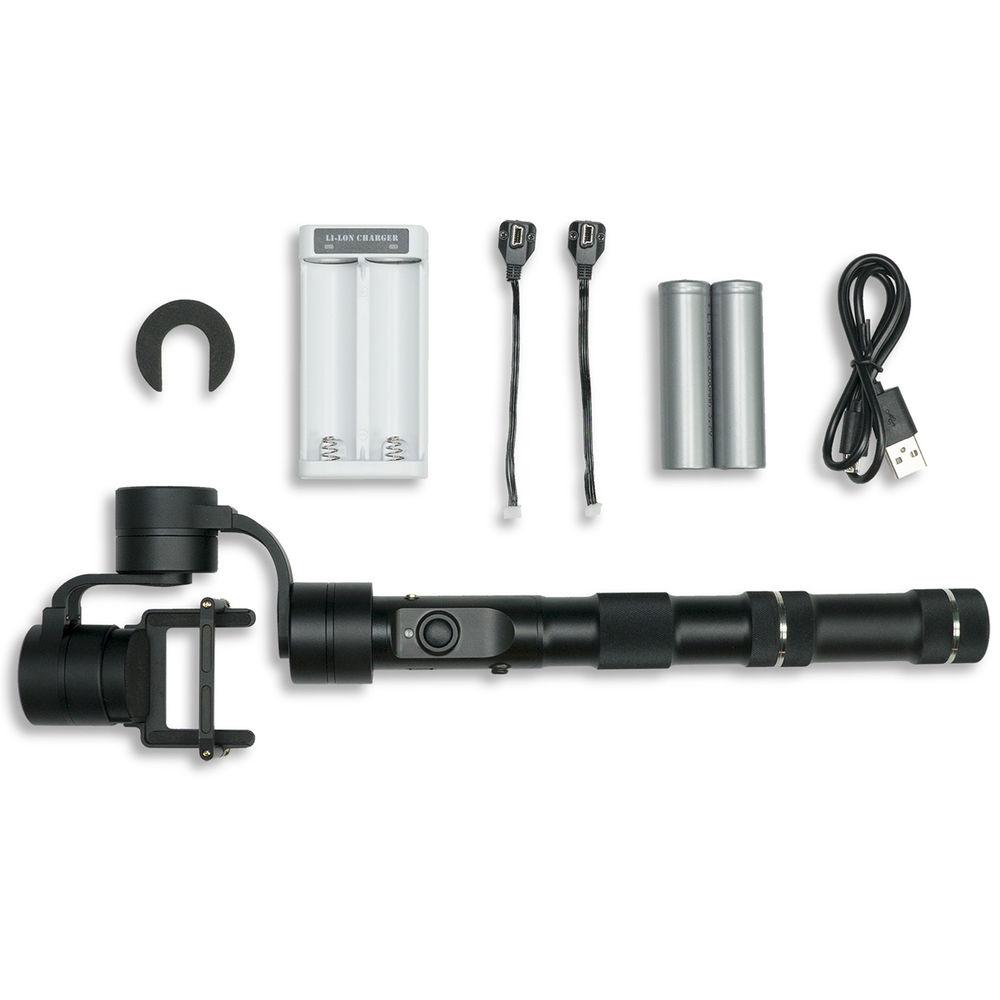

UPC: 852709005837 In the Box EVO Gimbals GP-PRO 3-Axis Handheld Gimbal for GoPro HERO3 - HERO6 Cameras
  • 2 x ICR 18650 Rechargeable 3.7V Batteries
  • 18650 Battery Charger
  • Camera Mounting Bracket
  • 2 x M2.5 x 19mm Thumb Screws
  • GoPro 3-Wire Power Cable for HERO3/4
  • GoPro 4-Wire Power/Video-Out Cable for HERO3/4
  • Battery Extension Tube
  • Micro-USB Cable
  • Limited 1-Year Warranty
  • User Manual PDF 1.6mb Table of Contents




    Upload User Manual

    Have you got an user manual for the EVO Gimbals GP-PRO 3-Axis Handheld Gimbal for GoPro HERO3 - HERO6 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    EVO Gimbals GP-Pro Specs

    Stabilization Accuracy ±0.01°
    Follow Accuracy ±0.2°
    Pan Axis Range -160 to 160°
    Tilt Axis Range -90 to 180° (inverted)
    Roll Axis Range -45 to 45°
    Tilt Axis Control Speed 1 - 50°/s
    Pan Axis Control Speed 1 - 80°/s
    Motor Type 3x Triple-wound, high-torque brushless
    Working Current Static Current 6.8 mA (at 6.8 VDC)
    Dynamic Current 120 mA (at 8.4 VDC)
    Max Motor Current 2 A maximum (at 12.6 VDC)
    Sensors Independent IMU module, HD encoders
    Batteries 2 x IMR 18650, 2000 mAh (included)
    A/V Output 3.5 mm on the handle
    Tripod Mount Thread 1/4"-20
    Operating Temperature 5 to 122°F / -15 to 50°C
    Dimensions 3.7 x 3.5 x 11.6" / 9.4 x 8.9 x 29.5 cm
    Weight 0.75 lb / 340 g (without batteries)
    Package Weight 1.7 lb
    Box Dimensions (LxWxH) 11.5 x 5.1 x 2.0"
