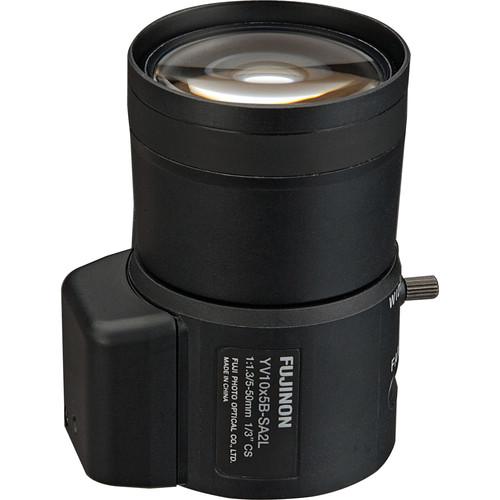

User Manual for Fujinon CS Mount 5 - 50mm f 1.3 Varifocal Lens with DC Auto Iris

Click to enlarge the picture
Fujinon CS Mount 5 - 50mm f 1.3 Varifocal Lens with DC Auto Iris Contents of the user manual for the Fujinon CS Mount 5 - 50mm
  • Product category: Lenses Fujinon
  • Brand: Fujinon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Fujinon Lenses

User manual for the Fujinon CS Mount 5 - 50mm contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Fujinon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Fujinon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Fujinon product will considerably shorten its lifespan!



Product description

The Fujinon YV10x5B-SA2L is a varifocal lens with an auto iris feature for perfect exposures in almost any lighting condition. It has a focal length range from 5mm to 50mm (a 10x zoom) that results in very narrow views (around 5°), medium-wide views (about 50°) and everything in between. You can use it for various jobs or move the camera from location to location. It has a fast f/1.3 maximum aperture so camera can be placed in less than bright environments. A built-in ND filter effectively converts the minimum aperture to f/360 for amazing bright light control. The lens can be fitted to cameras with 1/4-inch or 1/3-inch imagers. This model lens has manual settings for both zoom and focus and an extra-long auto-iris cable that extends 9 inches.
    Auto Iris Feature
  • The Fujinon YV10x5B-SA2L uses a DC powered auto iris system that takes power from the camera. The lens itself measures the lighting conditions and sets aperture. There is a special cable and connector on the lens for this purpose. This model lens comes with a 9 inch cable to fit cameras with connectors in unconventional positions.
    Wide Range of Lighting Conditions
  • The lens is capable of adapting to very bright and very low lighting situations. Its maximum aperture is a fast 1.3 so it can be used dimly lit environments. When confronted with extremely bright scenes the lens has a built-in ND filter that can effectively stop the lens down to a maximum of f/360.
In the Box Fujinon CS Mount 5 - 50mm f/1.3 Varifocal Lens with DC Auto Iris
  • 27 Months Parts and Labor with Normal Use
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Fujinon CS Mount 5 - 50mm f 1.3 Varifocal Lens with DC Auto Iris in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Fujinon YV10x5B-SA2L Specs

    Lens Mount CS
    Sensor Compatibility 1/3", 1/4" CCD
    Focal Length 5 to 50mm
    Aperture f/1.3 to 360
    Angle of View 1/3" Sensor
    Diagonal: 51°
    1/4" Sensor
    Diagonal: 39°
    Minimum Object Distance 11.8" / 30 cm
    Focus Type Manual Focus
    Iris Type DC Auto
    Dimensions (D x L) 2.4 x 1.0" / 63.1 x 26.2 mm
    Weight 3.4 oz / 100 g
    Package Weight 0.3 lb
    Box Dimensions (LxWxH) 3.8 x 2.8 x 2.7"
