User Manual for Fujitsu fi-5950 Color Duplex Document Scanner Click to enlarge the picture
Contents of the user manual for the Fujitsu fi-5950 Color Duplex Document Scanner
- Product category: Flatbed & Document Scanners Fujitsu
- Brand: Fujitsu
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fujitsu Flatbed & Document Scanners
 |
User manual for the Fujitsu fi-5950 Color Duplex Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fujitsu product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fujitsu user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fujitsu product will considerably shorten its lifespan!
|

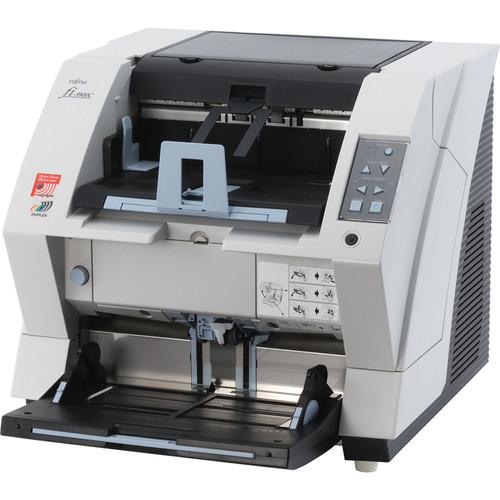

Product description The Fujitsu fi-5950 Color Duplex Document Scanner is an extremely fast document scanner with speeds of up to 135 ppm ipm with A4-sized sheets in landscape orientation at 300 dpi. The scanner has a good optical resolution of 600 dpi to ensure high quality scans and has a color depth of up to 24-bit. In addition to this quality and speed, the scanner is even capable of automatic duplex scanning at up to 270 ipm.

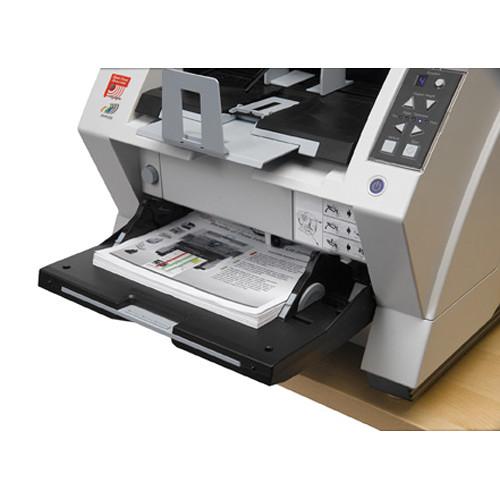

Document handling is important in ensuring speedy, high quality scans. The fi-5950 uses a 500-sheet automatic document feeder to handle the paper. This system is able to scan documents as small as 2 x 3" or as large as A3 12 x 17" documents. There is also a long page scanning mode that allows for documents up to 120" long. Durability for this machine is also very good with an expected daily volume rated at 60,000 to 100,000 sheets. Assisting with this are three ultrasonic multi-feed detection sensors which ensure that the scan is only taking one sheet at a time.
The fi-5950 scanner comes with a variety of software and drivers, including standard ISIS and TWAIN support. Kofax VRS Professional is bundled with the scanner and it features SCSI and USB 2.0 interfaces. Additionally, this scanner is both ENERGY STAR certified and RoHS compliant. - Two color CCD image sensors, one in front and one in back
- Built-in image processing functions: auto color detection, multi image, blank page skip, temporary auto binary, error diffusion, dither, de-skew, and auto-crop with more available via software
- Included Drivers
- Standard TWAIN and ISIS drivers
ScandAll PRO
Adobe Acrobat QuickScan Pro Demo
Image Processing software
Scan to Microsoft SharePoint Kofax VRS Professional for Production - Verification and adjustment features confirm scanning accuracy and quality
- Automated functions eliminate need for physical human operators
- Automatically rotates documents based on content
- Automatic detects color and changes scanner settings accordingly
- Output a smoothed image with a solidified background color
- Adrenaline Image Processing Engine is capable of generating PDFs and processing bar codes
UPC: 097564308222 In the Box Fujitsu fi-5950 Color Duplex Document Scanner Power Cable USB Cable Document Smoother Setup DVD-ROM Adobe Acrobat DVD-ROM 5 x Operator Panel Overlay Limited 1-Year Warranty Guides & Manuals More info from Fujitsu Table of Contents
|
Upload User Manual
Have you got an user manual for the Fujitsu fi-5950 Color Duplex Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Fujitsu fi-5950 Color Duplex Document Scanner can be downloaded in PDF format at the link stated below.
Technical parametersFujitsu FI-5950 Specs | Maximum dpi Resolution | 600 dpi | | Duplex Speed | 270 ipm (Color) | | Simplex Speed | 135 ppm (Color) | | Maximum Document Width | 12" / 30.5 cm | | Maximum Document Length | 17" / 43.2 cm | | Color Depth | 24-Bit (External) | | Grayscale Bit-Depth | 8-Bit (External)
8-Bit (Internal) | | Multi-Feed Detection | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF, Manual | | Paper Weight | 8 to 56 lb | | Maximum Paper Thickness | 7.5 mil / 0.19 mm | | Operating System Compatibility | Windows | | Light Source | LED | | Duty Cycle | 100000 Scans | | Maximum Sheet Capacity | 500 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, RoHS | | Operating Humidity | 20 to 80% | | Operating Temperature | 59 to 95°F / 15 to 35°C | | Maximum Power Consumption | 250 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 21.3 x 21.3 x 19.7" / 54.0 x 54.0 x 50.0 cm | | Weight | 110.00 lb / 50 kg | | | | Package Weight | 150.0 lb | | Box Dimensions (LxWxH) | 21.0 x 21.0 x 20.0" |
