User Manual for Heliopan 86 mm Infrared and UV Blocking Filter

Click to enlarge the picture
Heliopan 86 mm Infrared and UV Blocking Filter Contents of the user manual for the Heliopan 86 mm Infrared and UV
  • Product category: IR Control Heliopan
  • Brand: Heliopan
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Heliopan IR Control

User manual for the Heliopan 86 mm Infrared and UV contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Heliopan product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Heliopan user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Heliopan product will considerably shorten its lifespan!



Product description

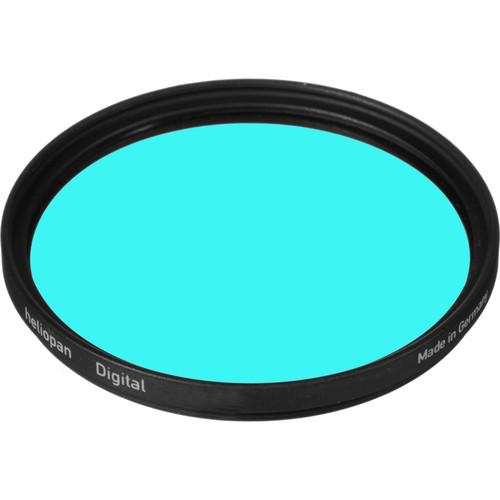

This is the 86 mm Infrared and UV Blocking Filter (40) from Heliopan. It is designed for use with black and white and color films that are sensitive to certain values of infrared and UV light not visible to the human eye. Using traditional contrast filters such as a yellow 12, red 25 or green 15 will produce a color shift which may not be desired in the final image. Greens may become blue, red becomes green and yellow becomes blue/green and infrared becomes red.CMOS and CCD sensors and chips are very sensitive to infrared and UV light because of the coatings on these surfaces. Even if your camera has a built-in IR filter, there can be noticeable color shifts or incorrect exposures due to any number of factors. However, Heliopan provides specific filters that completely block infrared and UV rays resulting in more precise color control. In order to achieve correct exposure, testing is strongly recommended since infrared contamination can vary depending on time of day and the conditions under which you are shooting. In the black and white mode you can see the proper exposure in the camera display. In the color mode you can see it in the histogram display. This applies especially for the red channel. When this filter is used, infrared light waves at 860 nanometers are blocked by approximately 99.1%. Infrared light waves at higher frequencies are further impeded where attenuation is achieved at 890 nanometers with infrared light waves blocked by 99.2%. This process helps to ensure that the light that falls on the camera's sensor is limited to the visible spectrum. Potential infrared color shifts are prevented or minimized, which preserves color accuracy throughout the frame.
The reputation of Schott glass is world renowned. The high production standards combined with a sturdy brass filter ring make Heliopan filters hard to beat. These filters have a "heft" to them that is impressive. They may feel heavier but the benefit is in the construction and results. Not only is the glass exceptional but so is the seal between the ring and glass. Schott Glass used in the manufacture of this filter is legendary and synonymous with the highest standards of filter production.
The filter ring is made from brass yielding a stronger product. Brass filter rings are also less prone to jamming. In addition, the seal between the glass and filter ring is exceptionally strong giving the filter added strength and durability.
Heliopan has been a leader in the filter industry since 1949. They are known for their high quality and production standards. Their slim mounts facilitate using them with wider angle lenses. Heliopan offers most of their filters with either their standard hard coating or with their industry leading SH-PMC 16 layer multi-coating that transmits over 99.5% of the light striking it on to the image plane for the lowest flare and greatest color saturation.
  • Heliopan machines their filter rings from quality brass tubes and black anodizes and silk screens them in their factories in Bavaria
  • Minimal reflections on digital sensors because of the matte black filter rings
  • At least one high-quality hard coating on each filter side to reduce stray light, to maintain high contrast and to avoid flare (Reflections are reduced from 8% to only 2.5% for each glass to air surface on each side of the filter)
In the Box Heliopan 86 mm Infrared and UV Blocking Filter (40)
  • Storage Case
  • Lifetime Warranty
