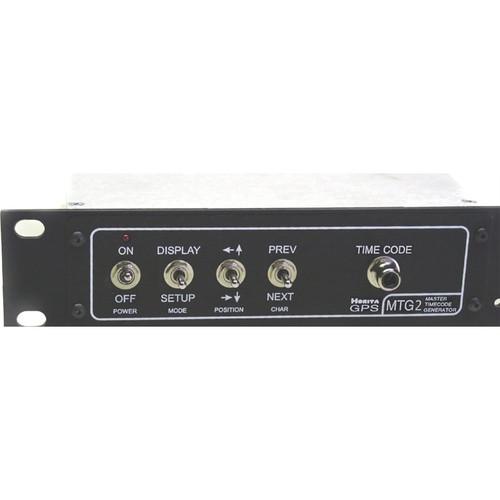

Product description The HORITA GPS-MTG2 is a GPS based Master SMPTE timecode generator intended to provide time and date format timecode for operating various types of SMPTE timecode based equipment, such as analog, digital, and video overlay time-of-day clock displays, date displays, and automation and playback systems. It also finds application in various field, studio, editing, engineering, and post production situations.
The MTG2 generates industry standard longitudinal (also called linear) format SMPTE timecode (LTC) at various user selectable frame rates and provides both balanced and un-balanced output signals. In addition to the GPS system, the MTG2 can set and maintain the generated timecode to the time and date from an internal RTC (Real Time Clock) chip or to an externally applied SMPTE timecode input.
The MTG2 provides user selection of local time zone offsets from UTC time and also provides automatic Daylight Savings Time (DST) time and date correction if desired. As the MTG2 generates the timecode, the original reference signal used to preset the generator is monitored and its time value is compared to that of the MTG2 timecode being output. If there is a time error difference that exceeds a user preset value, the MTG2 then automatically presets it's time to the source time.
If the original preset signal fails to occur for longer than about five minutes, the MTG2 will output an Alarm signal and then either switch over to the pre-selected backup source for the time and date, or continue to free run locked to the precision internal crystal frequency which will maintain the time accurate to within ±1 frame per hour. In the Box Horita GPS-MTG2 GPS- Based Master SMPTE Time Code Generator Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Horita GPS-MTG2 GPS- Based Master SMPTE Time Code Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

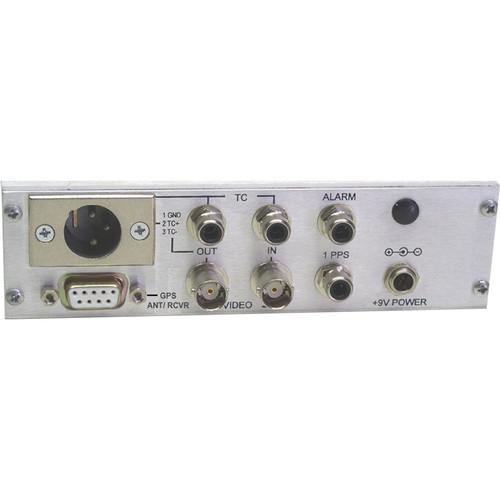

Technical parametersHorita GPS-MTG2 Specs | | | In/Out | Standard NTSC or PAL 1 Vpp composite video, terminated at 75 Ohms | | Connector | BNC | | | | Input | 200 mV to -10 Vpp | | Connector | RCA | | Output | Unbalanced: 1.6 Vpp square wave, rise time approximately 35us
Connector: RCA on front panel
Balanced: ±1.6 Vpp square wave, rise time approximately 35us
Connector: Male XLR | | Frame Rates | TCG
Generates timecode at 23.976, 24, 25, 29.97 DF, 29.97 NDF, and 30 fps
TCR
Reads timecode at 23.976, 24, 25, 29.97 DF, 29,97 NDF, and 30 fps. Reads at play speed approximately ±15%
Auto Detect: 23.976/24 fps, 25 fps, 29.97 DF, 29.97 NDF/30 fps. The 23.976/24 and 29.97 NDF/30 frame rates are detected but must be further selected by user. | | Genlock | TCR: ±1 TC bit time
GPS: TCG frame 00 delayed approximately 1 ms from 1PPS, +/-1 TC bit time
RTC: 1PPS ±2.5 ms | | | | Connector | DB9F | | Channels | Simultaneous tracking of up to 12 satellites
NMEA Message Data: GPRMC | | Accuracy | UTC ±1us | | Connector | RCA on rear panel | | RTC | Accuracy: ±1 second-per-day | | | | Operation | Normal
Open collector pull down to ground when the primary time source is present
Maximum pull down current is 100 mA
Maximum voltage is +12 V
Alarm

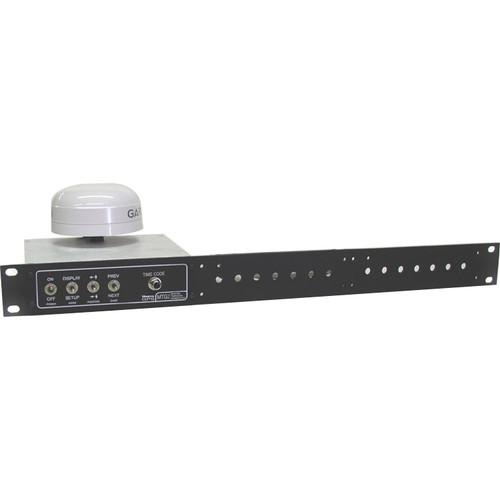

Pull down to ground is released through 100K pull up to +5 VDC | | Connector | RCA | | | | Power On/Off | Toggle switch with red LED above | | Mode | Momentary toggle switch | | Positions | Momentary toggle switch | | Charge | Momentary toggle switch | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | | | Operation | 9 to 12 VDC, approximately 300 mA | | Connector | DC power connector, 2.5 mm inner, 5.5 mm outer | | AC Adapter | 9 V, 500 mA | | | | Dimensions | Rackmount: 1.75 x 19 x 7" (4.44 x 48 x 18 cm)
Shortrack: 1.75 x 7.4 x 7" (4.44 x 19 x 18 cm) | | Weight | Rackmount: Approximately 15 oz (425 g) including power adapter
Shortrack: Approximately 12 oz (340 g) including power adapter |
