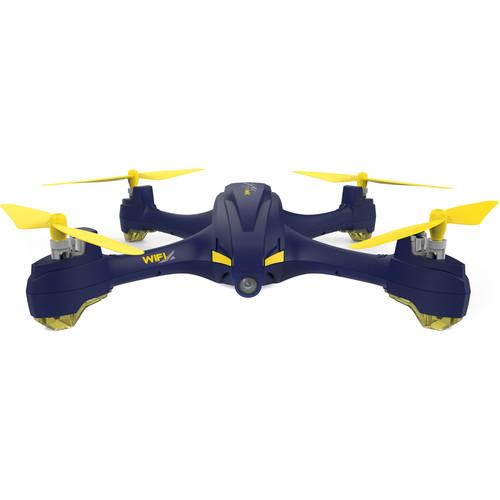

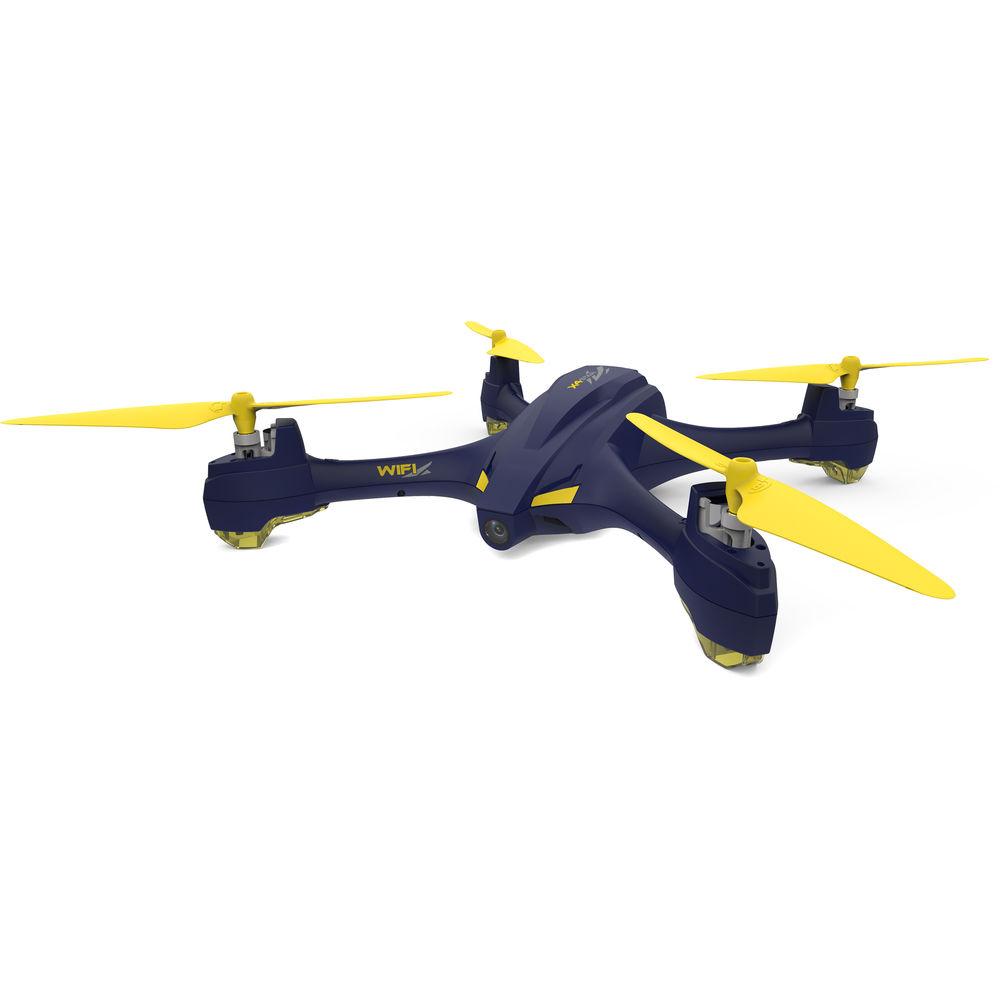

HUBSAN X4 H507A Star Pro Quadcopter

Search your instruction manual in PDF to download

User Manual for HUBSAN X4 H507A Star Pro Quadcopter with 720p HD Camera

Click to enlarge the picture
HUBSAN X4 H507A Star Pro Quadcopter with 720p HD Camera Contents of the user manual for the HUBSAN X4 H507A Star Pro Quadcopter
  • Product category: See All Drones HUBSAN
  • Brand: HUBSAN
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for HUBSAN See All Drones

HUBSAN X4 H507A Star Pro Quadcopter with 720p HD Camera HUBSAN X4 H507A Star Pro Quadcopter with 720p HD Camera
User manual for the HUBSAN X4 H507A Star Pro Quadcopter contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any HUBSAN product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official HUBSAN user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a HUBSAN product will considerably shorten its lifespan!



Product description

Aerial Photography and Drone Glossary Read More eretcfzwuvraddvbweft The Hubsan H507A Star Pro is an X-configuration quadcopter that is ready to fly and features a 720p flight camera. The drone is operated via the free Hubsan application, which you can download on your compatible mobile device. Once installed, you will be able to connect to your H507A via Wi-Fi. The H507A features a GPS-backed navigation system that supports autonomous functions, such as automatic return home and altitude hold. A slot-in flight battery lasting up to 10 minutes, USB charger, and four removable propeller guards are included.
    App-Based Monitoring and Control
  • The onboard 2.4 GHz Wi-Fi allows you to use a mobile device to control and view a live, 720p HD image from the camera, control video and photo recording. A mount is included to attach a smartphone.
    Return Home with Failsafe
  • Thanks to a GPS-backed navigation system, the H507A can remember its "home," or takeoff, point. If connection is lost with the transmitter, Failsafe Mode will engage, causing the quadcopter to automatically return to the home point and land. You can also manually trigger Failsafe Mode via a switch on the transmitter
    Headless Mode - Intuitive Orientation
  • In this mode, there is no longer a defined "nose" and "tail." Instead, the aircraft always moves relative to the pilot — pressing forward moves forward, pressing left moves left, and so on. This keeps flying more intuitive, especially for beginner pilots
    Altitude Hold Mode
  • In this mode, based on readings from a barometer, the H507A will maintain a fixed altitude. Horizontal movement, as well as rotation (yaw), will still be enabled
    Follow Me Mode
  • In this mode, the drone will lock onto the position of the transmitter and track it. This is beneficial when recording a moving subject that would be tricky to follow manually.
UPC: 814850023030 In the Box HUBSAN X4 H507A Star Pro Quadcopter with 720p HD Camera
  • 550mAh LiPo Flight Battery
  • USB Charging Cable
  • 8 x Propeller Blades
  • 8 x Blade Screws
  • Screwdriver
  • Limited 6-Month Warranty
  • Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 eretcfzwuvraddvbweft Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 2.2mb Table of Contents




    Upload User Manual

    Have you got an user manual for the HUBSAN X4 H507A Star Pro Quadcopter with 720p HD Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Download User Manual

    The user manual for the HUBSAN X4 H507A Star Pro Quadcopter with 720p HD Camera can be downloaded in PDF format at the link stated below.
    Download PDF user manual - HUBSAN X4 H507A Star Pro Quadcopter with 720p HD CameraDownload PDF User Manual - https://www.search-manual.com/ upload/ hubsan-x4-h507a-star-pro-quadcopter-with-720p-hd-camera-294161-user-manual.pdf
    (PDF file, 4.35 MB)


    Technical parameters

    HUBSAN X4 H507A Specs

    Control Method Wi-Fi
    Flight Time Up to 10 minutes
    Hovering Time Up to 9 minutes
    Flight Distance 0.12 miles (0.19 km)
    Operating Temperature 32 to 104° F (0 to 40° C)
    GPS Yes
    Resolution 720p (1280 x 720)
    Effective Pixels 2.1 million
    Recording Media microSD
    Video Format MP4 (MPEG-4 AVC/H.264)
    Maximum Video Bitrate 60 Mb/s
    Chemistry Lithium-ion polymer (LiPo)
    Capacity 550 mAh
    Voltage 7.6 V
    Charging Method USB
    Charging Time 110 minutes (approximate)
    Operating Temperature 41 to 104° F (5 to 40° C)
    Dimensions 8.85 x 8.85 x 2.63" (22.5 x 22.5 x 6.7 cm)
    Weight 0.25 lb (4.05 oz)
    Package Weight 1.225 lb
    Box Dimensions (LxWxH) 13.2 x 8.35 x 2.5"

    Rating

    50% users recommend this product to others. And what about you?
    Rating: 2.5 of 5

    This product has already been rated by 61 owners. Add your rating and experience with the product.
