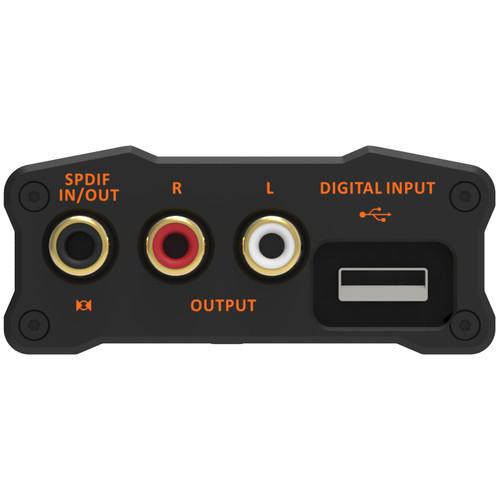

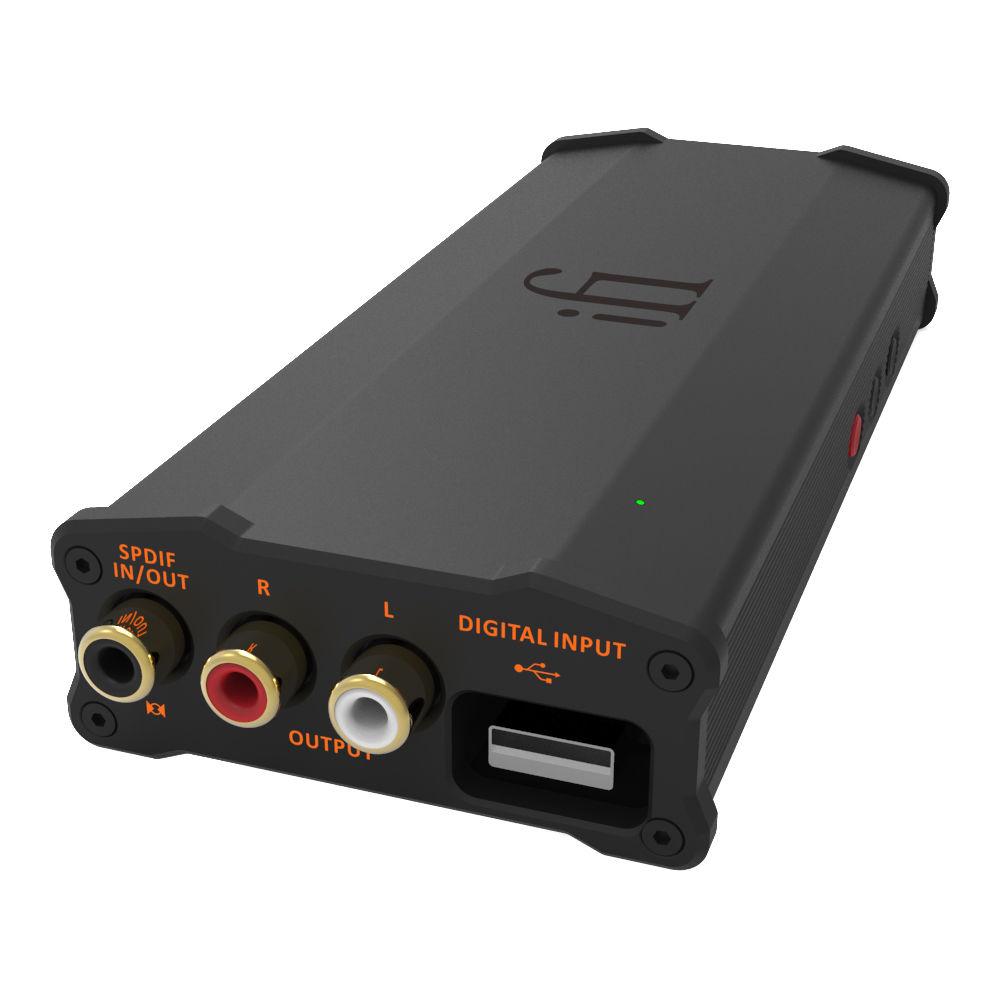

Product description The newest flagship product in iFi's micro series, the iDSD Black Label is a portable DAC and headphone amplifier capable of playing MP3, PCM, DSD, DXD files. For digital I/O, the unit supplies a coaxial jack that supports coaxial and optical S/PDIF input, and coaxial S/PDIF output, with auto-switching between ins and outs. A USB input also adorns the device, which can charge the iDSD while supplying it with audio from a smartphone or tablet.

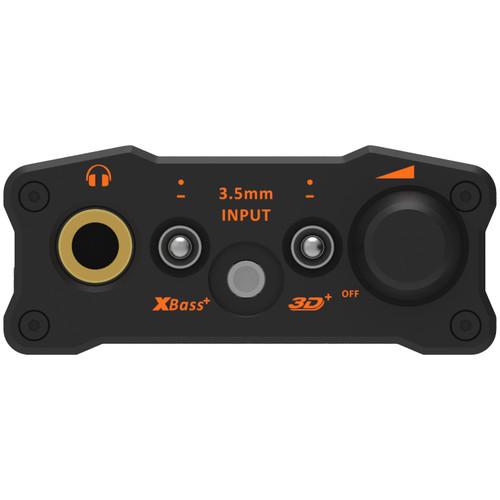

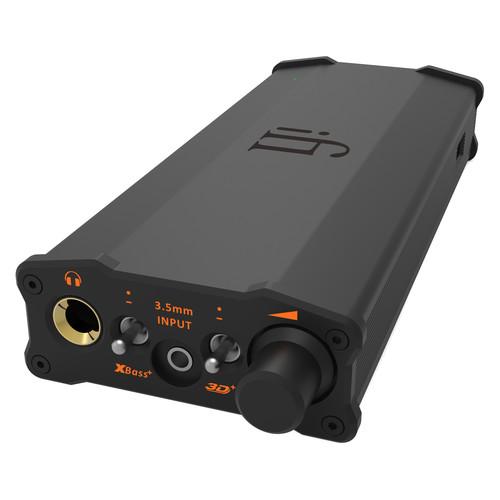

On the analog side, the iDSD Black Label provides a stereo 1/4" output for headphones, as well as stereo RCA line outputs for connection to consumer gear. A 3.5mm (1/8") stereo input is available for auxiliary sources as well.

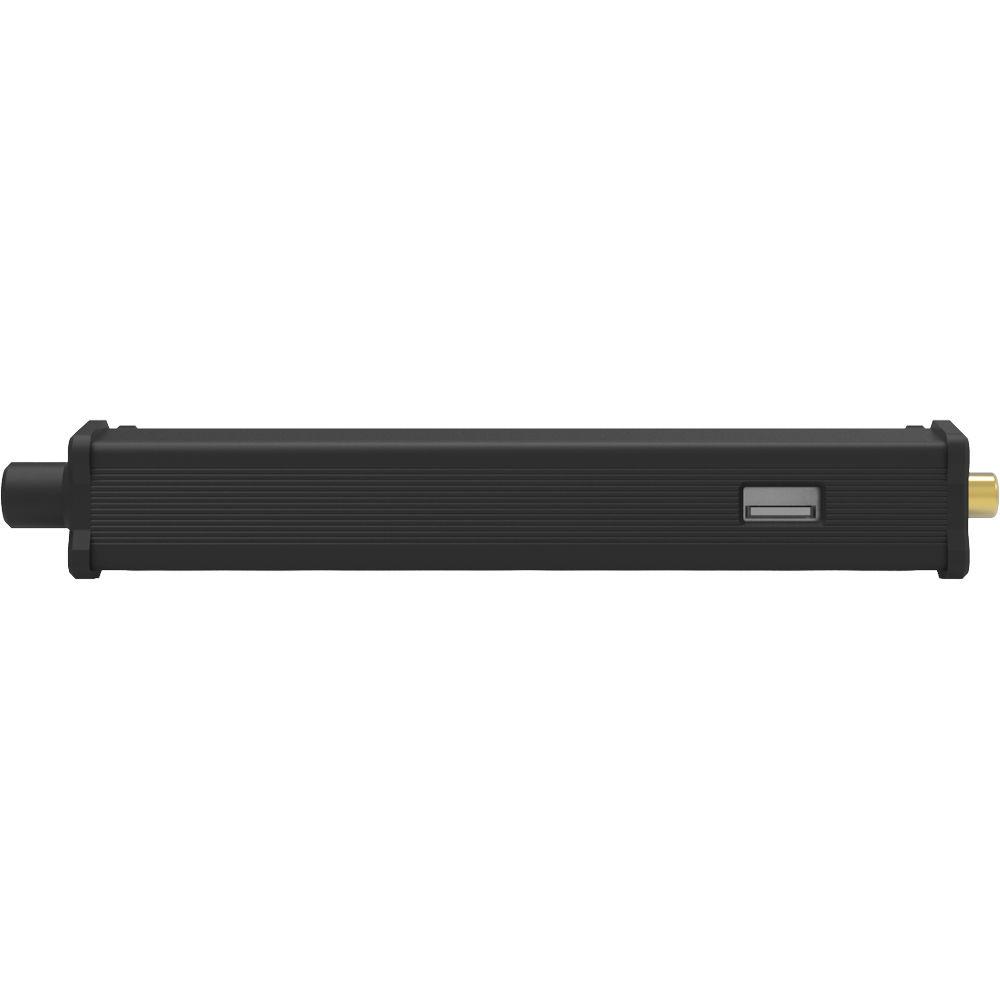

Along with its Burr-Brown DAC, high-quality op-amps and Sanyo OSCON capacitors, the iDSD Black Label provides interesting sonic options, such as 3D+ to focus the stereo image of the sound, and XBass+ to both deepen and tighten your bass frequencies. Its built-in battery can last between six to 12 hours at a clip, while its side-USB port is capable of charging an iPhone completely two times over. - High-Resolution Capability
- This device is capable of true native playback of all music formats from MP3 all the way up to DSD at 512 MHz, PCM at 768 kHz, and 2xDXD.
- Burr-Brown DAC Chip
- This unit features a Burr-Brown native DSD/PCM chipset, a piece of technology held in high esteem.
- 3D+ and XBass+ Sound
- The latest iterations of iFi's 3D+ and XBass+ technology aim to improve the stereophonic soundstage and implement a deeper, tighter response in the low end.

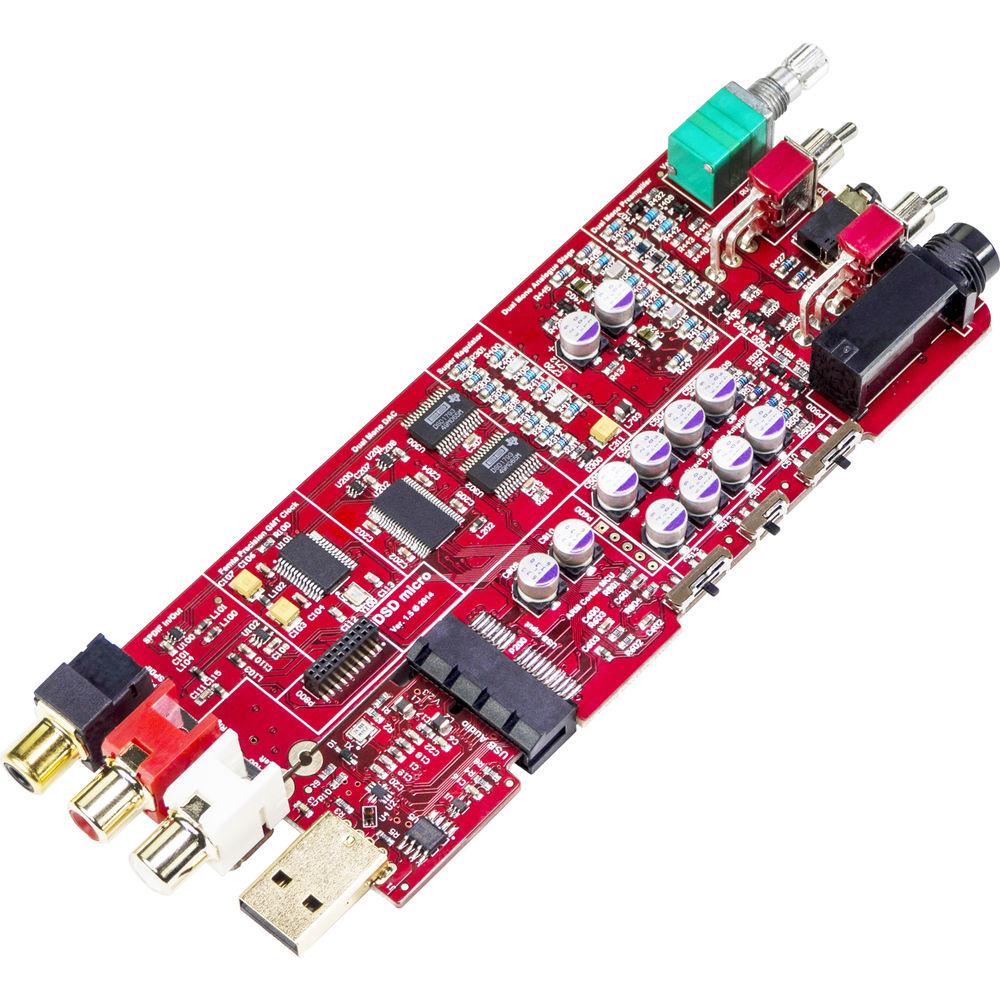

- High-Quality Op-Amps and Capacitors
- The operational amplifiers in this unit use HCOFC copper lead-frames and 4N Gold bond-wire to ensure a high-quality sound. Likewise, the Sanyo OSCON capacitors found in the micro iDSD Black Label are the same used in revered gear such as the AMR CD-77 Reference Class CD Processor.

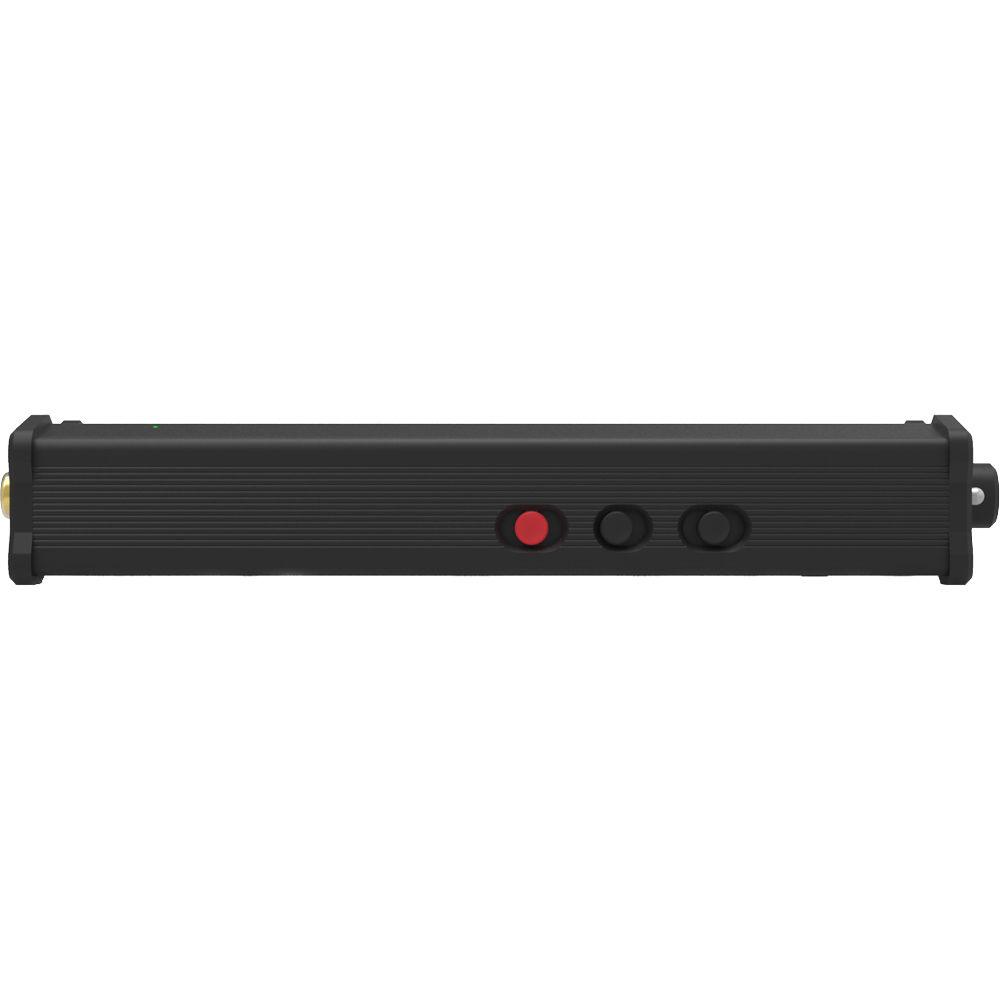

- Headphone Power Modes
- There are three power-output modes: Eco, Normal and Turbo. Using these modes in conjunction with the built-in iEMatch feature, you'll be able to finely match the micro iDSD Black Label with most headphones.
- S/PDIF Digital and Optical Coaxial Connection
- Digital Audio Players (DAPs) and home S/PDIF sources abound. The micro iDSD Black Label retains the S/PDIF in/out socket for optical/coaxial signals. So for those who wish to upgrade their DAP, simply use it as a transport and feed the micro iDSD BL.
- Built-In Battery
- From the HiFi Man HE-6 to the Sennheiser IE-800, the micro iDSD Black Label is able to play high-resolution audio for between 6 to 12 hours on a single charge. Even when not in use, the unit can charge an iPhone from 0% to 100% two times over through its side USB charging port.

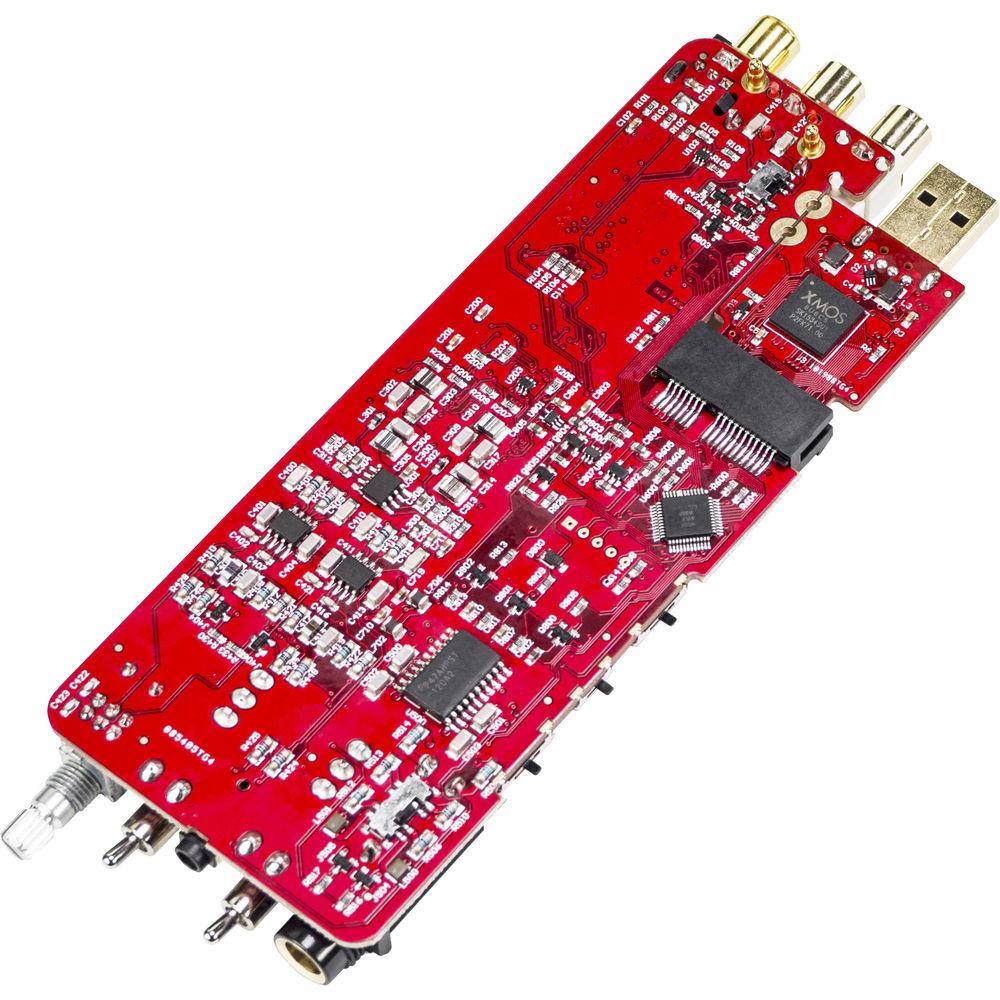

- Precise Clock
- This unit features an AMR Global Master Timing femto-precision clock-system to avoid unwanted phase-noise and jitter problems.
In the Box iFi AUDIO Micro IDSD Black Label - Portable DAC/Headphone Amp for High-Resolution Audio Limited 1-Year Warranty TOSLINK Mini-Plug to TOSLINK Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the iFi AUDIO Micro IDSD Black Label - Portable DAC Headphone Amp for High-Resolution Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the iFi AUDIO Micro IDSD Black Label - Portable DAC Headphone Amp for High-Resolution Audio can be downloaded in PDF format at the link stated below.
Technical parametersiFi AUDIO 303014 Specs | | | Inputs | 1 x USB 2.0 Type-A OTG Socket
1 x co-axial S/PIF jack (accepts optical via included adapter)
1 x 3.5 mm auxiliary input | | Outputs | 2 x RCA line outputs
1 x co-axial S/PIF jack (shared with input, no optical out)
1 x stereo 1/4" headphone output
1 x SmartPower Socket for charging | | | | Front | Volume, with power on/off
X-Bass on/off control

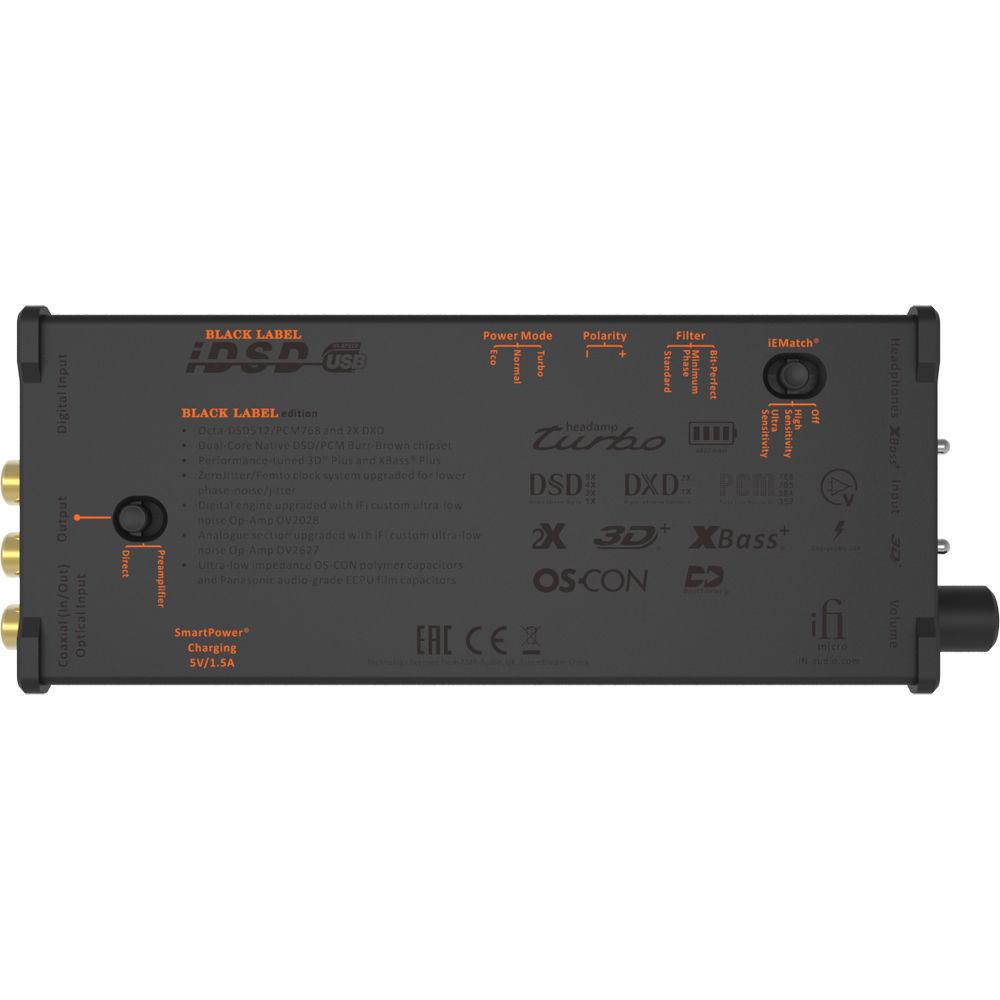

3D holographic sound on/off control | | Left | Power Mode: turbo, normal, eco
Polarity: normal/inverted
Filter: 3 positions, 6 filters | | Bottom | Line Direct/Preamplifier: preamplifier function, enable/disable, 0/9 dB gain selectable
iEMatch: circuit-matching with hiss elimination selector, off / high-sensitivity headphone / ultra-sensitivity headphone | | | | DAC | 4-Channel; 8-Signals, custom interleaving for maximum SNR | | DAC Type | Dual-core DSD, DXD, PCM DAC by Burr Brown; 2-DAC chip | | Audio Formats | DSD 512 / 256 / 128 / 64
DXD 2x / 1x
PCM | | Sample Rates | DSD: 24.6 / 22.6 / 12.4 / 11.2 / 6.2 / 5.6 / 3.1 / 2.8 MHz
DXD: 768 / 705.6 / 384 / 352.8 kHz
PCM: 768 / 705.6 / 384 / 352.8 / 192 / 176.4 / 96 / 88.2 / 48 / 44.1 kHz | | Filters | PCM: bit-perfect processing / minimum phase / standard, selectable digital filters
DSD: extreme / extended / standard range, selectable analog filters
DXD: bit-perfect processing, fixed analog filter | | Dynamic Range | Line: > 117 dBA | | THD & Noise | Line: < 0.003%, 0 dBFS | | Output Voltage | Line: > 2 V | | Output Impedance | < 240 Ohms | | Jitter | Below AP2 test set limit, correlated | | | | Max Power Consumption | Turbo: 10.0 V / 4000 mW @ 16 Ohms
Normal: 5.5 V / 1900 mW @ 16 Ohms
Eco: 2.0V / 500 mW @ 8 Ohms | | Continuous Power Output | Turbo: > 1560 mW at 64 Ohms, > 166 mW at 600 Ohms
Normal: > 950 mW at 32 Ohms, > 100 mW at 300 Ohms
Eco: > 250 mW at 16 Ohms | | Dynamic Range | >115 dBA, eco mode, 2V out | | THD & Noise | < 0.008%, 500 mW/16 R | | Output Voltage | > 8 V (Turbo Mode) | | Output Impedance | < 1 Ohm, iEMatch not engaged | | Output Power | Maximum: 4,000 mW, 16-Ohm load
Continuous: 1000 mW, 64-Ohm load | | | | Battery | Lithium-ion polymer (LiPo), 4800 mAh | | Power System | USB BCP V 1.2 compliant, up to 1500 mA charging current | | Power | <2 W idle, 4 W max | | Dimensions (L x W x H) | 7.0 x 2.6 x 1.1" / 177.0 x 67.0 x 28.0 mm | | Weight | 10.9 oz / 310.0 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.1 x 3.6 x 3.3" |
