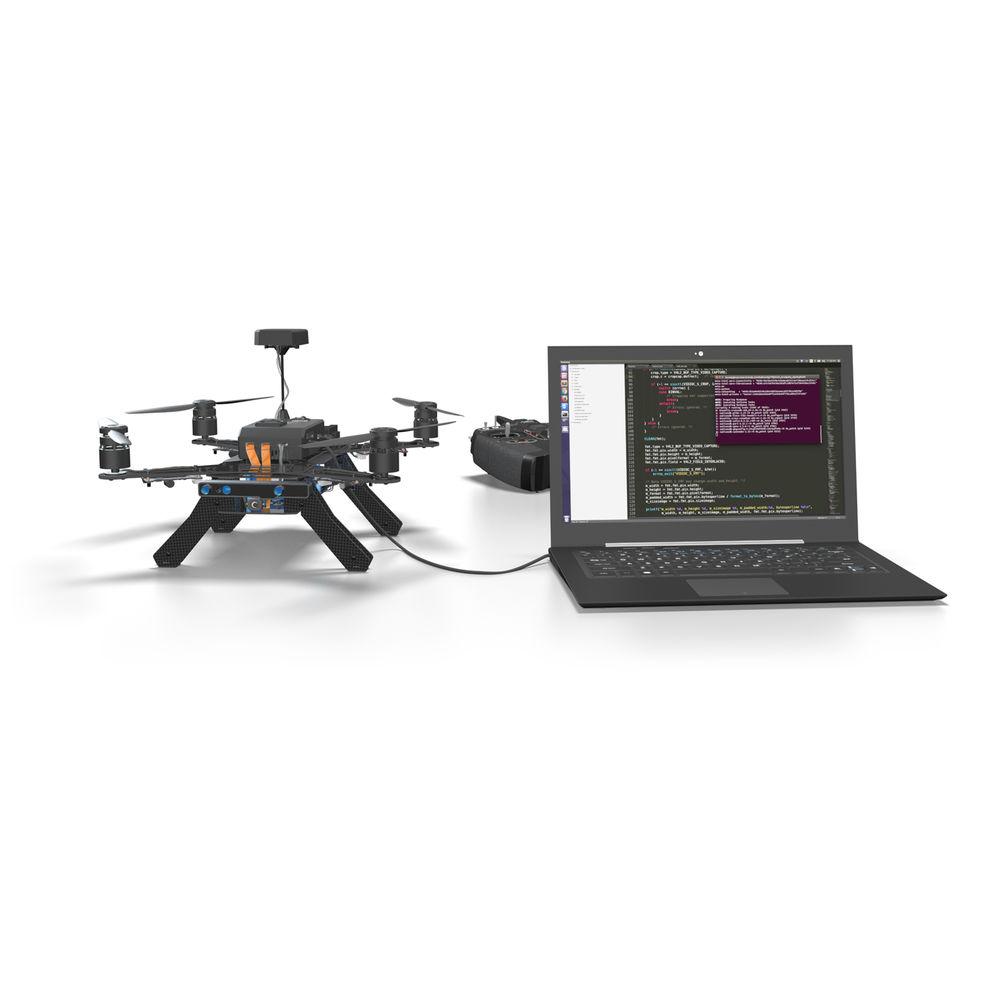

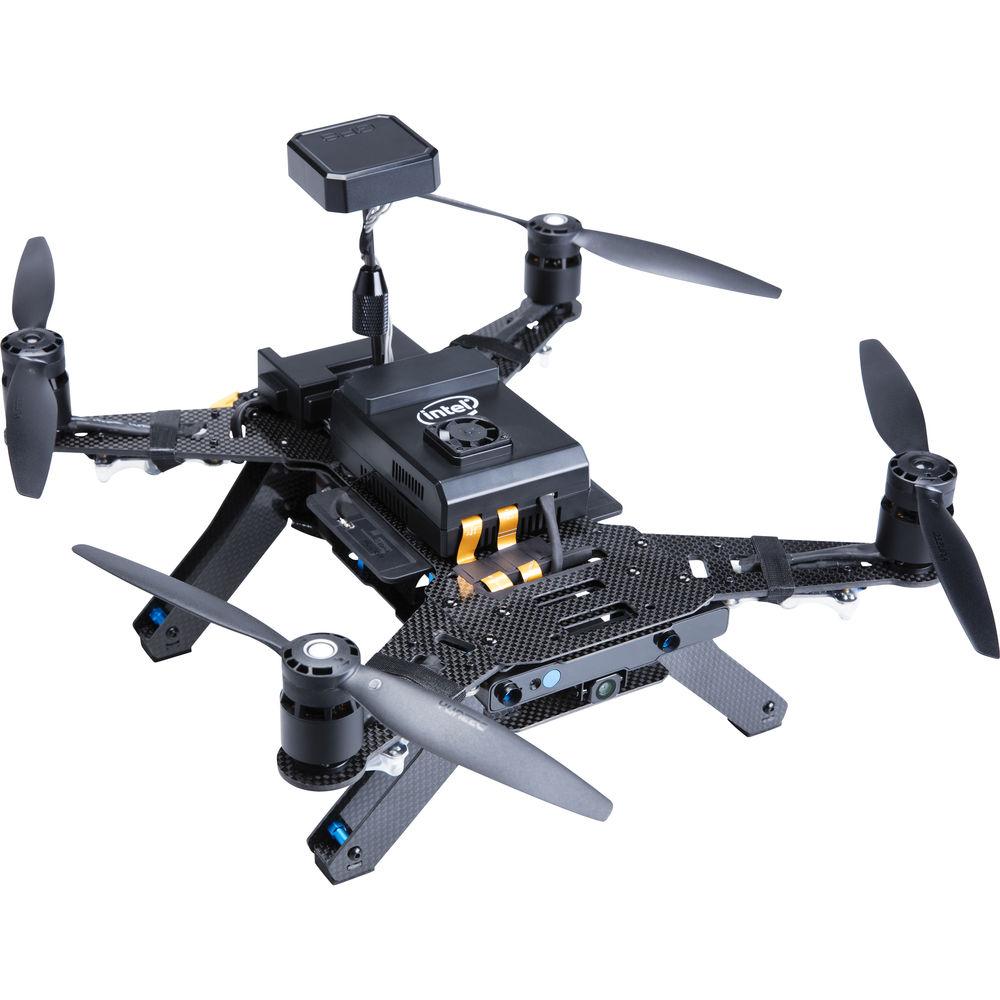

Product description Aerial Photography and Drone Glossary Read More The Aero Ready-to-Fly Drone from Intel is equipped with Intel Atom x7-Z8750 processor and a microSD memory card slot. It features a carbon fiber airframe, GPS, compass, and a power distribution board. The camera supports resolution up to 640 x 480 at 60 fps. You can use the Spektrum DXe transmitter to fly the drone. - Aero Compute Board
-
- Intel Atom x7-Z8750 processor
- 4GB LPDDR3-1600
- 32GB eMMC
- microSD memory card slot
- M.2 connector 1 lane PCIe for SSD
- Intel Dual Band Wireless-AC 8260
- USB 3.0 OTG
- Reprogrammable I/O via Intel MAX 10 FPGA
- 8MP RGB camera (front facing)
- VGA camera, global shutter, monochrome (down facing)
- Open source, embedded Linux, Yocto project
- InsydeH2O UEFI BIOS optimized for the Intel Aero Platform for UAVs
- RealSense Camera (R200)
-
- Long range up to 9.8-13.1' (indoors)
- Depth / infrared: 640 x 480 resolution at 60 fps
- RGB: 1920 x 1080 at 30 fps
- USB 3.0 required
- Camera Dimensions: 5.1 x 0.8 x 0.3"
- Aero Flight Controller with Dronecode PX4 Autopilot
-
- STM32 micro-controller
- 6 DoF IMU, magnetometer, and altitude sensors

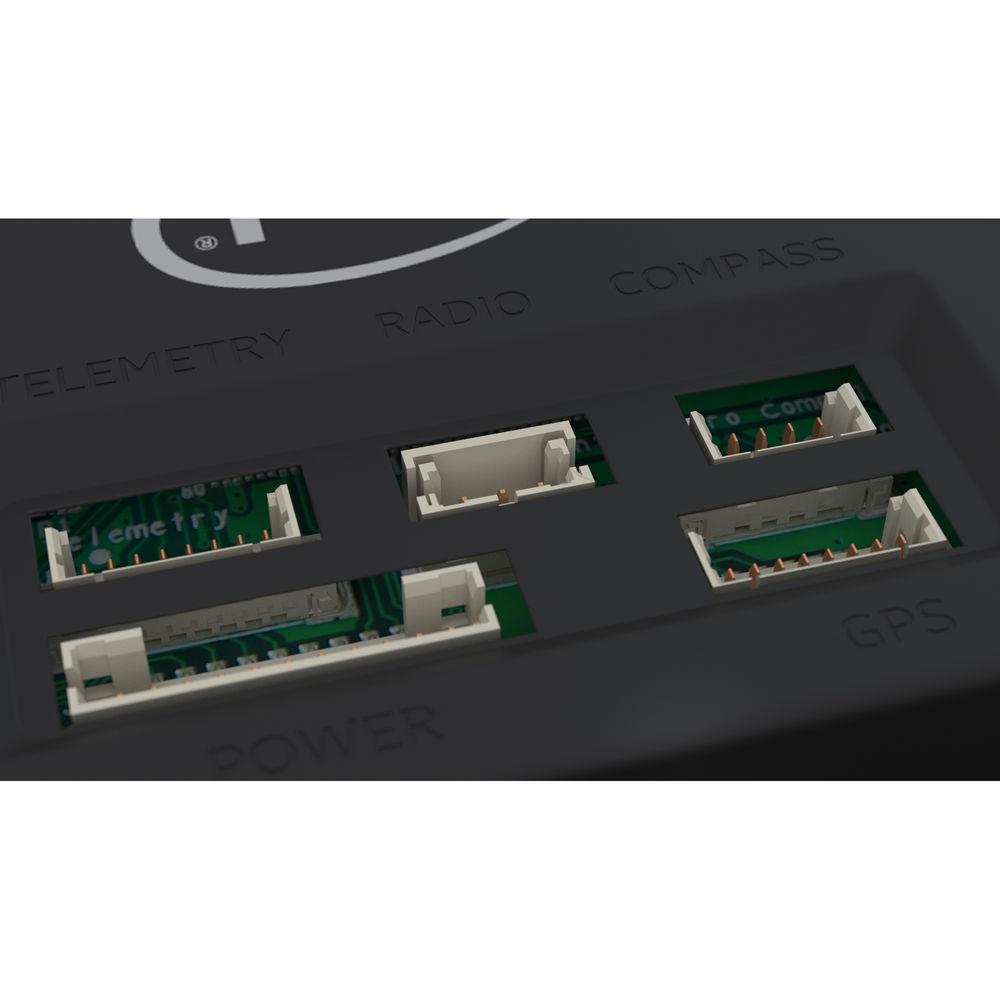

- Connected to the Aero Compute Board over HSUART and communicates using MAVLink protocol
- Other Features
-
- Carbon fiber airframe
- GPS and compass
- Power distribution board
- Four electronic speed controllers
- Four motors
- Eight snap-on propellers
- Spektrum DSMX serial receiver
- Spektrum DXe transmitter (2.4 GHz DSMX)
- Drone Height from the base to the top of a GPS antenna: 8.7"
- Sustained Wind (maximum): 15 knots
- Airspeed (maximum): 15 m/s
- Input Control Interface: UART
- ESC Input Voltage: 11.1 to 14.8V
UPC: 735858328678 In the Box Intel Aero Ready-to-Fly Drone 2 x Set of Snap-On Propellers (A (x4) and B (x4)) Spektrum DXe Transmitter (2.4 GHz DSMX) 4 x AA Alkaline Batteries for Spektrum DXe Transmitter Limited 30-Day Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Aero Ready-to-Fly Drone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel Aero Specs | | | Maximum Takeoff Weight | 4.19 lb / 1.9 kg | | Maximum Flight Time | 20 Minutes | | Maximum Hover Time | 20 Minutes | | | | Vision System | Downward | | Maximum Altitude | 5000' / 1524 m | | Operating Range | 9.8 to 13.1' / 3.0 to 4.0 m | | | | Operating Frequency | 2.4 GHz | | Maximum Operating Distance | 984.25' / 300 m at 2.4 G | | Battery Type | 4 x AA | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 4500 mAh / 66.6 Wh | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Weight | 30.51 oz / 865 g | | | | Size | 9" | | Attachment Type | Twist Lock | | | | Diagonal Size | 14.2" / 360 mm | | Weight | 30.51 oz / 865 g | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 21.0 x 16.0 x 8.0" |
