iStarUSA Claytek WMZ955-KBR1U Swing-Out Wallmount Server

Search your instruction manual in PDF to download

User Manual for iStarUSA Claytek WMZ955-KBR1U Swing-Out Wallmount Server Cabinet with 1 RU Sliding Drawer

Click to enlarge the picture
iStarUSA Claytek WMZ955-KBR1U Swing-Out Wallmount Server Cabinet with 1 RU Sliding Drawer Contents of the user manual for the iStarUSA Claytek WMZ955-KBR1U Swing-Out Wallmount Server
  • Product category: Rack Furniture iStarUSA
  • Brand: iStarUSA
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for iStarUSA Rack Furniture

iStarUSA Claytek WMZ955-KBR1U Swing-Out Wallmount Server Cabinet with 1 RU Sliding Drawer iStarUSA Claytek WMZ955-KBR1U Swing-Out Wallmount Server Cabinet with 1 RU Sliding Drawer iStarUSA Claytek WMZ955-KBR1U Swing-Out Wallmount Server Cabinet with 1 RU Sliding Drawer iStarUSA Claytek WMZ955-KBR1U Swing-Out Wallmount Server Cabinet with 1 RU Sliding Drawer iStarUSA Claytek WMZ955-KBR1U Swing-Out Wallmount Server Cabinet with 1 RU Sliding Drawer
User manual for the iStarUSA Claytek WMZ955-KBR1U Swing-Out Wallmount Server contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any iStarUSA product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!



Product description

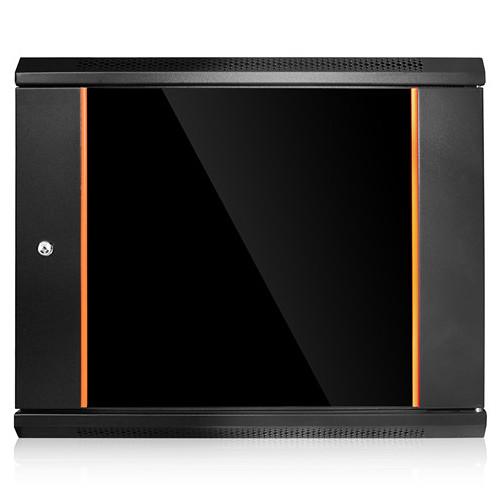

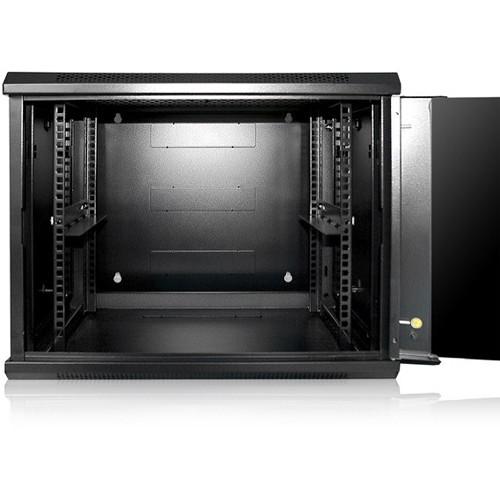

The iStarUSA Claytek WMZ955-KBR1U is a 9 RU swing-out wallmount server cabinet with a 1 RU sliding drawer designed to house standard 19" rack equipment on a wall for technicians and engineers in network applications, lab and test systems, and server installations. It accommodates chassis depths up to 16" and supports rack rails for up to 9 RU of gear. The sliding drawer occupies 1 RU and offers space for a keyboard, mouse, and other accessories. The welded steel frame is pre-assembled for efficient integration into your existing setup. Its heat-treated glass front door utilizes a security key lock to prevent unauthorized equipment access. Top, bottom, and rear tunnels enable tidy cable management and removable locking side panels provide convenient access for maintenance. Built-in vents allow airflow to minimize equipment overheating.
  • Claytek WMZ-955 Swing-Out Wall Mount Server Cabinet (9 RU) The 9 RU iStarUSA Claytek WMZ955 Swing-Out Wall Mount Server Cabinet is designed to house standard 19" rack equipment on a wall for technicians and engineers in network applications, lab and test systems, and server installations. It accommodates chassis depths up to 16" and supports rack rails for up to 9 RU of gear.

    The welded steel frame is pre-assembled for efficient integration into your existing setup and handles a loading capacity of 130 lb. The heat-treated glass front door utilizes a security key lock to prevent unauthorized equipment access. Top, bottom, and rear tunnels enable tidy cable management, while removable side panels provide convenient access for maintenance. Built-in vents allow airflow to minimize equipment overheating.
    • Sturdy and rugged welded frame structure comes pre-assembled
    • Supports 9 RU rack rails (available separately)
    • SPCC cold-rolled steel posts and enclosure with a heat-treated glass door
    • Front door features a security key lock and heat-treated glass
    • Flexible cable management via top, bottom, and rear cabling tunnels
    • Built-in cooling vents and support for installation of WA-FANAC120 dual AC fans (available separately)
    • Removable side panels with latches allow for quick access for maintenance
    • Loading capacity up to 130 lb
    • Comes with M6 mounting screws and cage nuts
    UPC: 846813038027

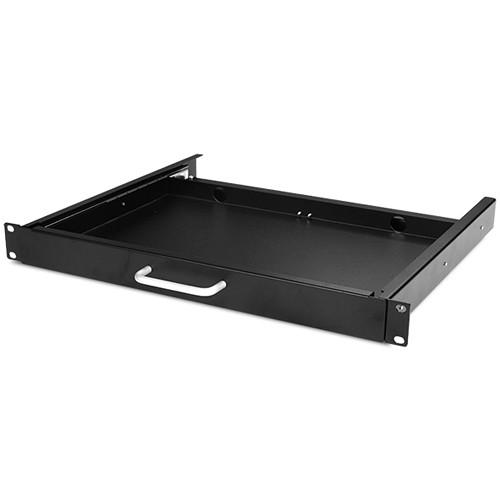

  • WA-KBR-1U 1 RU Sliding Drawer The iStarUSA WA-KBR-1U is a 1 RU sliding drawer designed to hold non-rackmount devices for audio engineers, A/V technicians, and system installers in recording studios, A/V racks, and server rooms. It easily installs in standard 19" equipment racks. Its sturdy cold-rolled steel construction provides a 22 lb weight capacity for items such as a mouse, keyboard, dongles, adapters, and more.
    • Sturdy 1.6mm cold-rolled steel construction
    • Compatible with 19" equipment racks
    • Occupies 1 RU of space
    • Holds non-rackmount devices such as a mouse, keyboard, tools, dongles, adapters, and accessories
    • Easy and quick installation
    UPC: 846813036269
In the Box Bundle Items Claytek WMZ-955 Swing-Out Wall Mount Server Cabinet (9 RU) rtfuwewqtywaareyyrcsztdbcytuaeqys
  • M6 Mounting Screws and Cage Nuts
  • Limited Lifetime Warranty
WA-KBR-1U 1 RU Sliding Drawer
  • Limited 1-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the iStarUSA Claytek WMZ955-KBR1U Swing-Out Wallmount Server Cabinet with 1 RU Sliding Drawer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Claytek WMZ-955 Swing-Out Wall Mount Server Cabinet (9 RU)
    Rack Space 9 RU
    RoHS Compliance Yes
    Industry Standards ANSI/EIA RS-310-D, IEC 297-2, DIN 41491, DIN 41494 Part 7, and GB/T3047.2-92
    HTS Code: 8473.30.5100 (ECCN is not applicable)
    Construction Material Posts: 0.06" / 1.5 mm SPCC cold-rolled steel
    Enclosure: 0.05" / 1.2 mm SPCC cold-rolled steel
    Door: Heat-treated glass
    Supported Chassis Depth Up to 16" / 40.6 cm
    Loading Capacity 130 lb / 59 kg
    Dimensions (W x H x D) 23.6 x 19.7 x 21.7" / 60.0 x 50.1 x 55.0 cm
    Weight 55 lb / 24.9 kg
    Box Dimensions (LxWxH) 75.0 x 27.0 x 23.0"
  • WA-KBR-1U 1 RU Sliding Drawer
    Rack Height 1 RU
    RoHS Compliance Yes
    Construction Material SPCC 1.6 mm cold-rolled steel
    Dimensions (W x H x D) 19.0 x 1.7 x 15.4" / 483 x 44 x 390 mm
    Weight Capacity 22 lb / 10 kg
    Box Dimensions (LxWxH) 20.6 x 18.0 x 2.5"
