iStarUSA TC-1200PD8G2 1200W Modular ATX Power

Search your instruction manual in PDF to download

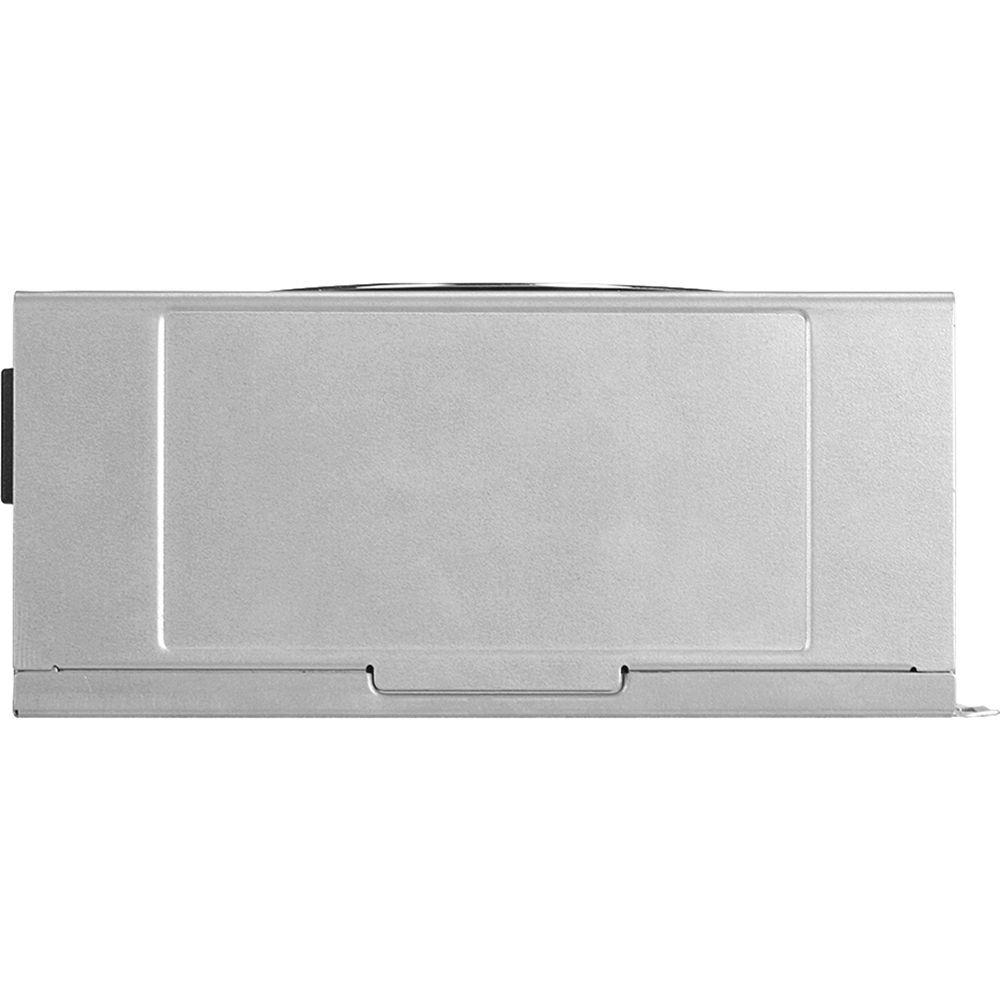

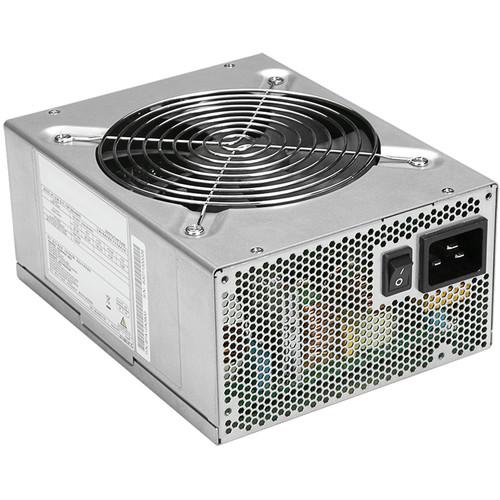

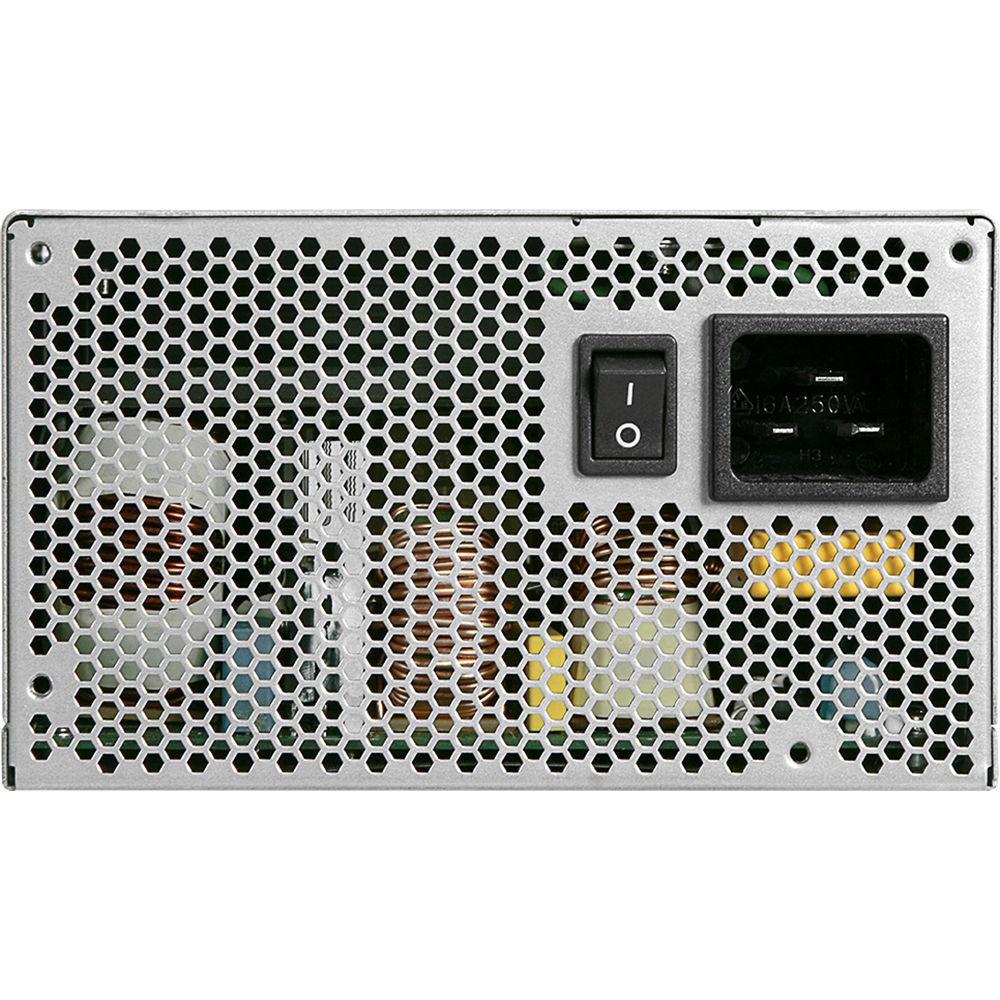

User Manual for iStarUSA TC-1200PD8G2 1200W Modular ATX Power Supply

Click to enlarge the picture
iStarUSA TC-1200PD8G2 1200W Modular ATX Power Supply Contents of the user manual for the iStarUSA TC-1200PD8G2 1200W Modular ATX Power
  • Product category: Power Supplies iStarUSA
  • Brand: iStarUSA
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for iStarUSA Power Supplies

iStarUSA TC-1200PD8G2 1200W Modular ATX Power Supply iStarUSA TC-1200PD8G2 1200W Modular ATX Power Supply iStarUSA TC-1200PD8G2 1200W Modular ATX Power Supply iStarUSA TC-1200PD8G2 1200W Modular ATX Power Supply
User manual for the iStarUSA TC-1200PD8G2 1200W Modular ATX Power contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any iStarUSA product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official iStarUSA user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a iStarUSA product will considerably shorten its lifespan!



Product description

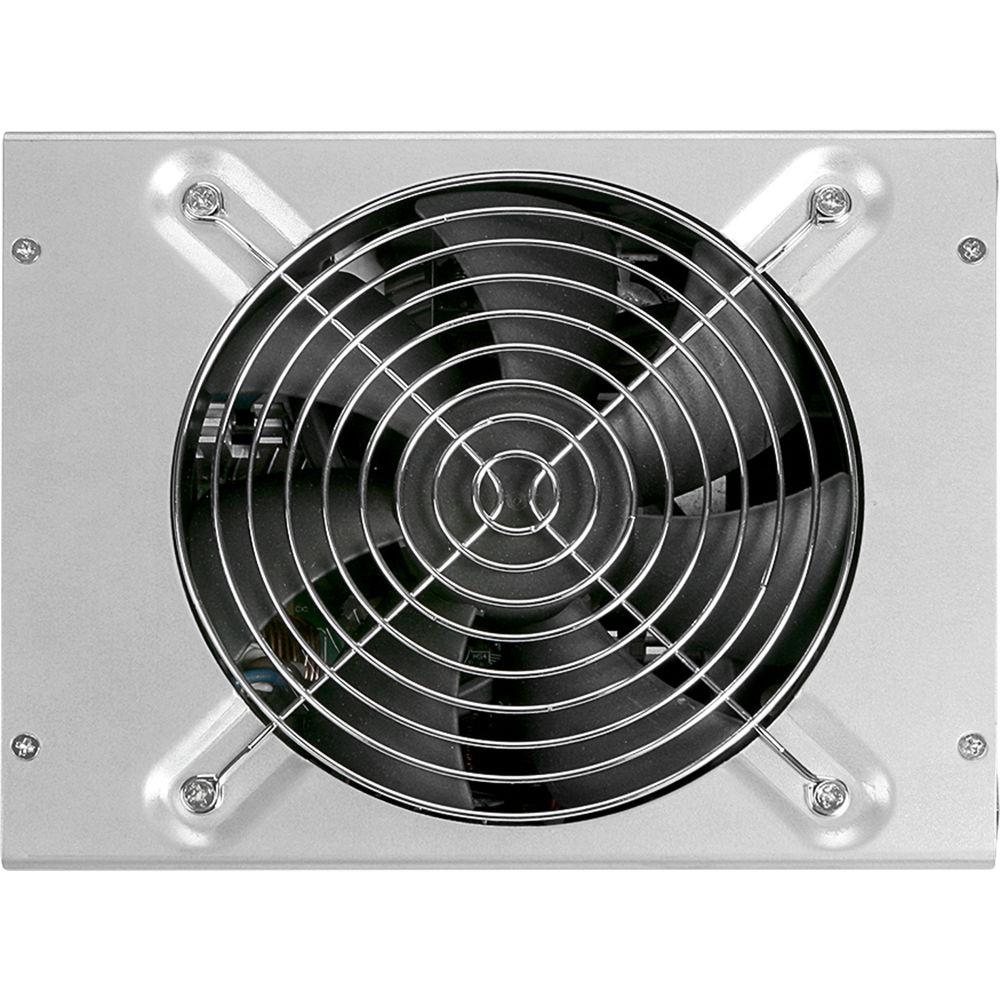

Designed to deliver up to 1200W of power, the TC-1200PD8G2 1200W Modular ATX Power Supply from iStarUSA is ideal for high-powered systems packing plenty of hardware. Thanks to its modular design, the TC-1200PD8G2 lets you connect only the cables you need. With less cable clutter, there will be better airflow within the chassis for lower temperatures. It's built with a single +12 V rail, a low-noise 140mm fan, active Power Factor Correction (PFC), as well as over-current, over-voltage, and short-circuit protection. Included are a full set of cables, enough for even a multi-GPU setup with multiple storage drives and peripherals. UPC: 846813039055 In the Box iStarUSA TC-1200PD8G2 1200W Modular ATX Power Supply

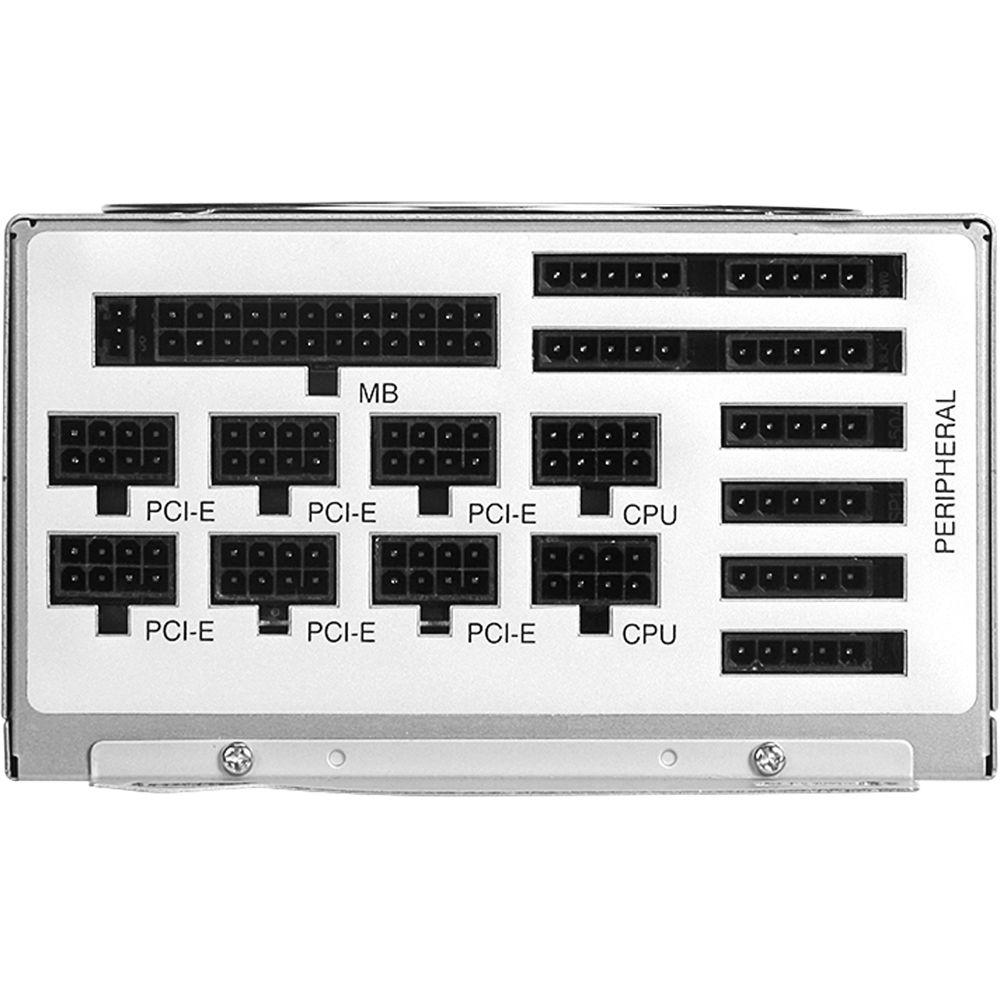

  • 24-Pin ATX Cable
  • 2 x (4+4) 8-Pin CPU Cables
  • 6 x (6+2) 8-Pin PCI-Express Connectors
  • 14 x Molex Connectors
  • 16 x SATA Power Connectors
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the iStarUSA TC-1200PD8G2 1200W Modular ATX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    iStarUSA TC-1200PD8G2 Specs

    Wattage 1200 W
    Connectivity 1 x 24-pin
    2 x (4+4) 8-pin CPU 12 V
    6 x (6+2) 8-pin PCI-Express
    14 x 4-pin Molex
    16 x SATA
    2 x Floppy
    Output Rating +3.3 V - 30 A
    +5 V - 30 A
    +12 V - 100 A
    -12 V - 0.8 A
    +5 VSB - 4 A
    Efficiency 87%
    MTBF (Approx.) 100,000 hours
    Compliance RoHS
    Dimensions (W x H x D) 5.91 x 3.39 x 7.48" (150.1 x 86.1 x 190 mm)
