JK Audio Innkeeper 2 Digital Hybrid

Search your instruction manual in PDF to download

User Manual for JK Audio Innkeeper 2 Digital Hybrid

Click to enlarge the picture
JK Audio Innkeeper 2 Digital Hybrid Contents of the user manual for the JK Audio Innkeeper 2 Digital Hybrid
  • Product category: Telephone Audio Interfaces JK Audio
  • Brand: JK Audio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for JK Audio Telephone Audio Interfaces

User manual for the JK Audio Innkeeper 2 Digital Hybrid contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any JK Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!



Product description

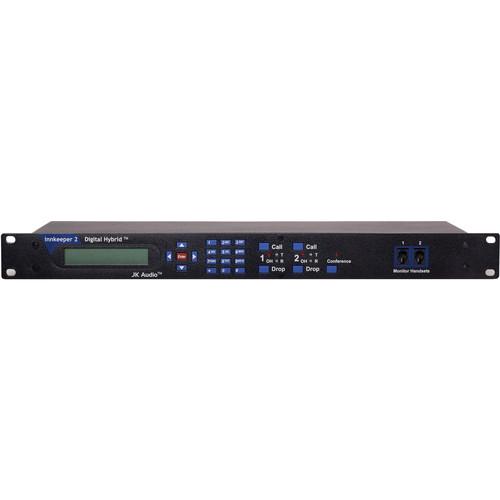

The Innkeeper 2 from JK Audio delivers two digital hybrids housed in a single-rack chassis. The main function of a hybrid is to extract a caller's voice coming in on a phone line, while keeping it separate from the receiver's outgoing audio. Both these streams can then be controlled in various ways. A digital hybrid provides audio that is clearer and cleaner over the variations in quality found in analog hybrids.The front panel hosts a menu-driven keypad, a backlit display, and handset jacks that provide easy speed dialing and call setup. In order to achieve the required separation, an internal digital signal processor (DSP) continuously monitors both the phone line and audio signals. The proprietary echo canceller algorithm can achieve excellent separation, typically exceeding 50 dB without any additional setup. It should be noted that the unit only functions with "wet" phone lines and does not support "dry" (PBX) lines.The keypad and display allow the user to store fifty phone numbers, sorted by name, in a phone list. The display can also be used to set features such as the number of rings before auto answer, master send channel selection, and test tone output. An auxiliary telephone jack is provided for each line that can be used to initiate or screen calls, and is disconnected when the "Call" button is depressed, and reconnected when the "Drop" button is pressed.The Innkeeper 2 features auto answer/auto disconnect for use in interruptible foldback (IFB) and monitoring applications. An included terminal block allows remote off-hook/on-hook control and status for each phone line. A Conference button allows the user to conference together lines 1 and 2 when both lines are off-hook. Applications for the unit include telephone interviews, talk shows, church PA interface, and conference room full-duplex communication.
  • Dual-line digital hybrid that connects audio signals to/from a standard analog telephone line without the variations in quality found with analog hybrids
  • Excellent separation of "send" and "receive" audio
  • Memory/Speed dial from phone list
  • Twelve-key telephone-style keypad with alphanumeric legend
  • 16-bit DSP technology with proprietary auto null algorithm, 50 dB null
  • XLR line input, one per line
  • XLR master input sends audio to selected lines
  • XLR caller output, one per line
  • Send/Receive level LED
  • Remote control and LED status indication
  • Monitor handset jacks
  • Auto answer/disconnect
  • Two x 20-character backlit LCD display
  • Four cursor buttons and one Enter button next to the display for menu functions
UPC: 814170010147 In the Box JK Audio Innkeeper 2 Dual-Line Digital Hybrid
  • AC Power Cable
  • 2 x RJ11 Phone Line Cables
  • Remote Terminal Block
  • 1 x RJ50 Cable for Remote Terminal Block
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the JK Audio Innkeeper 2 Digital Hybrid in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    JK Audio INN2 Specs

    Input 3 x XLR
    Output 2 x XLR
    Handset Front panel handset jacks biased for electret handset (not included)
    Isolation 1500 VAC
    Phone Line Phone line: 2 x RJ11C
    Aux phone: 2 x RJ11C
    Impedance Input: 20k ohms
    Output: 200 ohms
    Power Requirements 120-240 VAC power supply (internal)
    Dimensions (WxDxH) 19.0 x 7.3 x 1.8" (483 x 185 x 45 mm)
    Weight 7.2 lbs (3.3 kg)
    Package Weight 8.15 lb
    Box Dimensions (LxWxH) 20.3 x 12.6 x 2.7"
