Kenwood ProTalk XLS TK-3230DX 6-Channel UHF

Search your instruction manual in PDF to download

User Manual for Kenwood ProTalk XLS TK-3230DX 6-Channel UHF Two-Way Business Radio

Click to enlarge the picture
Kenwood ProTalk XLS TK-3230DX 6-Channel UHF Two-Way Business Radio Contents of the user manual for the Kenwood ProTalk XLS TK-3230DX 6-Channel UHF
  • Product category: 2-Way Radios Kenwood
  • Brand: Kenwood
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Kenwood 2-Way Radios

Kenwood ProTalk XLS TK-3230DX 6-Channel UHF Two-Way Business Radio Kenwood ProTalk XLS TK-3230DX 6-Channel UHF Two-Way Business Radio Kenwood ProTalk XLS TK-3230DX 6-Channel UHF Two-Way Business Radio Kenwood ProTalk XLS TK-3230DX 6-Channel UHF Two-Way Business Radio Kenwood ProTalk XLS TK-3230DX 6-Channel UHF Two-Way Business Radio
User manual for the Kenwood ProTalk XLS TK-3230DX 6-Channel UHF contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Kenwood product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Kenwood user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Kenwood product will considerably shorten its lifespan!



Product description

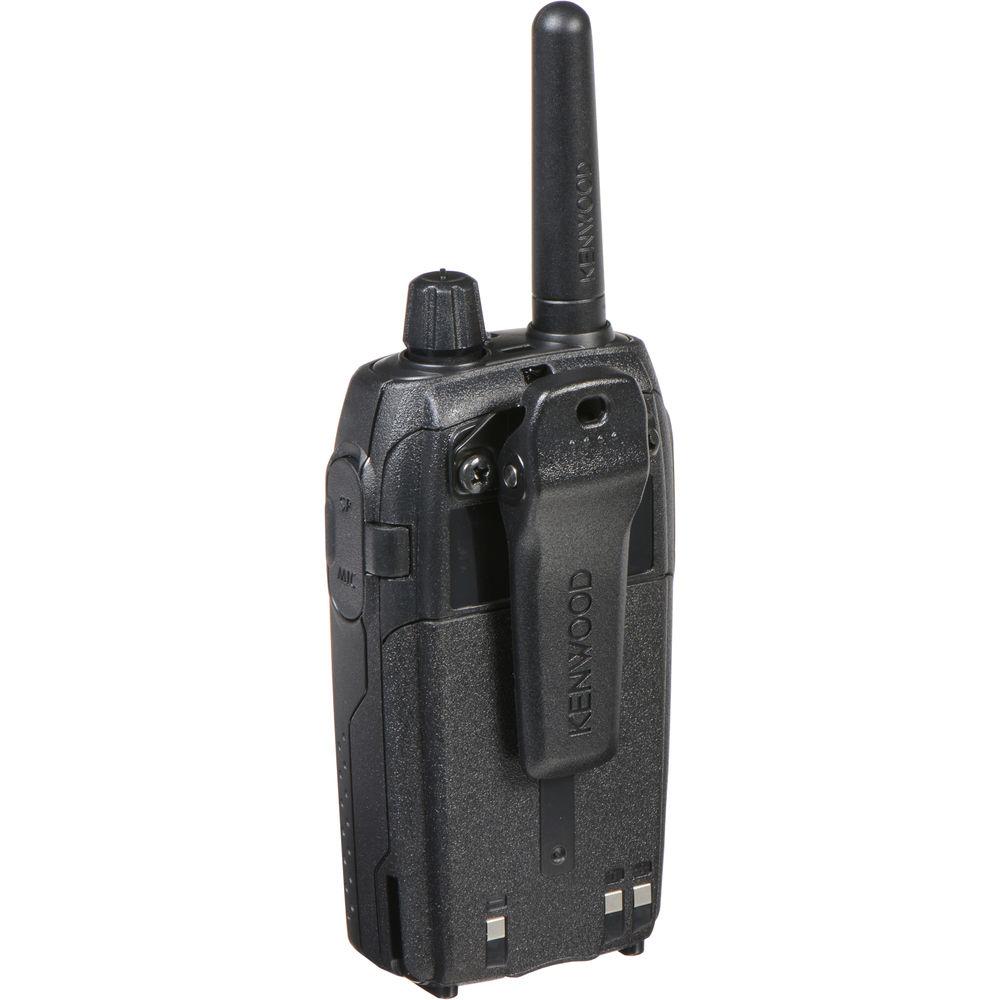

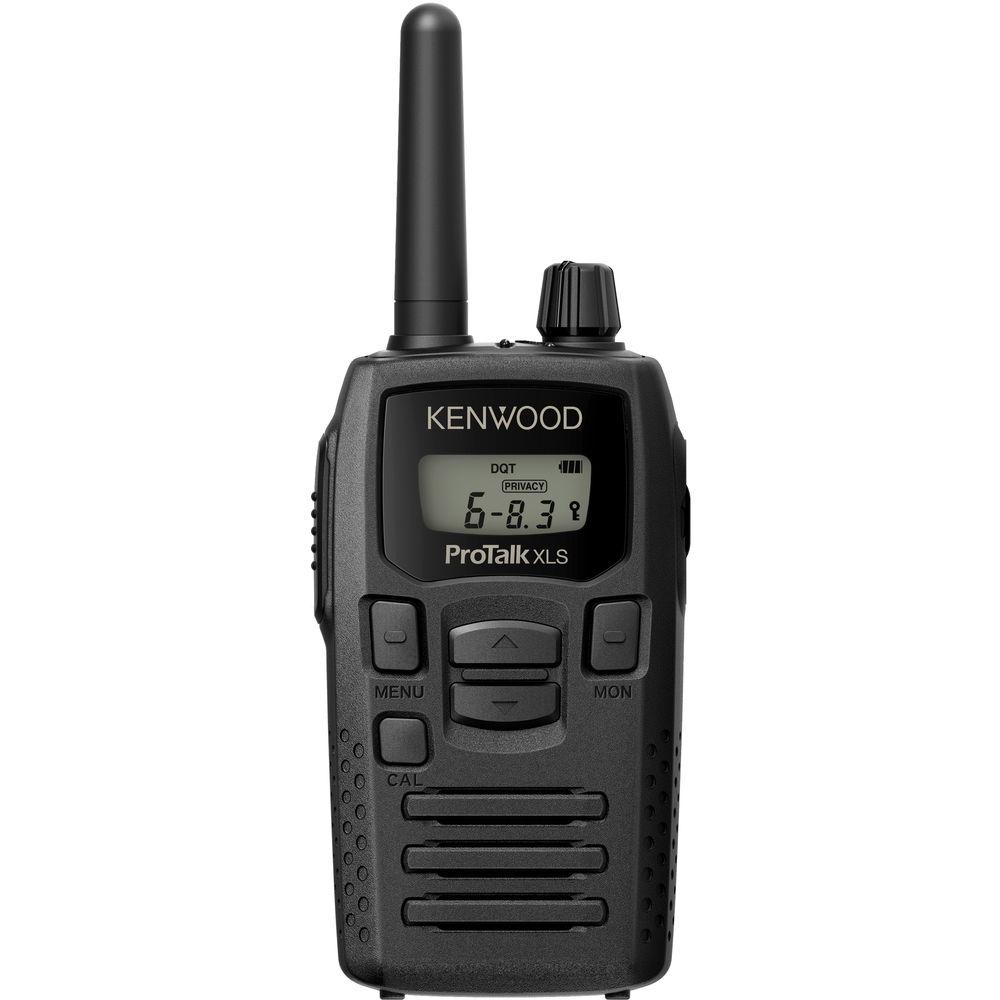

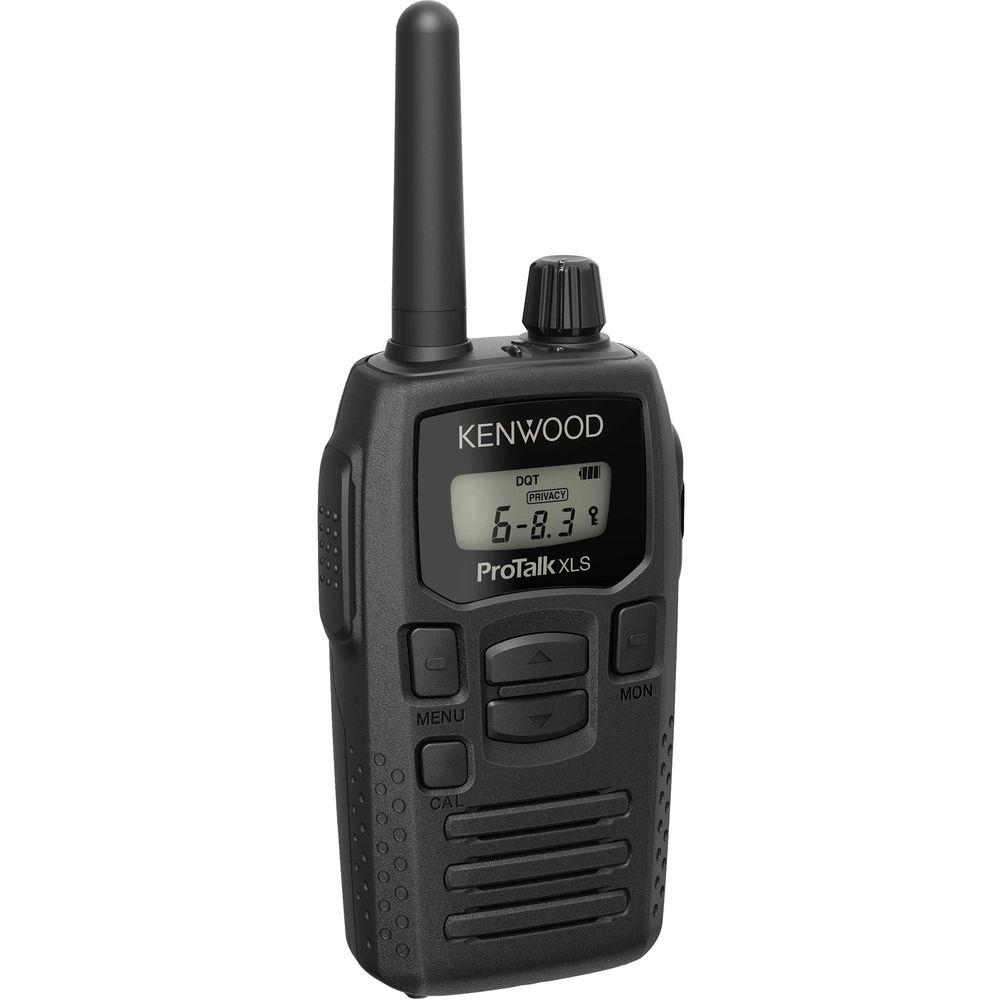

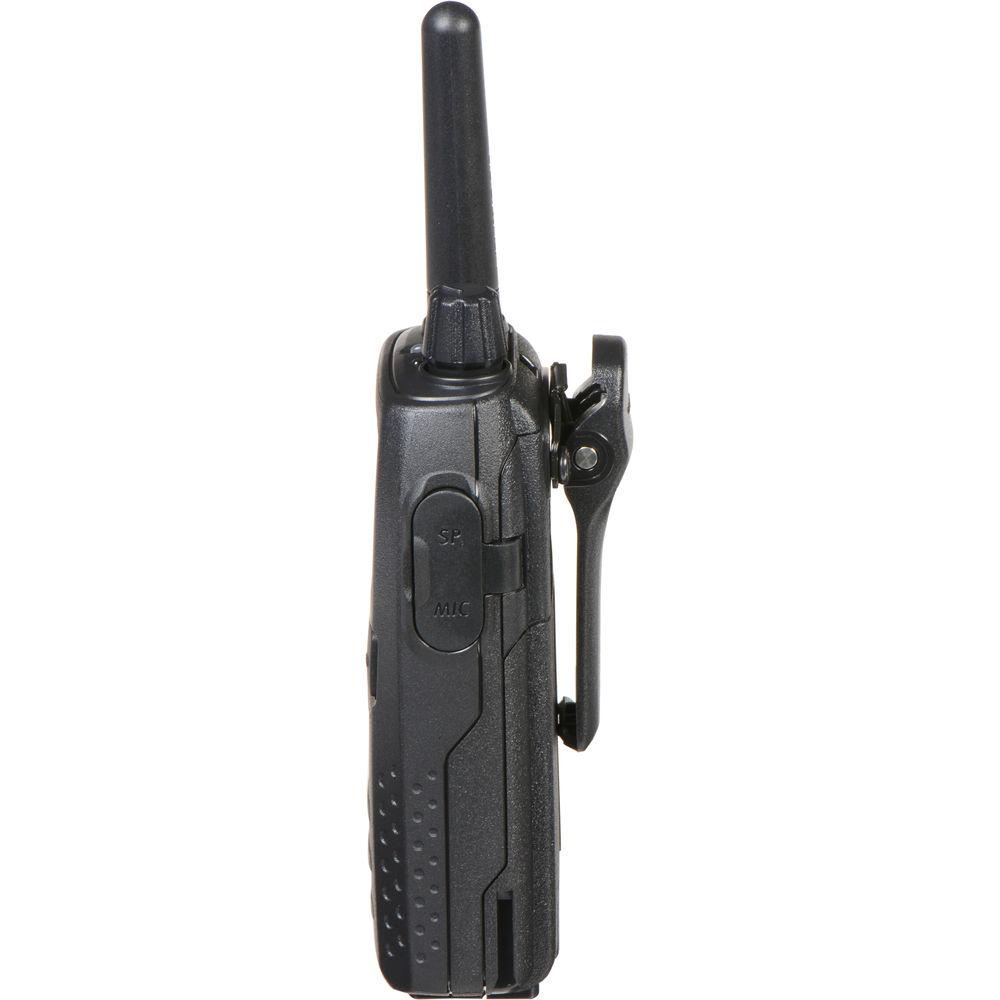

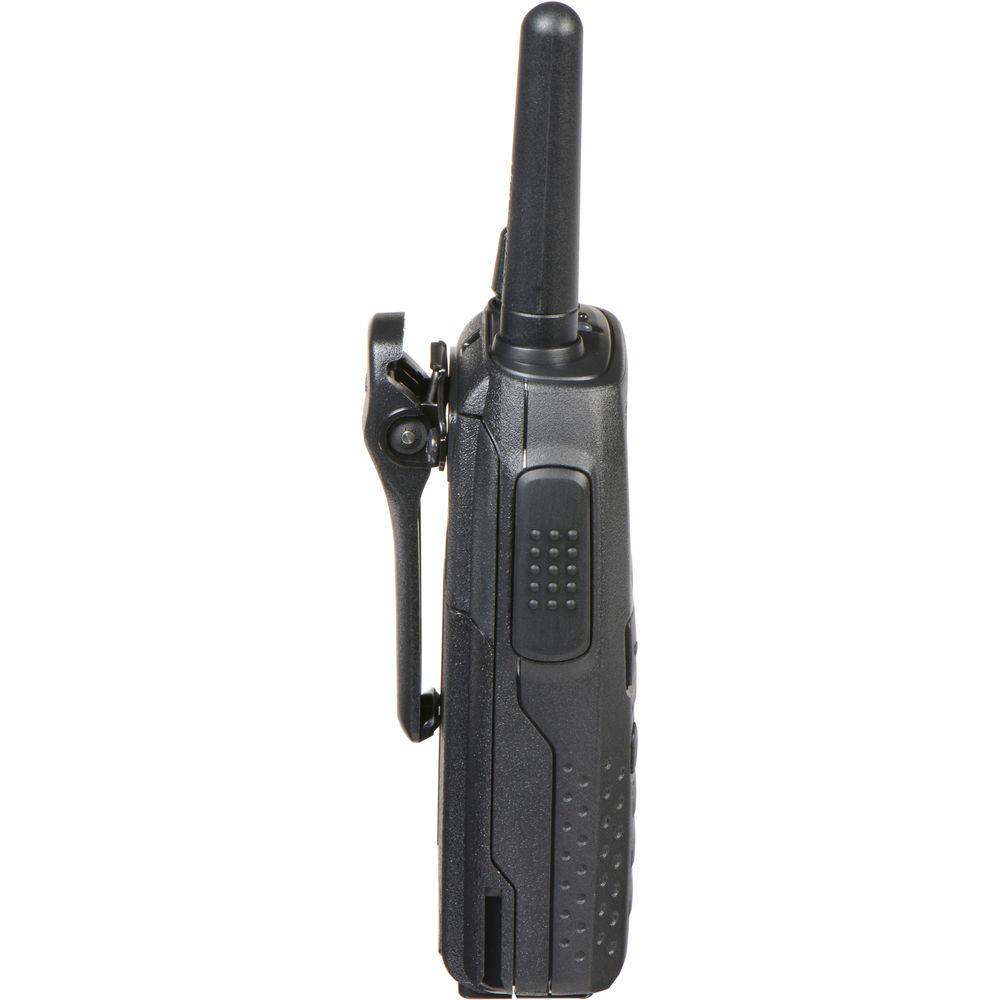

The compact ProTalk XLS TK-3230DX 6-Channel UHF Two-Way Business Radio from Kenwood is a 6-channel business radio designed to provide quick communication between employees. This push-to-talk radio has a user-switchable power output from 0.5-1.5W, and features controls for easy adjustment of volume, channels, and more. The channel scan function scans all channels for incoming transmissions, allowing you to keep track of all six channels. The radio also features 207 privacy codes which can be set for each channel to provide an uninterrupted transmission between employees. FleetSync technology helps identify which user is speaking by displaying the radio ID on the built-in LCD screen. Built for durability, this radio complies with MIL-STD regulations (810C, 810D, 810E, 810F, and 810G) and is IP52-rated for water resistance. A rechargeable lithium-ion battery provides up to 18 hours of use.
  • 6-channel business radio
  • 207 privacy codes (39 QT and 168 DQT)
  • Channel scanning function to monitor multiple channels
  • Modifiable six preset channels from 99 pre-stored frequencies
  • FleetSync (SELCALL) includes PTT ID digital Alphanumeric Number Identification (ANI) for instant radio call identification, caller ID display, and selective calling
  • Four-digit, seven-segment LCD backlit display makes it easy to see the screen in varying lighting conditions
  • Three-level battery indicator
  • Three selectable power-on tones
  • Built-in push-to-talk (PTT) microphone and speaker
  • Two-pin external microphone/speaker jack
  • Fast-charger, 2000mAh lithium-ion battery, and belt clip included
  • MIL-STD 810C, 810D, 810E, 810F, 810G, and IP52-rated for water resistance
  • Built-in VOX, privacy talk, key-lock/super-lock, compander feature, battery saver, 10-call alert tone, and busy channel lockout
  • Compatible with other UHF business radios
UPC: 019048218315 In the Box Kenwood ProTalk XLS TK-3230DX 6-Channel UHF Two-Way Business Radio

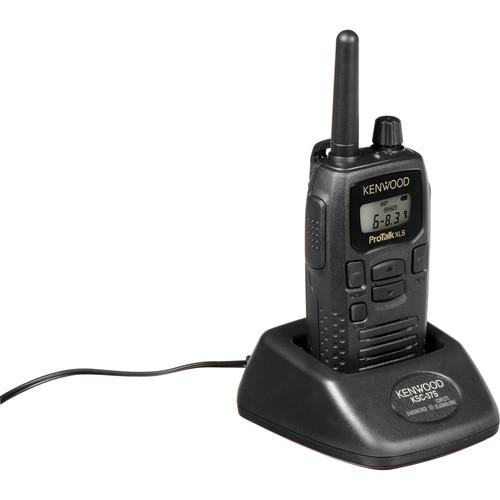

  • Fast Charger
  • 2,000mAh Li-ion Battery
  • Belt Clip
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Kenwood ProTalk XLS TK-3230DX 6-Channel UHF Two-Way Business Radio in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Kenwood TK-3230DX Specs

    Band UHF
    Output Power 0.5-1.5 W
    Channels 6
    Privacy Codes 207 (39 QT and 168 DQT)
    Range Open Areas: Up to 5 miles (8 km)
    Residential Areas (Near Buildings): Up to 1.5 miles (2.4 km)
    Indoor: Up to 17 floors
    Inside Steel/Concrete/Reinforced Buildings: Up to 225,000 ft² (20,900 m²)
    Frequencies 99 pre-stored frequencies can be set to any channel
    Display Type 4-digit, 7-segment LCD
    Microphone/Speaker Built-in
    Connectors External microphone jack
    External speaker jack
    Scanning Channel scan button
    Battery Type 2000 mAh lithium-ion battery
    Battery Life Power Saver On: Up to 18 hours
    Power Saver Off: Up to 14 hours
    Battery Charging Time Approximately 2.5 hours
    Battery Level Indicator 3-segment on LCD screen
    Military Specification MIL-STD 810C, 810D, 810E, 810F, and 810G
    IP Rating IP52
    Standards FCC ID K44478600
    Dimensions 2.1 x 4.1 x 1.2" (52 x 103.5 x 29.6 mm)
    Weight 5.5 oz (155 g), with battery
    Package Weight 1.295 lb
    Box Dimensions (LxWxH) 9.15 x 9.05 x 3.05"
