Kramer VM-22HDMI 2 x 1:2 HDMI

Search your instruction manual in PDF to download

User Manual for Kramer VM-22HDMI 2 x 1:2 HDMI Distribution Amplifier

Click to enlarge the picture
Kramer VM-22HDMI 2 x 1:2 HDMI Distribution Amplifier Contents of the user manual for the Kramer VM-22HDMI 2 x 1:2 HDMI
  • Product category: Distribution Amplifiers (DA's) Kramer
  • Brand: Kramer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Kramer Distribution Amplifiers (DA's)

Kramer VM-22HDMI 2 x 1:2 HDMI Distribution Amplifier Kramer VM-22HDMI 2 x 1:2 HDMI Distribution Amplifier
User manual for the Kramer VM-22HDMI 2 x 1:2 HDMI contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Kramer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!



Product description

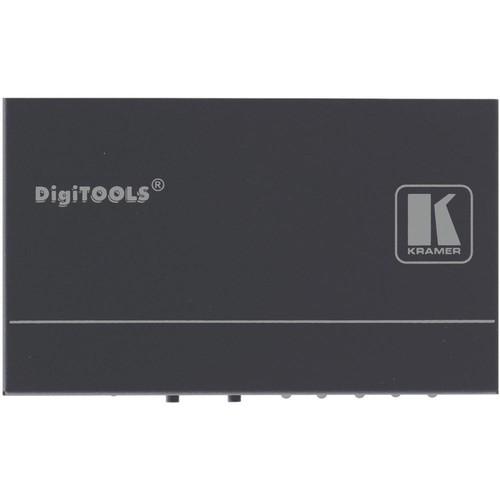

The VM-22HDMI 2 x 1:2 HDMI Distribution Amplifier from Kramer allows you to switch between (2) HDMI inputs and distribute the selected source on (2) identical outputs. The signal is reclocked and equalized to maintain integrity and achieve greater transmission distances.
  • This unit offers a maximum data rate of 2.25Gbps
  • It is HDCP-compliant
  • Enhanced EDID (Extended Display Identification Data) can store a separate EDID for each input in non-volatile memory, as well as save a default EDID if one is not stored, both of which allow for easier reconnection to the source
  • LED indicators provide a visual indicator of line status
  • Switching can be controlled on the front panel or with an IR remote control
  • Kramer's proprietary re-Klocking & Equalization Technology rebuilds the digital signal integrity to travel longer distance
  • This device belongs to the Compact DigiTOOLS Series and up to (3) of these units can be mounted side by side in 1U of rack space with the optional RK-3T rack adapter
In the Box Kramer VM-22HDMI 2 x 1:2 HDMI Distribution Amplifier
  • IR Remote Control
  • Power Supply
  • Bracket Installation Kit
  • Seven-Year Warranty Against Defects in Material & Workmanship
  • User Manual PDF 763.4kbbteaywbwxvdwat Table of Contents




    Upload User Manual

    Have you got an user manual for the Kramer VM-22HDMI 2 x 1:2 HDMI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    Kramer VM-22H Specs

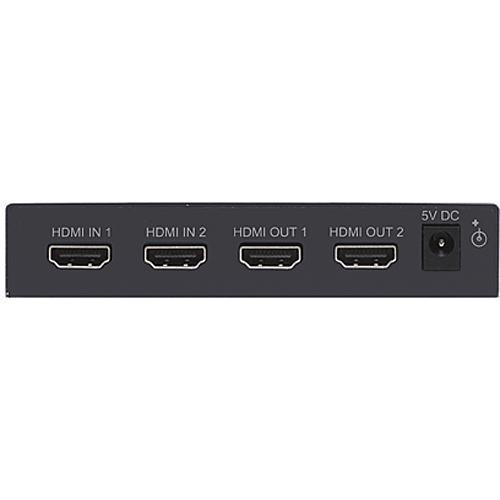

    Inputs (2) HDMI
    Outputs (2) HDMI
    Bandwidth Supports up to 2.25Gbps bandwidth per graphic channel
    Standards Supports HDMI 1.3 and HDCP

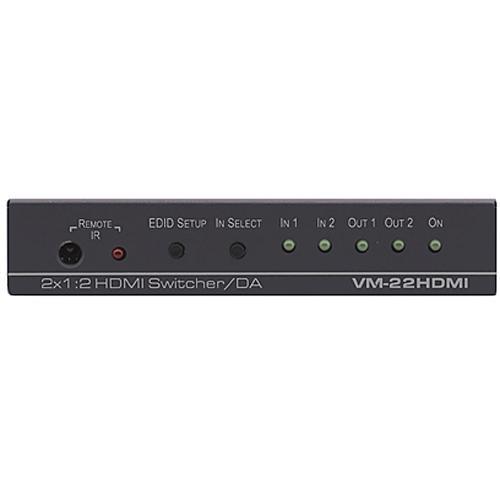

    Control EDID SETUP button, input select button
    Indicators IN 1, IN 2, OUT 1, OUT 2, and ON LEDs
    Power 5VDC, 910mA
    Dimensions (HxWxD) 0.96 x 4.7 x 2.8" (2.44 x 11.94 x 7.11cm)
    Weight 0.67 lbs (0.3kg)
    Package Weight 0.8 lb
    Box Dimensions (LxWxH) 9.1 x 4.9 x 3.5"
