Lectrosonics UCR411A Digital Hybrid Wireless Compact

Search your instruction manual in PDF to download

User Manual for Lectrosonics UCR411A Digital Hybrid Wireless Compact Receiver

Click to enlarge the picture
Lectrosonics UCR411A Digital Hybrid Wireless Compact Receiver Contents of the user manual for the Lectrosonics UCR411A Digital Hybrid Wireless Compact
  • Product category: Wireless Receivers Lectrosonics
  • Brand: Lectrosonics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lectrosonics Wireless Receivers

Lectrosonics UCR411A Digital Hybrid Wireless Compact Receiver Lectrosonics UCR411A Digital Hybrid Wireless Compact Receiver
User manual for the Lectrosonics UCR411A Digital Hybrid Wireless Compact contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lectrosonics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lectrosonics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lectrosonics product will considerably shorten its lifespan!



Product description

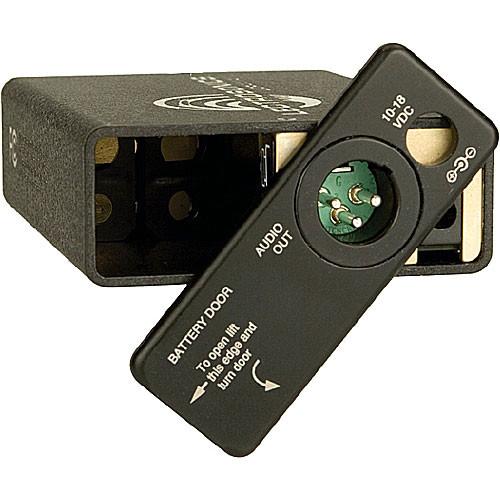

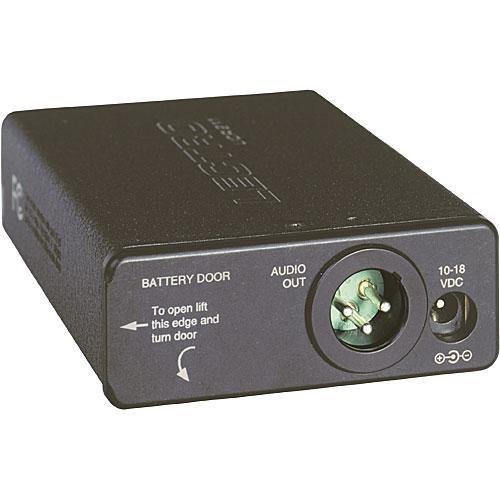

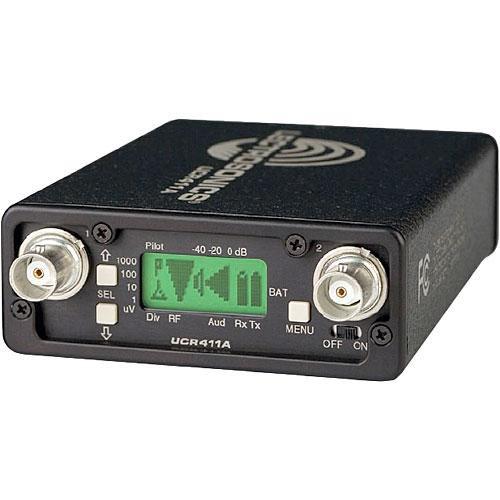

The UCR411A Digital Hybrid Wireless Compact Receiver from Lectrosonics is a portable, camera mountable receiver designed for professional outdoor or indoor audio applications. It can be used when paired with a transmitter and microphone to capture audio for ENG (electronic news gathering), and EFP (electronic field production) functions, and more.All settings are made from the front panel with an LCD interface, making the unit ideal for use in Quad Paks, on sound carts, in portable bags, and in rackmount multi-couplers. The receiver is compatible with all 400 series wireless transmitters and provides 256 selectable UHF frequencies across a 25.6 MHz tuning range. SmartDiversity reception reduces RF interference and dropout and a built-in RF spectrum analyzer searches across the entire 25.6 MHz tuning range, locating the strongest possible frequencies in the area.Furthermore, a balanced XLR output provides maximum output gain with minimal noise and the receiver is powered by two internal 9V batteries or external DC power supply. The machined aluminum housing and panels are surfaced with electrostatic powder-coated and anodized finishes with laser etched markings to withstand the rigors of field production. Note: For system compatibility, the component's frequency must match your existing system/component frequency.
    Digital Hybrid Technology
  • 24-bit digital audio stream is decoded at the receiver resulting in greater operating range without noise and artifacts caused by analog compandor circuits.
    256 Selectable Frequencies
  • The receiver offers 256 selectable UHF frequencies over a 25.6 MHz range.
    SmartDiversity Diversity Reception
  • The UCR411 uses Lectrosonic's SmartDiversity design analyzes incoming audio signal to determine the optimum timing for phase switching. The result is minimal noise and dropout due to RF interference.
    SmartNR
  • Lectrosonics SmartNR (Noise Reduction) automatically allocates noise reduction by attenuating audio signal that match a calculated, statistical profile. The result enhances clarity and intelligibility while eliminating noise.
In the Box Lectrosonics UCR411A Digital Hybrid Wireless Compact Receiver (Frequency Block 23)
  • 2 x BNC Antenna
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lectrosonics UCR411A Digital Hybrid Wireless Compact Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lectrosonics UCR411A-23 Specs

    RF Carrier Frequency Range Block 23: 588.8 to 614.3 MHz
    Frequency Adjustment Range 25.5 MHz in 100 kHz steps
    Type of Receiver Triple conversion, superheterodyne, 244 MHz, 10.7 MHz, and 300 kHz
    Frequency Stability
