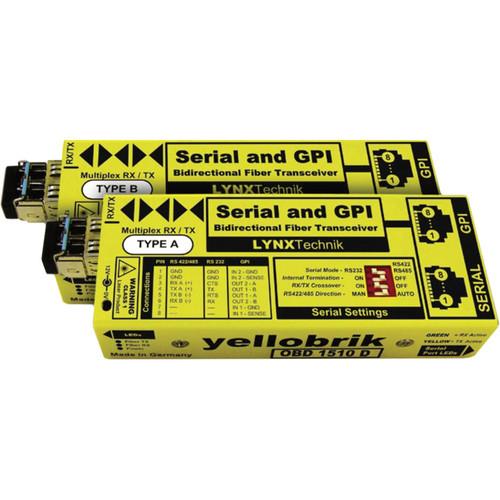

User Manual for Lynx Technik AG OBD 1510 D RS232 422 485 Serial and GPI Bi-directional Fiber Transceiver Click to enlarge the picture
Contents of the user manual for the Lynx Technik AG OBD 1510 D
- Product category: Video Extenders & Repeaters Lynx Technik AG
- Brand: Lynx Technik AG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lynx Technik AG Video Extenders & Repeaters
|
User manual for the Lynx Technik AG OBD 1510 D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lynx Technik AG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lynx Technik AG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lynx Technik AG product will considerably shorten its lifespan!
|
Product description The Lynx Technik AG OBD 1510 D Serial and GPI Bi-directional Fiber Transceiver consists of a pair of multi-function modules (type A and B) which extend the reach of serial RS-232, RS-422, or RS-485 as well as two GPI (general purpose interface) up to 6.2 mi (10km) over a single bi-directional fiber link (WDM). A single RJ-45 electrical serial connection can be configured for RS-232, RS-422, or RS-485 serial standards. A separate RJ-45 connector is provided for two electrical GPI inputs and outputs. Serial communications and GPI are transmitted and extended over the same fiber link. The OBD 1510 D is completely agnostic to the serial protocol used, and supports all standard protocols and proprietary protocols at data rates from 300 to 460k baud (auto sensing and auto adjusting). The integrated dip switch provides precise control over the serial mode of operation with selections for the serial standard, serial termination, RX/TX crossover, and RS422/485 data direction (automatic or manual). Data activity LEDs are provided for the serial port and the GPI port under the respective RJ-45 connectors. The OBD 1510 D also supports mixing and matching of serial standards. For example, the transmitting module can have a RS-232 input and the receiving module can be set for RS-422 output. The OBD 1510 D is completely plug-and-play, hot pluggable, and no special software drivers are required. - Bi-directional send/receive over single fiber link
- Extend serial and GPI connections up to 6.2 mi (10km)
- Supports serial RS-232 or RS-422 or RS-485 communication
- Single-mode fiber up to 6.2 mi (10km)
- LC/PC duplex fiber connections
- Switchable RX/TX crossover
- Automatic or manual data direction
- Switchable end of line termination
- Plug-and-play-no PC software drivers needed
- Supports all serial protocols (standard or proprietary)
- 300 to 460k baud (auto sensing and auto adjusting)
In the Box Lynx Technik AG OBD 1510 D RS232/422/485 Serial and GPI Bi-directional Fiber Transceiver 12VDC Power Supply Wall Mounting Brackets Plastic Transport Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Lynx Technik AG OBD 1510 D RS232 422 485 Serial and GPI Bi-directional Fiber Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLynx Technik AG O BD 1510 D Specs | Serial Input/Output | EIA/ETA RS-232C / RS-422 / RS-485 (selectable) Connector - RJ-45 Baud rate - Auto sense and auto adjust from 300 to 460k Serial setting dip switch provides settings for:Select RS232/RS422/485 modesSelect serial termination (for end of line)RX/TX crossover to flip the RX and TX if neededSet RS-422/485 data direction to automatic or manual if neededLED status indicators (under RJ-45 connector) for Serial RX and TX activity RS422/485 Maximum number of electrical nodes = 25 ESD protection for up to 26 kV | | GPI | 2 x general purpose inputs + 2 x general purpose outputsConnector: RJ-45 GPI Inputs:• External passive closure between pins (short) to trigger• Max input switching frequency 25 Hz (50 operations/sec)• Input insulation 3.75 kV GPI outputs:• Internal contact closure (relay)• Max switching frequency 25 Hz (50 operations/sec)• Max switching power 220 VDC / 0.25 A or 250 VAC / 0.25 A• Output insulation 3.75 kV LED status indicators (under RJ-45 connector) GPI Input 1 activityGPI Input 2 activityGPI Output 1 activityGPI Output 2 activity | | Fiber I/O | 1 x fiber optic I/O port (bidirectional)Simplex (single mode) using LC/PC ConnectionWDM using 1,310 and 1,550 nm wavelengthsOptical budget = 18 dBMaximum distance: 6.2 mi (10.0 km)RX and TX activity LEDs on side of module next to fiber I/O | | Power | +12 VDC at 0.25 A power supplies (included)
Supports external power from 9 to 14 VDC
Power LED on side of module | | Dimensions (L x W x H) | Each Unit: 4.72 x 1.65 x 8.66" (12.00 x 4.20 x 22.00 cm) | | Weight | Each Unit: 4.4 oz (125.0 g) | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 10.7 x 9.1 x 3.5" |
