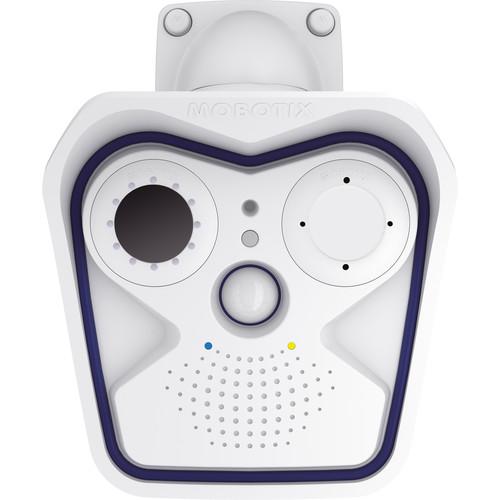

User Manual for MOBOTIX M16 Outdoor Network Thermographic Camera with T237 Thermal Lens Click to enlarge the picture
Contents of the user manual for the MOBOTIX M16 Outdoor Network Thermographic Camera
- Product category: Security Cameras MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Security Cameras
|
User manual for the MOBOTIX M16 Outdoor Network Thermographic Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description The M16 Outdoor Network Thermographic Camera with T237 Thermal Lens from MOBOTIX is equipped with an uncooled microbolometer image sensor to capture 336 x 252 resolution video. The T237 thermal lens provides a 17° horizontal field of view and a 7.5 to 13.5µm IR sensitivity range. A built-in microphone and speaker make two-way audio communication possible. Recorded footage is stored on an internal 4GB microSD card. Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
Video management for this device is possible thanks to the MxManagementCenter VMS for Windows & Mac PCs, and the MOBOTIX app for iOS devices. This camera is IP66-rated for outdoor use. - Dual lens system enables you to add an optional 6MP optical sensor module (available separately) to the factory-assembled thermal sensor
- Temperature measurement of 2 x 2 pixels in the center of an image (thermal spot)
- MxPEG, MJPEG, and H.264 simultaneous triple streaming
- Intelligent 3D motion detection in complete darkness
- Genetec protocol integration
- Snapshot recording (pre/post-alarm images)
- Continuous recording with audio
- Time controlled flexible event logic
- Weekly schedules for recordings and actions
- Event video and image transfer via FTP and email
- Playback and QuadView via web browser
- Bidirectional audio in browser
- Animated logos on the image
- Master/slave communication
- Customized voice messages
- VoIP telephony (audio/video, alert)
- Remote alarm notification (network message)
- Programming interface (HTTP-API)
- MxMessageSystem for sending and receiving MxMessages
- Video analysis includes video motion detector and MxActivitySensor
- Event trigger for temperatures above or below a limit between -40 to 1022°F
- MxManagementCenter VMS for Windows & Mac PCs
- MOBOTIX mobile app compatible with iOS 6.0 and above
- 2 x I/O and RS-232 interfaces via optional accessories available separately
- Wall, pole, or ceiling mountable
- Wall and ceiling mount included
In the Box MOBOTIX M16 Outdoor Network Thermographic Camera with T237 Thermal Lens Mounting Hardware 2 x Allen Wrenches Module Key VarioFlex Wall and Ceiling Mount with Rubber Sealing 1.64' Ethernet Patch Cable Blind Module 4GB microSD Card (Installed) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX M16 Outdoor Network Thermographic Camera with T237 Thermal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX M16 Specs | Image Sensor | Thermal, uncooled microbolometer | | Thermal Resolution | 336 x 252 | | Horizontal Field of View (degree) | 17° | | Vertical Field of View (degree) | 13° | | IR Sensitivity Range | 7.5 to 13.5 µm | | Thermal Sensitivity (NETD) | 50 mK, <79 mK | | Thermal Image Representation | False colors or B&W | | Temperature Measuring Range | High Sensitivity: -40 to 320°F / -40 to 160°C
Low Sensitivity: -40 to 1022°F / -40 to 550°C | | Measuring Methods | Temperature measurement via camera in the center of the image, 2 x 2 pixels | | Temperature Accuracy | ±-4°F / ±-20°C | | Microprocessor | i.MX 6 Dual Core including GPU (1 GB RAM, 512 MB flash) | | Built-In Microphone | Yes | | Built-In Speaker | Yes | | Wideband Audio | 16-bit / 16 kHz wideband audio (Opus codec) for live and audio messages | | PIR Sensor | Yes | | Temperature Sensor | Yes | | Tamper Detection | With future software update | | Video Codecs | MxPEG, MJPEG, H.264
Bandwidth limitation available, output image format up to QXGA for H.264 | | Streaming Capability | Triple streaming
Multicast stream via RTSP | | Maximum Resolution | Dual Sensors: 2x 6 MP / 6144 x 2048 | | Frame Rates | 9 fps maximum for thermal images, thermal overlay, and dual images (thermal & optical)
MxPEG: 6 fps at 2x 6 MP / 6144 x 2048, 12 fps at 3072 x 2048, 15 fps at 2592 x 1944, 24 fps at 2048 x 1536, 34 fps at 1920 x 1080, 42 fps at 1280 x 720
MJPEG: 2 fps at 2x 6 MP / 6144 x 2048, 4 fps at 3072 x 2048, 5 fps at 2592 x 1944, 9 fps at 2048 x 1536, 13 fps at 1920 x 1080, 26 fps at 1280 x 720
H.264: 20 fps at 2048 x 1536, 25 fps at 1920 x 1080 | | Storage | Internal 4 GB microSD card (included), externally via USB device and NAS, different streams for live image and recording, MxFFS with archive function, pre-alarm an post-alarm images, monitoring recording with failure reporting | | Number of Images | Number of Images Using 4 GB microSD Card:
CIF: 250,000
VGA: 125,000
HD: 40,000
QXGA: 20,000
6 MP: 10,000 | | Security | User and group management, SSL connections, IP-based access control, IEEE 802.1x, intrusion detection, digital image signature | | Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, SFTP, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server), G.711 (PCMA and PCMU), and G.722 | | Power Consumption | Single Thermal Operation (1x Thermal):
5.5 W typical
Mixed Operation (1x Thermal, 1x Optical):
6.5 W typical | | PoE Class | IEEE 802.3af class 2 or 3 (variable)
Factory setting, class 3 (required for thermal operation) | | Interfaces | Ethernet (MxRJ45), USB
RS-232 with MX-232-IO-Box accessory available separately | | Mounting Options | Wall, pole, or ceiling (wall and ceiling mount included) | | Mean Time Between Failures (MTBF) | >80,000 hours | | IP Rating | IP66 | | IK Rating | IK06 with 2nd 6 MP sensor module | | Certifications | EN55032:2012, EN55022:2010, EN55024:2010, EN61000-6-1:2007, EN 61000-6-2:2005, EN61000-6-3:2007+A1:2011, EN61000-6-4:2007+A1:2011, AS/NZS CISPR22:2009+A1:2010, CFR 47 FCC Part 15 B | | Housing | Material: PBT-30GF
Color: White | | Dimensions (H x W x D) | 8.3 x 6.2 x 8.1" / 210 x 158 x 207 mm | | Weight | 3 lb / 1320 g |
