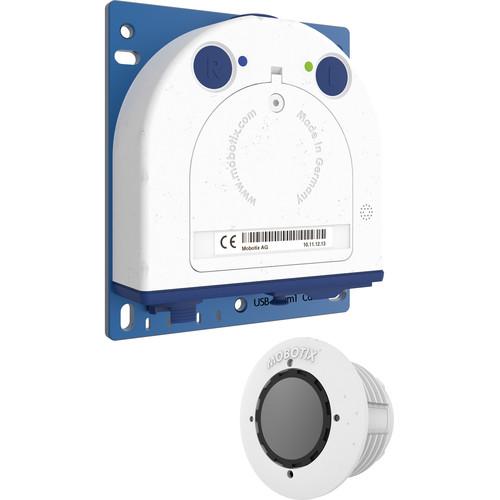

Product description The S16 DualFlex Complete Cam Set 1 from MOBOTIX contains everything you need to monitor a large indoor or outdoor area. The set comes with the S16D DualFlex camera body, a B016 day sensor module, a 6.6' sensor cable, a 1.65' Ethernet patch cable, an extension kit, and a replacement dome. A 4GB microSD card is also preinstalled to store video. The housing is IP66- and IK07-rated for protection against dust, water, and impact. - S16 DualFlex Outdoor Network Camera Body (No Lens) The S16 DualFlex Outdoor Network Camera Body from MOBOTIX is a camera module that supports up to two 6MP sensor modules (available separately). The camera comes with a 4GB microSD card to store video and external ports including Ethernet, USB, and audio. The housing is IP66-rated for protection against dust and water.
- Up to 3072 x 2048 resolution video at up to 8 fps with compatible lens module (available separately)
- Built-in 4GB microSD card for local storage
- MxActivitySensor for intelligent 3D motion detection
- Two-way audio communication
- Temperature sensor and motion detection
- Remote access and control via Windows and Mac on a web browser
- 6MP Day Sensor Module with B016 Lens (White) The white 6MP Day Sensor Module with B016 from MOBOTIX features an integrated lens, image sensor, and microphone. This sensor module comes preassembled for ceiling or wall mounting and has a quick connector for easy connection to MOBOTIX DualFlex or AllroundDual camera modules. It is IP66-rated for protection against dust and water, making it suitable for outdoor use.
- B016 lens with f/2.0 aperture
In the Box Bundle Items S16 DualFlex Outdoor Network Camera Body (No Lens) - 4GB microSD Card Preinstalled
- 1.6' Ethernet Patch Cable
6MP Day Sensor Module with B016 Lens (White) adcfefab
Also Includes - 6.6' Sensor Cable
- 1.65' Ethernet Patch Cable
- Extension Kit
- Replacement Dome
Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX S16 DualFlex Complete Cam Set 1 6MP Outdoor Network Camera Body with B016 Day Sensor Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - S16 DualFlex Outdoor Network Camera Body (No Lens)
| Minimum Illumination | With Day Sensor (Color): 0.1 lux at 1/60 sec, 0.005 lux at 1 sec
With Night Sensor (B&W): 0.02 lux at 1/60 sec, 0.001 lux at 1 sec Sensor modules available separately | | Processor | i.MX 6 dual-core including GPU (1 GB RAM, 512 MB flash) | | Codec | H.264: Bandwidth limitation available, output image format up to QXGA | | Image Compression | MxPEG, MJPEG, H.264 | | Streaming | Multi-streaming, multicast stream via RTSP | | Maximum Image Resolution | Optical Sensor Module: 6144 x 2048 (2 x 6 MP)
Thermal Sensor Module: 336 x 252, scalable up to 3072 x 2048 (6MP) | | Maximum Frame Rate | MxPEG: 42 fps at 1280 x 720, 34 fps at 1920 x 1080, 24 fps at QXGA, 15 fps at 5 MP, 12 fps at 6 MP, 6 fps at 2 x 6 MP
MJPEG: 26 fps at 1280 x 720, 13 fps at 1920 x 1080, 9 fps at QXGA, 5 fps at 5 MP, 4 fps at 6 MP, 2 fps at 2 x 6 MP
H.264: 25 fps at 1920 x 1080, 20 fps at QXGA
With Thermal and Optical Sensor: 9 fps | | Image Formats | Freely configurable format 4:3, 8:3, 16:9 or customized format (image cropping), such as 2592 x 1944 (5 MP), 2048 x 1536 (QXGA), 1920 x 1080, 1280 x 960 | | Number of Images | With 4 GB microSD:
CIF: 250,000
VGA: 125,000
1080p: 40,000
QXGA: 20,000
6 MP: 10,000 | | Audio | Two-way
16-bit, 16 kHz high-definition wideband audio (Opus codec) | | Zoom | Digital | | Pan | Digital | | Memory Card Support | 4 GB microSD card included | | Storage | microSD card slot, externally via USB device and NAS, different streams for live image and recording, MxFFS with archive function, pre-alarm an post-alarm images, monitoring recording with failure reporting | | Interfaces | MxRJ45 and LSA+ rail, USB, external microphone, external speaker | | Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, SFTP, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server), G.711 (PCMA and PCMU) and G.722 | | VMS Software | MxManagementCenter video management software, MOBOTIX app | | Functions | Genetec protocol integration
Programmable exposure zones
Snapshot recording (pre/post-alarm images)
Continuous recording with audio
Event recording with audio
Time and event control/flexible event logic
Weekly schedules for recordings and actions
Event video and image transfer via FTP and email
Playback and QuadView via web browser
Bidirectional audio in browser
Animated logos on the image
Master/Slave functionality
Privacy zone scheduling
Customized voice messages
VoIP telephony (audio/video, alert)
Remote alarm notification (network message)
Programming interface (HTTP-API)
Temperature sensor
Shock detection | | MTBF | >80,000 hours | | Certifications | EN55022:2010, EN55024:2010, EN50121-4:2006, EN61000-6-1:2007, EN 61000-6-2:2005, EN61000-6-3:2007+A1:2011, EN61000-6-4:2007+A1:2011, AS/NZS CISPR22:2009+A1:2010, CFR47 FCC Part 15B | | Power Consumption | <7 W | | Power Supply | PoE (IEEE 802.3af), PoE Class 2 or 3 variable | | IP Rating | IP66 | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Dimensions | 4.5 x 5.1 x 1.3" (115 x 130 x 33 mm) | | Weight | 0.95 lb (0.43 kg) | | | | Box Dimensions (LxWxH) | 8.9 x 7.6 x 3.3" | - 6MP Day Sensor Module with B016 Lens (White)
| Compatibility | MOBOTIX S15, S16, M15, and M16 camera modules | | Sensor | Day | | Resolution | 3072 x 2048 (6 MP) | | Horizontal Angle of View | Horizontal: 180°
Vertical: 180° | | IP Rating | IP66 | | Dimensions | 4.1 x 2.7 x 4.1" (10.5 x 6.8 x 10.5 cm) | | Weight | 5.1 oz (144 g) | | | | Box Dimensions (LxWxH) | 4.3 x 4.1 x 2.7" |
