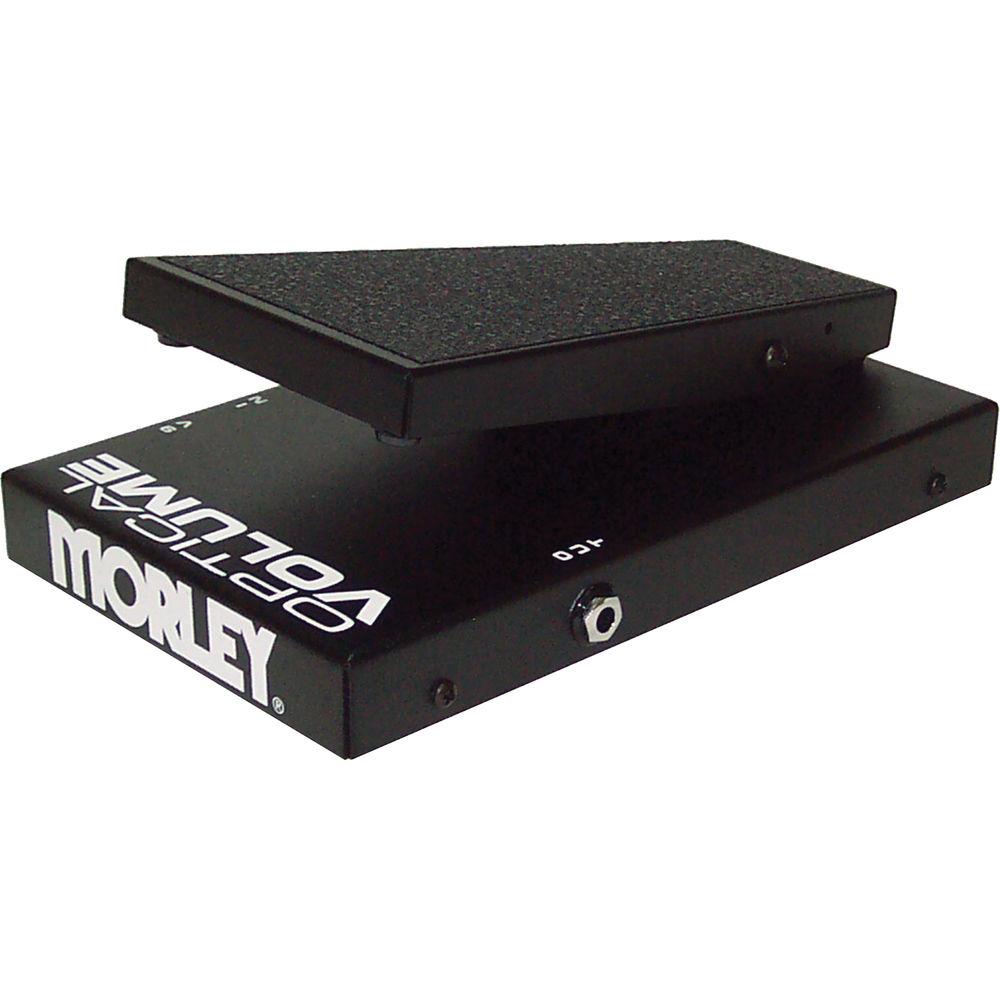

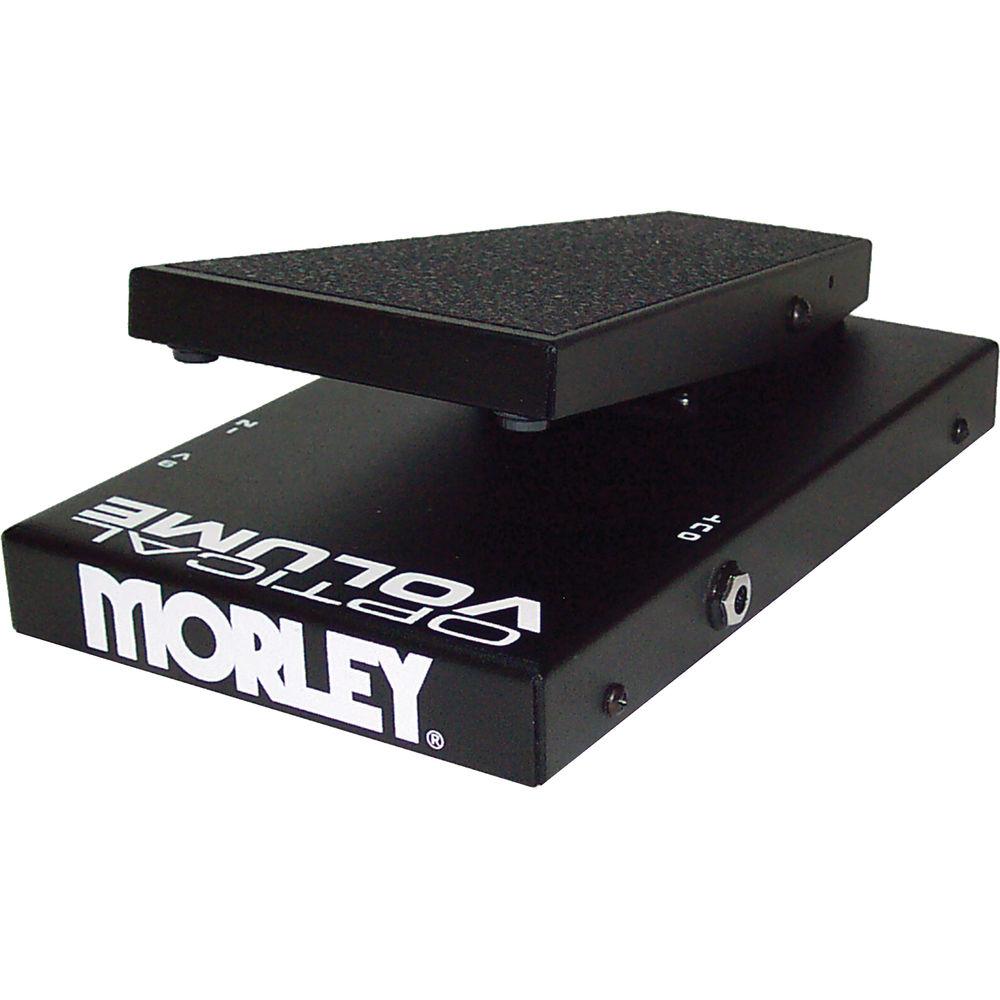

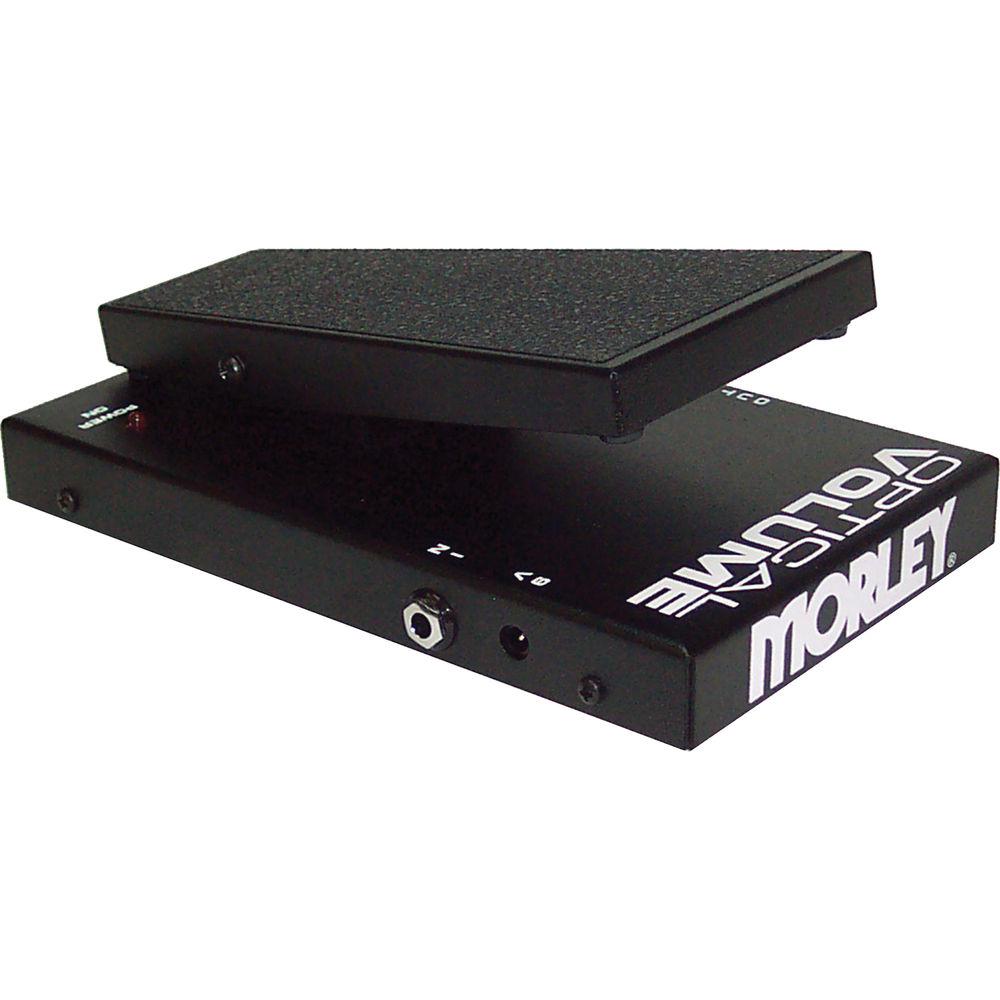

Morley EOV Optical Volume Pedal

Search your instruction manual in PDF to download

User Manual for Morley EOV Optical Volume Pedal

Click to enlarge the picture
Morley EOV Optical Volume Pedal Contents of the user manual for the Morley EOV Optical Volume Pedal
  • Product category: Effects Pedals Morley
  • Brand: Morley
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Morley Effects Pedals

Morley EOV Optical Volume Pedal Morley EOV Optical Volume Pedal Morley EOV Optical Volume Pedal
User manual for the Morley EOV Optical Volume Pedal contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Morley product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Morley user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Morley product will considerably shorten its lifespan!



Product description

The EOV from Morley is a volume pedal which relies on an electro-optical design, thus eliminating potentiometers which can sometimes introduce unwanted noise into your signal. It includes a 1/4" input jack and a 1/4" output jack for your instrument, and provides a continuous audio taper for smooth control for volume swells. Featuring LED power status indication, the pedal runs on a single 9V battery, though it can also accept Morley’s 9 VDC AC adapter, available separately. The EOV is intended for use with guitar, bass, keyboards, or any instrument that plugs into an amplifier.
    Electro-Optical Mechanism Explained
  • An LED (Light Emitting Diode) shines on an LDR (Light Dependent Resistor). A shutter then alters light between the two components controlling the function, and this is how the change in volume occurs. This Electro-Optical design ensures smooth pedal control without unwanted noise from potentiometers, which conventional volume pedals often use.
UPC: 664101000538 In the Box Morley EOV Optical Volume Pedal
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Morley EOV Optical Volume Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Morley EOV Specs

    Connections 1 x 1/4" instrument input, phone type
    1 x 1/4" instrument output, phone type
    Indicators Power on, LED on
    Power 9 V Battery or 9 VDC 300 mA regulated power supply (center pin negative)
    Current Draw 6 mA @ 9 VDC
    Dimensions (L x W x H) 9.1 x 5.9 x 2.8" / 23.2 x 14.9 x 7.0 cm
    Weight 3.3 lb / 1.5 kg
    Package Weight 3.65 lb
    Box Dimensions (LxWxH) 9.6 x 6.3 x 3.0"
