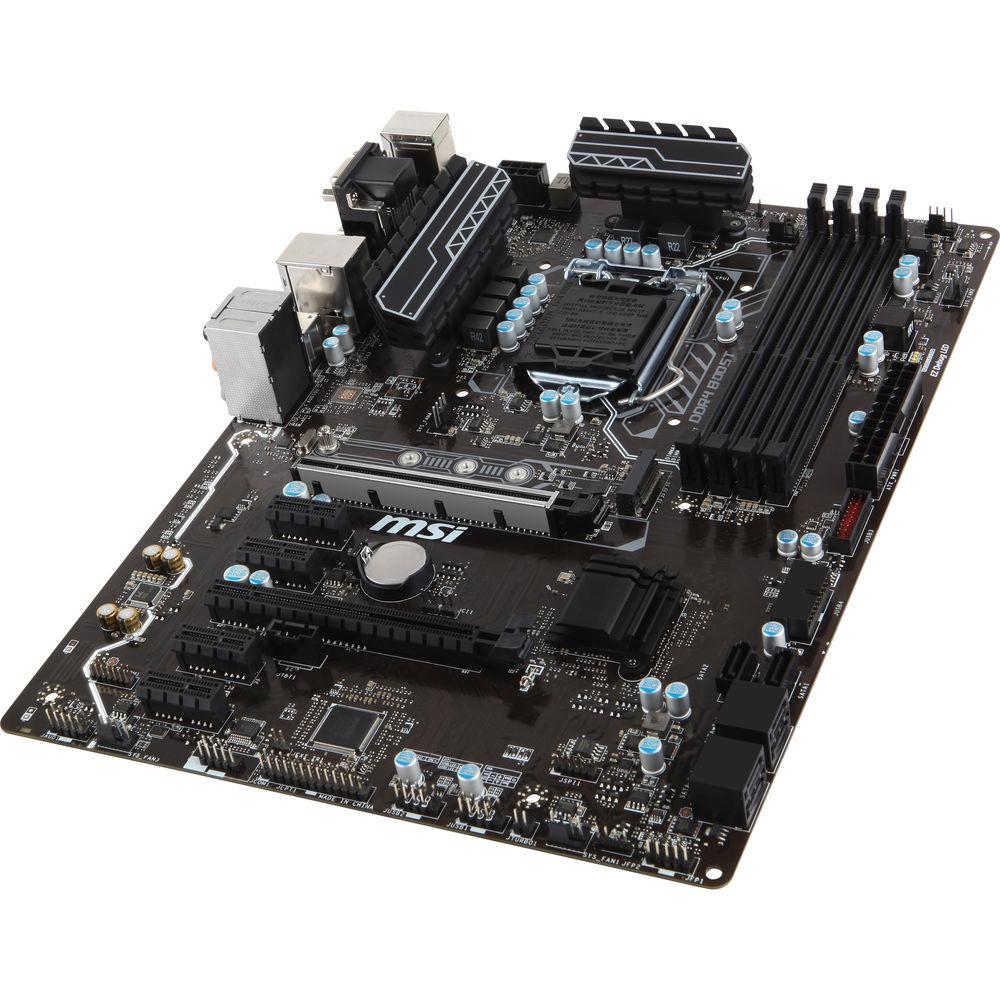

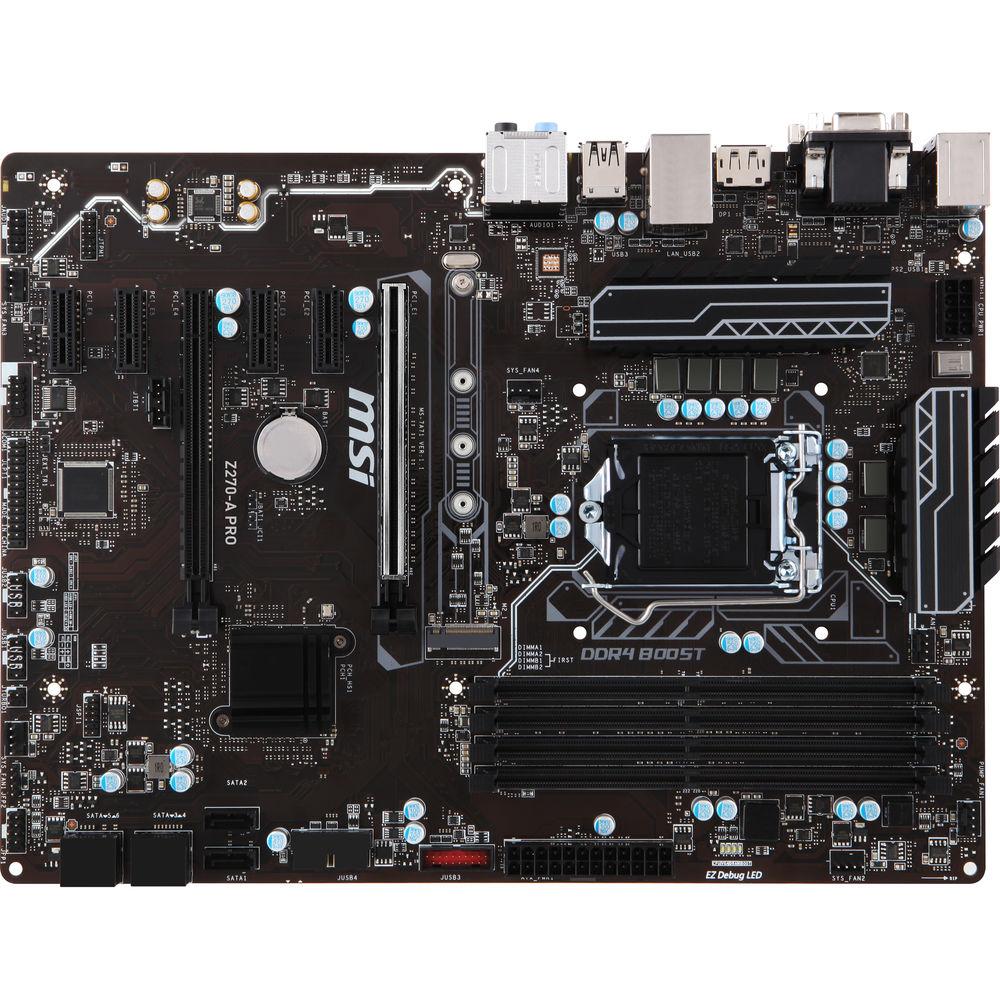

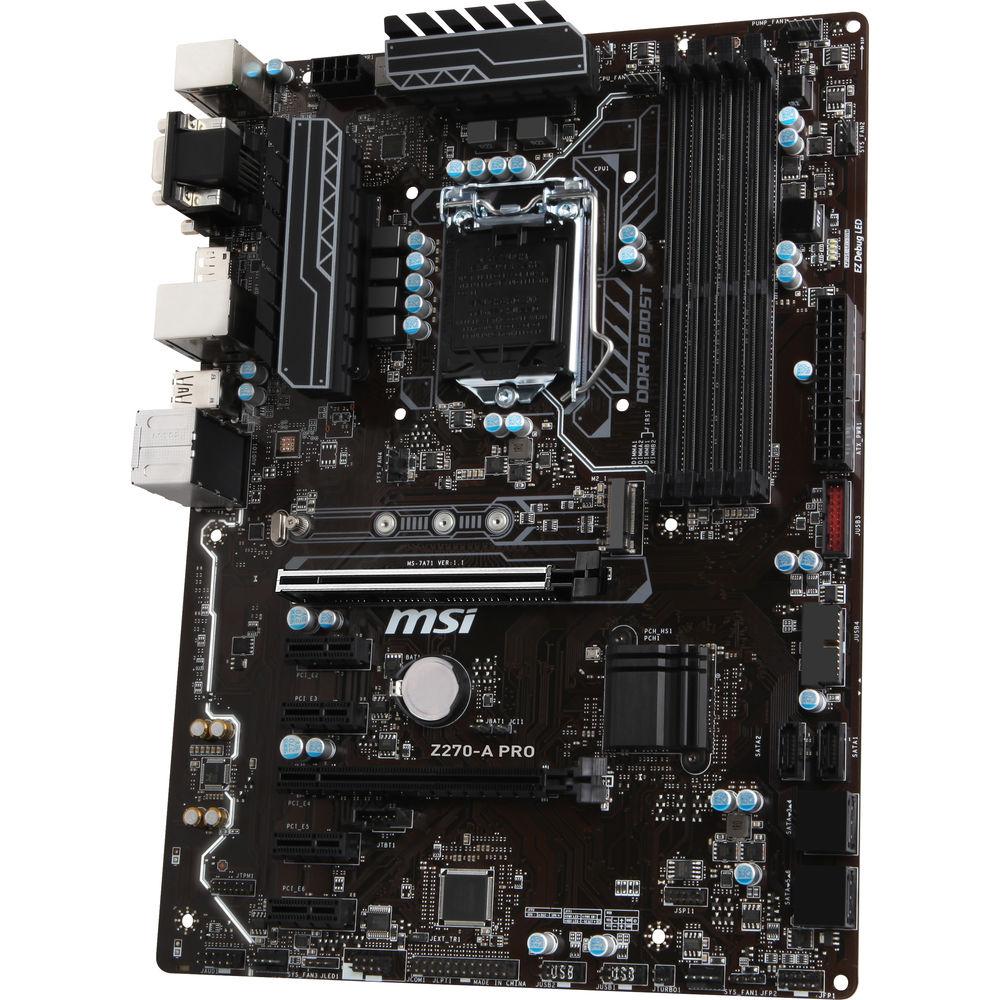

Product description CES 2017: MSI Launches New B250, H270, and Z270 Motherboards Read More The MSI Z270-A Pro ATX Motherboard is built with durability features along with an Intel Z270 chipset and LGA1151 socket to create a reliable business desktop solution, which runs on a 6th- or 7th-generation Intel processor. This motherboard supports up to 64GB of DDR4 memory modules, via four DIMM slots, as well as six SATA-based storage and optical drives. For performance, you can overclock your memory chips to speeds of up to 3800 MHz and install two dedicated graphics cards and then link them with AMD CrossFire technology. In addition, an M.2 slot is on board to accommodate a PCIe-based SSD, which can operate faster than an SSD with a SATA interface.

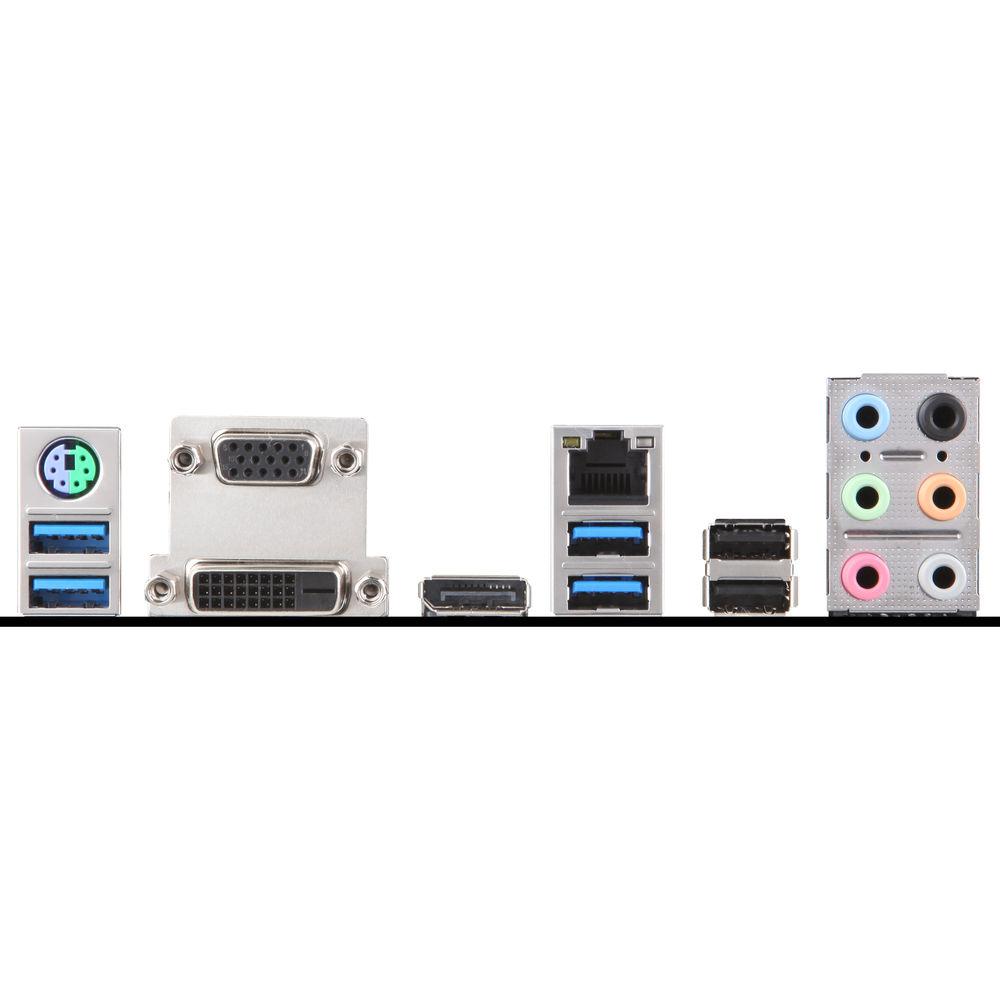

The Z270-A Pro motherboard comes outfitted with four USB 3.0 and two USB 2.0 ports to access your printers, external storage drives, and other USB devices. Visuals can be deliver by an integrated Intel graphics chipset through the motherboard's DisplayPort, DVI-D, and VGA outputs. To access the network, MSI has equipped it with a Gigabit Ethernet port. Other notable connections include six audio jacks that surround you in 7.1-channel sounds utilizing a Realtek ALC892 audio processor. There's also a PS/2 port for your mouse or keyboard. If you need addition connections, four PCIe 3.0 x1 slots allow you to install sold-separately Wi-Fi adapter and USB cards. - Intel Z270 Chipset
- The Z270 chipset is designed to support Intel's 6th and 7th-generation of processors.
- Intel LGA1151 Socket
- This motherboard supports Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package. These processors come with integrated graphics, memory, and PCI-Express controllers to deliver onboard graphics, dual-channel DDR4 memory support, and PCI Express 3.0 lanes for graphics performance.
Additional Features - DDR4 Boost gives your DDR4 memory modules a performance increase
- Audio Boost rewards your ears with studio grade sound quality for a Hi-Fi experience
- EZ Debug LED provides an easy way to troubleshoot problems
- Turbo M.2 delivers speeds of up to 32 Gb/s
- Increase your USB and storage performance with the X-Boost tool
- Double ESD Protection features double-layer grounding mounting holes
- Military Class 5 and Guard Pro for enhanced protection and efficiency
- Click BIOS 5 comes with high-resolution scalable fonts, favorites, and search functions
UPC: 824142140994 In the Box MSI Z270-A Pro LGA1151 ATX Motherboard Driver and Utilities Disc I/O Shield 2 x SATA Cables Limited 2-Year Warranty Quick start Guide PDF 6.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the MSI Z270-A Pro LGA1151 ATX Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the MSI Z270-A Pro LGA1151 ATX Motherboard can be downloaded in PDF format at the link stated below.
Technical parametersMSI Z270-A Specs | | | Chipset | Intel Z270 | | CPU Socket | LGA 1151 | | | | USB | 4 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Display | 1 x DisplayPort
1 x DVI-D
1 x VGA | | Audio | 6 x 3.5 mm | | Ethernet / Controller | 1 x Realtek 8111H Gigabit | | PS/2 | 1 x Combo | | | | Memory Slots | 4 x 288-Pin | | Memory Support | DDR4 2133, 2400, 2600, 2800, 3000, 3200, 3600, 3800 MHz | | Maximum Capacity | 64 GB | | Channel Architecture | Dual Channel | | | | SATA | 6 x SATA III | | M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III) | | U.2 | None | | RAID Support | RAID 0, 1, 5, 10 | | | | Expansion Slots | 2 x PCIe 3.0 x16
4 x PCIe 3.0 x1 | | USB | 2 x USB 3.1 Gen 1 Header (Supports 4 USB Type-A Ports)
2 x USB 2.0 Header (Supports 4 USB Type-A Ports) | | Multi-GPU Support | 2-Way AMD CrossFireX | | Air Cooling | 1 x 4-Pin CPU
4 x 4-Pin System | | Liquid Cooling | 1 x 4-Pin Pump | | Power Connectors | 1 x 24-Pin Mainboard
1 x 8-Pin CPU | | Security | Chassis Intrusion, TPM Module | | LED Header | None | | Diagnostics | Clear CMOS | | Legacy | 1 x Parallel
1 x Serial | | | | I/O Connection Headers | AAFP | | | | Audio Codec | Realtek ALC892 (8-Channel) | | | | Form Factor | ATX | | Dimensions | 12.0 x 8.9" / 30.5 x 22.6 cm | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 13.6 x 10.6 x 2.6" |
