NSI Leviton DS8-12 8 Channel Dimmer

Search your instruction manual in PDF to download

User Manual for NSI Leviton DS8-12 8 Channel Dimmer Pack, 1200W Per Channel - 9600W - Stage Pin Connector

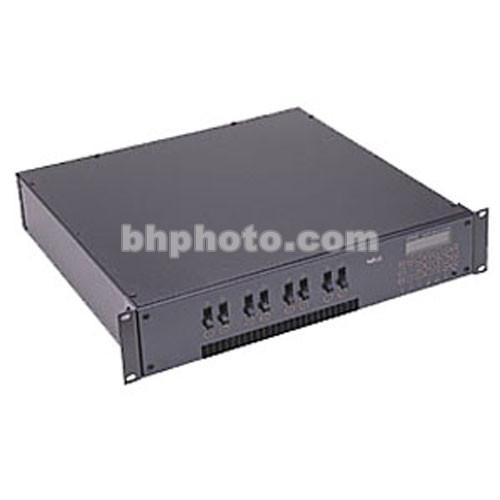

Click to enlarge the picture
NSI Leviton DS8-12 8 Channel Dimmer Pack, 1200W Per Channel - 9600W - Stage Pin Connector Contents of the user manual for the NSI Leviton DS8-12 8 Channel Dimmer
  • Product category: Dimmers NSI / Leviton
  • Brand: NSI / Leviton
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for NSI / Leviton Dimmers

User manual for the NSI Leviton DS8-12 8 Channel Dimmer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any NSI / Leviton product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!



Product description

This is the NSI/Leviton DS8-12 8 Channel Dimmer Pack 1200W Per Channel - 9600W - Stage Pin Connector (120VAC) It has a 20 function button keypad, programmable time fade presets and programmable bump buttons. It has dual control input: NSI Microplex (3 pin XLR), and DMX512 (5 pin XLR) for full versatility. A termination switch is mounted on the front panel. This 120 volt, 40 amp model has a stage pin (aka Bates) connector for electrical distribution boxes. Suggested users include touring groups or theatres where complete pack removal is difficult or impossible.
    Easy Maintenance
  • Dimmer and Control Modules are easily serviced using removable front panel while dimmer remains in rack.
    Easy to Read Display
  • 16 Character X 2 line backlit liquid crystal display.
    Safety
  • Magnetic circuit breakers and voltage regulation
    Digitally Controlled
  • Valid DMX and NSI Microplex Signal Indicators
    Analog Control
  • 0-10VDC Analog Control Inputs
    Calibration
  • Full On Test/Focus
    Compact
  • Occupies only 2- 19" wide rack spaces
In the Box NSI / Leviton DS8-12 8 Channel Dimmer Pack, 1200W Per Channel - 9600W - Stage Pin Connector (120VAC)
  • DMX512 Control Input (5 pin XLR)
  • NSI Micro-Plex Control Input (3 pin XLR)
  • NSI Luma-Net Architectural Control Input
  • 0-10VDC Analog Control Input
  • 120V AC power cord
  • 2 Year Manufacturer's Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the NSI Leviton DS8-12 8 Channel Dimmer Pack, 1200W Per Channel - 9600W - Stage Pin Connector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    NSI / Leviton NDS084021S0 Specs

    Channels 8x 1200W
    Maximum Power 9,600W
    2 Pole 40 amp power feed
    Filtering 400 Microsecond toroidal filtering
    Connector Stage pin
    Presets 400 Programmable time fade presets
    Dimming 10,000 AIC branch rated fully magnetic circuit breakers
    8 Channel/single phase power operation
    1 Output per dimmer
    Display Liquid crystal display (2 line backlit 16 character)
    Keypad 20 Button function keypad
    Input Power 120VAC
    Rack Space 2x 19" (48.26 cm)
    Dimensions 17.2 (Chassis width) x 17.15 x 3.5" (43.69 x 43.56 x 8.89 cm)
    19 (Total width) x 17.15 x 3.5" (43.69 x 43.56 x 8.89 cm)
    Weight Not specified by manufacturer
    Package Weight 39.5 lb
    Box Dimensions (LxWxH) 23.2 x 21.3 x 8.8"
